EKF CompactPCI CCM-BOOGIE User Manual

3u high performance coretm 2 duo cpu board

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Produkt-Datenblatt

Technische Daten, Spezifikationen

MEsstechnik fängt mit ME an.

Erwähnte Firmen- und Produktnamen sind zum Teil

eingetragene Warenzeichen der jeweiligen Hersteller.

Preise in Euro zzgl. gesetzl. MwSt. Irrtum und Änderung

vorbehalten.

www.meilhaus.de/infos/impressum.htm

Kontakt

Technischer und kaufmännischer Vertrieb, Preis

auskünfte, Angebote, TestGeräte, Beratung vor Ort:

Tel:

(0 81 41) 52 71-0

FAX: (0 81 41) 52 71-129

Aus dem Ausland:

Tel:

++49 - 81 41 - 52 71-0

FAX: ++49 - 81 41 - 52 71-129

E-Mail: sales@meilhaus.com

Internet:

www.meilhaus.com

Web-Shop:

www.MEsstechnik24.de | www.MEasurement24.com

Web KontaktFormular:

www.meilhaus.de/infos/Kontakt.htm

Per Post:

Meilhaus Electronic GmbH

Am Sonnenlicht 2

D-82239 Alling bei München

www.meilhaus.com

Table of Contents

Need help?

Do you have a question about the CompactPCI CCM-BOOGIE and is the answer not in the manual?

Questions and answers

Summary of Contents for EKF CompactPCI CCM-BOOGIE

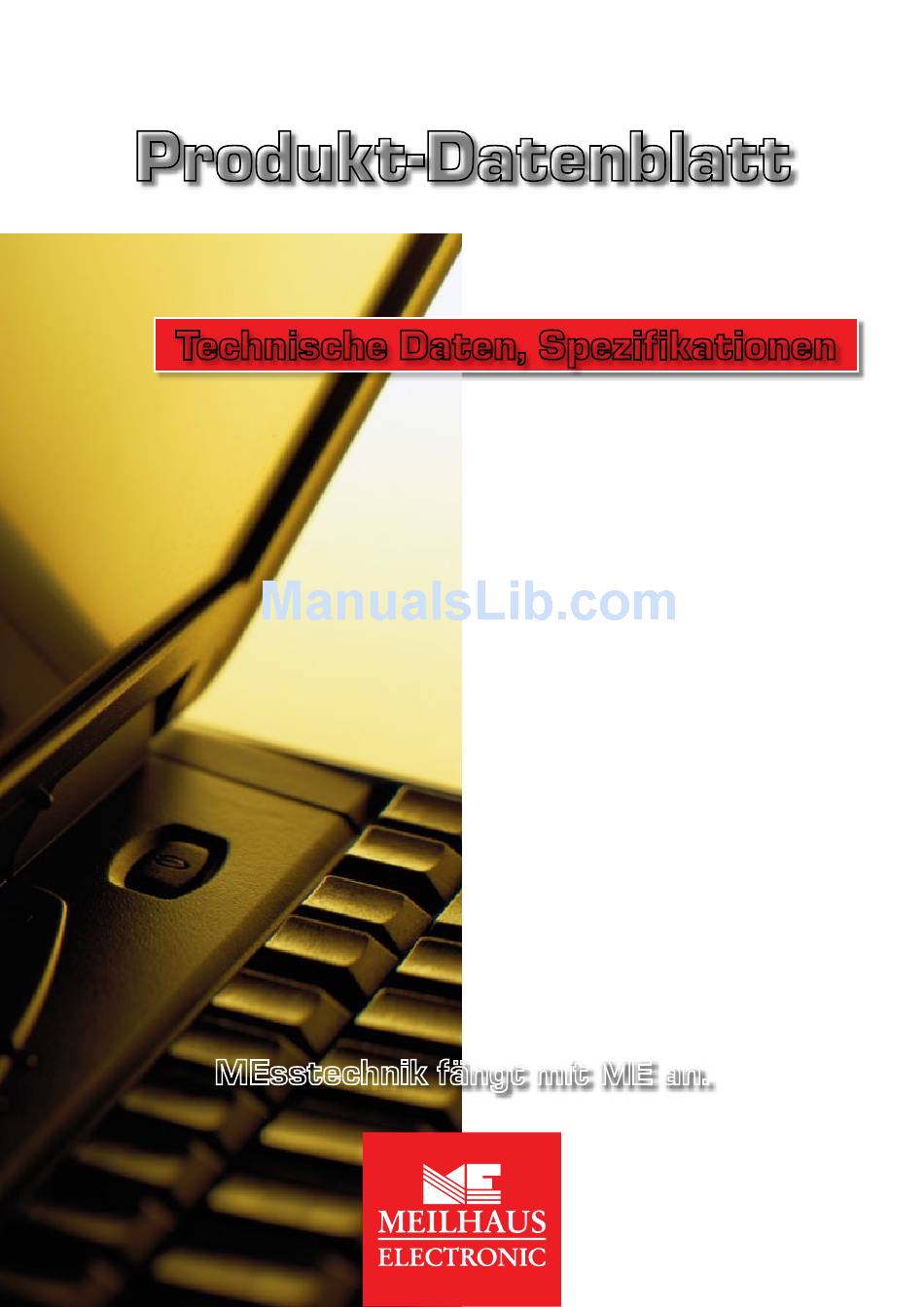

Page 1 Produkt-Datenblatt Technische Daten, Spezifikationen Kontakt Technischer und kaufmännischer Vertrieb, Preis auskünfte, Angebote, TestGeräte, Beratung vor Ort: Tel: (0 81 41) 52 71-0 FAX: (0 81 41) 52 71-129 Aus dem Ausland: Tel: ++49 - 81 41 - 52 71-0 FAX: ++49 - 81 41 - 52 71-129 E-Mail: sales@meilhaus.com Internet: www.meilhaus.com...
Page 2 User Guide CompactPCI CCM-BOOGIE • ® 3U High Performance Core 2 Duo CPU Board Document No. 5292 • Edition 19 • 4 May 2012 CCM-BOOGIE...
Page 5: About This Manual
'Rugged Systems' BIOS usage of GP LED - link added 18 May 2011 Highlighted BIOS GP LED Usage Link 2011-06-17 Added photos of several mezzanine storage modules 23 August 2011 Added MTBF value to table Feature Summary 2012-05-04 © EKF ekf.com...
Page 6: Related Documents
This manual has been edited as carefully as possible. We apologize for any potential mistake. Information provided herein is designated exclusively to the proficient user (system integrator, engineer). EKF can accept no responsibility for any damage caused by the use of this manual. © EKF...
Page 7: Standards
High Definition Audio Specification Rev.1.0 www.intel.com/design/chipsets/hdaudio.htm PCI Express PCI Express ® Base Specification 1.1 www.pcisig.com PCI Local Bus PCI 2.2/2.3/3.0 Standards PCI SIG www.pcisig.com SATA Serial ATA 2.5/2.6 Specification www.sata-io.org Trusted Platform Module 1.2 https://www.trustedcomputinggroup.org Universal Serial Bus Specification www.usb.org © EKF ekf.com...
Page 8: Ccm-Boogie Features
Rear I/O option: Analog video output configurable (BIOS) across J2/P2 CCT-RIO rear I/O < transition module Mezzanine option: Secondary DVI-D connector at mezzanine card front panel allows < for dual digital flat panel operation, suitable mezzanine modules e.g. CCH-MARIACHI, CCI-RAP, CCJ-RHYTHM, CCO-CONCERT © EKF ekf.com...
Page 9 C23-SATA: PCIe to 2 x SATA 1 x PATA controller C40-SCFA: SATA to PATA bridge & CompactFlash header, option USB SSD, < 4HP envelope maintained C41-CFAST: CFast™ Flash card header, 4HP envelope maintained < C42-SATA: 1.8-inch SATA Solid State Drive (SSD), 4HP envelope maintained < © EKF ekf.com...
Page 10 CCH/CCI/CCJ < Discrete crypto engine silicon brands Infineon or Atmel at users choice BIOS Phoenix BIOS with EKF enhancements for embedded systems < SPI Flash memory 2 x 16/32/64 Mb <...
Page 11 S5: 100mA S5: 30mA 100Mbps Performance Board Processor CPU/MEM Score Rating CCM-6-BOOGIE SP9300 5650 Measured with PCMark2005 CCM-4-BOOGIE SL9400 under Windows XP, 2 x 2GB CCM-2-BOOGIE SU9300 DDR3 1066 Table items are subject to technical changes © EKF -10- ekf.com...
Page 12: Short Description Ccm-Boogie
Variety of Mezzanine Expansion Boards Available with and w/o PCIe < TPM 1.2 Option (on Mezzanine Expansion Board or GS45 Internally) < Rear I/O Transition Module Option < Intel® AMT 4.0 Platform Management < RoHS compliant < © EKF -11- ekf.com...
Page 13: Block Diagram Ccm-Boogie
Gb ETH BIOS & FW 2 x 16/32Mb 574L Flash Flash Gigabit Ethernet Glue Logic Hartwell PCI Arbiter 7 x PCI 4 x PCI 32bit/33MHz MACH x 4 PCIe top/ J-PCIE J-EXP bottom Opt. Mezz. Exp. Board © EKF -12- ekf.com...
Page 14: Top/Bottom View Component Assembly
® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board Top/Bottom View Component Assembly Dual GB-Ethernet DVI-I / VGA © EKF -13- ekf.com...
Page 15 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board Bottom View CCM-BOOGIE © EKF -14- ekf.com...
Page 16: Rear I/O Transition Module Cct-Rio
I/O capable version and also the CPCI external use. USB and SATA (eSATA) channels backplane suitable for rear I/O in order to use are provided both on-board and externally. the CCT-RIO transition module. CCT-RIO (Shown with on-Board USB Stick) © EKF -15- ekf.com...
Page 17 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board Block Diagram CCT-RIO Video GPIO J-COM RS-232E Ethernet 3526 KB/MS SATA P-POW CCT-RIO Custom Specific Version © EKF -16- ekf.com...
Page 18: Strapping Headers
DVI-I Integrated (digital & analog) Receptacle, suitable for DVI digital (DVI-I) flat panel displays and/or analog monitors USB1/2 Universal Serial Bus 2.0 self powered root hub, type A receptacle General Purpose LED LED indicating any activity on SATA ports LED indicating Power Good/Board Healthy © EKF -17- ekf.com...
Page 19: Microprocessor
[MHz] [MB] ULV Celeron M 1.20/1.20 0-100 ULV Core 2 Duo 0.80/1.20 0-105 10676h SLB5Q SU9300 LV Core 2 Duo 0.80/1.86 1066 0-105 10676h SLB66 SL9400 SV Core 2 Duo 0.80/2.26 1066 0-105 10676h SLB63 SP9300 © EKF -18- ekf.com...
Page 20: Thermal Considerations
(e.g. bottom mount fan unit) is strongly recommended (>15m /h or 200LFM around the CPU slot). Be sure to thoroughly discuss your actual cooling needs with EKF. Generally, the faster the CPU speed the higher its power consumption. For higher ambient temperatures, consider increasing the forced airflow to 400 or 600LFM.
Page 21: Main Memory
(i.e. the SODIMM socket may be left empty). The contents of the SPD EEPROM on the SO-DIMM is used by the BIOS at POST (Power-on Self Test) to get any necessary timing parameters to program the memory controller within the chipset. © EKF -20- ekf.com...
Page 22: Lan Subsystem
A LED named HD located in the front panel, signals disk activity status of the SATA devices. Available for download from Intel's and JMicron's web sites are drivers for popular operating systems, e.g. Windows® 2000, Windows® XP, Windows® Vista and Linux. © EKF -21- ekf.com...
Page 23: Graphics Subsystem
DVI channel via a pure digital DVI-D connector. Further more J_SDVO offers the possibility to gain access to the VESA standard interface called DisplayPort (DP) on future EKF expansion boards. As an option, the CCM-BOOGIE can be equipped with an ordinary HD D-Sub 15-lead connector (VGA style).
Page 24: Real-Time Clock
The SPI flash contents can be reprogrammed (if suitable) by a DOS or Linux based tool. This program and the latest CCM-BOOGIE BIOS binary are available from the EKF website. Read carefully the enclosed instructions. If the programming procedure fails e.g. caused by a power interruption, the CCM-BOOGIE may no more be operable.
Page 25: Reset
Immediately after that push up the ejector back to its original position (the red button jumps up as well). Animated GIF: www.ekf.com/c/ccpu/img/reset_400.gif The 2 function of the red push button is to act as the board's power button.
Page 27: Watchdog
The watchdog remains in the active state until the next system reset. There is no way to disable it once it has been put on alert, whereas it is possible to reprogram its time-out value at any time. © EKF -26-...
Page 28: Pg (Power Good) Led
While the CPU card is controlled by the BIOS firmware, the GP LED is used to signal board status information. A red blinking GP LED is an indication that the BIOS code couldn't start. For details please refer to www.ekf.com/c/ccpu/ccm/firmware/biosinfo.txt. After successful operating system boot, the GP LED is not dedicated to any particular hardware or firmware function with exception of special states of the LED PG as described above.
Page 29: Hot Swap Detection
National Instruments. The trigger signals are provided by the local SIO (Super-I/O) chip IT8761E. GPIO20/21 are routed to TRIG0/1, and GPIO26/27 are used to control TRIG6/7. These signals can also be used as GPIO lines in a non-PXI environment. © EKF -28- ekf.com...
Page 30: Mezzanine Side Board Options
The CCM-BOOGIE is provided with several stacking connectors for attachment of a mezzanine expansion module (aka side board), suitable for a variety of readily available mezzanine cards (please refer to www.ekf.com/c/ccpu/mezz_ovw.pdf for a more comprehensive overview). EKF furthermore offers custom specific development of side boads (please contact sales@ekf.de).
Page 31 4HP to 12HP, individually tailored to customers configuration), a mezzanine side board with a variety of PCIe and legacy interface functions (front panel and/or rear I/O), and a SATA storage module (either SSD or hard disk, 1.8-inch or 2.5-inch, dual or single drive, RAID option). © EKF -30- ekf.com...
Page 32 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board CPU Board • PMC/XMC Carrier Side Card • DX1-LYNX XMC Module (Dual Drive) © EKF -31- ekf.com...
Page 33 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board CCM-BOOGIE with C40-SCFA C40-SCFA CompactFlash Storage Module © EKF -32- ekf.com...
Page 34 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board C41-CFAST Storage Module on CPU Carrier Card C41-CFAST SATA Based Storage Module © EKF -33- ekf.com...
Page 35 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board CCM-BOOGIE with C42-SATA C42-SATA Storage Module © EKF -34- ekf.com...
Page 36 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board CCM-BOOGIE with C43-SATA C43-SATA I/O Module on CPU Carrier Card © EKF -35- ekf.com...
Page 37 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board C43-SATA Mezzanine Module CCM-BOOGIE with C44-SATA © EKF -36- ekf.com...
Page 38 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board CCM-BOOGIE w. C45-SATA (Internal Drive) CCM-BOOGIE w. C45-SATA (Removable Drive) © EKF -37- ekf.com...
Page 39 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board C47-MSATA SSD RAID Storage Module on CPU Carrier Card C47-MSATA over CPU Carrier Card © EKF -38- ekf.com...
Page 40 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board CCM-BOOGIE w. C23-SATA Side Board (Picture Similar) © EKF -39- ekf.com...
Page 41 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board CCM-BOOGIE w. CCO-CONCERT Side Board (Similar Image) CCM-BOOGIE w. CCI-RAP (Similar Image) © EKF -40- ekf.com...
Page 42 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board CCM-BOOGIE w. CCJ-RHYTHM Side Board (Picture Similar) © EKF -41- ekf.com...
Page 43 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board CCM-BOOGIE w. CCK-MARIMBA Side Board CCM-BOOGIE w. CCL-CAPELLA Side Board (Similar Image) © EKF -42- ekf.com...
Page 44 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board CCM-BOOGIE w. CCO-CONCERT C20-SATA C32-FIO © EKF -43- ekf.com...
Page 45 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board CCM-BOOGIE w. CCO-CONCERT C20-SATA C32-FIO © EKF -44- ekf.com...
Page 46 CPU Board C20-SATA The C20-SATA is a mezzanine module, available for several side cards to the CCM-BOOGIE. The C20-SATA storage module can be equipped with one or two 2.5-inch drives (SSD or HDD). C20-SATA Top View © EKF -45- ekf.com...
Page 47 User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board C20-SATA Bottom View (Dual Drive) Related Documents Mezzanine Modules and Side Cards C4x Series www.ekf.com/c/ccpu/c4x_mezz_ovw.pdf Mezzanine Storage Modules Mezzanine Modules Overview www.ekf.com/c/ccpu/mezz_ovw.pdf The EKF Mezzanine Module Concept www.ekf.com/c/ccpu/cpci_mezzanine_evolution.pdf © EKF -46- ekf.com...
Page 48: Rear I/O Options
If the system is provided with a P2 CompactPCI 64-bit backplane instead, several of the CCM rear I/O signals will collide with the 64-bit address/data lines on the backplane, with unpredictable results regarding the rear I/O signal integrity. Single Slot Rear I/O Backplane EKF Part No. 932.4.01.080 © EKF -47-...
Page 49: Installing And Replacing Components
Store the board only in its original ESD protected packaging. Retain the original packaging (antistatic bag and antistatic box) in case of returning the board to EKF for rapair. © EKF -48- ekf.com...
Page 50: Installing The Board
Insert card carefully (be sure not to damage components mounted on the bottom side of the board by scratching neighboured front panels) A card with onboard connectors requires attachment of associated cabling now Lock the ejector lever, fix screws at the front panel (top/bottom) Retain original packaging in case of return © EKF -49- ekf.com...
Page 51: Removing The Board
Store board in the original packaging, do not touch any components, hold the board at the front panel only Warning Do not expose the card to fire. Battery cells and other components could explode and cause personal injury. © EKF -50- ekf.com...
Page 52: Emc Recommendations
External communications cable assemblies must be shielded (shield connected only at one end of the cable) Use ferrite beads for cabling wherever appropriate Some connectors may require additional isolating parts Reccomended Accessories Blind CPCI Front EKF Elektronik Widths currently available Panels (1HP=5.08mm): with handle 4HP/8HP without handle...
Page 53: Installing Or Replacing The Memory Module
CMOS RAM. The battery should last during the lifetime of the CCM-BOOGIE. For replacement, the old battery must be unsoldered, and the new one soldered. We suggest that you send back the board to EKF for battery replacement. Warning Danger of explosion if the battery is incorrectly replaced or shorted.
Page 54: Technical Reference
USB UHCI Controller #1 0x8086 0x2935 USB UHCI Controller #2 0x8086 0x2936 USB UHCI Controller #3 0x8086 0x2939 USB UHCI Controller #6 0x8086 0x293A USB 2.0 EHCI Controller #1 0x8086 0x2448 DMI-to-PCI Bridge 0x8086 0x2917 LPC Bridge © EKF -53- ekf.com...
Page 55: Local Smb Devices
CompactPCI signals IPMB SCL (J1 B17) and IPMB SDA (J1 C17) or pins 29/30 of the expansion connectors J_EXPT/J_EXPB. Address Description 0x58 Hardware Monitor/CPU Temperature Sensor (LM87) 0x98 Processor On-Die Temerature Sensor (ADT7421) 0xA0 SPD of Onboard Memory 0xA4 SPD of SODIMM 0xAE General Purpose EEPROM 0xD2 Main Clock Generation (CK-505) © EKF -54- ekf.com...
Page 56: Hardware Monitor Lm87
Beside the continuous measuring of temperatures and voltages the LM87 may compare these values against programmable upper and lower boundaries. As soon as a measurement violates the allowed value, the LM87 may request an interrupt via the GPI[8] of the ICH9. © EKF -55- ekf.com...
Page 57: Gpio Usage
HIGH: IPMB/J_EXP connected to SMBus GPIO 25 3.3V STP_CPU# Fixed to chipset internal function GPIO 26 3.3V Multiplexed to chipset internal function GPIO 27 3.3V VGA_SWITCH VGA Switching Line: LOW: VGA via Rear I/O HIGH: VGA via Front I/O © EKF -56- ekf.com...
Page 58 Not used on CCM (fixed via resistor to GND) GPIO 58 3.3V SPI_CS1# Multiplexed to chipset internal function GPIO 59 3.3V USB_OC1# USB Front Panel Upper Port Overcurrent Detect GPIO 60 3.3V Not used on CCM (fixed via resistor to +3.3V) © EKF -57- ekf.com...
Page 59: Gpio Usage Sio
Not used on CCM GPIO 26 5V/24mA PXI_TRIG6 PXI Trigger 6 on CompactPCI J2 Pin E18 GPIO 27 5V/24mA PXI_TRIG7 PXI Trigger 7 on CompactPCI J2 Pin E16 These GPIOs have pullup resistors of approx. 50kΩ within the SIO. © EKF -58- ekf.com...
Page 60: Configuration Jumpers
P_RTC for about 1 sec. After that reinstall the board to the system and switch on the power. It is important to accomplish the RTC reset while the board has no power. P_RTC 1=RTCRST# 2=GND P_RTC Function Jumper OFF No RTC reset performed Jumper ON RTC reset performed This setting is the factory default. © EKF -59- ekf.com...
Page 61: Connectors
A fault in the load presented by the external devices could cause damage to the board, the interconnecting cable and the external devices themselves. Front Panel Connectors Typical CCM-BOOGIE Front Panel Elements G-ETH G-ETH CCM-BOOGIE CCM-BOOGIE © EKF -60- ekf.com...
Page 62: Video Monitor Connector J_Dvi
For attachment of an ordinary analog RGB monitor to the J_DVI receptacle, there are both adapters and also adapter cables available from J_DVI to the HD-SUB15 connector. Attachment of digital monitors (flat panel displays) should be done by means of a DVI to DVI cable (single link style cable is sufficient). © EKF -61- ekf.com...
Page 63: Video Monitor Connector J_Vga
J_VGA (Option) GREEN BLUE DDC_POW VGA_DDC_SDA HSYNC VSYNC VGA_DDC_SCL +5V protoected by a PolySwitch Fuse 0.75A This signal may be switched either to the front connector or to the rear I/O adapter CCT-RIO. © EKF -62- ekf.com...
Page 64: Usb Connectors
User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board USB Connectors USB Ports 1/2 (J_USB1/J_USB2) USB DATA NEG USB DATA POS USB Receptacle © EKF • ekf.com 270.20.04.1 +5V protected by an Electronic Fuse 0.5A © EKF -63- ekf.com...
Page 65: Ethernet Connectors
The upper green/yellow dual-LED signals 1Gbit/s when lit yellow, 100Mbit/s when lit green, and 10Mbit/s when off. The lower green LED indicates LINK established when continuously on, and data transfer (activity) when blinking. If the lower green LED is permanently off, no LINK is established. © EKF -64- ekf.com...
Page 66: Internal Connectors
WARNING: Neither the +3.3V pin, nor the +5V pin, nor the +12V pin are protected against a short circuit situation! This connector therefore should be used only for attachment of an expansion board. The maximum current flowing across these pins should be limited to 2A per power rail. © EKF -65- ekf.com...
Page 67: High Speed Expansion Connector J_Hse
WARNING: Neither the +3.3V pins, nor the +5V pins, nor the +12VA pin are protected against a short circuit situation! This connector therefore should be used only for attachment of the C40-SCFA adapter or an expansion board. The maximum current flowing across these pins should be limited to 2A per power rail. © EKF -66- ekf.com...
Page 68 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board Mounting Area for Low Profile Mezzanine Storage Modules Sample J_HSE Based Low Profile Mezzanine Module © EKF -67- ekf.com...
Page 69: Pci Express Expansion Header J_Pcie
Power rail switched on in state S0 only. WARNING: Neither the +3.3V pin, nor the +5V pin are protected against a short circuit situation! The maximum current flowing across these pins should be limited to 2A per power rail. © EKF -68- ekf.com...
Page 70: Sdvo Expansion Header J_Sdvo
The jumper P_RST is used to perform a manually system reset. By default P_RST is connected with a short cable to a micro switch located within the front panel handle. The switch performs a system reset by short-circuiting the pins 1 and 3 of P_RST. P_RST © EKF 276.02.003.11 ekf.com 1=RESET# 2=NC 3=GND © EKF -69-...
Page 71: Pld Programming Header P_Isp
® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board PLD Programming Header P_ISP P_ISP 240.1.08.ISP © EKF ekf.com 1=3.3V 2=TDO 3=TDI 4=NC 5=KEY 6=TMS 7=GND 8=TCK Note: P_ISP is not stuffed. Its footprint is situated at the bottom side of the board.
Page 72: Compactpci J1
This pin is fixed to GND on CCM-BOOGIE to force 33MHz operation since 66MHz operation is not supported. This pin is pulled up with 3.0k to J1 pin A4. This pin is not connected. This pin is not used on CCM-BOOGIE. © EKF -71- ekf.com...
Page 73: Compactpci J2
AD62 AD61 AD60 USB_P2P USB_P2N USB_P3P USB_OC34# USB_P3N C/BE5# 64EN# V(I/O) C/BE4# PAR64 +5V/1.5A MS_DATA MS_CLK V(I/O) BRSVP2B4 C/BE7# C/BE6# +5V/1.5A KB_DATA KB_CLK CLK4 GNT3# REQ4# GNT4# CLK2 CLK3 SYSEN# GNT2# REQ3# CLK1 REQ1# GNT1# REQ2# © EKF -72- ekf.com...
Page 74 This pin is protected by a resettable PolySwitch fuse. This pin is not connected. This pin is connected only in the rear I/O configuration. This pin is pulled up with 10kΩ to +3.3V. Pin positions printed blue: Rear I/O options. © EKF -73- ekf.com...
Page 75: Appendix
2 Duo 3U CompactPCI CPU Board Appendix Mechanical Drawings The following drawing shows the positions of mounting holes and expansion connectors on the CCM-BOOGIE. 100.00 94.50 93.50 7.00 J-HSE J-EXP J-SDVO J-PCIE CCM-BOOGIE © EKF • ekf.com 5.50 © EKF -74- ekf.com...
Page 77 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board Small Industrial Systems Small Industrial Systems © EKF -76- ekf.com...
Page 78 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board Rugged Industrial Systems Rugged Industrial Systems © EKF -77- ekf.com...
Page 79 ® User Guide CCM-BOOGIE • High Performance Core 2 Duo 3U CompactPCI CPU Board Industrial Computers Made in Germany boards. systems. solutions. EKF Elektronik GmbH Phone +49 (0)2381/6890-0 Philipp-Reis-Str. 4 Fax +49 (0)2381/6890-90 59065 Hamm Internet www.ekf.com Germany E-Mail sales@ekf.com...
