Technical Information

PCZ-NVM

Mezzanine I/O Expansion Board

Multifunction CPU Side Card

Edition 0 (Preliminary)

Document No. 9941 • 17 August 2021

Table of Contents

Need help?

Do you have a question about the PCZ-NVM and is the answer not in the manual?

Questions and answers

Summary of Contents for EKF PCZ-NVM

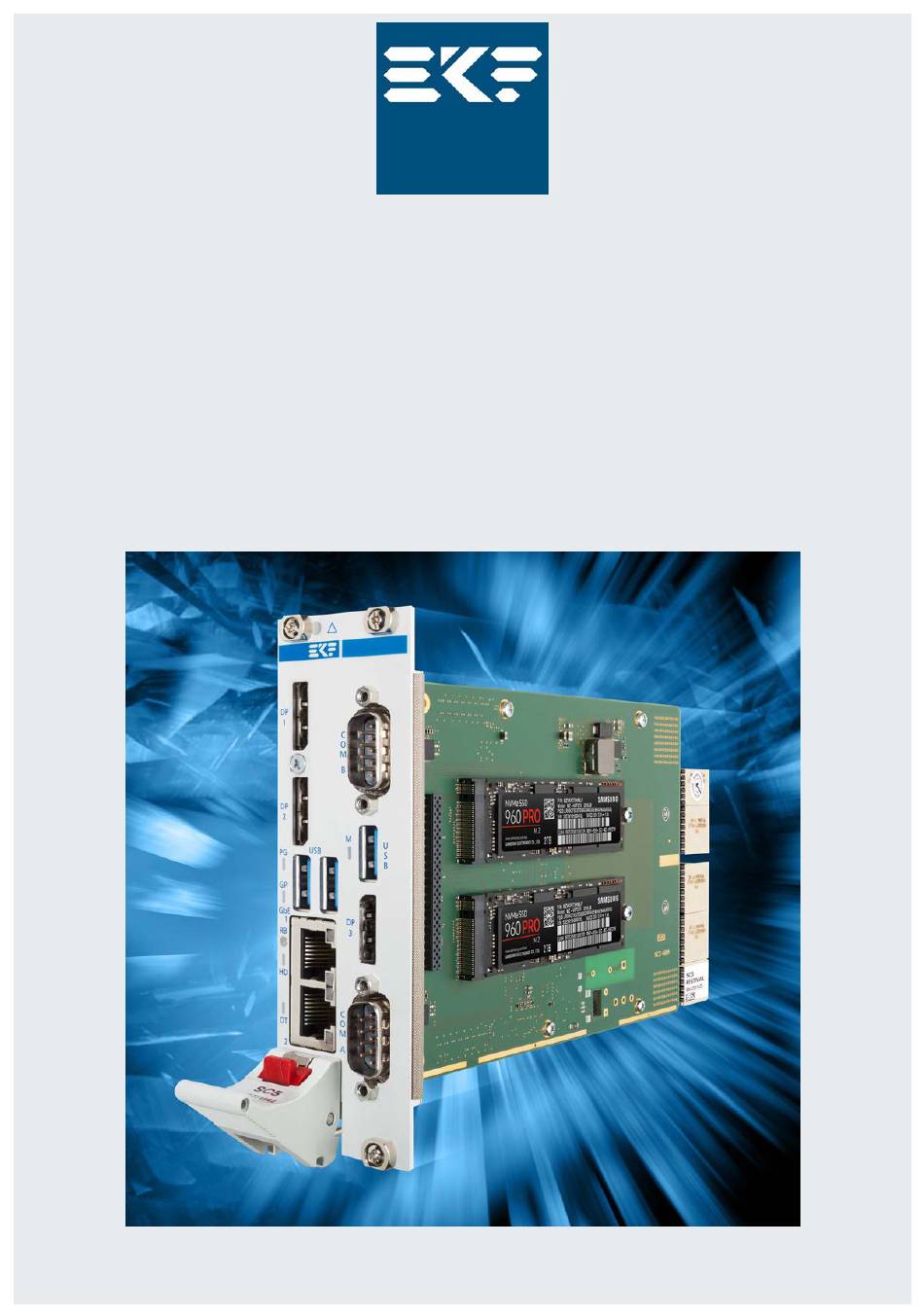

Page 1 ®® Technical Information PCZ-NVM Mezzanine I/O Expansion Board Multifunction CPU Side Card Edition 0 (Preliminary) Document No. 9941 • 17 August 2021...
Page 2: Table Of Contents
Technical Information • PCZ-NVM • CPU Expansion Side Card Contents About this Manual ............... .
Page 3: About This Manual
Technical Information • PCZ-NVM • CPU Expansion Side Card About this Manual This manual is a short form description of the technical aspects of the PCZ-NVM, required for installation and system integration. It is intended for the advanced user only. The latest version of this document may be obtained from www.ekf.com/p/pcz/pcz.html.
Page 4: Related Documents
This manual has been edited as carefully as possible. We apologize for any potential mistake. Information provided herein is designated exclusively to the proficient user (system integrator, engineer). EKF can accept no responsibility for any damage caused by the use of this manual. © EKF...
Page 5: Standards
Technical Information • PCZ-NVM • CPU Expansion Side Card Standards Reference Documents Term Document Origin CompactPCI® PICMG® CompactPCI® 2.30 www.picmg.org PlusIO DisplayPort® VESA DisplayPort Standard www.vesa.org M.2 Module PCI Express M.2 Specification Revision 4.0 www.pcisig.com Formerly known as Next Generation Form Factor (NGFF) PCI Express®...
Page 6: Features
2 x RS-232 male D-Sub 9-pin (COM port) F/P connectors Option C32-FIO legacy front panel I/O (2 x RS-232, 1 x USB2 Type-A in addition) Integrated 8HP front panel for CPU card and PCZ-NVM (12HP when C32-FIO 3 floor mezzanine is...
Page 7 Technical Information • PCZ-NVM • CPU Expansion Side Card Feature Summary Environmental, Regulatory Designed & manufactured in Germany ISO 9001 certified quality management Lifetime support Custom specific development available on request Long term availability Rugged solution Coating, sealing, underfilling on request RoHS compliant Operating temperature -40°C to +85°C (industrial temperature range)
Page 8 Technical Information • PCZ-NVM • CPU Expansion Side Card General Information Available as a mezzanine add-on expansion Both M.2 sockets are suitable for PCIe® based board (aka side card) e.g. to the PC7-FESTIVAL SSD modules (M-key) up to the 2280 format.
Page 9: System Requirements
Technical Information • PCZ-NVM • CPU Expansion Side Card System Requirements The PCZ-NVM is a mezzanine side card, to be For full functionality, suitable CPU carrier fixed on top of a suitable CPU carrier board. boards must conform to the EKF '2017 New The pitch between carrier PCB and mezzanine Mezzanine Concept' (i.e.
Page 10: Storage Options
Technical Information • PCZ-NVM • CPU Expansion Side Card Storage Options The PCZ-NVM can be populated with two M.2 The upper socket M1 is wired to the (NGFF) PCI Express® driven SSD storage mezzanine connector HSE1, for a PCIe® Gen3 modules, up to the 2280 size.
Page 11: Front Panel I/O
Technical Information • PCZ-NVM • CPU Expansion Side Card Front Panel I/O The PCZ-NVM expands the suite of front In addition, the PCZ-NVM can accommodate panel connectors of the CPU carrier board by the C32-FIO front panel I/O mezzanine an USB 3.0 receptacle, a DisplayPort video module, for a total front panel width of 12HP.
Page 14: Summary Of Connectors
Not all of the connectors or other elements listed below may be present or functional on your actual PCZ-NVM board. Assembly of these connectors is highly custom specific. Discuss your needs (target application) with EKF before ordering, for an optimum CPU & side card configuration.
Page 15: Power Connectors
Technical Information • PCZ-NVM • CPU Expansion Side Card Power Connectors Backplane connector, option, reinforces the +5V power rail ATX auxiliary power connector, option © EKF -15- ekf.com...
Page 16: Installing And Replacing Components
Store the board only in its original ESD protected packaging. Retain the original packaging (antistatic bag and antistatic box) in case of returning the board to EKF for repair. © EKF -16-...
Page 17: Installing The Board
Technical Information • PCZ-NVM • CPU Expansion Side Card Installing the Board Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage.
Page 18: Removing The Board
Technical Information • PCZ-NVM • CPU Expansion Side Card Removing the Board Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage.
Page 19: Emc Recommendations
Technical Information • PCZ-NVM • CPU Expansion Side Card EMC Recommendations In order to comply with the CE regulations for EMC, it is mandatory to observe the following rules: The chassis or rack including other boards in use must comply entirely with CE...
Page 20: Technical Reference
Please Note The PCZ-NVM mezzanine module may be equipped with several on-board connectors for system internal usage. Not all of these connectors may be present on a particular board. Be sure to specify your individual needs when ordering the PCZ-NVM board.
Page 21: Front Panel Elements
Technical Information • PCZ-NVM • CPU Expansion Side Card Front Panel Elements As of current, suitable CPU carrier boards for use together with the PCZ-NVM side card are the SC4-CONCERTO and SC5-FESTIVAL. The PCZ-NVM side board mounts on top (at the right side) of the CPU card.
Page 22: Com-A/B
Technical Information • PCZ-NVM • CPU Expansion Side Card COM-A/B The PCZ-NVM is provided with an on-board PCI Express® to quad port UART bridge (Diodes/Pericom PI7C9X7954). Two asynchronous serial interfaces are available via the front panel (EIA/TIA 232). The other two (TTL-level) can be used across the mezzanine connector FIO by means of the C32-FIO mezzanine board (12HP front panel assembly).
Page 23: Displayport
The PCZ-NVM front panel is provided with a third DP connector. The related PCZ-NVM DisplayPort video signals are passed from the CPU carrier board through the HSE2 inter-board mezzanine connector to the side card. Independent operation of multiple displays (e.g.
Page 24 Specified by the VESA DisplayPort connector standard is a dedicated power pin 20 (+3.3V 0.5A). Both the PCZ-NVM (source side) and a DP monitor (sink side) must provide power via this pin. A VESA specified standard DisplayPort cable however must not connect the pins 20 of both cable ends, in order to avoid a back driving conflict.
Page 25: Usb 3.0
Technical Information • PCZ-NVM • CPU Expansion Side Card USB 3.0 The PCZ-NVM is equipped with a front panel Type-A USB 3.0 receptacle (USB 3.1 Gen1 SuperSpeed 5Gbps). This port is derived from the CPU carrier card PCH (platform controller hub) and passed across the inter-board mezzanine connector HSE1 to the PCZ-NVM.
Page 26: On-Board Connectors
Technical Information • PCZ-NVM • CPU Expansion Side Card On-Board Connectors The PCZ-NVM is equipped with several on-board connectors, for M.2 SSD accommodation and front I/O mezzanine module expansion. FIO (Mezzanine Expansion Module C32-FIO) I/F Type SOURCE Serial (UART) COM-C COM-D PCZ-NVM on-board PI7C9X7954 USB 2.0...
Page 27: Fio
COM-Ports and an USB 2.0 Type-A receptacle. J-FIO is a 2mm pitch dual row socket on top of the PCZ-NVM, which connects to the C32-FIO by means of a board stacker element. For a description of the C32-FIO mezzanine module refer to www.ekf.com/c/ccpu/c32/c32_tie.pdf.
Page 29: M.2 Connectors
Technical Information • PCZ-NVM • CPU Expansion Side Card M.2 Connectors The PCZ-NVM is equipped with two M.2 module host connectors. Mechanical details and pin-out configurations are described by the PCI-SIG 'PCI Express M.2 Specification'. The M.2 pin-out complies with the 'Socket 3 M SSD Drive', with module dimensions from 'Type 2242 to 2280', either height option 'S2, D2, S3, D3, D5'.
Page 30 Technical Information • PCZ-NVM • CPU Expansion Side Card NVMe PCIe® x4 M.2 M-Key • Pin 1 - 38 EKF Part #255.50.2.2242.10 +3.3V +3.3V PETN3 PETP3 LED1# PERN3 +3.3V PERP3 +3.3V +3.3V PETN2 +3.3V PETP2 PERN2 PERP2 PETN1 PETP1 PERN1...
Page 31 M.2 sockets depends on several conditions, e.g. USB powered devices attached to the PCZ-NVM and C32-FIO. Thus, very demanding SSDs might require higher power than can be provided by the carrier card. Additional power can be applied either via the backplane connector J1 or by means of the ATX auxiliary power connector.
Page 32: Inter-Board (Mezzanine) Connectors
The PCZ-NVM is equipped with 2 inter-board connectors. These are the HSE1 (4-lane PCI Express® & USB) and the HSE2 (4-lane PCI Express® & DisplayPort) connectors. The host CPU inter-board connectors are situated at the bottom of the PCZ-NVM and establish the data path and power link to the carrier board CPU.
Page 34 Technical Information • PCZ-NVM • CPU Expansion Side Card Carrier card connector 8mm female - mezzanine card connector 10mm male nominal stack height 18mm (calculated B2B 18.7mm) High Speed Expansion P-HSE1 CFG_34 * CFG_12 * 3_PCIE_TXP 1_PCIE_TXP 3_PCIE_TXN 1_PCIE_TXN 3_PCIE_RXN...
Page 35 Technical Information • PCZ-NVM • CPU Expansion Side Card Carrier card connector 8mm female - mezzanine card connector 10mm male nominal stack height 18mm (calculated B2B 18.7mm) High Speed Expansion P-HSE2 3_PCIE_TXP 1_PCIE_TXP 3_PCIE_TXN 1_PCIE_TXN 3_PCIE_RXN 1_PCIE_RXN 3_PCIE_RXP 1_PCIE_RXP 4_PCIE_TXP...
Page 36: Backplane/Power Connectors
+3.3V for the M.2 sockets). On a backplane with the system slot (CPU card) right aligned, the PCZ-NVM board and its J1 connector would be out of the backplane shape (however a custom backplane with an additional slot could solve this issue). In such a system the +5V power rail would be sourced via the mezzanine connectors HSE1/2 only.
Page 37: Compactpci® J1
Technical Information • PCZ-NVM • CPU Expansion Side Card CompactPCI® J1 KEY AREA (not keyed) © EKF -37- ekf.com...
Page 38: Atx 12V Power Connector
J1 backplane connector. Via a DC/DC step-down converter +3.3V is applied to the M.2 sockets. As an option, the PCZ-NVM can be equipped with an ATX style 4-pos. auxiliary power connector. By stuffing option, +12V from the ATX connector is applied to the DC/DC converter, instead of +5V.
Page 39 Technical Information • PCZ-NVM • CPU Expansion Side Card Industrial Computers Made in Germany boards. systems. solutions. EKF Elektronik GmbH Phone +49 (0)2381/6890-0 Philipp-Reis-Str. 4 (Haus 1) Fax +49 (0)2381/6890-90 Lilienthalstr. 2 (Haus 2) Internet www.ekf.com 59065 HAMM E-Mail sales@ekf.com...
