Configuration Jumpers

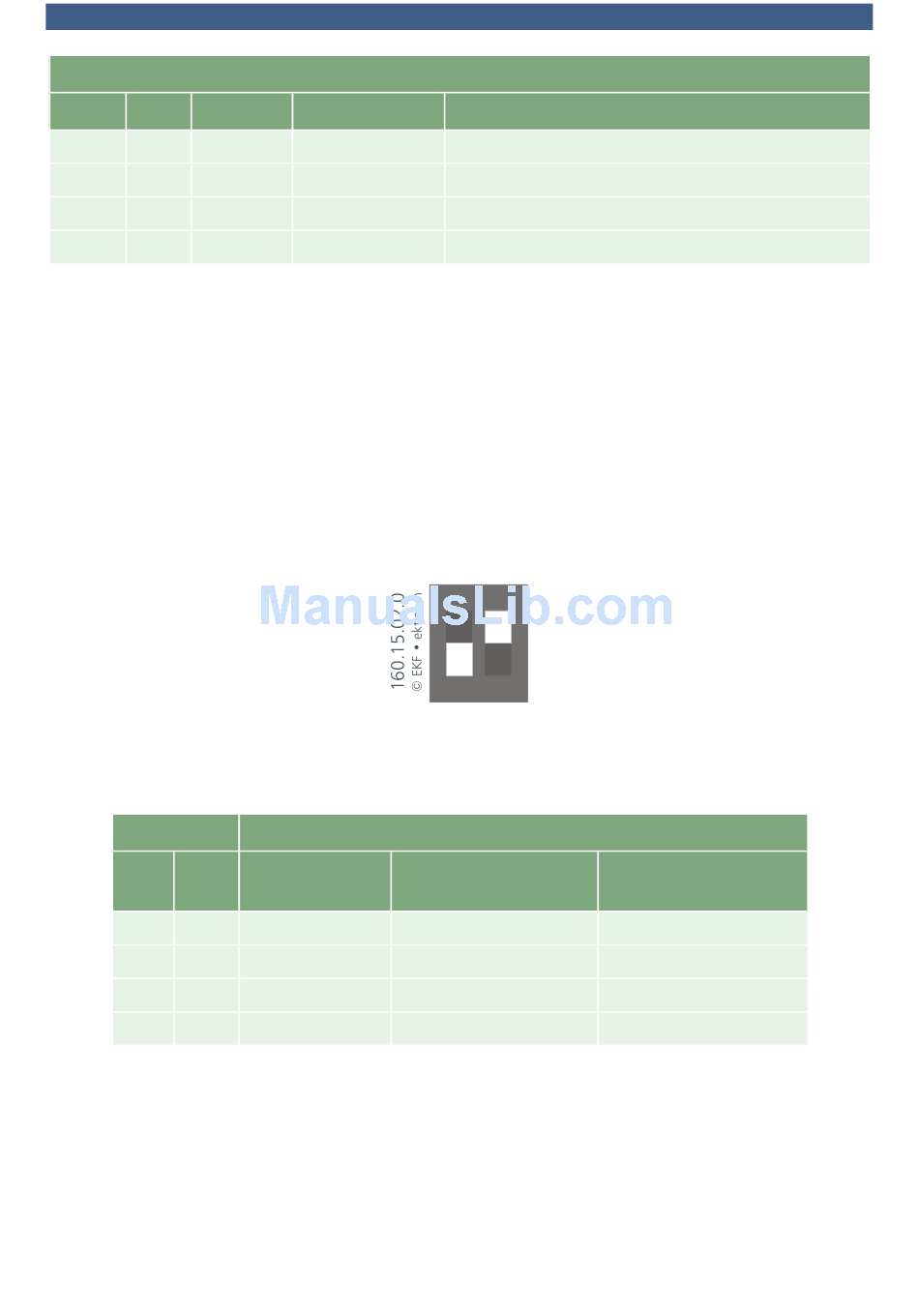

Configuration PCI Express Switch (DS-P)

The link width and transfer rate of the PCI Express interfaces attached to the local expansion
connector P-PCIE is configurable by two DIP switches (DS-P) located on the backside of the
SC2-PRESTO. Note that changes in PCIe link configuration are honoured by the board not before a
system reset was performed.
DS-P
1 2
OFF OFF
ON OFF
OFF ON
ON ON
1)
Consists to the non fat pipe slots, generally periphery slots 3 to 8.
When the port on P-PCIE is configured as single link, the PCIe switch may size down the link width to
x2 or x1 by auto-negotiation.
