(1) RS485 communication of single inverter
(2) RS485 network communication

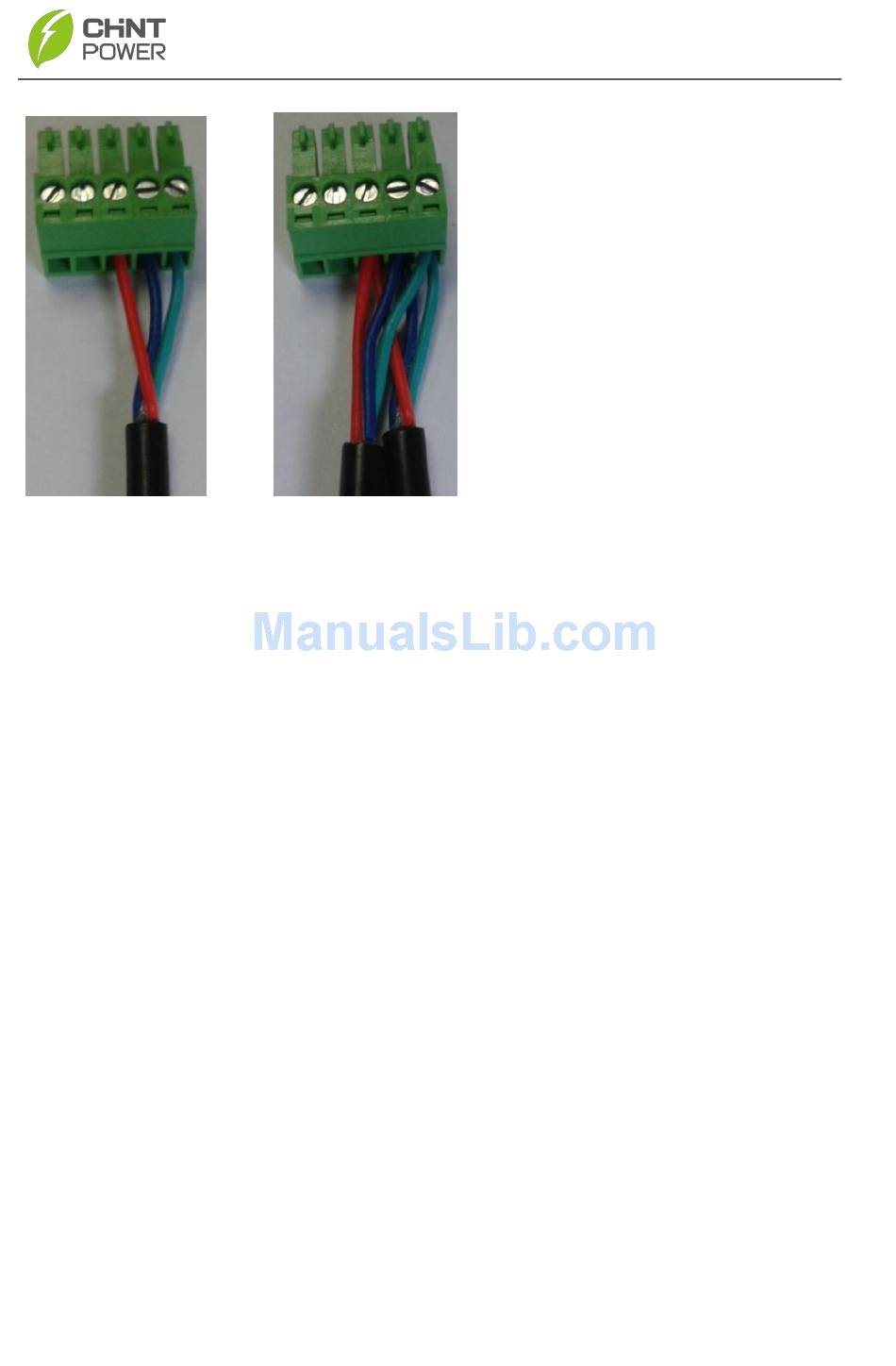

Figure 3-44 Fasten the cable terminal on the RS485 5 pin connector
c.) Plug the cable terminal into the corresponding connector.
d.) Tighten the nut of the cable gland.
(2)
48
1 -----NC
2 -----NC
3 (Red)--------RS485+
4 (Blue) -------RS485-
5 (Green)-----COM
