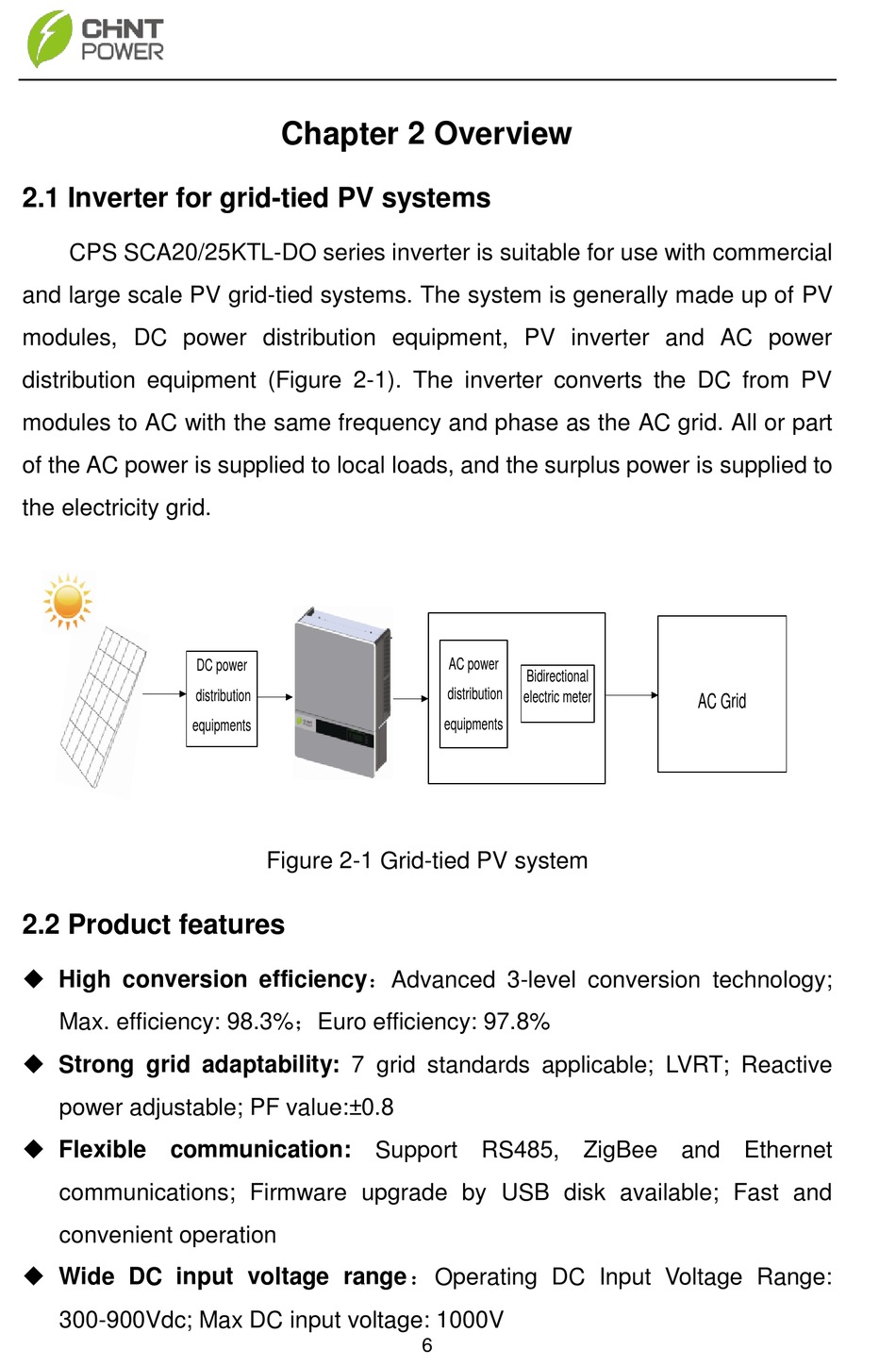

Chapter 2 Overview; Inverter For Grid-Tied Pv Systems; Product Features - Chint Power CPS SCA20KTL-DO Installation And Operation Manual

2.1 Inverter for grid-tied PV systems

CPS SCA20/25KTL-DO series inverter is suitable for use with commercial
and large scale PV grid-tied systems. The system is generally made up of PV
modules, DC power distribution equipment, PV inverter and AC power
distribution equipment (Figure 2-1). The inverter converts the DC from PV
modules to AC with the same frequency and phase as the AC grid. All or part
of the AC power is supplied to local loads, and the surplus power is supplied to
the electricity grid.

2.2 Product features

 High conversion efficiency：Advanced 3-level conversion technology;
Max. efficiency: 98.3%；Euro efficiency: 97.8%
 Strong grid adaptability: 7 grid standards applicable; LVRT; Reactive
power adjustable; PF value:± 0.8
 Flexible communication: Support RS485, ZigBee and Ethernet
communications; Firmware upgrade by USB disk available; Fast and
convenient operation
 Wide DC input voltage range：Operating DC Input Voltage Range:
300-900Vdc; Max DC input voltage: 1000V

Chapter 2 Overview

DC power
distribution
equipments
Figure 2-1 Grid-tied PV system
AC power
Bidirectional
distribution
electric meter
equipments
6
AC Grid
