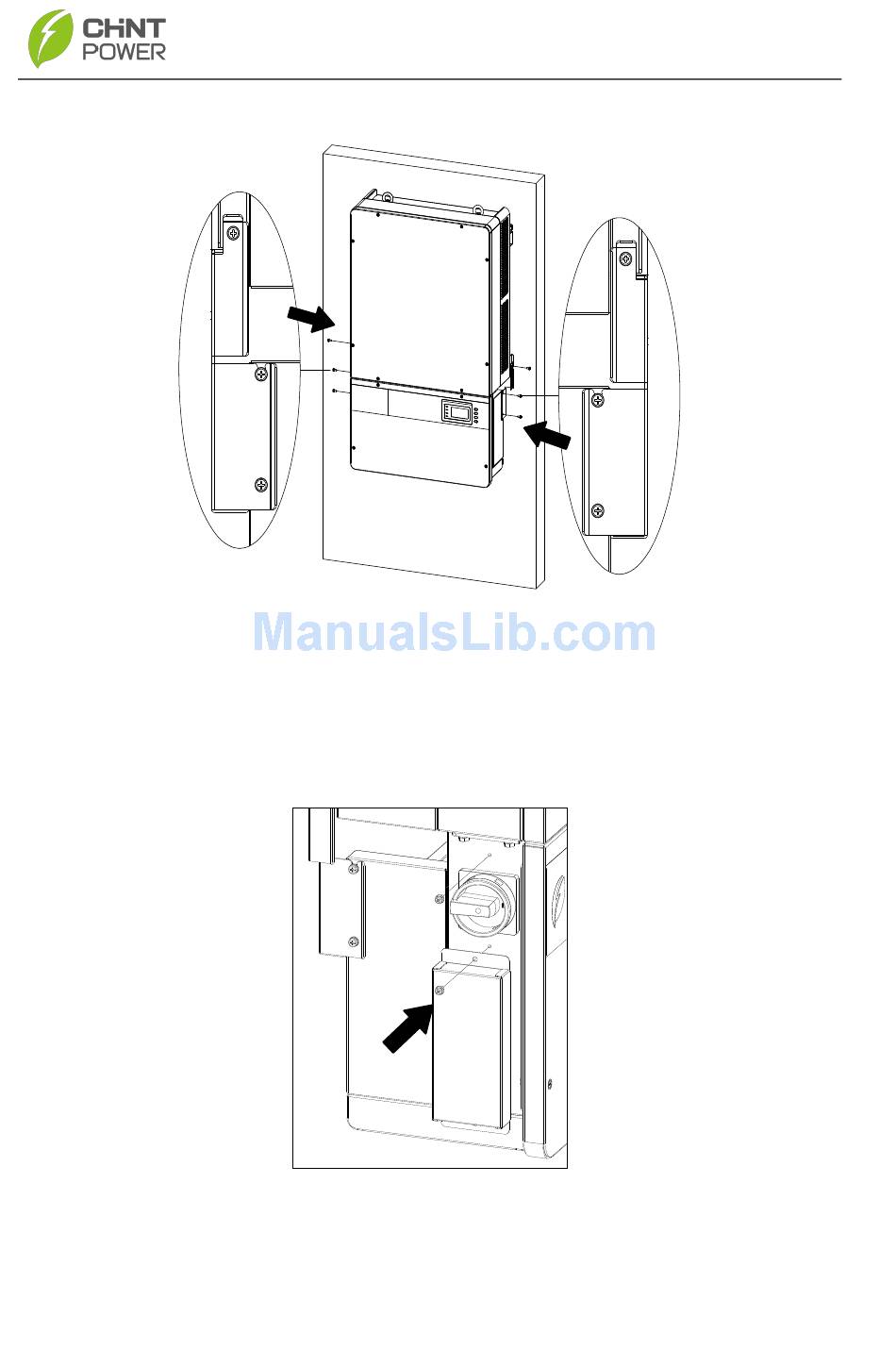

Figure 3-12 Fix the main housing and wiring box on the bracket
(6) Attach the cover board shown in Figure 3-10 to the left side of the wiring
box. (see Figure 3-13)
Tool: No.2 Phillips head screwdriver, torque value of 1.2N.m
Figure 3-13 Attach the cover board to the left side of the wiring box
(7) Optional - Install an anti-theft padlock when the installation is complete.
The anti-theft padlock is used to prevent the inverter from being stolen
