b.) Put the RS485 cable through the cable gland and inside the wiring box. Make the
cable terminals as shown in Figure 3-43/3-44.
Tools: Wire stripping pliers, crimping pliers (for RJ45 connector)
Wire stripping pliers, 2 or 2.5mm flat screwdriver (for 5 pin connector)

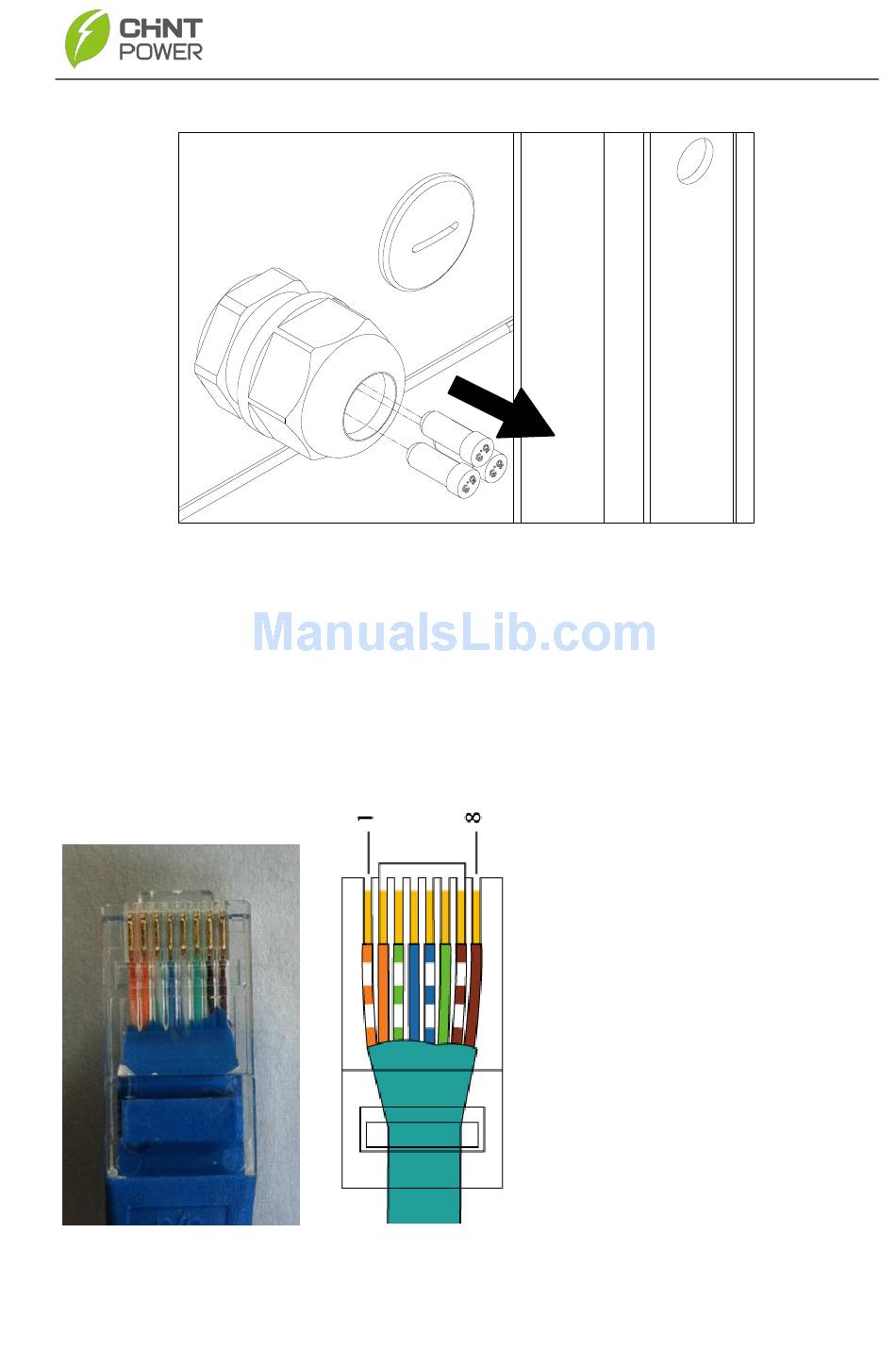

Figure 3-43 Crimp RJ45 connector on the RS485 and Ethernet cable
Figure 3-42 Take out the seal pin
47
No.
Colour
1
White orange 485+
2
Orange
3
White green
4
Blue
5
White blue
6
Green
7
White brown COM
8
Brown
Function
N.C
485-
N.C.
N.C.
N.C.
N.C
