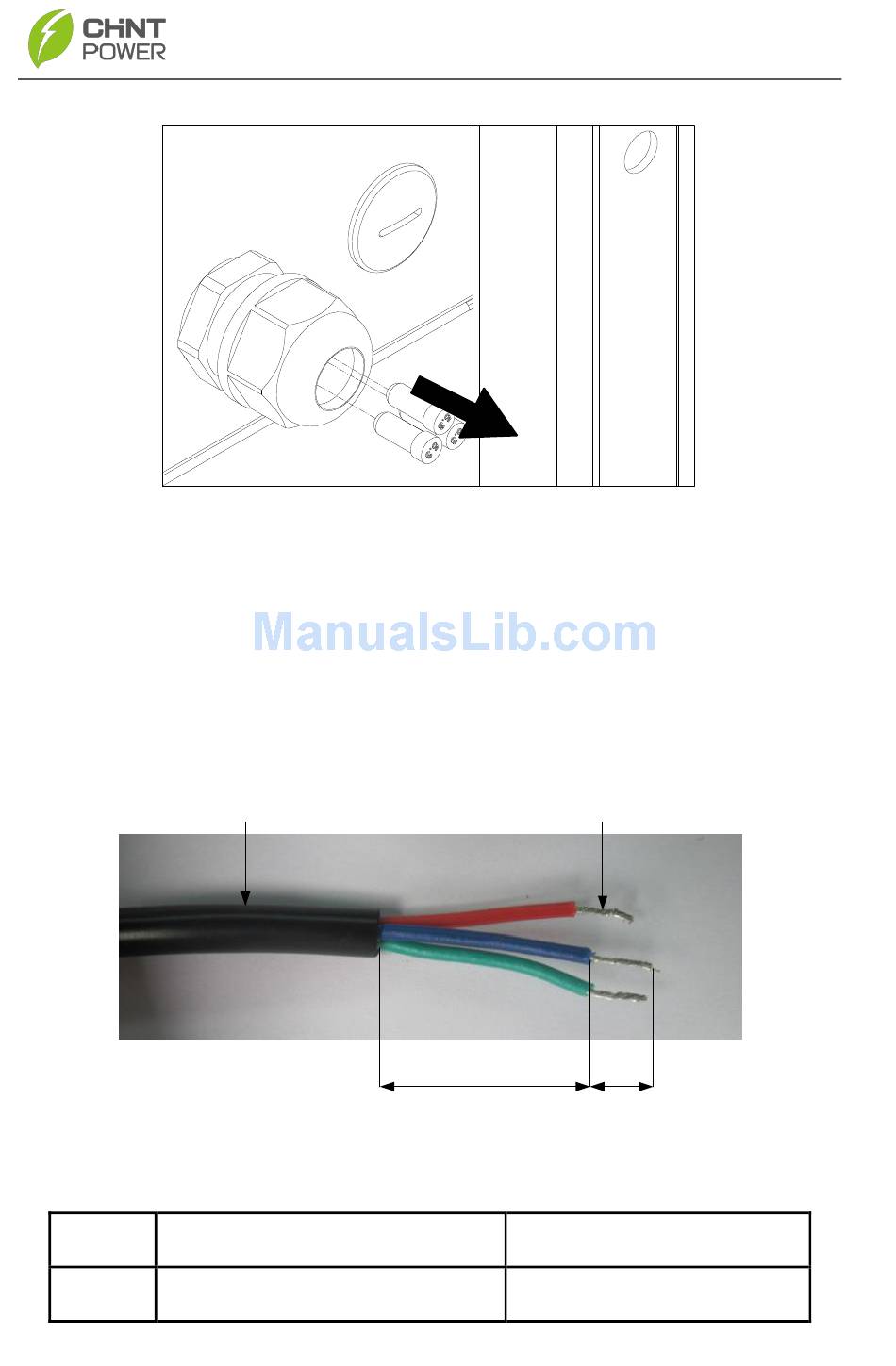

Figure 3-37 Take out the seal pin
b.) Put the dry contact communication cable through the cable gland and inside the
wiring box.
c.) Use double-layer insulated cables. Strip the cables according to the
following requirements.
Tool: Wire stripping pliers
D A
L2
L1
Figure 3-38 Wire stripping
Table 3-12 Cable set-up
Position Description Value
Cable type Double-layer insulated cable
