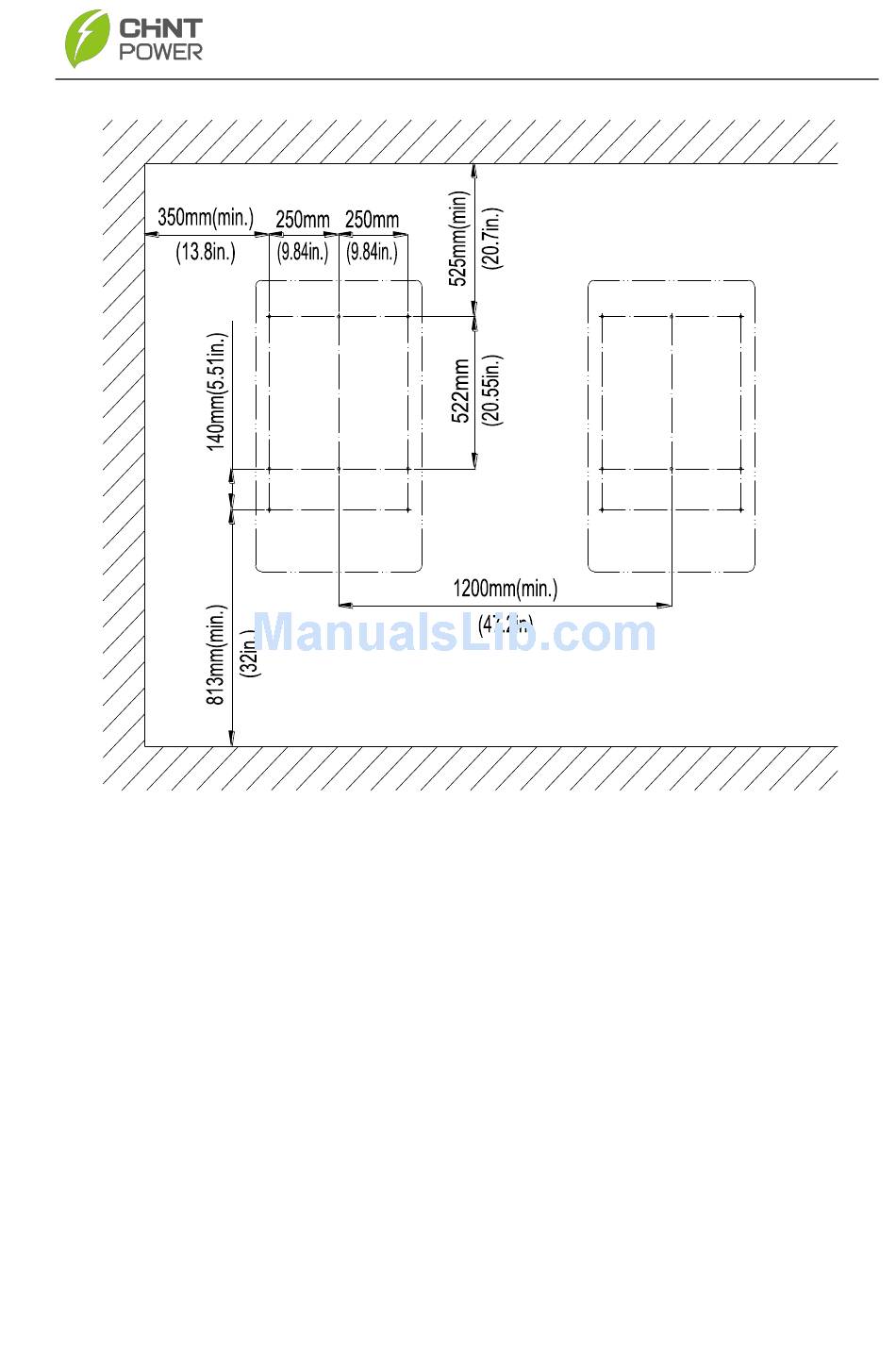

Figure 3-5 Dimensions of holes on the bearing surface
(2) Drill holes at the marked positions with a 10mm drill and put the M8
expansion tubes① into the holes; Fasten the mounting bracket② with
the M8x25 assembling bolts③ in the accessory kit.
Tool: Electric drill (Ф10mm head), No. 13 wrench
