the J9 & J10 terminal blocks on the fuse board.
3.
Put the jumper busbar attached in the accessory kit on the J9 & J10
terminal blocks, and tighten the wire terminals back on the terminal
blocks with a torque value of 1.2N.m.

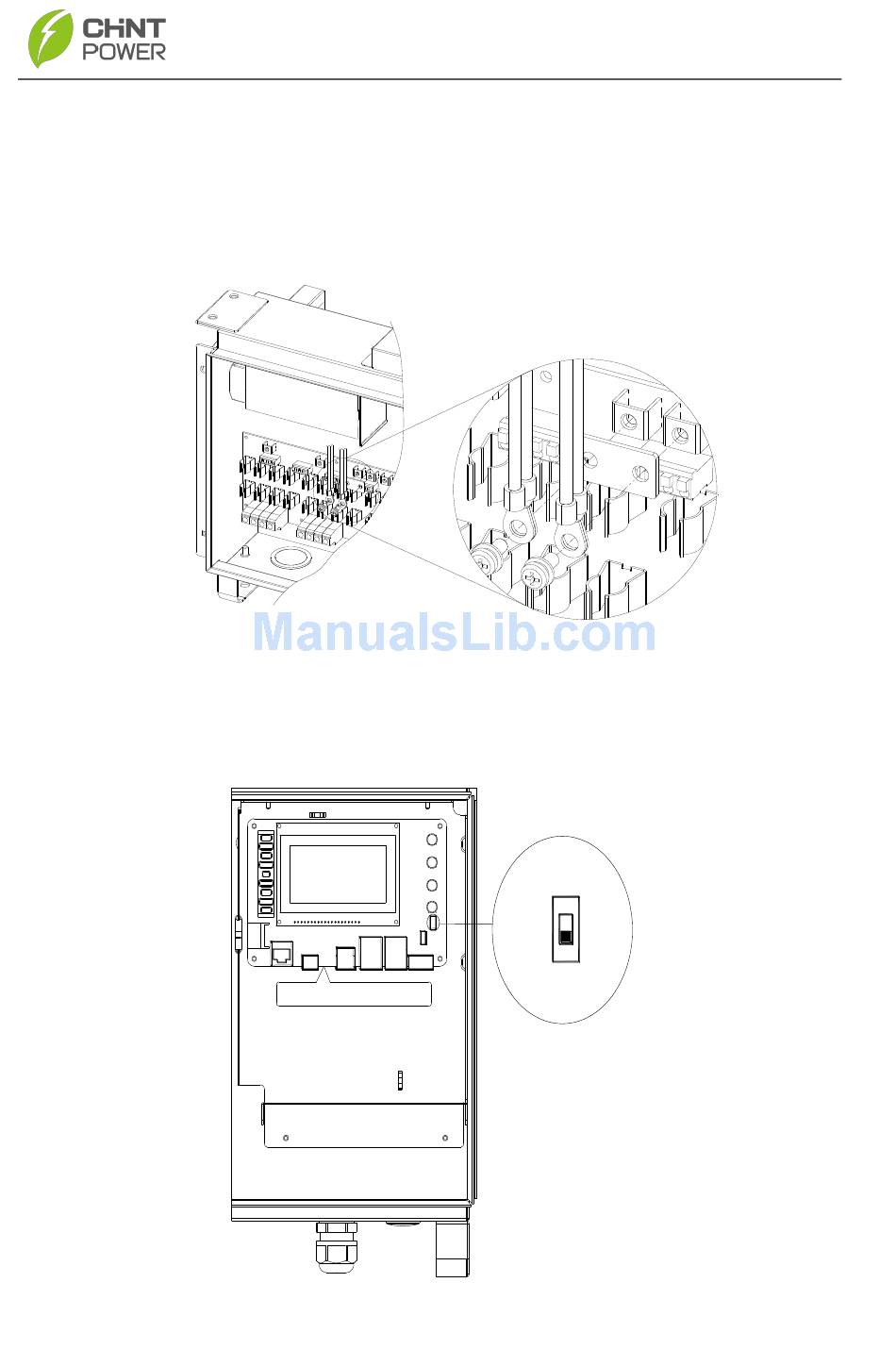

Figure 3-20 Internal configuration of parallel mode
4.
Set the selector switch on the LCD board (see Figure 3-21) to parallel
mode.
Communication board
28
PAR
IND
S401
