RIGHT ENGINE MOUNT BRACKET

REPLACEMENT
Removal
1. Remove right engine mount and insulator (Section 2).
2. Remove two locknuts, washers, bolts, and washers
securing support bracket to engine mount bracket
(Figure 9-131).
3. Remove bolt securing vent tube clamp to engine mount
bracket.
4. Remove three locknuts, washers, bolts, washers, support
bracket, and engine mount bracket from frame rail.
VENT TUBE
CLAMP
SUPPORT
BRACKET
FRAME RAIL

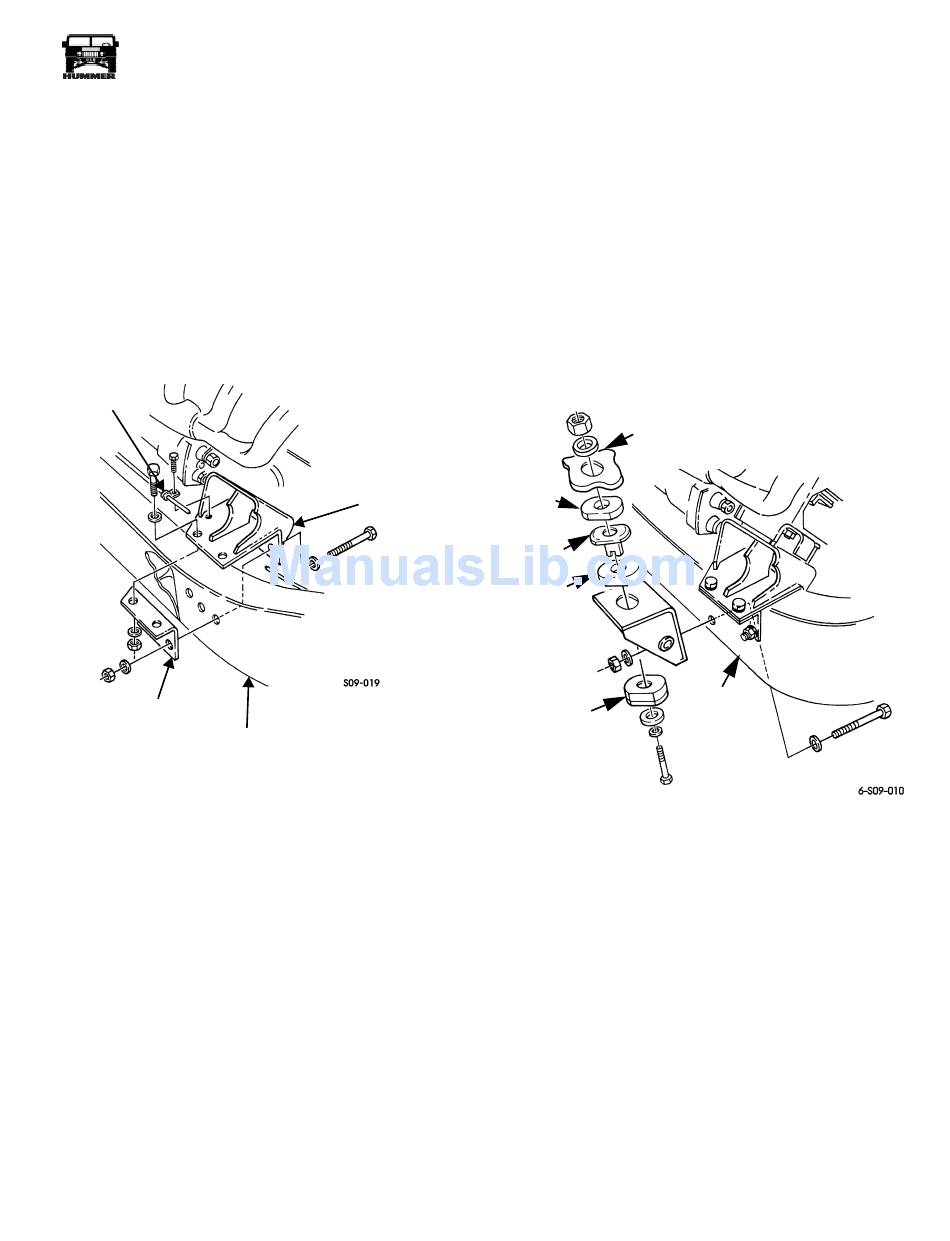

Figure 9-131: Right Engine Mount Bracket
Replacement
Installation
1. Install support bracket and engine mount bracket on frame
rail with three washers, bolts, washers, and locknuts
(Figure 9-131).
2. Install support bracket on engine mount bracket with two
washers, bolts, washers, and locknuts. Tighten locknuts to
90 lb-ft (122 N•m).
3. Install vent tube clamp on engine mount bracket with bolt.
4. Install right engine mount and insulator (Section 2).
05745159
Axles, Suspension, and Frame

RIGHT FRONT BODY MOUNT BRACKET

REPLACEMENT
Removal
1.
2.
Installation
1.
2.
ENGINE MOUNT
SLEEVE
BRACKET
SPACER
CUSHION
Remove right front body mount.
Remove three locknuts, washers, bolts, washers, and right
front body mount bracket from frame rail (Figure 9-132).
Install right front body mount bracket on frame rail with
three washers, bolts, washers, and locknuts. Tighten lock-
nuts to 90 lb-ft (122 N•m) (Figure 9-132).
Install right front body mount (Section 10).
BODY
UPPER
FRAME
LOWER
CUSHION
Figure 9-132: Right Front Body Mount Bracket
Replacement
9-55
