10-38 Body
LATCH ASSEMBLY

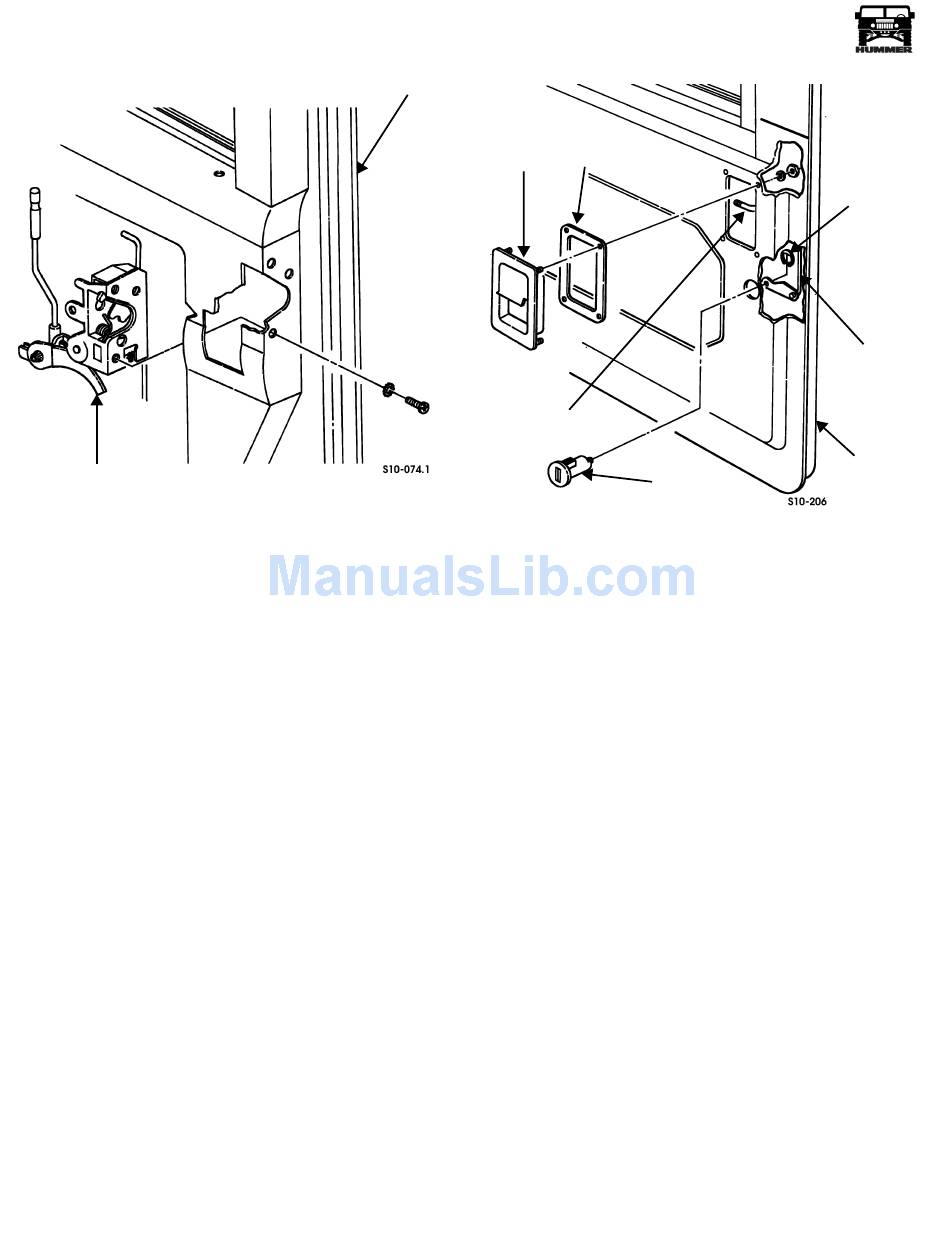

Figure 10-64: Latch Assembly
CAUTION: Firmly support glass during regulator removal to
avoid damage.
Remove power window regulator (refer to procedure in this
section).
Cleaning and Inspection
NOTE: Clean all components, and examine for wear or dam-
age. Replace if necessary.
Assembly
1. Install power windows regulator (refer to procedure in this
section).
2. Install all rods on door latch assembly (Figure 10-64).
WARNING: Screws securing latch assembly have met-
ric threads. Substituting non-metric threaded screws
can result in door opening during vehicle operation. Do
not substitute screws.
3. Secure latch assembly to door with lockwashers and
screws.
4. Connect outside operating rod to outside door handle, and
secure gasket and outside door handle to door with nuts
and lockwashers (Figure 10-65).
5. (Front doors only) Install lock cylinder in door and secure
lock operating rod and lever to lock cylinder with clip.
6. (Front doors only) Secure lock cylinder in door with lock
cylinder clip (Figure 10-63).
7. Install inside operating rod on door latch assembly.
DOOR
OUTSIDE
DOOR
HANDLE GASKET
OUTSIDE
OPERATING
ROD
Figure 10-65: Lock Cylinder and
NOTE: Vapor barrier must be completely sealed at all edges to
prevent water entry into the interior of the vehicle.
8. Install moisture barrier flap and vapor barrier on door
(Figure 10-62).
9. Secure door trim panel to door with screw/washer
assemblies (Figure 10-61).
10. Connect inside operating rod to inside door handle, and
install inside door handle on door trim panel with screws.
11. Install door pull handle or armrest on door trim panel with
screws.
12. Install power window switch.
13. Secure upper and lower hinge plates to door with washers
and twelve-point screws (Figure 10-66).
Installation
CAUTION: To avoid damage, support door during installa-
tion.
1. Secure lower door hinge to pillar with washers and twelve-
point screws. Do not tighten screws (Figure 10-66).
2. Secure upper door hinge to pillar with washers and
twelve-point screws. Do not tighten screws.
3. Install door stop strap assembly.
4. Install power windows and door locks harness on pillar
(Section 12).
5. Install sideview mirror (front doors only).
6. Install sideview mirror (front doors only).
LOCK
CYLINDER
Outside Door Handle
®
CLIP
LOCK
OPERATING
ROD
DOOR
