Hummer H1 Service Manual page 895

12-122 Electrical System
Installation
NOTE: Lubricate bushings, rubber grommet, and door harness
teflon cover with silicone spray.Install clip and support bracket
on rear door harness (Figure 2-117).
1. Install harness in door bushing.
2. Install support bracket in rear door with two capscrews.
3. Install rubber grommet in B-pillar.
4. Install harness through grommet until yellow tape touches
the back of B-pillar.
5. Install P-clamp on harness at yellow tape and B-pillar with
capscrew, washer and lockwasher and nut assembly.
6. Install two-lead connector on rear door harness, matching
wire colors to jumper harness. Connect harness to jumper
harness.
ACTUATOR
POWER LEAD
CLIP
DOOR HARNESS
TEFLON COVER
4-1-00
______________________________________________________
SUPPORT
BRACKET BUSHING
SUPPORT
BRACKET
P-CLAMP
DOOR
REINFORCEMENT
B-PILLAR
RUBBER GROMMET

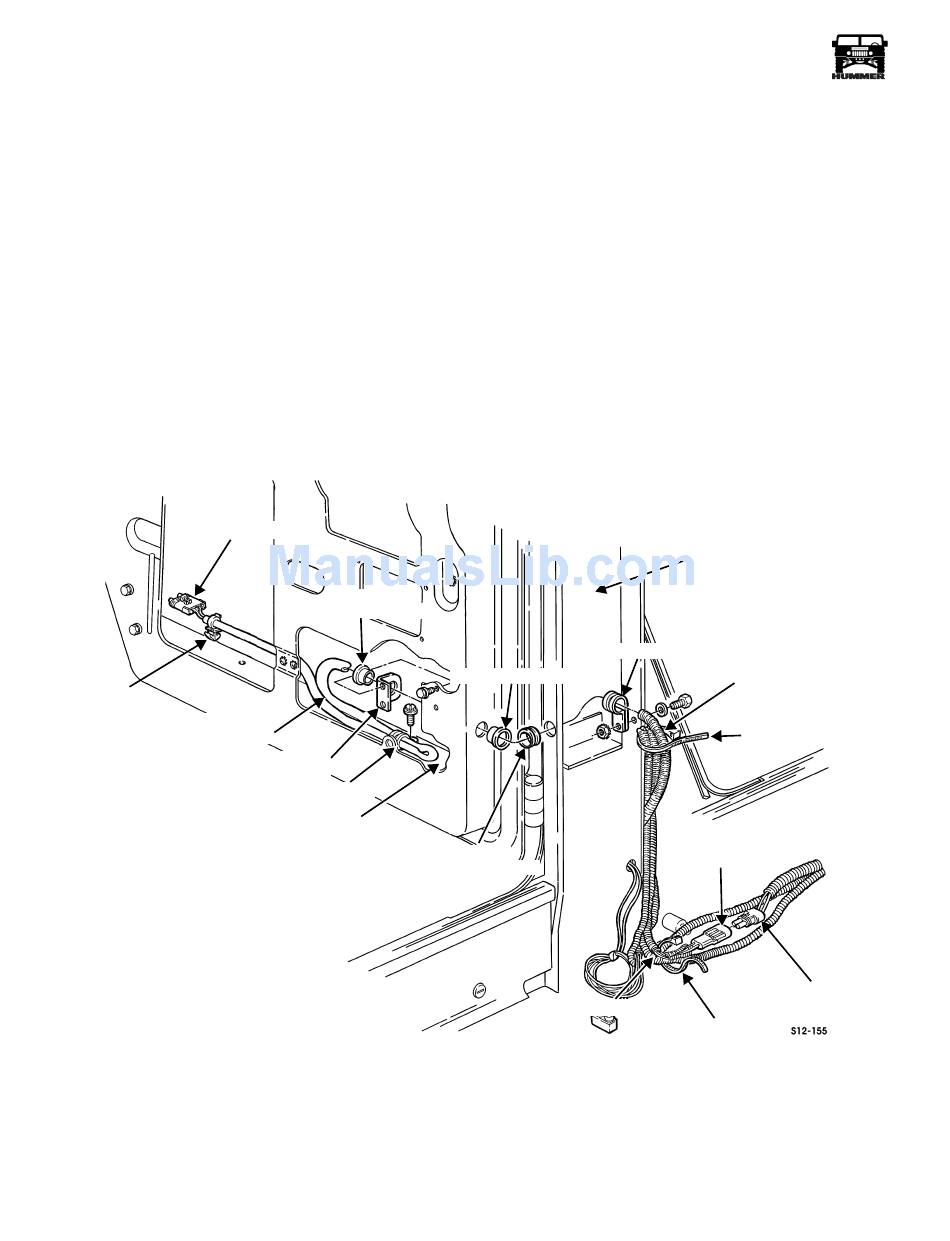

Figure 2-117: Door Harness Routing
7. Route rear door harness along bottom of rear door. Secure
harness to door reinforcement with clip.
8. Attach door harness connector to actuator. Tighten power
window motor mounting screws, if loose.
9. Install convoluted tubing on rear door harness wires and
secure with black electrical tape.
10. Install P-clamp on rear door harness at yellow tape area
and secure to door reinforcement with one capscrew.
11. Install vapor barrier and moisture barrier flap.
12. Install rear door trim (Section 10).
13. Install side trim and outer kick panel (Section 10).
14. Install trim on B-pillar and B-beam (Section 10).
15. Install front seat (Section 10).
P-CLAMP
DOOR BUSHING
PLASTIC TUBING
B-PILLAR
REAR DOOR
HARNESS
TIE WRAP
TWO LEAD
CONNECTOR
JUMPER HARNESS
TIE STRAP
®
