10-56 Body
Removal
NOTE: Wire harnesses behind console are long enough to al-
low for power window master switch removal without remov-
ing console for access to electrical connectors.
1. Remove screws and pull power window master switch
from console (Figure 10-106).
2. Lift connector clip and pull connector from rocker switch/
time delay module.
3. Squeeze clips on rocker switch/time delay module and
remove switch/module from bezel.
Installation
1. Push rocker switch/time delay module into bezel opening
and snap into bezel.
2. Attach electrical connector to rocker switch/time delay
module.
3. Install power window master switch in console.
WINDSHIELD WIPER SYSTEM AND
COMPONENTS
Windshield Wiper Motor Assembly
Replacement
Removal
1. Remove center trim from windshield assembly.
2. Remove roof mounted amplifier cover/speaker housing if
equipped.
3. Disconnect windshield wiper motor assembly harness
from crossbody harness (Figure 10-108).
4. Remove three bolts, washers, and lockwashers securing
windshield wiper motor assembly to windshield assembly.
5. Remove retainer securing windshield wiper linkage to
windshield wiper motor cranking pin and remove
windshield wiper motor assembly.
Installation
1. Lubricate windshield wiper motor cranking pin and secure
windshield wiper linkage to windshield wiper motor
cranking pin with retainer (Figure 10-108).
2. Secure windshield wiper motor assembly to windshield
assembly with three lockwashers, washers, and bolts.
Tighten bolts to 12 lb-ft (16 N•m).
3. Connect windshield wiper motor assembly harness to
crossbody harness.
4. Install roof mounted amplifier cover/speaker housing if
removed earlier.
5. Secure center trim to windshield assembly.
WINDSHIELD WIPER
LINKAGE
RETAINER
WINDSHIELD WIPER MOTOR
ASSEMBLY HARNESS
WINDSHIELD
ASSEMBLY

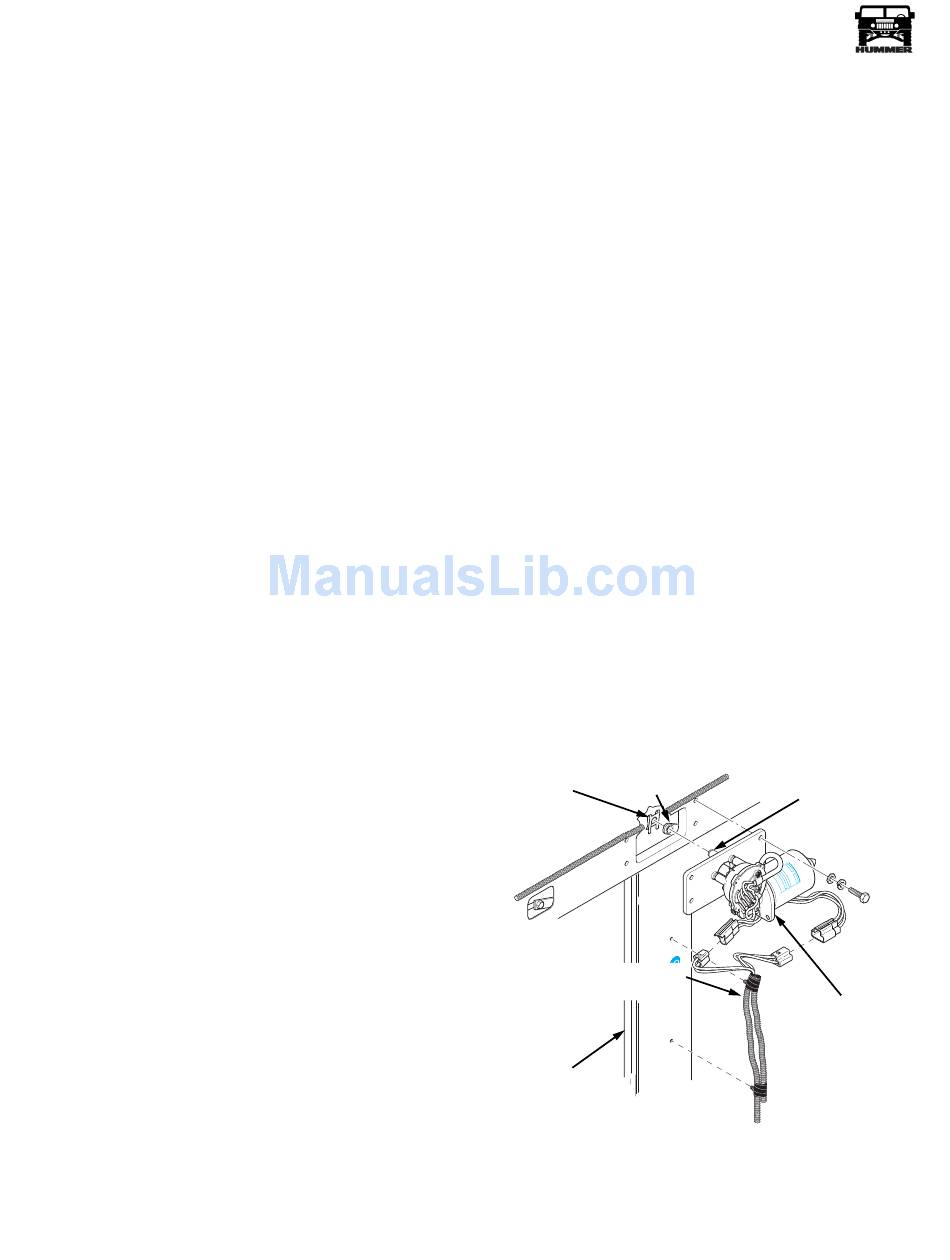

Figure 10-108: Windshield Wiper Motor Assembly
Replacement
®
WINDSHIELD WIPER
MOTOR CRANKING PIN
WINDSHIELD WIPER
MOTOR ASSEMBLY
