System Event
Null Trigger (used for direct control)
Fire Alarm
Police Alarm
Auxiliary Alarm
Any Audible Alarm
Silent Alarm (sensor groups 2, 3, and duress)
Any Audible or Silent Alarm
HOM Group 27, 28, 32 in Alarm
Major Trouble (phone or receiver failure)
Arming to STAY or AWAY
Arming to AWAY
AVM is Interactive (audio session in progress)
Fail-to-Communicate (panel can't call CS or pager) When the fail-to-communicate output is activated.
AVM Trip (edge)
Keychain Touchpad Star Button-Press
Smoke Power (for resetting 4-wire smoke detectors) Deactivated when hardwire smoke detectors need to be reset. 015
Exterior Siren
Interior Siren
AVM Trip (pulse)
State of System Status
Tamper Condition
Closing Report Sent
Arming to Level 1
Group XX in Alarm
Sensor XX in Alarm
Sensor XX Open
93

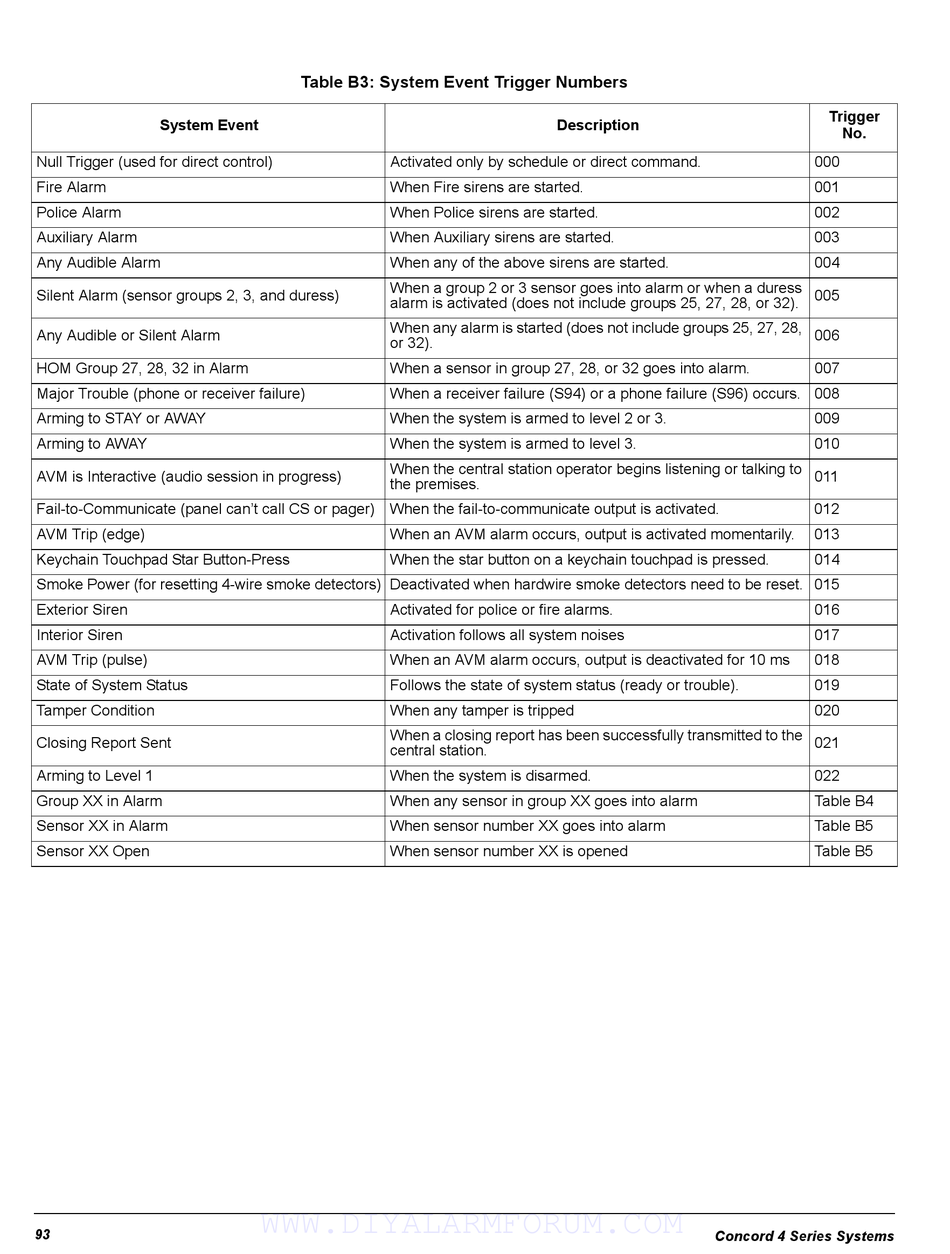

Table B3: System Event Trigger Numbers
Activated only by schedule or direct command.
When Fire sirens are started.
When Police sirens are started.
When Auxiliary sirens are started.
When any of the above sirens are started.
When a group 2 or 3 sensor goes into alarm or when a duress
alarm is activated (does not include groups 25, 27, 28, or 32). 005
When any alarm is started (does not include groups 25, 27, 28,
or 32).
When a sensor in group 27, 28, or 32 goes into alarm.
When a receiver failure (S94) or a phone failure (S96) occurs. 008
When the system is armed to level 2 or 3.
When the system is armed to level 3.
When the central station operator begins listening or talking to
the premises.
When an AVM alarm occurs, output is activated momentarily.
When the star button on a keychain touchpad is pressed.
Activated for police or fire alarms.
Activation follows all system noises
When an AVM alarm occurs, output is deactivated for 10 ms
Follows the state of system status (ready or trouble).
When any tamper is tripped
When a closing report has been successfully transmitted to the
central station.
When the system is disarmed.
When any sensor in group XX goes into alarm
When sensor number XX goes into alarm
When sensor number XX is opened
WWW.DIYALARMFORUM.COM
Description
Concord 4 Series Systems
Trigger
No.
000
001
002
003
004
006
007
009
010
011
012
013
014
016
017
018
019
020
021
022
Table B4
Table B5
Table B5
