Calibration Progress Indicators
During the calibration process, the imager has a number of ways to communicate its prog-
ress to the user. The following three types of feedback are the primary ways that the
imager communicates calibration progress.

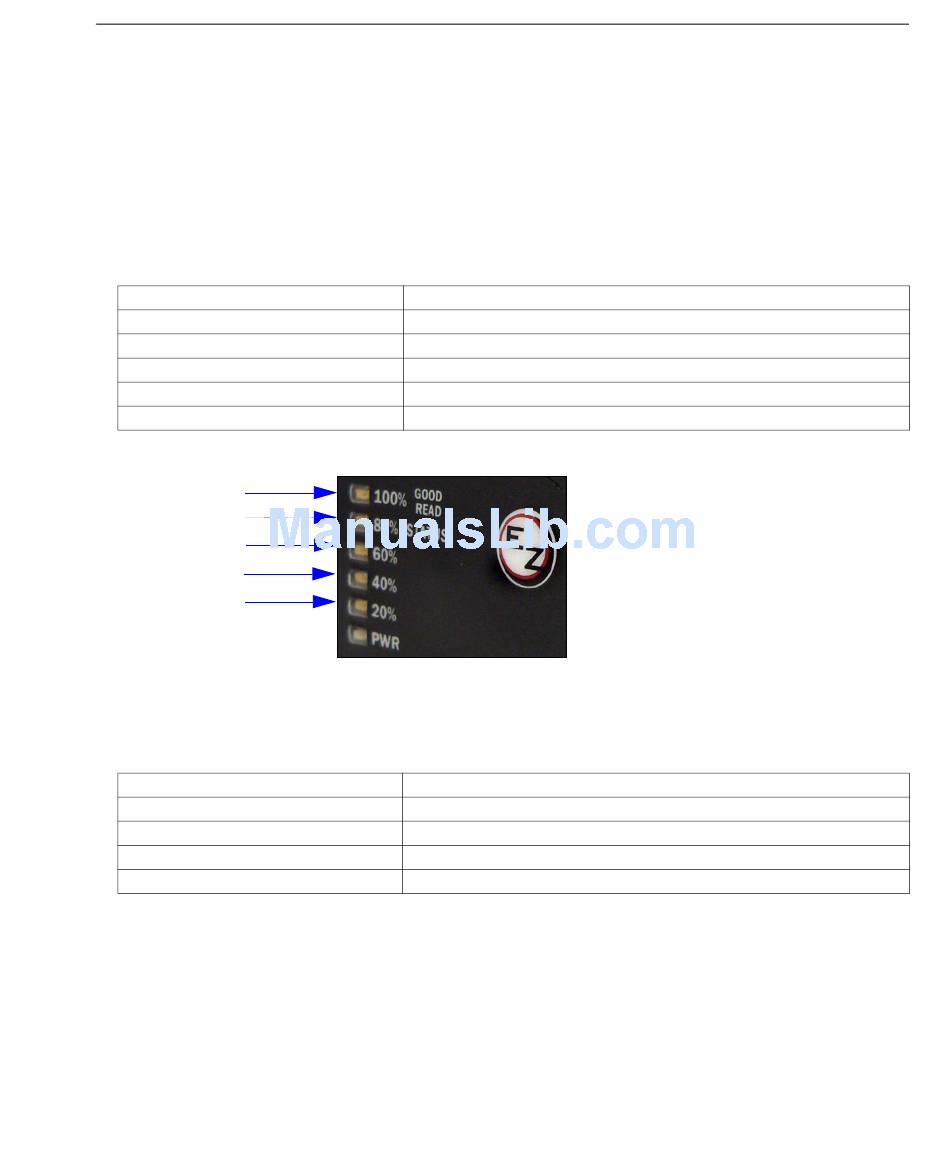

Read Rate LEDs
When calibration is initiated through a serial command or the EZ Button, the imager's
Read Rate LEDs indicate calibration progress as follows:
LEDs
20%
20%, 40%
20%, 40%, 60%
20%, 40%, 60%, 80%
20%, 40%, 60%, 80%, 100%
Calibrated
Successfully
Fine-Tune Pass
Medium Pass
Focus Pass
Search Pass
Beeper/Green Flash
The beeper and green LED flash are used to indicate calibration status as shown in the
table below:
Indicator
2 quick beeps
5 quick beeps
1 long beep
1 sec. Green Flash
MS-4X Imager User's Manual
Calibration Progress
Search Pass in progress.
Focus Pass in progress.
Medium Pass in progress.
Fine-Tune Pass in progress.
Calibrated Successfully (holds for green flash duration).
Status
Calibration has started.
Calibration has failed.
Calibration has been completed successfully.
Calibration has been completed successfully.
