Step 2 — Connect the System
Connecting by RS-232 / RS-422

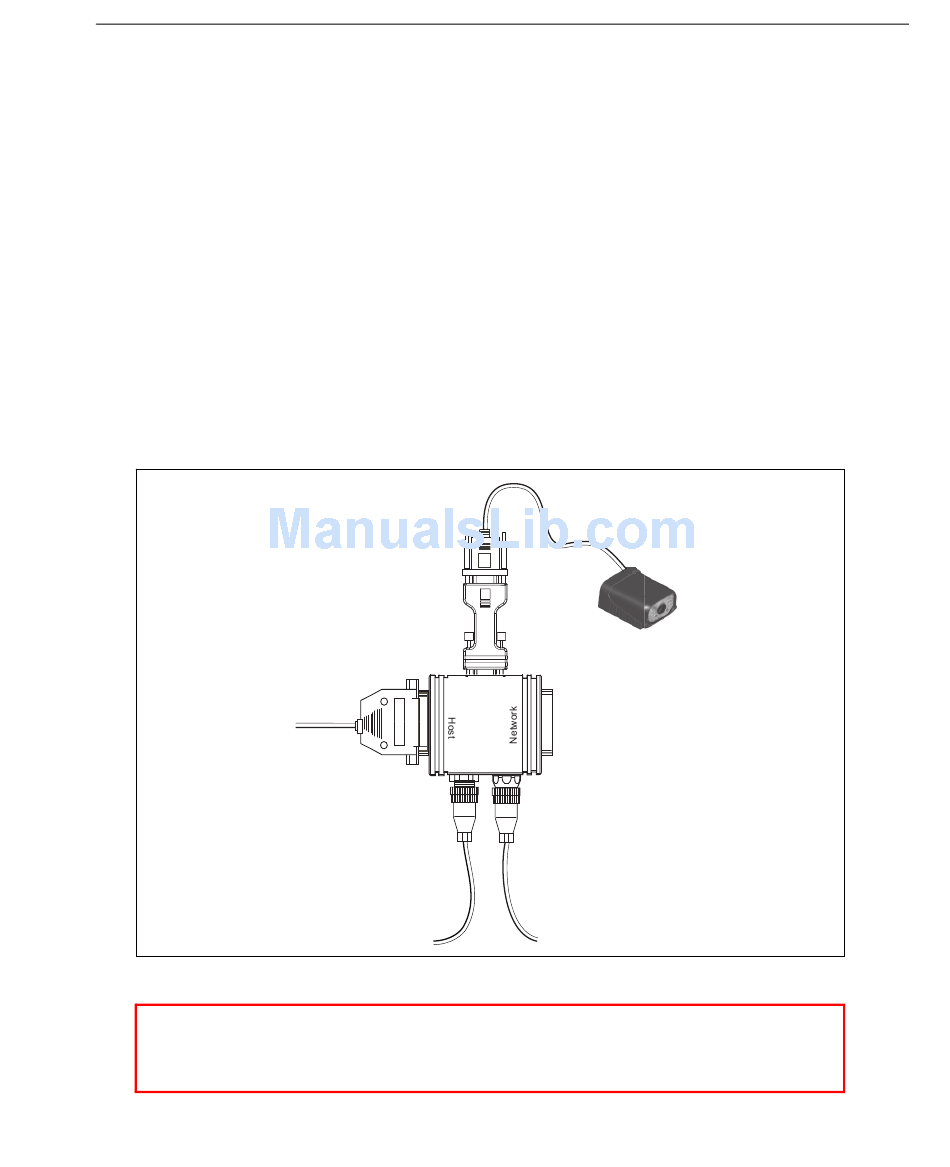

• Connect the imager (1) to the IB-131/IC-332 interface (2) and (3).
• Connect the host cable (6) to the host and to the host port on the IB-131 (3).
• Connect the object detector (5) to the IB-131 (3).
• Connect the power supply (4) to the IB-131 (3).
• Apply power to the imager.
Connecting by USB
• Plug the imager's USB cable into the host's USB port.
• Apply power to the imager.
Important: If you are using a USB MS-4X, you must connect the device to the host computer
before powering-on. Otherwise the unit will not be recognized as a USB device.
Caution: Be sure that all cables are connected BEFORE applying power
to the system. Always power down BEFORE disconnecting any cables.
