General Specifications
Appendix A — General Specifications
Mechanical
Height: 1" (25.4 mm)
Width: 1.8" (45.7 mm)
Depth: 2.10" (53.3 mm)
Weight: 2 oz. (57 g)
Environmental
Enclosure: IP54, category 2
Operating Tempurature: 0° to 40°C (32° to 104°F)
Storage Tempurature: -50° to 75° C (-58 to 167°F)
Humidity: up to 90% (non-condensing)
CE Mark
General Immunity for Light Industry: EN
55024:1998+A1:2001+A2:2003
Radiated and Conducted Emissions of ITE
Equipment:
EN 55022:1998+A1:2000+A2:2003 for Class A
products
Light Source
Type: High-output LEDs
Light Collection Options
Progressive scan, square pixel. Software adjust-
able shutter speed, electronic shutter.
VGA: 640 by 480 pixels.
Connector
Type: 3 ft. cable terminated with High Density 15-
pin D-Sub socket connector or USB Type A con-
nector
Indicators
LEDS: Read Performance, Power, Read Status
Green Flash: Good Read
Blue Target Pattern: Symbol locator
Beeper: Good Read, match/mismatch, No Read,
serial command confirmation, on/off
Discrete I/O
Trigger Input: 5 to 28VDC rated (.16 mA)
New Master: 5 to 28VDC rated (.16 mA)
Default: 3.3V rated (0mA @ 3.3V)
Outputs (1, 2, 3): 5V TTL compatible; can sink 10 mA and source 10mA
Optional I/O: Optoisolated (with IC-332 accessory)
Communication Protocols
Standard Interfaces: RS-232, RS-422, USB
Symbologies
2D Symbologies: Data Matrix (ECC 0-200), Aztec Code, QR Code, Micro QR Code
Stacked Symbologies: PDF417, MicroPDF417, GS1 DataBar (RSS) (Composite and Stacked)
Linear Symbologies: Code 39, Code 128, BC412, Interleaved 2 of 5, Pharmacode, UPC/EAN, Codabar, Code
93, Postal
Read Parameters
Pitch: ±30° Skew: ±30° Tilt: 360°
Decode Rate: Up to 10 decodes per second
A-2

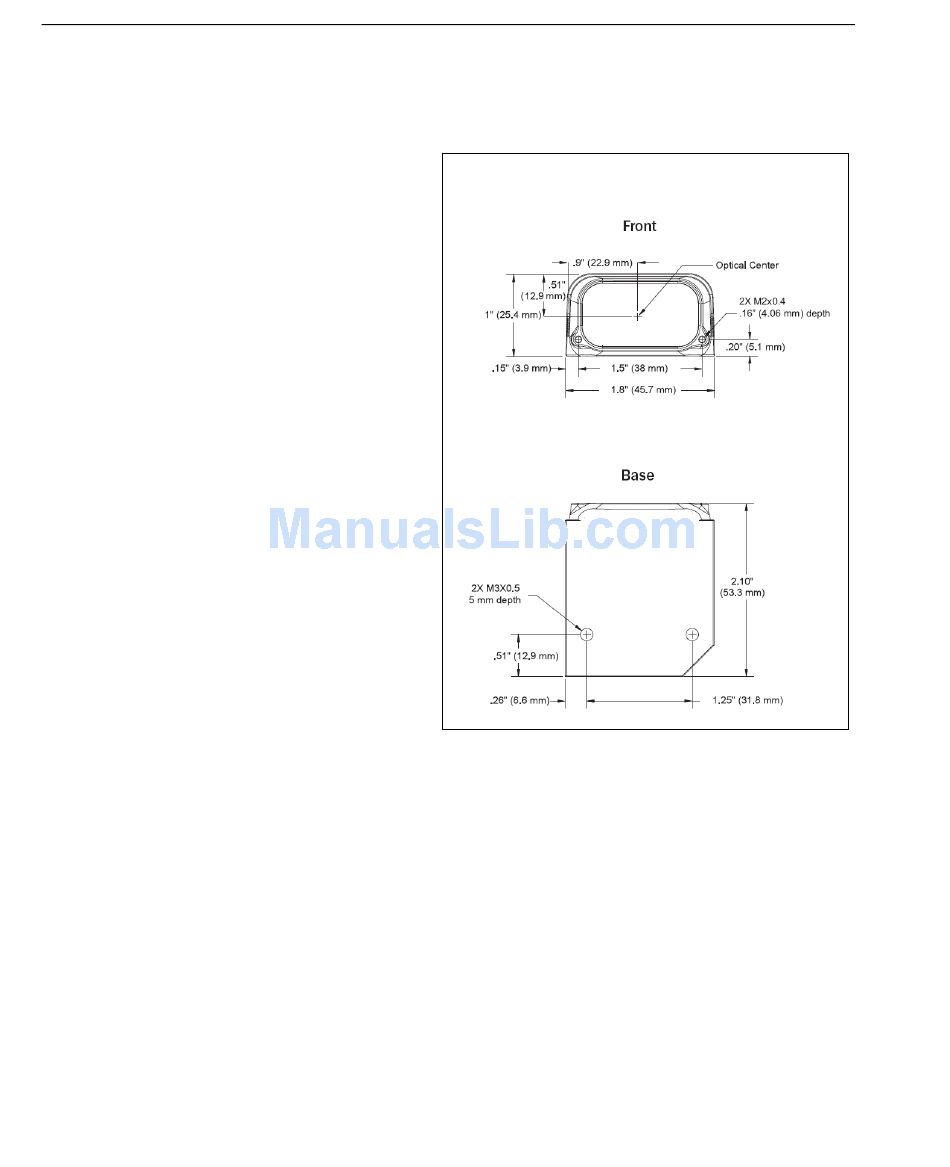

Note: Nominal dimensions shown.
Typical tolerances apply.
MS-4X Dimensions
