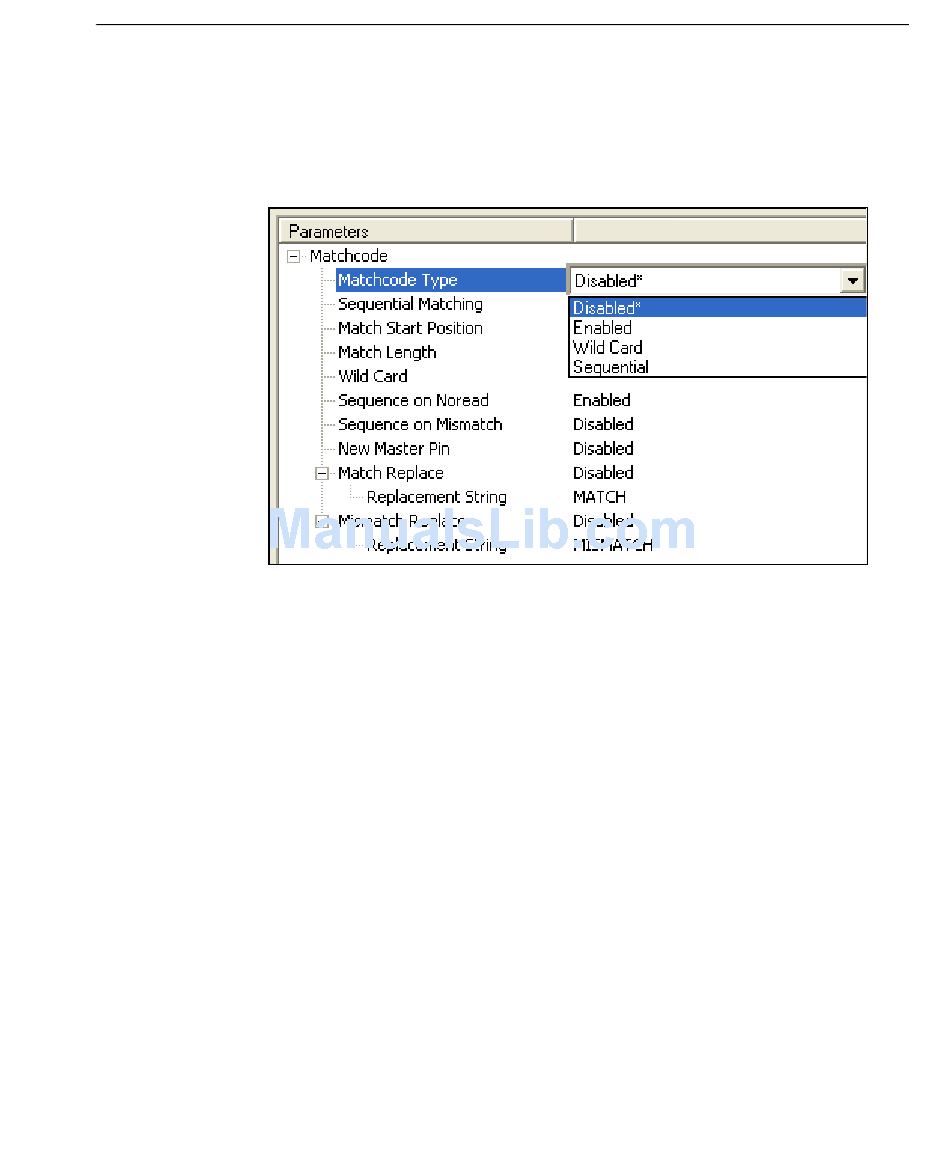

Matchcode Type
Definition:
Allows the user to choose the way that master symbols will be compared
with subsequently read symbols.
Note: First set Triggering Mode to External or Serial.
ESP:
Serial Cmd:
<K223,matchcode
match length,wild card character,sequence on No Read,sequence on
mismatch>
Default:
Disabled
Options:
0 = Disabled
1 = Enabled
2 = Wild Card
3 = Sequential
Disabled:
Has no effect on operations.
Enabled:
Instructs the imager to compare symbols or portions of symbols with the
master symbol.
Wild Card:
Allows the user to enter user-defined wild card characters in the master
symbol.
Sequential:
Instructs the imager to sequence after each match (numeric only) and
compare symbols or portions of symbols for sequential numbers.
Note: If Matchcode Type is set to Sequential, the imager will behave
as if Number of Symbols were set to 1, regardless of the user-defined
configuration.
MS-4X Imager User's Manual
type,sequential matching,match start position,
Matchcode
9-5
