Replacing the Control Panel

Caution: The control panel is NOT hot swappable. Before removing or replacing the control panel,
you must first take the server out of service, turn off all peripheral devices connected to
the system, turn off the system by pressing the power button, and unplug the AC power
cord from the system or wall outlet.
1. Observe the safety and ESD precautions at the beginning of this book. See
Information".
2. Power down the server and unplug all peripheral devices and the AC power
cable(s).
3. Remove the front bezel. For instructions, see
4. Remove the server system cover. For instructions, see
Cover".
5. Unplug the front panel and USB cables from the backplane (see letters "A" and "B"
n the figure below).
6. Press the latch at the back of the control panel (see letter "C" in the figure below).
7. Slide the control panel out through the front of the server system (see letter "D" in
the figure below).
62
D

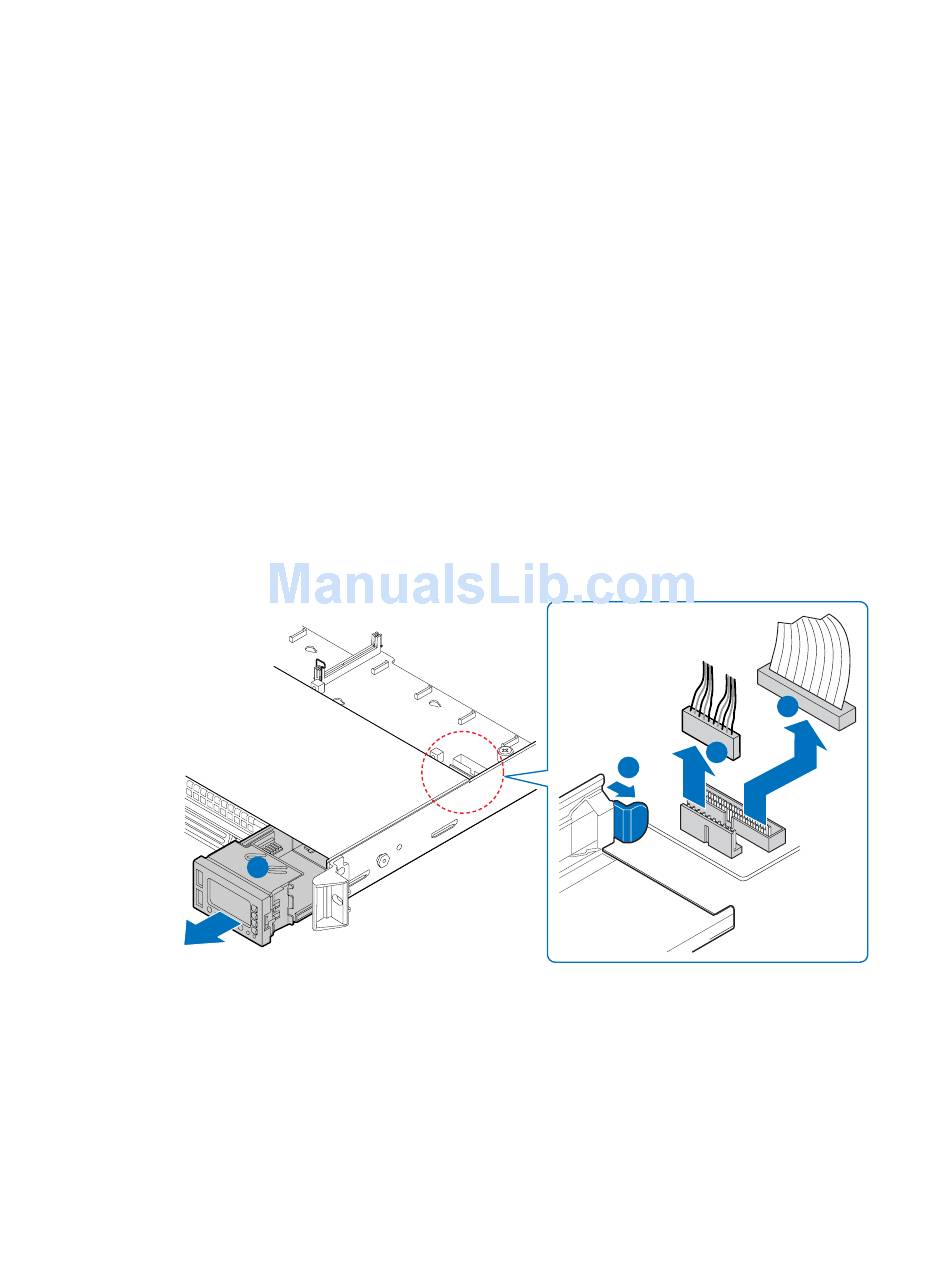

Figure 52. Removing the Control Panel Module

"Removing the Front Bezel".
"Removing the System
B
C
® ®
SGI Altix XE210 User's Guide
"Safety
A
AF000381
