The SATA Backplane

The system supports a passive SATA backplane. The backplane provides the platform
support for peripheral drives and hot-swap SATA hard drives. To eliminate several cables,
the backplane is also used as a pathway for signals from the server board to various
platform interconnects, including those for the control panel and peripheral drives.
The passive backplane acts as a 'pass-through' for the SATA data from the drives to the
SATA controller on the server board or a SATA controller add-in card. It provides the
physical requirements for the hot-swap capabilities.
A. Backplane Power
B. Not used
C. SATA 0
D. SATA 1
E. SATA 2
F. Fan 5 Power
G. Bridge Board Connector
H. Fan 4 Power
12
A
B
D
C
E
F
O

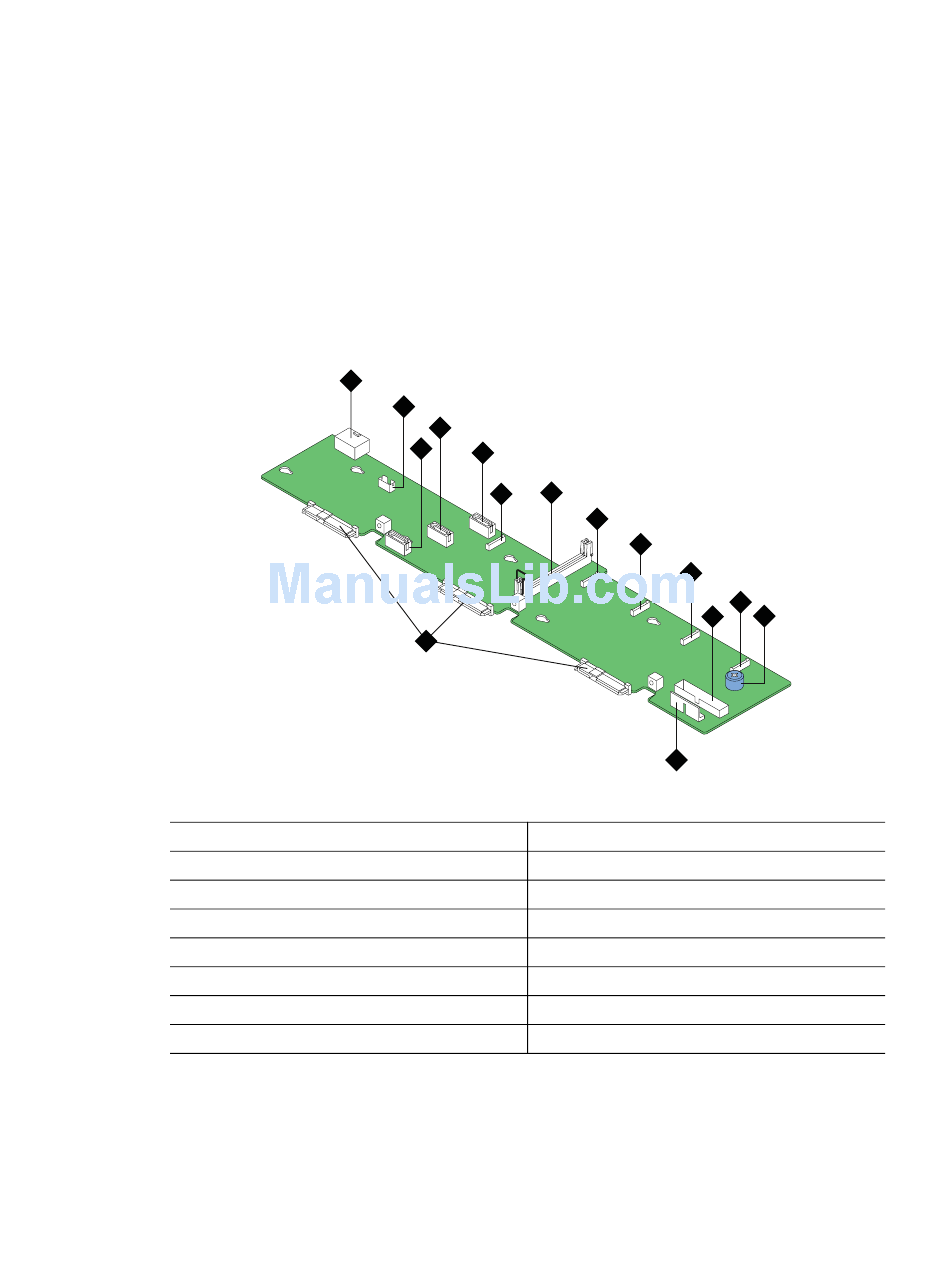

Figure 8. Passive Backplane Components

G
H
I
J
K
N
I. Fan 3 Power
J. Fan 2 Power
K. Front Panel Connector
L. Fan 1 Power
M. Screw
N. Front Panel USB
O. Backplane Connectors
®
SGI Altix
L
M
TP02171
®
