Replacing the Power Supply

Caution: The power supply is not hot-swappable. Before removing or replacing the power supply,
you must first take the server out of service, turn off all peripheral devices connected to
the system, turn off the system by pressing the power button, and unplug the AC power
cord from the system or wall outlet.
The power supply can be replaced if it fails or if one of the fans that is integrated into it
fails. To replace the power supply, use the following instructions.
1. Observe the safety and ESD precautions at the beginning of this book. See
Information".
2. Power down the server and unplug all peripheral devices and the AC power
cable(s).
3. Remove the server system cover. For instructions, see
Cover".
4. Lift the power supply to disengage it from the latch (see letter "A") and remove the
power supply by sliding it out (see letter "B") as shown in the figure below.
60
A
A

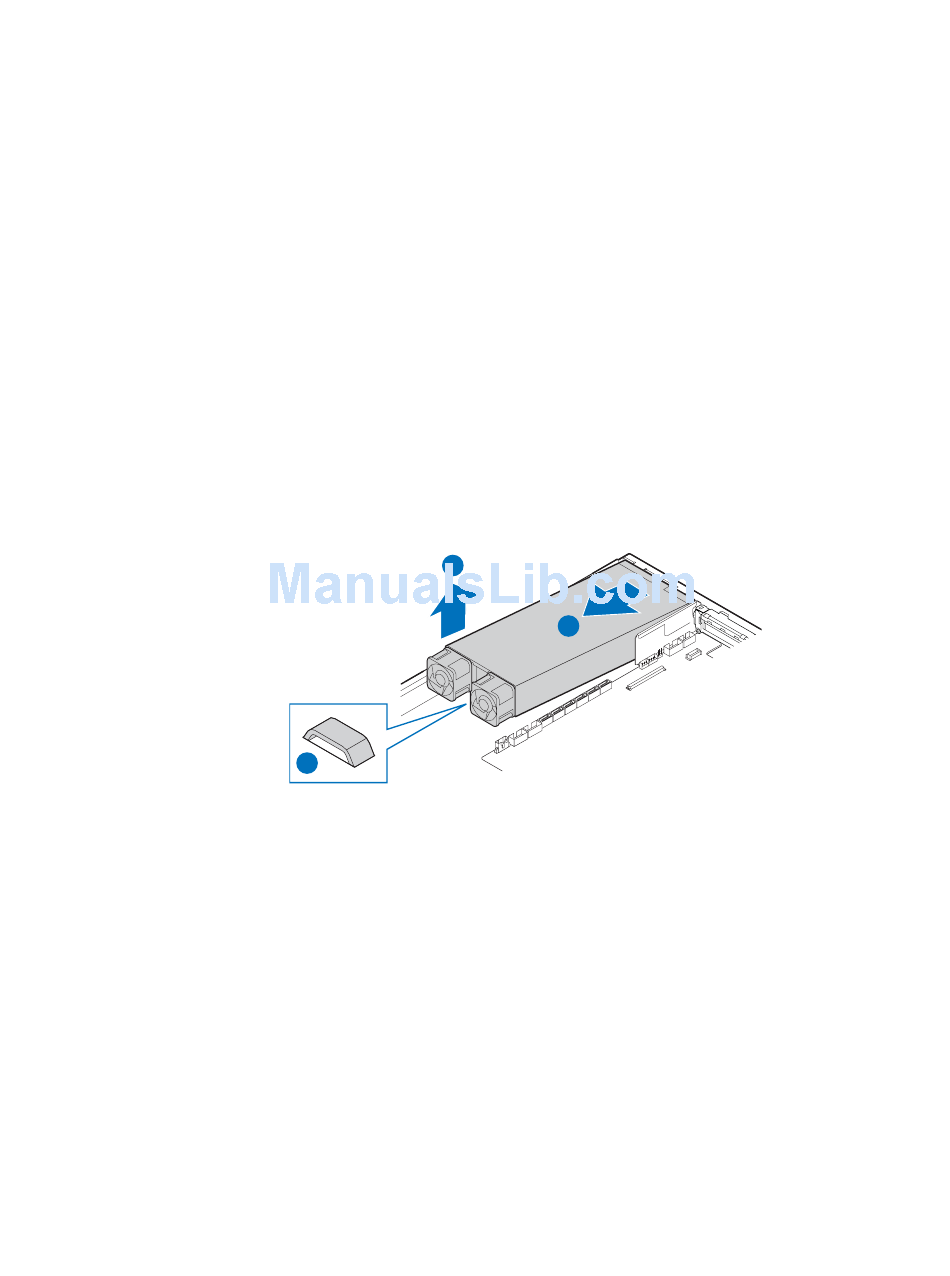

Figure 50. Removing Power Supply Module

"Removing the System
B
AF000366
® ®
SGI Altix XE210 User's Guide
"Safety
