3. Install the server system cover. For instructions, see
4. Plug all peripheral devices and the AC power cable(s) into the server.

Installing and Removing a Hot-swap Hard Drive

Up to three hot-swap SATA drives can be installed.
Cautions: If you install fewer than three drives or devices, empty drive bays must be occupied by
carriers with baffles to maintain proper system cooling.
The server system does not support all hard drives. To avoid possible damage to your
server system, do not use older-style drive carriers. Contact your SGI representative for a
list of supported hardware.

Installing a SATA Hot-swap Hard Disk Drive

1. Remove the front bezel if it is installed. For instructions, see
Bezel".
2. Open the latch at the front of the hard drive carrier. See letter "A" in the figure
below.
3. Pull out on the black lever and slide the carrier from the server system. See letter
"B" in the figure below.
34

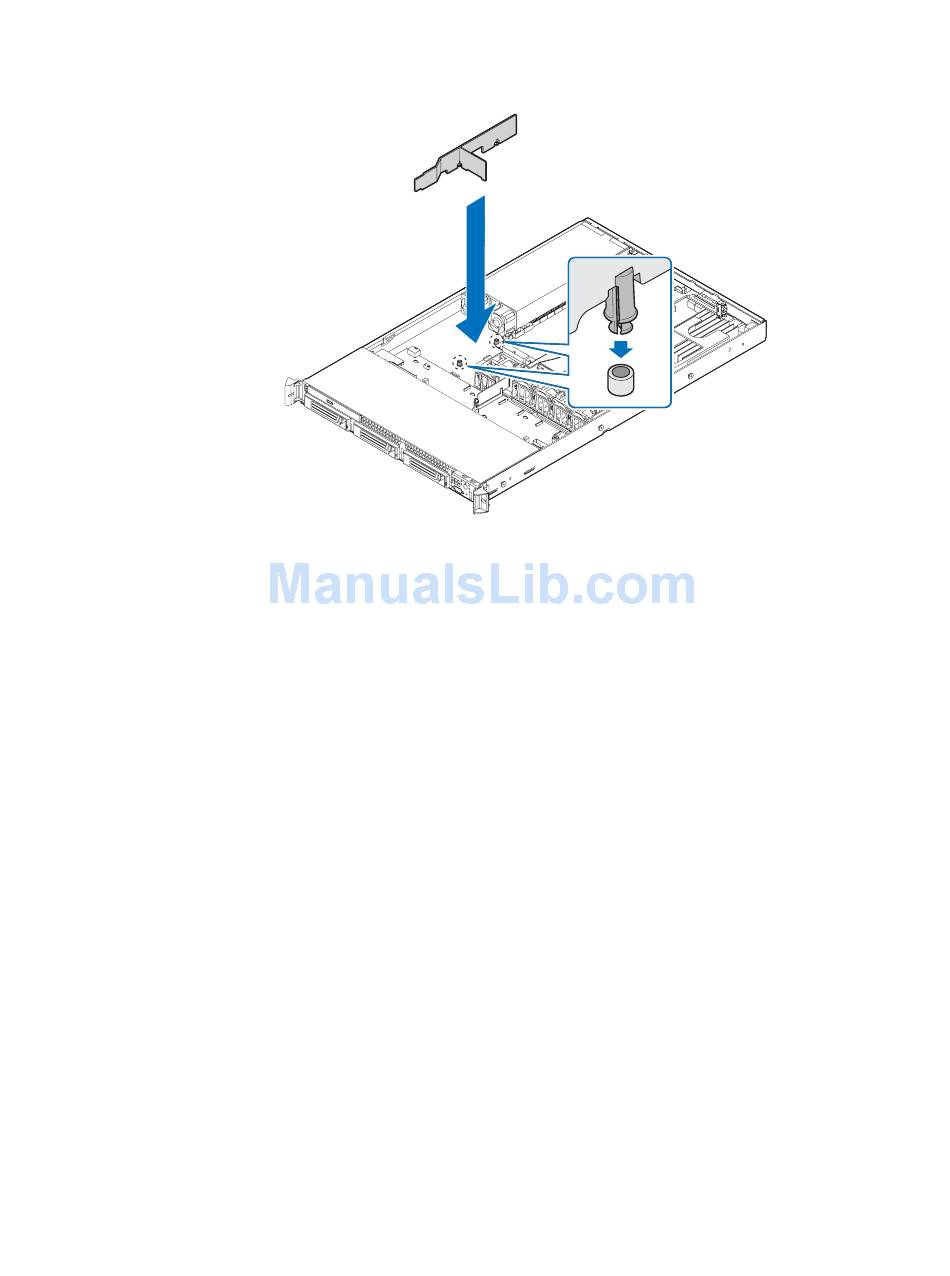

Figure 26. Installing the Small Air Baffle

TP02205
"Installing the System
"Removing the Front
® ®
SGI Altix XE210 User's Guide
Cover".
