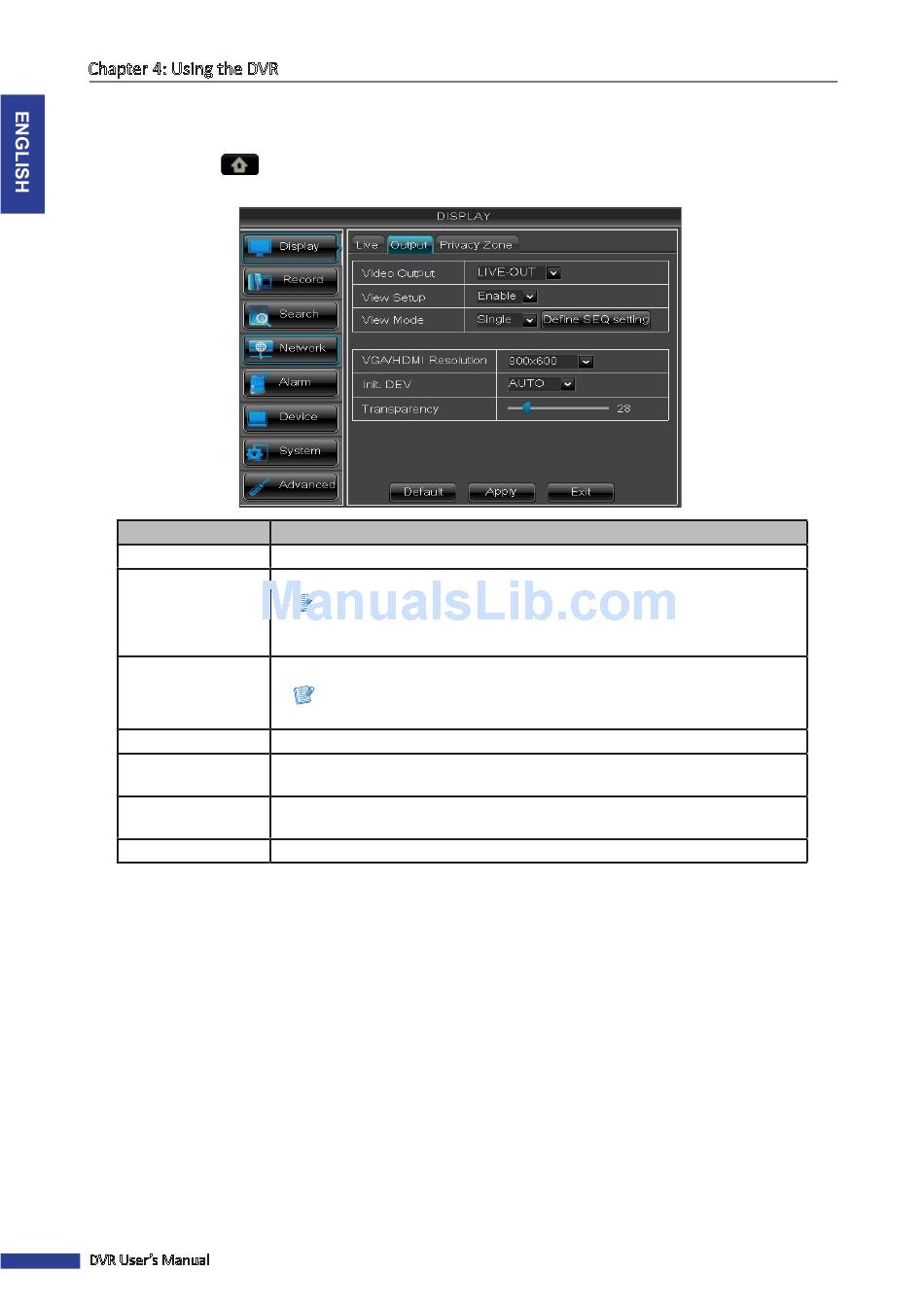

Chapter 4: Using the DVR

4.1.2 Output Settings

1
In the preview mode, right-click on the mouse to display the Pop-up menu.
2
Select Main Menu
3
Modify the necessary settings:
Menu item
Video Output
View Setup
View Mode
Define SEQ setting
VGA/HDMI
Resolution
Init. DEV
(Initial Device)
Transparency
4
After all settings are complete, click Apply.
5
When data saving is complete, click OK.
DVR User's Manual
40
> DISPLAY, then select the Output tab.
Description
To set the video output setting of the main monitor used for live view display.
Select Enable to enable view setup.
Note:
When View Setup is enabled, Split Windows function is not available (see
Split Mode" on page 34).
Select how you want to split the windows, options are: Single, Quad, Nine, Sixteen.
Note:
Sixteen option is only available on 16-channel model.
Click Define SEQ setting to set the order of how the channels appear.
Select the output resolution.
Select where you want to display the OSD menu (BNC Video Out, HDMI, or Auto
Detection).
Slide the bar to adjust the transparency of windows.
"3.7.2
