Chapter 2: Installation

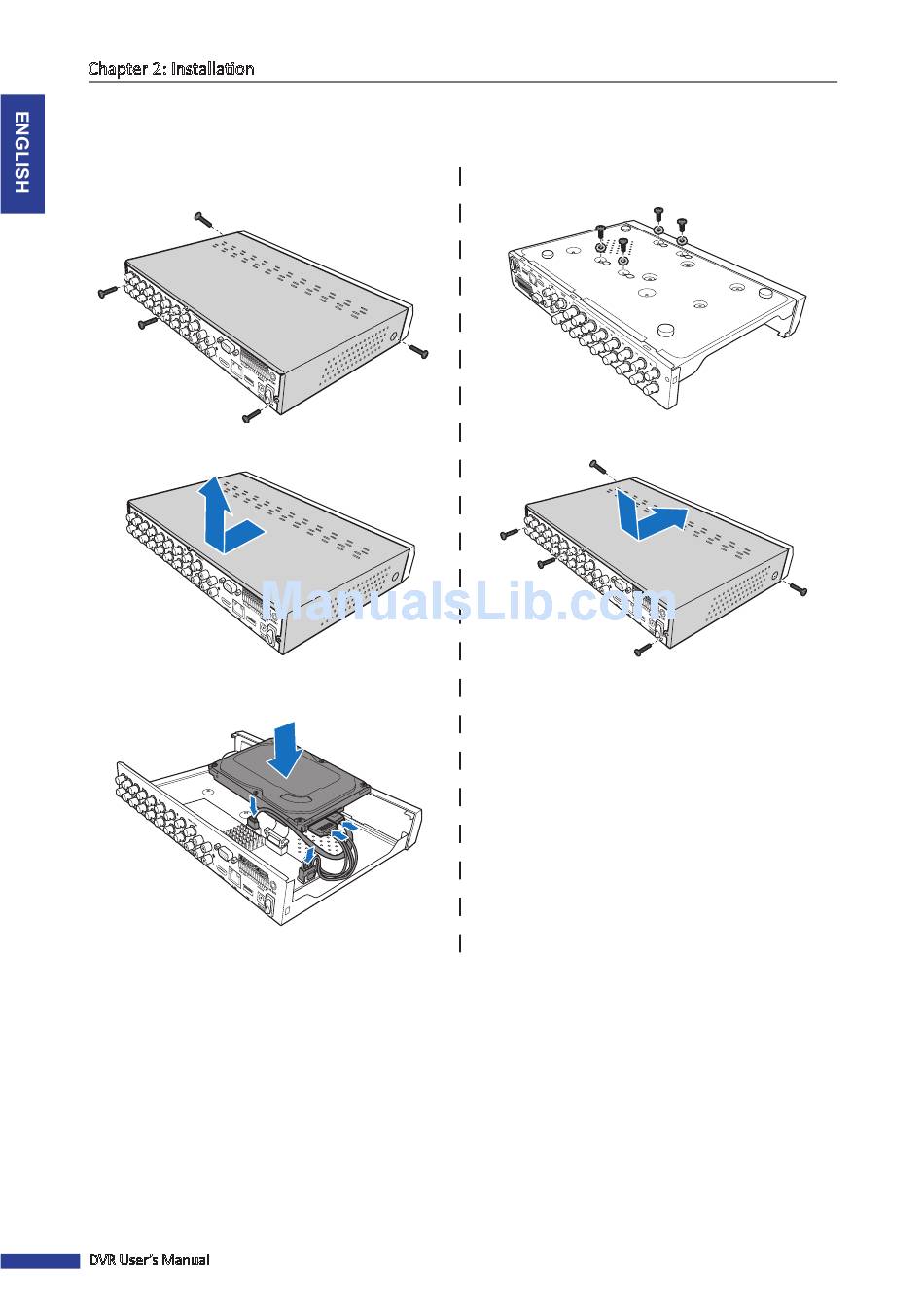

2.1.2 Installing HDD on 16-Channel DVR
The 16-channel DVR supports supports one 3.5" SATA hard disk drive. To install the HDD, follow the steps below.
1
Loosen the screws on the left, right, and rear sides as
shown.
2
Push back then lift up the cover to remove it.
3
Connect the data and power cables to the hard disk
drive (HDD) and place the HDD on the DVR case.
DVR User's Manual
16
4
Align the HDD to the holes on the DVR case and
secure the HDD using the four (4) supplied screws.
5
Attach the cover and the screws back in place.
