Chapter 2: Installation

2.1 Installing the Hard Disk Drive

Depending on the package you have purchased, the hard disk drive may be included in the full package. If it is not
pre-installed, follow the installation instructions on this user manual.
DO NOT install or remove the hard disk drive while the device power is turned on.

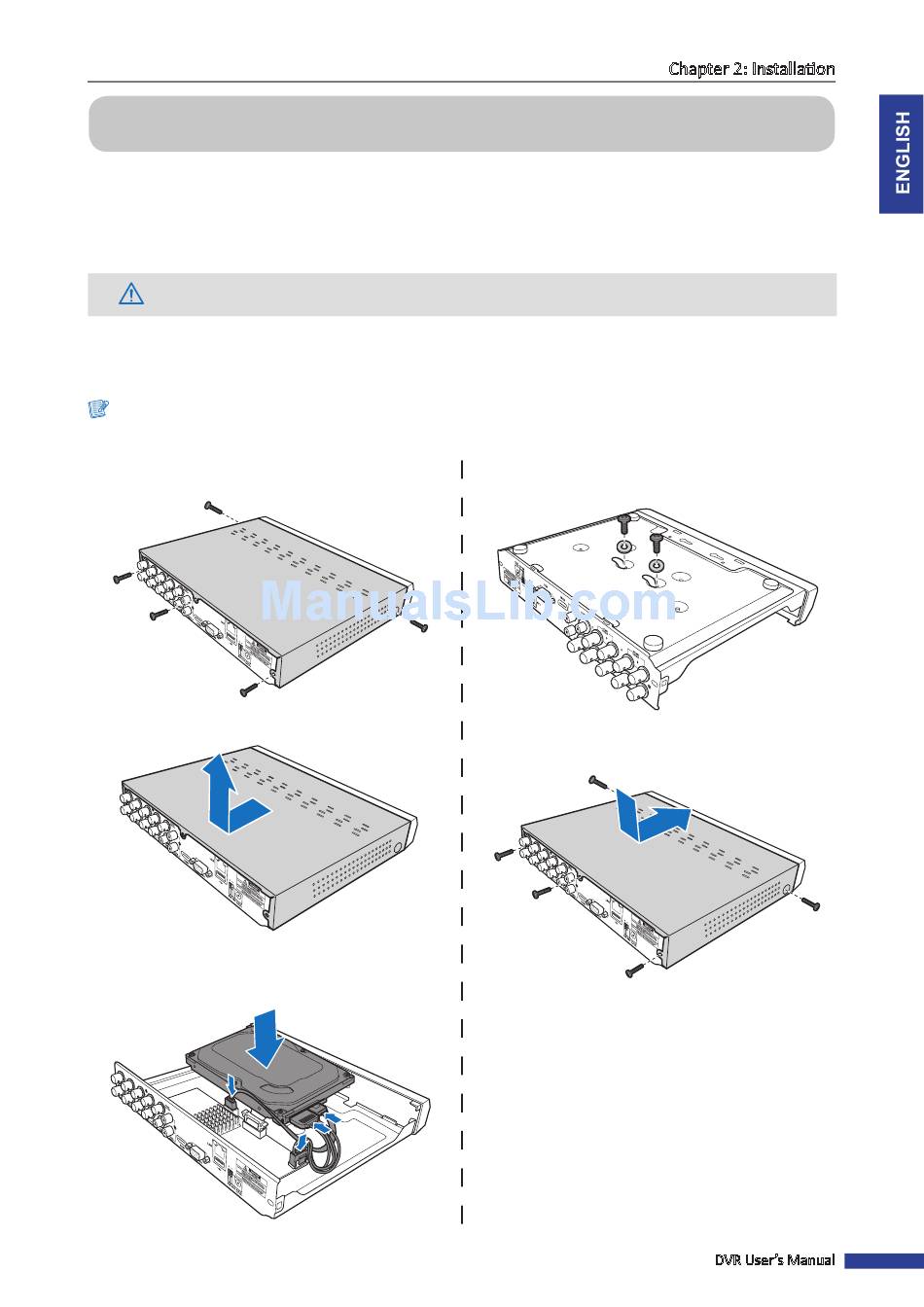

2.1.1 Installing HDD on 4-Channel / 8-Channel DVR

The 4-channel / 8-channel DVR supports one 3.5" SATA hard disk drive. To install the HDD, follow the steps below.
Note:
The illustrations below show an 8-channel DVR, same procedures apply to a 4-channel DVR.
1
Loosen the screws in the left, right, and rear sides as
shown.
2
Push back then lift up the cover to remove it.
3
Connect the data and power cables to the hard disk
drive (HDD) and place the HDD on the DVR case.
4
Align the HDD to the holes on the DVR case and
secure the HDD using the two (2) supplied screws.
5
Attach the cover and the screws back in place.
