Chapter 1: Product Overview

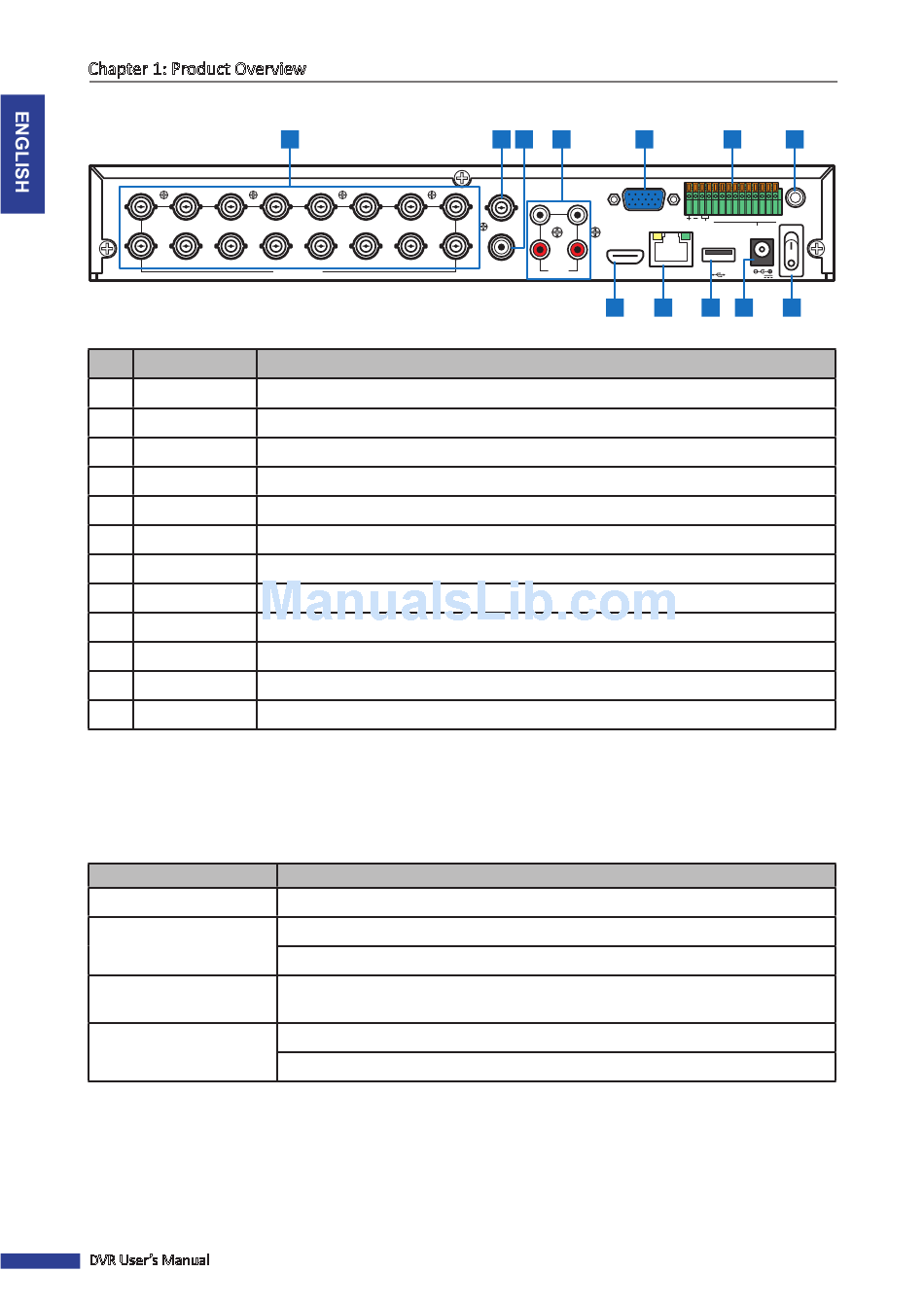

16-Channel DVR

15 13
16 14
No. Connector
1 Video input
2 Video output
3 Audio output
4 Audio input
5 VGA output
6 RS-485
7 IR-EXT port
8 Power switch
9 Power
10 USB port
11 LAN
12 HDMI output

1.4 Mouse

The DVR is supplied with a USB mouse that you can use to operate the DVR. Simply plug in the supplied mouse into
the USB mouse connector at the rear panel of the device.
Mouse Operation
Left-click
Right-click
Double-click the Left button Double-click the live image of any channel for full screen display. Double-click the left
Drag an area/line
DVR User's Manual
12
1
11 9 7 5
12 10 8 6
VIDEO INPUT
Description
Connects to a maximum of 16 video input devices via BNC.
Connects to a video output device via BNC.
Connects to an audio output device via RCA.
Connects to a maximum of 4 audio input devices via RCA.
Connects to a VGA monitor.
Connects to a Speed dome camera, sensor or alarm device via RS-485.
Connects to an IR extender device.
Press to turn the DVR on or off.
Connects to the power adapter.
Connects to a USB mouse, flash disk, and other external storage drive.
Connects to LAN via RJ-45.
Connects to a monitor output via HDMI.
Description
In OSD menu, click the left button to select and edit the setting.
In preview mode, click the right button to display the pop-up menu.
In main menu or sub menu mode, click the right button to exit the current menu.
button again to return to the window-display of all cameras.
In motion mode, use this function to select motion area.
In [Color Setup] menu mode, it will adjust color control bar.
2 3 4
VIDEO OUTPUT
3 1
3 1
4 2
4 2
AUDIO AUDIO
INPUT
OUTPUT
5 6
VGA G 1 2 3 4 G 5 6 7 8
RS-485 ALARM
SENSOR
LAN
HDMI
12V
12 11 10 9
7
IR-EXT
8
