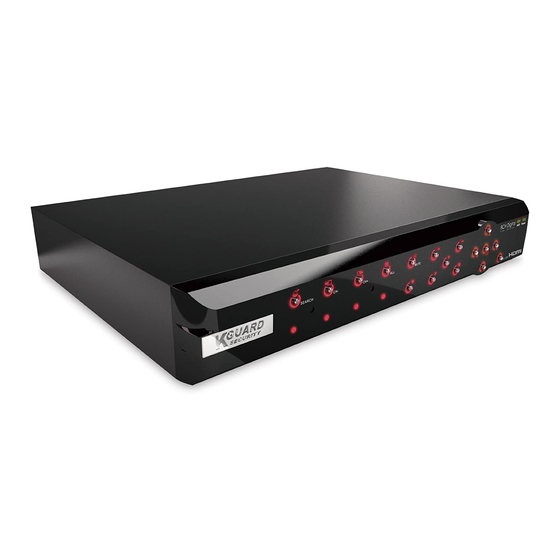

- Page 1 H.264 4 Channel Network DVR with 4 CCD Security Cameras User Manual...
-
Page 2: Specifications
【4 Channel H.264 Network DVR with 4 CCD Security Cameras User Manual】 Overview A perfect & complete combination of high quality standalone DVR and IR cameras for day and night environment. Stylish & streamline hardware design, user friendly software operation interface, excellent system performance function and quick/easy installation. - Page 3 【4 Channel H.264 Network DVR with 4 CCD Security Cameras User Manual】 DVR Model KG-SHA104 ( 4CH ) Video Compression H.264 Video System NTSC / PAL Operation System Linux Video Input / Output BNC 4-channel / VGA 1-channel ; BNC 2-channel...
- Page 4 【4 Channel H.264 Network DVR with 4 CCD Security Cameras User Manual】 Model Name & Package Contents Package Contents Product KG Model Name Weight Name S-DVR KIT Accessory Camera KIT Accessory Dimension Remote Controller *1 1/4” CCD Camera *4 USB Mouse *1 Adapter (12V2A) *1 KG-CA104-H04 6.7 KG...
- Page 5 【4 Channel H.264 Network DVR with 4 CCD Security Cameras User Manual】 How to Connect A) Connection Diagram B) System Connection www.kguardsecurity.com...
- Page 6 【4 Channel H.264 Network DVR with 4 CCD Security Cameras User Manual】 STEP 1: How to Install Brackets A) Hold the first Bracket onto the wall or ceiling B) Fix the screws into place STEP 2: Connect the DVR to your monitors A) Connect a video cable with BNC connectors from your monitor to the BNC video output ports on the rear panel of your DVR B) Connect a VGA cord (not included) from your monitor to the VGA output on the rear panel of your DVR.
-
Page 7: Step 3: Connect The Cameras
【4 Channel H.264 Network DVR with 4 CCD Security Cameras User Manual】 STEP 3: Connect the mouse and Network cable A) Connect the USB mouse to the USB slot for mouse on the rear panel of the DVR. B) Connect one end of the network cable (not included) to RJ-45 port on the rear panel of the DVR. C) Connect another end of the network cable to your router, modem or other network connection device. -
Page 8: Step 4: Using Your Dvr
【4 Channel H.264 Network DVR with 4 CCD Security Cameras User Manual】 Step 4: Using your DVR Please read the supplied user manual to learn further information about using the DVR. KGUARD INFORMATION CO., LTD Add.: 4F, No.113, Jian 2nd Rd., Jhonghe City,Taipei County 235, Taiwan (R.O.C.) TEL: 886-2-8228-6080 FAX: 886-2-8221-6857 Technical Support: support@kguardsecurity.com Sales inquiry: sales@kguardsecurity.com...
