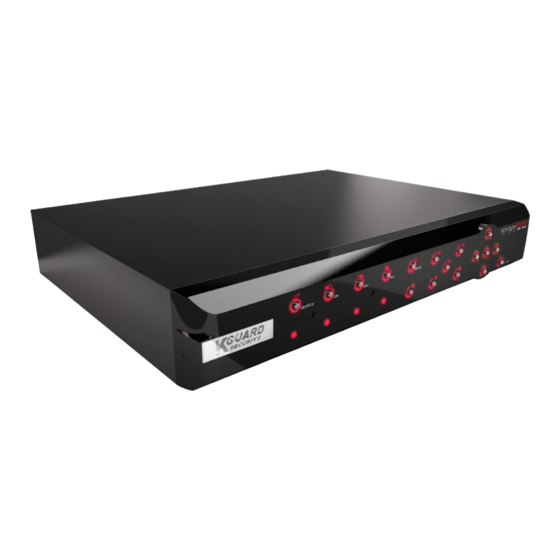

KGuard Security SHA-104.V2 User Manual

Table of Contents

Quick Links

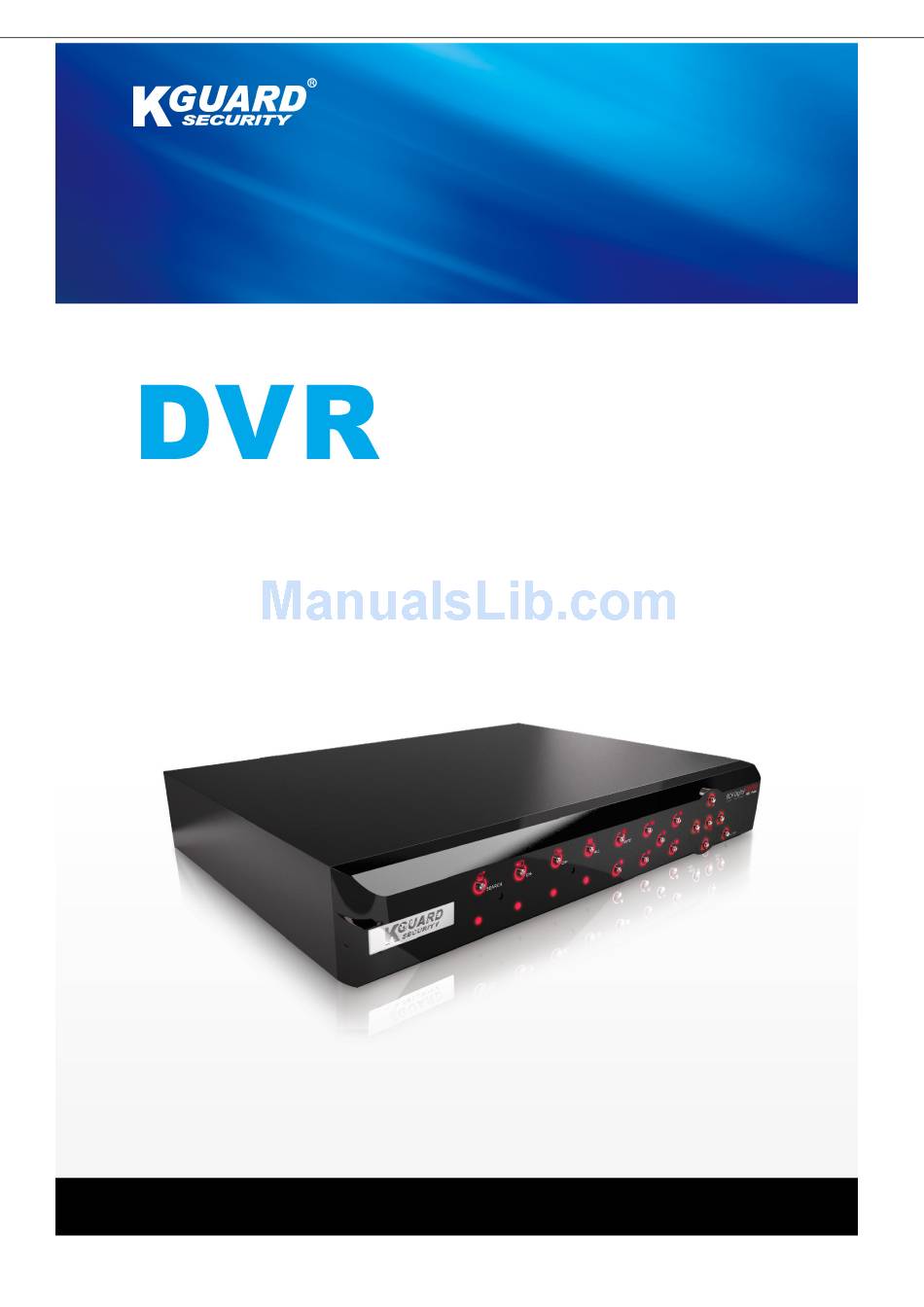

USER MANUAL

SHA-104.V2

SHA-108.V2

www.kguardsecurity.com

Table of Contents

Need help?

Do you have a question about the SHA-104.V2 and is the answer not in the manual?

Questions and answers

jerry stuart

April 20, 2025

hooked it up and turn it on and all the red lights are flashing

Summary of Contents for KGuard Security SHA-104.V2

Page 2: Table Of Contents
CONTENTS Chapter 1. Features ..............................5 Chapter 2. Panel ................................ 6 2.1. Front Panel..............................6 2.1.1. 4-CH Front Panel ............................6 2.1.2. 8-CH Front Panel ............................7 2.2. Rear Panel ............................... 8 2.3. Remote Control............................... 9 Chapter 3. Installation ............................. 11 3.1.
Page 3 Chapter 5. Network Access(Remote)........................64 5.1. IE Setup ................................. 64 5.2. Web Log-in(IE Browser)..........................64 5.3 Control Panel(Live view) ..........................65 5.4. Setup(Remote Setting)..........................67 5.4.1. Structure of Remote Setting........................67 5.4.2. Display Setup............................68 5.4.3. Record Schedule:............................ 69 5.4.4. Alarm Setup............................71 5.4.5.
Page 4 Appendix E- Applying free DDNS from internet....................128 Appendix F- The Structure Diagram Of OSD Display..................134 Appendix G- FAQ Troubleshooting........................135 Appendix H -Email Server Check List ......................... 136 Appendix I- USB Device Support List........................136 Appendix J- 3G Mobile Phone Local Service Center ..................137 Appendix K -Mobile Phone support list ......................
Page 5: Safety Precautions
Safety Precautions Do Not touch live electrical parts. Electric shock can be avoided. Follow the recommended practices listed below. Faulty installation, improper grounding, and incorrect operation and maintenance of electrical equipment are always sources of danger. Do Not try to install equipment outdoor, when the wind and rain is strong. Do Not install or remove equipment outdoor ,when the weather is raining.
Page 6 Do Not block the ventilation of equipment. Do Not put the magnetic parts around the Equipment. Do Not put the objects on top of equipment. Warning This is the symbol for indicating any potential hazard, risk or condition requiring special attention. The user needs to refer to the important operating and maintenance or servicing instructions.
Page 7 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. FCC CAUTION! This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 8 LIMITATION OF LIABILITY THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTIBILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF THE THIRD PARTY’S RIGHT. THIS PUBLICATION COULD INCLUDE TECHNICAL INACCUACIES OR TYPOGRAPHICAL ERRORS.
Page 10: Chapter 2. Panel
Chapter 2. Panel 2.1. Front Panel 2.1.1. 4-CH Front Panel 12 13 18 19 14 16 17 Key/Indicator Marks Functions Display Channel 1 into full screen Display Channel 2 into full screen Display Channel 3 into full screen Display Channel 4 into full screen QUAD For Quad display Start manual recording...
Page 11: 8-Ch Front Panel
2.1.2. 8-CH Front Panel 12 13 18 19 14 16 17 Key/Indicator Marks Functions SEARCH Enter system pop-up (short cut) menu bar Switch to previous channel Switch to next channel ALL CH Switch to 4/8 pictures display MUTE Audio mute key Start manual recording Move leftward / Rewind(it also can be used for switching OSD control panel)
Page 12: Rear Panel
2.2. Rear Panel 4-CH DVR 8-CH DVR Connector Functions Video input 4CH:Connect CH1-4 video input device（BNC） 8CH:Connect CH1-8 video input device（BNC） Video output Connect monitor output (BNC) Audio Input 4CH DVR: 4CH audio input (RCA） 8CH DVR: 4CH audio input (RCA） Audio Output 4CH DVR: 2CH output(RCA) 8CH DVR: 2CH output(RCA)
Page 13: Remote Control
2.3. Remote Control Channel Select 1-8 ; Numeric key 9、、、、 0 Numeric Key(The numeric key”0” can be used for switching OSD control panel) Display all Channel Menu Enter/Exit Main Menu ▲ ▲ ▲ ▲ Up Key ▼ Down Key Left / Right Key Select Key/ Edit Key...
Page 15: Chapter 3. Installation
Chapter 3. Installation 3.1. Installation(Hard Drive) DO NOT install or remove hard drive while DVR is running! Step 1. Loosen the screws in the left and right sides. Step 2. Remove the cover by pushing back and lift it up, slightly. Step 3.
Page 16: Camera And Monitor Connection
Step 4. Install HDD on the bracket, fixed with screws firmly. Step 5. Check if the connectors are properly connected and there is no loosen cables, and then install cover as well as screws . 3.2. Camera and Monitor Connection Connect camera cable to video input of DVR, and from video output of DVR to Monitor via BNC connector or if the camera is a PTZ speed dome, you could connect RS485 connector.
Page 20: The Symbol Of Main Screen(Recording Alarm)
4.2. The Symbol of Main Screen(Recording Alarm) The symbol will display in main screen: Symbol/icon Functions Motion HDD loss, HDD space full The video is recording Video Loss Video Loss When DVR is in recording mode, [ ] icon or [ ] icon will appear on the screen. But when there is [ ] icons on the screen it indicates a motion alarm was triggered.
Page 21: Pop-Out Menu Options
4.3. Pop-out menu options 4.3.1. Menu Lock For your system security, the system has a special function to protect your OSD operation. Step 1. Enable Password and key-in password/user name from system. Step2. ” Lock” Click button, and then the OSD was locked. www.kguardsecurity.com All Rights Reserved...
Page 22: Split Windows (For 8 Ch Only)
4.3.2. Split Windows (For 8 CH Only) There are 3 modes of split windows: 1. CH 1-4 2. CH 5-8 3. CH 1-8 4.3.3. PTZ Control www.kguardsecurity.com All Rights Reserved...
Page 23 All Functions Pointer To select the direction of PTZ. Auto Pan The middle circle is for auto pan of PTZ. Zoom in/zoom out Focus Iris Speed Channel select For selecting the channels of PTZ camera. EXIT To back to previous page or exit. GOTO PRESET Allow you to go to a specific preset point.
Page 25: Search
4.3.5. Search You could enter into [Record Search] menu from Pop-up menu conveniently and quickly and search/playback the record histories. For more information of record search , please refer to section 4.7. 4.3.6. Record(Manual) START MANUAL RECORD STOP MANUAL RECORD www.kguardsecurity.com All Rights Reserved...
Page 26: Start Rotate(Seq/Channel Auto Switching)
4.3.7. Start Rotate(SEQ/CHANNEL AUTO SWITCHING) This function allows you to switch channels, automatically. 4.3.8. GUI output selection This function allows you to select the GUI output between 2 monitors (VGA or BNC). www.kguardsecurity.com All Rights Reserved...
Page 27: Main Menu Setup(Display)
4.4. Main Menu Setup(Display) You can set up whether each channel can be previewed or not under Live display and/or record mode, enable live time or not under live screen and set up record time or not on the record history. Also, you can key-in the title for each channel.
Page 29 All Functions Record setup Allows you set up record status (Enable/Disable) of each channel. Quality Included 3 options – Best, Good and Normal. Frame rate setup Included 2 options – Fixed and Manual. Click on 【Manual】】】】 option and then click [Frame rate setup] button, you are able to set the frame rate for each channel.
Page 30 Copy the setting to all channels or one specified channel. Click ”Apply” button to save changed. Frame rate setup In this option, you can set the recording frame rate, if the frame rate which you set over system limitation, the system will inform you that your frame rate can’t be accepted. Copy the setting to all channels or one specified channel.
Page 33 Description: Because of DVR can support viewing the video via network remotely, hence you can control the DVR remotely, including, monitoring, recording, playing back or making backup. There are 4 types of network setup in DVR: All Functions DHCP The Dynamic Host Configuration Protocol (DHCP) is an auto configuration protocol used on IP networks.
Page 34 Port Forwarding guide: To access the DVR from a remote site, you need to forward ports 80 and 9000 from the router which is connected to DVR. Step 1. Connect router to DVR and power on DVR. Step 2. Go to website: http://portforward.com/kguard/ Step 3.
Page 35 Step 5. Click on “click here to skip this advertisement” in order to get the free instruction of port forwarding (In the upper corner of the screen). After you enter into advertisement page please click on: When you go to the website: www.portforward.com, you will see an advertisement for setup port forwarding of router.
Page 36 Step 6. After you finished port forwarding process, you can check the port to see if it is open or not. Step 7. Go to website: http://www.canyouseeme.org/ Step 8. key-in the port number which you just forwarded. *For example: port 80. Step 9.
Page 37 *If you forwarded the port succeed , the web page will display: Open port success *If you forwarded the port failed , the web page will display: Open port failed If you cannot use the default HTTP port 80 or 9000, due to the reason of port was occupied by other program, or it is being blocked by your service provider, you can use another port instead of.
Page 38: Main Menu Setup(Search/Playback)
4.7. Main Menu Setup(Search/Playback) *Click “Search” button first. *Double click the specified date & time which you need to playback and then click ”playback” button. *Click”Detail Files” *Playback image www.kguardsecurity.com All Rights Reserved...
Page 40: Main Menu Setup(Search/Log/Export)
4.7.1. Main Menu Setup(Search/Log/Export) *You can export the video information from log(by text). *Click on ”log” button to search the video information. www.kguardsecurity.com All Rights Reserved...
Page 41 *Click on “search” button and specified the log type in order to search the video information. *Click on “Export” button to export video information. *Before performing Export, please insert U.S.B Device. www.kguardsecurity.com All Rights Reserved...
Page 42 All Functions Channel Allows you select the channel(s) you would like to search. Time Search In the Video Search screen, user can search for a specific date and time for a recording and view it in Playback mode. This is useful for hunting a specific recording of an incident if you know the date and time it occurred.
Page 44 HDD Management When DVR is connected to a HDD, the system will detect H.D.D automatically, when the new H.D.D was installed , system will ask for H.D.D formatting. The functions of” H.D.D Setup” NO：：：： The number of HDD TOTAL SPACE: The capacity of Hard Drive or free space on the Hard Drive.
Page 45 Alarm Setup The functions of” Alarm Setup” Channel: the option allows you select one channel you want. HDD Loss: When the “Buzzer” is in the “ON” position and the system can’t find the HDD or HDD is not be formatted, the symbol “ ” will appear on the screen with buzzer sounded. HDD Space: When the “Buzzer”...
Page 46 If the Buzzer is set to “OFF” position, the buzzer will not be activated. Video Loss: When setting [Buzzer] to ON and when a camera has been disconnected. “Video Loss” symbol will also appear on the screen with buzzer sound. Set to OFF, you will only see the “Video Loss” appear but no sound.
Page 47: Email Alarm Notification
4.8.2. Email Alarm Notification Because of the type and the ISP service company is variety worldwide, Hence, we only provide 1-2 company for an example, if you have any question of E-mail, please contact your local ISP service. Please make sure your DVR already connected to internet: E-mail must enable.
Page 48 Functions Email Enable: Open Disable: Close Enable:Open Disable: Close SSL is a security link transport protocol. You can encrypt your communication info (including your email) using SSL to prevent hackers from monitoring your email or communication info and even your password. Please confirm with your email service provider if your email server support SSL or not.
Page 49 Step 3. Click ”Device” icon, alarm icon will pop-out. Step 4. Click ”Alarm” icon. Step 5. Check the “EMAIL” block, and then click ”EMAIL SETUP” button. www.kguardsecurity.com All Rights Reserved...
Page 50 Step 6. Select ”Enable” for SSL, if your E-mail server needs the SSL verification. Select ”Disable” for SSL, if your E-mail server doesn’t need the SSL verification。 Step 7. Key-in the “SMTP Port” for the sender. *For example: the default value of Gmail SMTP Port is 465, and the others is 25. If you use Gmail, you can key-in 465.
Page 51 Step 13. Click “Motion” icon, and make sure motion detection is enabled. Motion Area *Before setting Gmail , please setup the motion area. 【Red: enable】;【blank: disable】 *If you don’t use Gmail, please skip this step. www.kguardsecurity.com All Rights Reserved...
Page 52 Step 14. Login Gmail and go to “Settings forwarding and POP/IMAP Enable IMAP”. This step is for Gmail only. Step 15. Now, check your e-mail and see if you receive an e-mail (along with attached Photo) from DVR. www.kguardsecurity.com All Rights Reserved...
Page 54 PTZ Setup The functions of” PTZ Setup” PTZ protocol (Pelco-D or Pelco-P) Baud Rate (1200, 2400, 4800, 9600), Data bit (8, 7, 6, 5), Stop bit (1, 2), Parity (None, Odd, Even, Mark, Space), Address Code Cruise *PTZ device can be activated only when a channel in connection with the PTZ camera is selected. Mobile Setup www.kguardsecurity.com All Rights Reserved...
Page 55 The functions of” Mobile Setup” User Name: indicate user name of DVR. User password: indicate user password of DVR Server port: Mobile monitoring port. Setting range is between 1024 and 65535. Explanation: Please connect DVR to Internet before setting DVR port number and the server port number is not equal to network menus.
Page 57 Motion Detection Setup The [Motion detection] Menu has three sections, including Channel Status, Sensitivity and Motion area. The functions of” Motion Detection Setup” Channel : This option allow you enable motion detection on any channel. SENSITIVITY: This option allows you to set sensitivity level of motion detection from higher to low with 8 being the most sensitive.
Page 58: Main Menu Setup
4.11. Main Menu Setup 【【【【 System/Privacy Zone/Time/Password/Video/Language/Maintain】】】】 The “System” Menu includes: Time Setup, User Password, Audio/Video Setting, Language select, System Info. , Privacy zone and System Maintenance. After entering into the “System” menu, you can configure the relative parameters to meet your needs. *The OSD switching between VGA and BNC is in the section of Audio/video setting.
Page 60 You can modify the system date, time, date/time format, and time zone, DST (day time saving) status and NTP. There are 2 types of DST which you can setup. 1. Setup by week 2. Setup by date Click ”Apply” button to save the settings. Password This option allows you set the device ID for the DVR and set the system password and authority.
Page 62 Video System: allow you set Camera system (PAL, NTSC). VGA Resolution: include 4 options - 1280×1024、1024×768、800×600 and 1440×900. Rotate time：：：： allow you select sequence time between from 5s and 300s. OSD Output: Allow you to select the video output between VGA /BNC/AUTO. The default main menu options is on VGA output.
Page 63 Click the [Volume] and/or [Margin] options on the right-bottom corner of the Video/Audio screen to adjust the volume and/or margin respectively. Privacy Zone *The total area of privacy zone is 4 areas. Step 1. Right Click ”Main menu” option. Step 4. Click on”Privacy Zone”. Step 2.
Page 64 Language Enter into [Language] menu to select the language you want to use on the DVR and then click [APPLY] button. The selection will be available after system Auto restarts. www.kguardsecurity.com All Rights Reserved...
Page 65 System Information Enter into [System Information] menu to view system info, including Device type, Software (firmware) version, IE version and MAC address etc. When connecting multiple DVR to the same local area network environment, you need to change MAC address for each DVR respectively; otherwise, you may not connect these DVR to network. Maintain This option allows you recover the DVR settings to factory default settings, update system software (firmware), and set system auto-maintenance.
Page 66 *There are 4 functions: *After enabling ”Auto Maintain” function , the system will perform regular maintenance depend on your need. Please note the [Auto Maintain] function will be available only when DVR is on the Main interface and have no user online. *After completed “Auto Reboot “...
Page 68: Chapter 5. Network Access(Remote)
Chapter 5. Network Access(Remote) There are 2 methods to remote access the DVR via network: Internet Explorer Browser (IE),and Mobile phones. 5.1. IE Setup 5.2. Web Log-in(IE Browser) 5 users 4-CH DVR allow you have on-line simultaneously.。 3 users 8-CH DVR allow you have on-line simultaneously.。...
Page 69: Control Panel(Live View)
5.3 Control Panel(Live view) The Control panel Live video connect/disconnect (ON/OFF) Snapshot: Picture Format: *.bmp Record: To record live video remotely Channel display mode: 1 ch/4 ch/8ch/16ch/full screen Volume button Click the [ ] icon of one channel to display the image of specified channel. Click the [ ] icon to start manual record.
Page 70 PTZ Control Direction Pointer To move the PTZ to any direction Zoom Zoom in/zoomout;focus adjunstment and Iris control Focus Iris Pan & Tilt Pos Indicates that you can choose the cruise starting point ,as your desire. To set the preset point. Clear To delete the preset point.
Page 71: Setup(Remote Setting)
5.4. Setup(Remote Setting) 5.4.1. Structure of Remote Setting After completed each setup, you have to click” ” to confirm the setting. www.kguardsecurity.com All Rights Reserved...
Page 72: Display Setup
5.4.2. Display Setup You can setup Channel title/the title position/enable or disable live view/live view time display and record time display. when you see ” ”button, you can copy the setting to the channel which you would like to copy. 4 CH 8 CH www.kguardsecurity.com...
Page 73: Record Schedule
5.4.3. Record Schedule: This function allows you to setup the record schedule from remote site. Step 1. Select ”Enable” button from “Record” inside the “Record Schedule Setup”. Step 2. Select “Schedule” from “Record Mode”. Step 3. Click button to setup the record mode. www.kguardsecurity.com All Rights Reserved...
Page 74 Step 4. Check the record mode which you would like to setup. There are 3 types of record mode: *【【【【 Red color: Alarm Record】【】【】【Green color: Normal record】【】【】【】...
Page 75: Alarm Setup
5.4.4. Alarm Setup You enable or disable the buzzer/motion alarm/HDD Loss alarm/Not enough HDD space alarm/Video Loss alarm/Post recording/Pre-record 5.4.5. Network There are 4 modes of Network setup Static IP/ For setting static IP & DHCP. DHCP PPPoE For setting PPPoE. DDNS For setting specified DDNS.
Page 76: Static Ip
5.4.5.1. Static IP Step 1. Click ”STATIC & DHCP” option. Step 2. Choose Type ”Static IP & DHCP”, and key in all information, including, IP Address/Media Port/Web Port/Gateway/ Netmask / DNS Server. *Normally, the DVR will have the same information with internet. Step 3.
Page 77: Pppoe
5.4.5.3. PPPoE Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating Point-to-Point Protocol (PPP) frames inside Ethernet frames. By using PPPoE, users can virtually "dial" from one machine to another over an Ethernet network, establish a point to point connection between them and then securely transport data packets over the connection.
Page 78: Ddns
5.4.5.4. DDNS Dynamic DNS is a method, protocol, or network service that provides the capability for a networked device. 1. Click ” DDNS ” option. 2. Set DDNS to “ Enable” 3. Choose the server for DDNS 4. Key-in the information which was provided by ISP service company. 5.
Page 79: Email Setup
5.4.5.5. Email Setup If you have any question of E-mail Setting, Please refer to section 4.8.2.(E-mail setup). 1. Click ”Email Setup” Option. 2. Email to “Enable” 3. IF your Email with Email Encryption, you have to set ”SSL” to enable”. 4.
Page 80: Device (H.d.d/Ptz/Mobile/Motion)
5.4.6. Device (H.D.D/PTZ/Mobile/Motion) In this option, you can view the information of H.D.D. as well as setup PTZ/Mobile/Motion detection. H.D.D. information PTZ Setup Mobile www.kguardsecurity.com All Rights Reserved...
Page 81 Motion: Please follow the step , below: Step 1. Enable Motion detection: Step 2. Click “ ”button. Step 3. The motion detection setup block will pop-out and you can click the area which you don’t want to setup. www.kguardsecurity.com All Rights Reserved...
Page 82: System Setup(Password/Dst)
5.4.7. System setup(Password/DST) There are 4 options: System Setup User setup Information 5.4.7.1. System setup 5.4.7.2. Authority(Password management) You can set 6 users in this setting, if you would like to set the authority for each user, you have to log in the account of Admin.
Page 84: System Information
Step 4. Choose “Daylight Saving Time Mode”. There are 2 types of DST: 1.Choose by week 2.Choose by date 5.4.7.4. System information 5.5. Local Setting “Record Save Path” “Snapshot Save Path” “File Save Path” This option allows you set www.kguardsecurity.com All Rights Reserved...
Page 85: Playback(Ie Browser)
5.6. Playback(IE Browser): Step 1. Click ”Playback” option. Step 2. Click the date which you would like to playback. Step 3. Also, you can click “ ” button to search the video file again, or use file list to choose which channel you would like to playback, and then click on ”...
Page 86 Step 4. Click specified video file which you would like to playback, remotely. The video will be displayed. When the video file is playing, the system won’t allow you to download video files. Step 5. Close the playing video and then click button to download video file.
Page 87: Logout
*And you can check the file path, as below. *Remote manual recording file will be saved to【【【【 Record save path】】】】 . *Local recording file will be saved to [File save path]. *Double-click any file listed or highlight any file and click [Play] button to play the selected recording file.
Page 88: Mobile Phones Access
5.7. Mobile Phones Access The DVR is currently compatible with mobile phones running Windows Mobile, Symbian, iPhone, Blackberry and Android operating system. *Due to the model of mobile phone is variety, so we only provide 1 model for your reference, if you have any question of your mobile phone ,please refer to appendix J.
Page 89 All Functions USER NAME The login user name of DVR USER PASSWORD The login Password of DVR SERVER PORT Mobile monitoring port. Setting range is between 1024 and 65535. Please note that the server port of DVR must with the same port of mobile .
Page 90: Install & Operate (Windows Mobile Phones)
® 5.8. Install & Operate (Windows Mobile Phones) Step 1. Install the webcam program that is included on the supplied CD by click icon. Step 2. Click the type of mobile which you need from 5 icons. Step 3. Copying the “Aseesetup.CAB” file into mobile phone. Step 4.
Page 91 Step 6. “ASee” After completed installation, click icon to run the program. Step 7. Key-in the information of DVR and Check box. All Functions User’s Name Indicate that the user name which have been set on DVR-[Mobile Set] menu. Password Indicate that the password which has been set on DVR-[Mobile set] menu.
Page 93 Picture Function key Description 【Items】【【【【 Channel option】】】】 Click button, to select the channel which you would like to view. 【Connect/Disconnect】 Click the button to enter into the live image of the channel you selected Function buttons in the bottom from Left to right for PTZ PTZ Direction Area Selection（...
Page 94: Install & Operate(Symbian® Phones)
® 5.9. Install & Operate (Symbian Phones) Step 1. Install the program that is included on the supplied CD by copying the file to the mobile phone. “ASee_AL_3rd _0723.sisx”(3 EDITION) “See_AL_5th_0723.sisx”(5 EDITION) *Click “Mobile” and then choose the software which you need. You can use the connecting cable which was included by mobile company ,and then connect the mobile phone to a computer and copying the file from the CD to the phone.
Page 95 Step 3. Choose Mobile card or SD card as an installation location. Step 4. Click “Continue” button to make sure the application program you installed may visit network or dial phone when popping-up the dialog box. Step 5. After successful installation system will prompt you “Installation Complete” . www.kguardsecurity.com All Rights Reserved...
Page 96 Step 6. If the program is installed into SD card, please enter into ”Application” menu to find “Mobile Viewer” icon. Step 7. Click [Mobile Monitor] icon to run the program, and then you will enter into the interface (Function buttons in the bottom in turn are:） Play &...
Page 97 Step 8. [Setup] For first time using or Need some change on the Parameters, click the button， [Play] you will enter into the window. Click button to enter into live display. ：：：： Allow you select network type based on your mobile net environment. Default Access point Server address: herein indicate public IP address connected to DVR or dynamic domain name used by DVR.
Page 98: Install & Operate (Iphone®)
® 5.10. Install & Operate (iPhone (A)Download iTunes Step 1. Visit Apple website http://www.apple.com/itunes/ to download & install the iTunes. Step 2. After download the file of iTunes , click ” ” icon to install it. Step 3. After finished installation of iTunes, click ” ”icon or system will enter the login page ,automatically.
Page 99 Step 5. The login page will display. Click ”STORE iTunes Store” option. Step 6. Click on “Store Create Account” to create your own account. Step 7. Click ”Continue” button to proceed next step. www.kguardsecurity.com All Rights Reserved...
Page 100 Step 8. Check the term and conditions, and then click ”Continue” button. Step 9. Create your personal account and fill out all information which was requested by system. After fill-out all information . Click ”Continue” button to proceed next step. Step 10.
Page 101 Step 11. Finished the register, and go to your email box to verify your account. Step 12. Click the link included in the email message. It will connect to the iTunes store and turn to iTunes interface. Step13. Sign in your account. The register of your iTunes store account has been done.
Page 102 Step 14. Click and then Key-in the characters “ASee” in the” search” column . For connecting cable, please contact your local i-Phone service. Or go to i-phone website for support : http://www.apple.com/support/iphone/ Step 15. Download and install the “ASee” program to your mobile by connecting cable. Step 16.
Page 103 Step 17. Click , “ ASee” icon to enter the main screen, as below: Functions Channels select. PTZ Lens control (Area Selection（ZOOM+、ZOOM-）, Aperture（I+,I -）, Focus（focus +, focus-）) PTZ Direction ( left, right, up, down) Function buttons from left to right in turn are: Pause, Full-screen, Snapshot, setup, help and Access setup.
Page 105: Installation & Operation (Blackberry Mobile)
5.11. Installation & Operation (Blackberry Mobile) 5.11.1. Installation Step 1. Download and Install the Blackberry Desktop Manager on the computer. Step 2. Connect your Mobile to your PC via USB cable. Step 3. Open the Desktop Manager. Application Loader’ Step 4. Choose ‘ from the Main Menu.
Page 107: Setup & Operation
5.11.2. Setup & Operation Step 1. “Downloads” The Blackberry viewer will be installed to the directory. Step 2. Enter into the “Downloads” directory, and then click the “ASee’ icon. Step 3. Enter into the below interface. ---Connect/disconnect ---Full screen ---Snapshot ---Setup ---Help ---Next page...
Page 108 Step 5. Select the Network Type supported by Blackberry phone. Step 6. ” Click “ button to save the setting. Step 7. Click “ Next Page’ icon to search “ Channel” option, and then choose the channel which you would like to display.
Page 109 Step 8. Click “ play’ icon to view video. Step 9. Full screen” Trackball” Click “ icon to enter into full screen display mode, again click the “ button of mobile to quit the full screen mode. Step 10. Click “ Next page”...
Page 110 Step 11. Click “Close” button to exit the program . For further information just click “Help” button to view the software’s Help instruction. if your mobile had connect to other DVR, you can delete it , as below. Step 1. ”...
Page 111 Step 3. Edit” When selecting “ option, system will allow you edit the history record. Step 4. Delete” When selecting “ option, the history record will be deleted. www.kguardsecurity.com All Rights Reserved...
Page 112: Android Mobile
5.12. Android Mobile *Please make sure that the software is compatible with your Android Mobile. Step 1. Make sure your mobile have been connected to network and could download the software. Step 2. Enter into “Program” option and highlight “E-market” icon . Step 3.
Page 113 Step 5. Highlight and install the program which was searched by system. Step 6. Proceeding to the next step for installation. Step 7. Enter into “Program” file and click “ ApkInstaller” icon. www.kguardsecurity.com All Rights Reserved...
Page 114 Step 8. Find the “ASee.apk” file you would like to install. Step 9. Click the software to install to your phone. Step 10. Enter into “Program” option to click “ ASee” icon . www.kguardsecurity.com All Rights Reserved...
Page 115 Step 11. Enter into “ASee” main screen. PTZ Direction Zoom+ - Aperture Focus+ - CH Selection Play & Pause Full/Normal Screen Snapshot Setup CH change Help Step 12. Click “Setup” button(9), to set the “Device info”. All Functions Address Key-in the IP address of the DVR Port Key-in the Mobile Port Number of the DVR Device Name...
Page 116 Step 13. Click “ ” button, to back to previous page. Step 14. Click “Play & Pause ” button, to view videos , remotely. When your DVR is connecting internet through router, you need to forward the port at the virtual server option of your router.
Page 117: Forwarding The Port Of Router For Mobile Phone
Forwarding the port of Router for Mobile phone Step 1. Setup the IP address and port of DHCP(3),and the click on ”Apply” to confirm settings. *The DHCP setting is for your reference only, there are 2 types of different internet PPPoE &...
Page 119 Step 3. key-in the user name and password as well as server port. *The port the mobile must the same as server port. Step 4. Click ”Apply” button. For customized support instructions of port forwarding ,due to the model of router is variety, please go to website: http://portforward.com/english/applications/port_forwarding/KGuard_KG-SHA_DVRs/KGuard_KG-SHA_DVRsindex.htm *For applying free Kguard DDNS , Please proceed to Appendix D.
Page 120: Chapter 6. Specifications
Chapter 6. Specifications Model KG-SHA104.V2( 4CH ) KG-SHA108.V2( 8CH ) Video Compression H.264 Video System NTSC / PAL Operation System Linux BNC 4-channels / BNC 8-channels / Video Input / VGA 1-channel ; VGA 1-channel ; Output BNC 2-channels BNC 2-channels 4-channels / 4-channels / Audio Input / Output...
Page 121: Appendix A - Time Zone Table
Chapter 7 Appendix Appendix A – Time Zone Table Time Zone Offset Start Samoa GMT – 11:00 Hawaii GMT – 10:00 Alaska GMT – 09:00 ˇ Mar, 2nd Sun, 2:00 Nov, 1st Sun, 2:00 Pacific Time (US & Canada) GMT – 08:00 ˇ...
Page 122 Kuwait, Riyadh, Nairobi GMT + 03:00 Moscow, St. Petersburg, Volgograd GMT + 03:00 ˇ Mar, last Sun, 2:00 Oct, last Sun, 3:00 Tehran GMT + 03:30 ˇ Mar, 4th Tue, 2:00 Sep, 4th Thu, 2:00 Abu Dhabi, Muscat GMT + 04:00 Baku, Tbilisi, Yerevan GMT + 04:00 ˇ...
Page 123: Appendix B - Play Back Utility
Appendix B – Play Back Utility Installation (Utility Software/Applications ) Step1. Insert the Installation CD into the CD-ROM. Step2. Execute ‘’Autorun.exe’’. and then click on ‘’Utility’’ button. *If your computer can’t execute the CD automatically, please click” ”(MY computer) and then click ,finally click on “...
Page 124 Step 3. Click icon to install playback file. Step 4. The system will display the following setup procedure: Step 5. Click button to proceed to install playback software. www.kguardsecurity.com All Rights Reserved...
Page 127: Playback Player
Playback Player Select the playback file you desired from the files. Please select the file with *.264 format or *.nvr. The record file backed-up by U.S.B Device or removable disk is with *.264 format, and DVD Recorder with *.nvr format. Play &...
Page 128: Appendix C- Sustainable Record Time List
The button functions from left to right in turn are as follows: All Functions Button Functions Start playing record file Play Pause the record file playback Pause Stop the record file playback Stop Rewind playing the record file at X2, X4, X8 and X16 Rewind speeds.
Page 129: Appendix D- Applying Free Ddns Host From Kguard
Appendix D- Applying Free DDNS Host from Kguard Step 1. Go to our website: http://global.kguardsecurity.com/main/index.aspx?flag=1 Step 2. Click on If your IE browser was blocked ,please go to web site: http://kguard.org/ Step 3. The pop-up menu will display. www.kguardsecurity.com All Rights Reserved...
Page 130 Step 4. Key-in the information, below. Key-in your E-mail address. Setup your own password. Reconfirm your password Key-in your first name Key-in your last name Key-in authentic code For junk mail block, we highly recommended you to avoid use free E-mail, for example, Gmail , yahoo mail…。...
Page 131: 2 U U M M A A N N U U Aa
Step 7. After complete applying process , the status will display “check” symbol in green, and also display your domain name. *Please remind or write down this domain name. www.kguardsecurity.com All Rights Reserved...
Page 132: Appendix E- Applying Free Ddns From Internet
Appendix E- Applying free DDNS from internet Step 1. Please go to http://www.dyndns.com and Click “Get a free Domain name” button. Step 2. Click “Sign up free” icon. Step3. Choose free sign up Step 4. Click ” Renew Services” option, in order to create new account. www.kguardsecurity.com All Rights Reserved...
Page 133 Step 5. Create your own username, password, E-mail and enter the image numbers to create an account Step 6. After you created your account, the company will sent an e-mail to verify your e-mail account Step 7. Check your e-mail and see if you have received an e-mail from DynDNS. Click on the link in the e-mail to complete the verification.
Page 134 Step 8. Now, go to http://www.dyndns.com and log in your username and password. Step 9. Click ”MY Account” “My Hosts” option. Step 10. key-in your hostname, IP address and then click “Add To Cart”. www.kguardsecurity.com All Rights Reserved...
Page 136 Click “Activate Services” Step 12. Step 13. When activation is successful, the webpage will display the message: Step 14. Click on ”Network” icon. www.kguardsecurity.com All Rights Reserved...
Page 137 Step 15. Enable the DDNS Step 16. Choose the DDNS Server Type Step 17. Fill out the Hostname(you just applied) Step 18. Fill out the Username(you just applied) Step 19. Fill out the Password(you just applied) Step 20. Click “Apply” button to Confirm the settings. www.kguardsecurity.com All Rights Reserved...
Page 138: Appendix F- The Structure Diagram Of Osd Display
Appendix F- The Structure Diagram Of OSD Display Camera Title Color setup Display Privacy Setup Autoseq Setup Record Quality Record Resolution Record Audio Record Record Mode Record Schedule Record File Size Network DDNS Setup Main Menu Search Search Playback File List Backup HDD Management Alarm Setting...
Page 139: Appendix G- Faq Troubleshooting
Appendix G- FAQ Troubleshooting 1. Q: What can I do if the system does not detect the HDD? A: Check the data and power cables and make sure they are securely connected. B: For new H.D.D, you have to format it first. C: Make sure that the power of adaptor is correct, 12V/3A.
Page 140: Appendix H -Email Server Check List
A: The reason is the OCX of IE Browser which memorized other version IE interface, so your IE browser was conflict with other version. There’s the solution: 1. Insert included CD into CD-ROM, and then click on” Remove OCX Tool” icon, and you will find the file ”RM_SHA_OCX”.
Page 141: Appendix J- 3G Mobile Phone Local Service Center
Appendix J- 3G Mobile Phone Local Service Center 3G Cell phone Support Suggestion Brand Service Center(Web site) http://na.blackberry.com/eng/support/ http://uk.blackberry.com/support/ Blackberry http://fr.blackberry.com/support/ http://sa.blackberry.com/support/ http://europe.nokia.com/support Nokia http://www.nokia.ca/get-support-and-software http://www.nokiausa.com/get-support-and-software/product-support http://www.sony.net/ Sony Ericsson http://www.sonyericsson.com/cws/cws/home?cc=ar&lc=es http://www.sonyericsson.com/cws/cws/home?cc=ca&lc=en http://www.htc.com/us/#/?slide=1 http://www.htc.com/la/ http://www.apple.com/support/iphone/ Apple http://www.apple.com/support/country/ Appendix K -Mobile Phone support list Brand Mobile(OS) Model...
Page 142 Windows DX650 / DX900 / E100 beTouch / E101 beTouch / M900 / Mobile neoTouch / X960 ACER E110 beTouch / E400 beTouch / Liquid Android 3250/5230/5233/5235 Comes With Music/5320 XpressMusic/5500 Sport/5530 XpressMusic/5630 Xpress Music/5700XpressMusic/5730 XpressMusic/5800 XpressMusic/6110 NOKIA Navigator/6120 classic 6121 classic 6122c/6124 classic/6210 Symbian Navigator/6220 Classic 6290/6650 Fold 6720 Classic 6730 classic 6788/6790Mako/ C5/ C6/ E50/ E51/ E52/ E55/ E60/ E61/ E62/E63/ E65/ E66/ E70/ E71/E72/ E73...
Page 143 E72 / P51 Windows BENQ Mobile Axim X50 Windows DELL Mobile Android Mini 3iX / Streak / Thunder g-Smart i120 Windows GIGABYTE Mobile Android GSmart G1305 Boston iPAQ 510 Mobile Messenger / iPAQ HW6500 / iPAQ K3 Glisten Windows Mobile i9502 Ultimate / i-mate Jamin / i-mate JAQ / i-mate JAQ3/ imate JASJAM / i-mate Windows JASJAR / i-mate K-JAM...
Page 144: Appendix L -H.d.d Support List
Garminfone GARMIN Android Nexus One GOOGLE Android BlackBerry 8900/ BlackBerry 9000 Bold/ BlackBerry 9100 Pearl BlackBerry (9105 Pearl) /BlackBerry 9630 Tour /BlackBerry 9650 Tour2 BlackBerry /BlackBerry 9700 Onyx (Bold, 9020)/8900/8910/8980/9000/9630/9650/9700/9780/9800 Apple iPhone 3G/3GS (OS 3.0 or later) i-Phone i-Phone Apple iPhone 4 / iPod touch, iPad SX66 SIEMENS Windows...
Page 145 ST3500320SV 500GB ST3750330SV 750GB ST31000340SV SV35.4 ST3320410SV 320GB SV35.5 ST3250311SV 250GB ST3500410SV 500GB ST31000525SV Cache(M）））） Brand(WD) Model Capacity(GB) WD-AV WD2500AVJS 250GB WD3200AVJS 320GB WD AV-GP WD2500AVVS 250GB WD3200AVVS 320GB WD5000AVDS 500GB WD5000AVVS 500GB WD10EVVS WD10EVDS WD15EVDS 1.5TB WD20EVDS WD Caviar Blue WD2500AAJB...
Page 146 WD3200AAJS 320GB WD Caviar Green WD5000AADS 500GB WD10EADS WD RE4-GP WD2002FYPS Cache(M）））） Brand(Hitachi) Model Capacity(GB) HDT721032SLA360 320GB HDT725032VLA380 320GB HDS721010KLA330 CinemaSta HCT721075SLA380 750GB Cache(M）））） Brand(SAMSUNG) Model Capacity(GB) HD502HI 500GB HD103SI www.kguardsecurity.com All Rights Reserved...
