Chapter 3: Getting Started

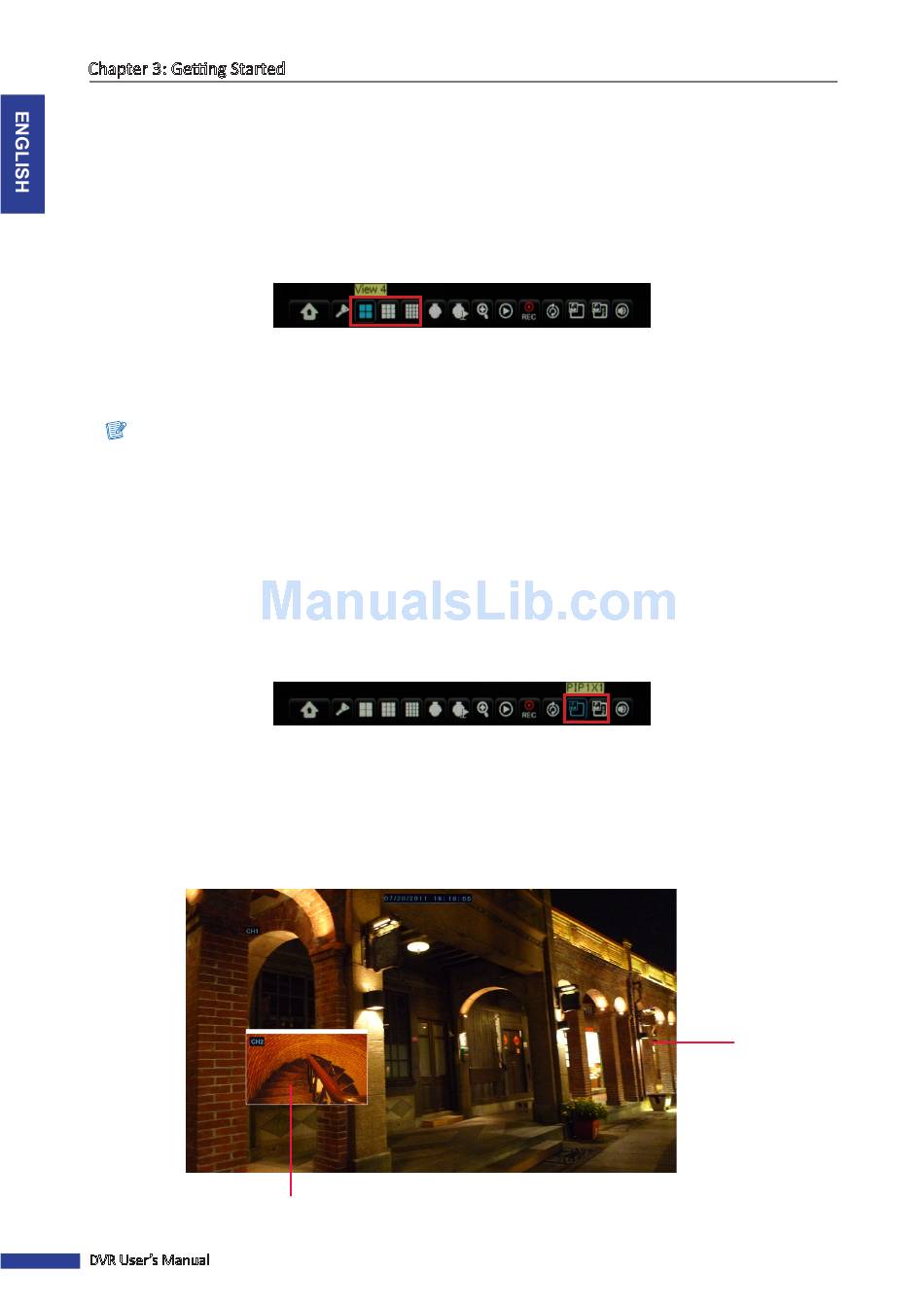

3.7.2 Split Mode

You can customize the 16 channels to be displayed separately on a 4-window or 9-window display or show all 16
channels on the screen.
There are 3 split mode options:
1
In the preview mode, right-click on the mouse to display the pop-up menu.
2
Select one of the following options:
• View 4: Click this icon to view 4 channels at a time. Click again to view the next 4 channels and so on.
• View 9: Click this icon to view 9 channels at a time. Click again to view the next batch of channels.
• View 16: Click this icon to view all 16 channels at a time.
Note:
Options to split windows may vary depending on the DVR model. Split Windows option is not available when View
Setup is enabled (see

3.7.3 Picture-in-Picture (PIP) Mode

With Picture-in-Picture (PIP) mode, you can watch two more channels to be simultaneously displayed on the first
channel live preview.
1
In the preview mode, right-click on the mouse to display the Pop-up menu.
2
Select one of the following options:
• PIP1X1: Click this icon to view another channel that will appear a mini-window frame on top of the main channel
display.
• PIP1X2: Click this icon to view two more channels that will appear on two mini-window frames on top of the
main channel display.
3
To move the mini-window around the main screen, click and drag it to a new position.
For example: PIP 1X1 mode
DVR User's Manual
34
"4.1.2 Output Settings" on page
Second channel
40).
Main channel
