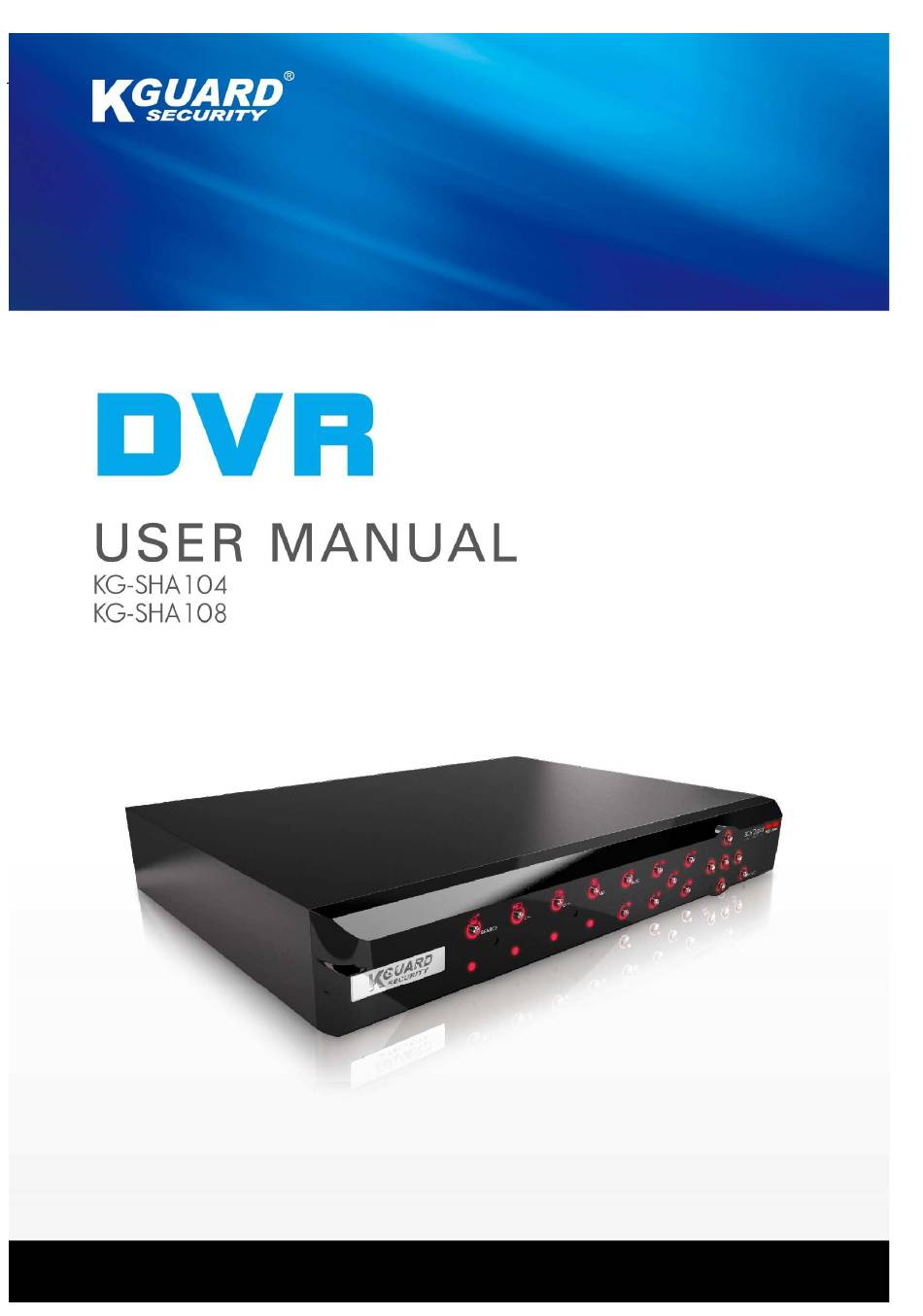

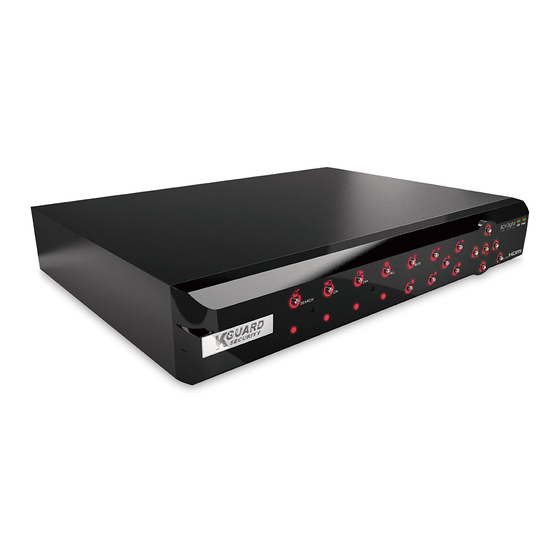

KGUARD Standalone DVR KG-SHA104/108 User Manual
www.kguardsecurity.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KG-SHA104 and is the answer not in the manual?

Questions and answers

Related Manuals for KGuard Security KG-SHA104

Summary of Contents for KGuard Security KG-SHA104

  • Page 1 KGUARD Standalone DVR KG-SHA104/108 User Manual www.kguardsecurity.com...

  • Page 2: Table Of Contents

    KGUARD Standalone DVR KG-SHA104/108 User Manual 【 【 【 【 CONTENTS】 】 】 】 SAFETY PRECAUTIONS .....................................4 CHAPTER 1. DVR FEATURES ....................................5 CHAPTER 2. LAYOUT......................................6 2.1. F ........................................6 RONT ANEL 2.1.1. 4-CH F ......................................6 RONT ANEL 2.1.2. 8-CH F ......................................7...
  • Page 3 KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.6.3. Ports............................................42 CHAPTER 5. NETWORK ACCESS ...................................43 5.1. IE & N ...................................43 ETVIEWER CCESS 5.1.1. IE Setup ........................................43 5.1.2. Connect to DVR....................................44 5.1.2.1. IE Plug-in & Netviewer Interface..................................44 5.1.3. Control Network Access..................................45 5.1.3.1 Live............................................

  • Page 4: Safety Precautions

    KGUARD Standalone DVR KG-SHA104/108 User Manual Safety Precautions Do Not touch live electrical parts. Electric shock can be avoided. Follow the recommended practices listed below. Faulty installation, improper grounding, and incorrect operation and maintenance of electrical equipment are always sources of danger.

  • Page 5: Chapter 1. Dvr Features

    KGUARD Standalone DVR KG-SHA104/108 User Manual Chapter 1. DVR Features Real time monitoring Supports real time surveillance via Monitor Save Recordings DVR saves real-time recording image to HDD Backup Recordings Supports DVR backup via USB flash drive and hard drive.

  • Page 6: Chapter 2. Layout

    KGUARD Standalone DVR KG-SHA104/108 User Manual Chapter 2. Layout 2.1. Front Panel 2.1.1. 4-CH Front Panel 12 13 18 19 14 16 17 Item Key/Indicator Marks Functions Select Channel 1 to be full screen displayed Select Channel 2 to be full screen displayed...

  • Page 7: 8-Ch Front Panel

    KGUARD Standalone DVR KG-SHA104/108 User Manual 2.1.2. 8-CH Front Panel 12 13 18 19 14 16 17 Item Key/Indicator Marks Functions SEARCH Enter system pop-up (short cut) menu bar Switch to previous channel Switch to next channel ALL CH Switch to 4/8 pictures display...

  • Page 8: Rear Panel

    KGUARD Standalone DVR KG-SHA104/108 User Manual 2.2. Rear Panel www.kguardsecurity.com...

  • Page 9: Remote Control

    KGUARD Standalone DVR KG-SHA104/108 User Manual 2.3 Remote Control www.kguardsecurity.com...

  • Page 10: Chapter 3. Installation

    KGUARD Standalone DVR KG-SHA104/108 User Manual Chapter 3. Installation 3.1. Installation(Hard Drive) Caution: Please do NOT install or uninstall hard drive while DVR is running! 1. Loosen the screws in the left and right sides. 2. Remove the cover 3. Connect data cord and power cable.

  • Page 11: Camera And Monitor Connection

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4. Install HDD on the bracket, fixed with screws firmly. 5. Check if the connectors are properly connected and there is no problem with wiring and close up cover, and fix it with screws.

  • Page 12: Chapter 4. Osd Display

    KGUARD Standalone DVR KG-SHA104/108 User Manual Chapter 4. OSD Display 4.1. Structure of OSD Display Camera Title Color setup Camera Privacy Setup Autoseq Setup Record Quality Record Solution (4CH) Record Audio Record Record Mode Record Schedule Record File Size Network...

  • Page 13: Main Menu Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2. Main Menu Setup Step 1 the video screen or press “Selection” button on the front panel, the main menu will display. Left click ;Right click Press ▲, ▼, ◄, keys on front panel to move the cursor, then press “Selection”...
  • Page 14 KGUARD Standalone DVR KG-SHA104/108 User Manual The symbol of Alarm in video Display: Symbol/icon Functions Motion HDD loss, HDD space full The video is recording Video Loss Video Loss When DVR is in recording mode, [ ] icon or [ ] icon will appear on the screen. But when there is [ ] icons on the screen it indicates a motion alarm was triggered.

  • Page 15: Camera Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.1. Camera Setup In this setting you can set the name of camera, time display…etc. All functions: Live: Select to display live image or not. If you select OFF, the image is still recorded and you can see it in playback mode.

  • Page 16: Color Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.1.1. Color Setup You can adjust image brightness, saturation, contrast and hue settings for each channel. Press ▲ & ▼ key on front panel to adjust the value, or drag the bar to adjust with you mouse.

  • Page 17: 2.Privacy Zone Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.1.2.Privacy Zone Setup Privacy zone function allows you to cover the private area, such as password input area on ATM machines. The covered areas will not be able to see in live view mode or in playback mode.

  • Page 18: Record Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.2. Record Setup www.kguardsecurity.com...
  • Page 19 KGUARD Standalone DVR KG-SHA104/108 User Manual Functions Description RECORD ON/OFF option decides to record the channel or not QUALITY select recording video quality, higher quality will need more HDD space to save the video. RESOLUTION decides the recording video resolution. About the definition of resolution,...

  • Page 20: Manual Recording

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.2.1 Manual Recording There are 2 short cut menus listed in the Pop-up menu: START RECORD and STOP RECORD. They are Manual record & manual stop record buttons and the START RECORD function only work when current recording mode is as following recording status: 1.

  • Page 21: Recording Search & Playback

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.3. Recording Search & Playback You can enter search & playback interface by pop-up menu bar or main menu. 4.2.3.1. Search Play back by exact date & time: Modify the date & time, press PLAYBACK button to play back video which is started from your appointed date &...
  • Page 22 KGUARD Standalone DVR KG-SHA104/108 User Manual File list To check recoding event list, you can sort the files by Channel / Record Type (Normal Record / Alarm Record) FIRST: Turn to the first page PREV: Turn to previous page NEXT: Turn to next page...

  • Page 23: Playback Interface

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.3.2. Playback Interface You can play video Forward at 2x, 4x, and 8x speeds, Slow play at 1/2x, 1/4x, 1/8x, or normal play, pause and play frame by frame using the playback control bar, and adjust volume by clicking or sliding tune control bar. When playback is finished, system will return to previous menu.

  • Page 24: Device Management

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.4. Device Management Device management H.D.D MANAGEMENT www.kguardsecurity.com...
  • Page 25 KGUARD Standalone DVR KG-SHA104/108 User Manual H.D.D FORMAT You will see the HDD information here. STATUS: HDD working status ALL/FREE: HDD capacity & HDD free space FREE TIME: estimated recording length of the HDD free space OVERWRITE: If you select DISABLE, DVR will stop recoding when HDD is full; if you select ENABLE, DVR will continuous record and cover the oldest data when HDD is full.

  • Page 26: Alarm Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.4.1. Alarm Setup Device management www.kguardsecurity.com...
  • Page 27 KGUARD Standalone DVR KG-SHA104/108 User Manual Alarm setup &Alarm E-mail All functions: BUZZER: Option to turn OFF the built-in buzzer alarm, or set the buzzer alarm time. MD ALARM: Option for buzzer to alarm or not when the motion detection happens HDD LOSS: Option for buzzer to alarm or not when there is no HDD installed in the DVR, or the HDD is in abnormal working condition.

  • Page 28: Email Alarm Notification

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.4.2. Email Alarm Notification Warning: We don’t promise every email server is compatible with the DVR alarm notification function. Please make sure your DVR is well connected to Internet if you want to realize Email alarm function.
  • Page 29 KGUARD Standalone DVR KG-SHA104/108 User Manual Setting Procedures: Step 1. Right click of the mouse, the main menu will pop-out. Step 2. Click “Main menu” dialogue. Step 3. Click ”DEVICES” icon, alarm icon will pop-out. Step 4. Click ”Alarm” icon.
  • Page 30 KGUARD Standalone DVR KG-SHA104/108 User Manual Step 5. Check the “EMAIL” block, and then click ”EMAIL SETUP” button. Step 6. Select ”On” for SSL, if your E-mail server needs the SSL verification. Select ”OFF” for SSL, if your E-mail server doesn’t need the SSL verification。...
  • Page 31 KGUARD Standalone DVR KG-SHA104/108 User Manual Step 13. Click “Motion” icon, and make sure motion detection is enabled. This step is for Gmail only. *If you don’t use Gmail , please skip this step. Step 14. Login Gmail and go to “Settings forwarding and POP/IMAP Enable IMAP”.

  • Page 32: Motion Detection Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.4.3. Motion Detection Setup STATUS: This option allows you enable motion detection on the channels. SENSITIVITY: This option allows you to set sensitivity level of motion detection from 1 to 4 with 4 being the most sensitive.

  • Page 33: Ptz Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.4.4. PTZ Setup Select the channel you want to control and set PTZ (Pan Tilt Zoom) protocol (Pelco-D or Pelco-P), Baud Rate (1200, 2400, 4800, and 9600), Stop bit (1, 2), Parity Check (None, Odd, Even Mark Space), Address Code and Cruise status respectively.

  • Page 34: System Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.5. System Setup System Setup menu allows you to configure time setting, password setting, video system setting, language selection. You can also check your system information here, and upgrade the DVR firmware with the menu here.

  • Page 35: Password

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.5.2. Password This option allows you set the device ID for the DVR and set the system password if you want to use one. “APPLY” button to save the settings. Left click ;Right click When you have enabled Password by setting the option to “ON”, you can setup a user password and...

  • Page 36: Menu Lock

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.5.2.1. Menu Lock MENU LOCK menu only displays on the pop-up menu bar when password protection is enabled. When you exit the main menu, the system will remember your login information for a while so that you don’t need to input the password for your repeat login in a short time.

  • Page 37: Language

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.5.4. Language Select system OSD language. System need to restart in order to complete the language switch after you ”APPLY “the change. 4.2.5.5. Info You can check the system information, including Device Type (model No.), Software (firmware) version and MAC address.

  • Page 38: Network Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.6. Network Setup Your DVR supports to be remotely accessed via network, so that you can remotely control the DVR for monitoring, recording, playing back or making backup. There are 3 modes of network setup in DVR: 1.DHCP:...
  • Page 39 KGUARD Standalone DVR KG-SHA104/108 User Manual Setup Procedure: Left click ;Right click www.kguardsecurity.com...

  • Page 40: Intranet/Lan Access Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.6.1. Intranet/LAN Access Setup Preparation: Access the configuration page of your router. Reserve an IP Address in your router that is not used by other computers or devices connected to your internal network. Write down the assigned IP Address of your DVR, Subnet Mask, IP Address of the router (Gateway) your DVR connect to for future reference.

  • Page 41: Internet Access Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 4.2.6.2. Internet Access Setup Important Note: If you are using a DSL modem, the modem must be set to “bridge mode”. Note: Before the NETWORK configuration, it is strongly recommended that you perform the following tasks: 1.

  • Page 42: Ports

    KGUARD Standalone DVR KG-SHA104/108 User Manual If your ISP uses STATIC IP network, select STATIC network TYPE. All functions: A.STATIC: Network TYPE. B.PORT (media port): For DVR connection. C.WEB PORT (Must be different from media PORT): For using in http.

  • Page 43: Chapter 5. Network Access

    KGUARD Standalone DVR KG-SHA104/108 User Manual Chapter 5. Network Access There are 3 methods to remote access the DVR via network: Internet Explorer Browser (IE), Netviewer client software & Mobile phones. 5.1. IE & Netviewer Access You can use Netviewer client software & Internet Explorer (IE) 6.0 or newer version to remote access the DVR.

  • Page 44: Connect To Dvr

    KGUARD Standalone DVR KG-SHA104/108 User Manual 5.1.2. Connect to DVR To connect to the DVR from a remote computer, you would then open an Internet Explorer browser window and enter the Internet IP of your router that you received by going to www.myipaddress.com.

  • Page 45: Control Network Access

    KGUARD Standalone DVR KG-SHA104/108 User Manual 5.1.3. Control Network Access 5.1.3.1 Live 1. On / Off Live display [ ]: When the live display status is “On”, clicking the button to close live display. When the live display status is “Off”, clicking the button to open live display.

  • Page 46: Remote Backup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 5.1.3.5. Remote Backup You can backup recorded video files from DVR to your PC using the Replay menu in the remote surveillance software. To backup files remotely: 1. Click REPLAY at the top of the main screen.

  • Page 47: Playback Local File With Netviewer

    KGUARD Standalone DVR KG-SHA104/108 User Manual 5.1.3.8. Playback Local File with Netviewer Run the Netviewer software, you will see the OFFLINE button displayed on the Login interface. Press this button to enter local file playback mode. Press the ADD button to add backup H.264 files or folder saved in your computer, you will see the files will be listed in the queue window, select a file then press PLAYFILE button to play.

  • Page 48: Obile Phones Access

    KGUARD Standalone DVR KG-SHA104/108 User Manual 5.2..Mobile Phones Access This function allows you to view 1 channel live image at the same time with your mobile phone. ® ® The DVR is currently compatible with mobile phones running Windows...

  • Page 49: Mobile Setup

    KGUARD Standalone DVR KG-SHA104/108 User Manual 5.2.1..Mobile Setup Before you can view the live image from your DVR with compatible mobile phones, you need to set the settings first. Also make sure that your DVR has connected to Internet.

  • Page 50: Install & Operate Mobile Client In Windows

    KGUARD Standalone DVR KG-SHA104/108 User Manual All Functions USER NAME The login user name of DVR USER PASSWORD The login Password of DVR SERVER PORT: Mobile monitoring port. Setting range is between 1024 and 65535. Please note that the server port number must be different from the network ports you have appointed in the NETWORK settings.
  • Page 51 KGUARD Standalone DVR KG-SHA104/108 User Manual 2. Click the windows mobile folder and choose the file “window_mobile”. Select the file which will open the window. The file is generally default to save to the Device’s built-in memory, but you can choose to save it to Storage Card.
  • Page 52 KGUARD Standalone DVR KG-SHA104/108 User Manual Now , you can see the video of your mobile phone. Step 7. To stop viewing the live video, click the “Disconnect” button . Function of Buttons under the video image from left to right: PTZ control (Left, Right, Up and Down), area select (Zoom out and Zoom in), Focus (Add “+”...

  • Page 53: Install & Operate Mobile Client In Symbian Phones

    KGUARD Standalone DVR KG-SHA104/108 User Manual ® 5.2.1.2. Install & Operate Mobile Client in Symbian Phones Install the webcam program that is included on the supplied CD by copying the “Symban_3.0.sisx” (Symbian 3.0 version) or “Symbian_5.0.sis” (Symbian 5.0 version) file to the mobile phone. You can do this by attaching the mobile phone to a computer and copying the file from the CD to the phone.
  • Page 54 KGUARD Standalone DVR KG-SHA104/108 User Manual 5. Select version 3.0. 6. Click “Install” button. 7. Install QQEye? Click “Yes” button. www.kguardsecurity.com...
  • Page 55 KGUARD Standalone DVR KG-SHA104/108 User Manual 8. Click ”Continue” button. 9. Make sure the version is correct, ad then click ”Continue” button. 10. Select language, choose “English”. 11. Select the devices which you would like to save files. www.kguardsecurity.com...
  • Page 56 KGUARD Standalone DVR KG-SHA104/108 User Manual 12. Click ”Continue” button. 3. Back to main page and select ”wireless app” option. The control panel will display, and then select ”Point Setting” option. www.kguardsecurity.com...
  • Page 57 KGUARD Standalone DVR KG-SHA104/108 User Manual Key-in the connecting setting of DVR. Functions Server address The IP address of DVR Server port The port of DVR Username Username of DVR Password Password of DVR Click “Save” option to save files.
  • Page 58 KGUARD Standalone DVR KG-SHA104/108 User Manual Symbian 5.0 1. Install the webcam program that is included on the supplied CD by copying the “Symbian_5.0.sis” (Symbian 5.0 version) file to the mobile phone. You can do this by attaching the mobile phone to a computer and copying the file from the CD to the phone.
  • Page 59 KGUARD Standalone DVR KG-SHA104/108 User Manual 6. Click “Continue” and wait for the program to install. 7. Once the installation is complete, go to the Applications folder and select the “Symbian_5.0” program, and click “Open” to display the settings menu.

  • Page 60: Install & Operate Mobile Client In Iphone

    KGUARD Standalone DVR KG-SHA104/108 User Manual ® 5.2.1.3. Install & Operate Mobile Client in iPhone (A)Download iTunes If you already have ITunes account, please go to section B, below. Step 1:Visit Apple website http://www.apple.com/itunes/ to download & install the iTunes.
  • Page 61 KGUARD Standalone DVR KG-SHA104/108 User Manual Step 5. The login page will display. Click ”STORE iTunes Store” option. Step 6. Click on “Store Create Account” to create your own account. Step 7. Click ”Continue” button to proceed next step. www.kguardsecurity.com...
  • Page 62 KGUARD Standalone DVR KG-SHA104/108 User Manual Step 8. Check the term and conditions, and then click ”Continue” button. Step 9. Create your personal account and fill out all information which was requested by system. After fill-out all information . Click ”Continue” button to proceed next step.
  • Page 63 KGUARD Standalone DVR KG-SHA104/108 User Manual Step 11. Finished the register, and go to your email box to verify your account. Step 12. Click the link included in the email message. It will connect to the iTunes store and turn to iTunes interface.
  • Page 64 KGUARD Standalone DVR KG-SHA104/108 User Manual (B) Authorize Computer You need to authorize your computer with the registered ID. Move to the menu “Store”, and click the option “Authorize Computer”. Input your registered ID & password, then click Authorize button.
  • Page 65 KGUARD Standalone DVR KG-SHA104/108 User Manual (C)Download & install surveillance software “Aplayer”. Step 1. Key-in the word ”Aplayer” in the search column. The download page of Aplayer will display. Step 2. Click the “GET APP” button to download the file.
  • Page 66 KGUARD Standalone DVR KG-SHA104/108 User Manual Left click ;Right click Step3. Connect your iPhone to the computer, you will find your Device displayed on the left sidebar. Select the DEVICES ID(1), and then click “Applications” option(2). Select the “Sync Applications” & “Aplayer” (3) and then click “Sync” button(4).
  • Page 67 KGUARD Standalone DVR KG-SHA104/108 User Manual Ⅵ. Play & Pause Ⅶ. Snapshot Ⅷ. Full screen Ⅸ. Next group of channels Ⅹ. Setup 3.1 Access information setup Turn into setup menu, and fill in the information according to your DVR Mobile settings.

  • Page 68: Install & Operate Mobile Client In Blackberry Handheld

    KGUARD Standalone DVR KG-SHA104/108 User Manual 5.2.1.4. Install & Operate Mobile Client in Blackberry Handheld 1. Install the Blackberry desktop manager on the computer; 2. Connect the handheld to computer using the USB port; 3. Open the Blackberry desktop manager;...
  • Page 69 KGUARD Standalone DVR KG-SHA104/108 User Manual 6. Browse and open the [*.alx] file then click [Next]; 7. Just click the [Finish] button to complete the installation. www.kguardsecurity.com...
  • Page 70 KGUARD Standalone DVR KG-SHA104/108 User Manual The startup shortcuts are usually located in the Downloads directory. Main screen of the application. www.kguardsecurity.com...

  • Page 71: 5.Forwarding The Port Of Router For Mobile Phone

    KGUARD Standalone DVR KG-SHA104/108 User Manual 5.2.1.5.Forwarding the port of Router for Mobile phone *Because of the model of Router is variety, so we only provide 1 model for your reference. If you have any question of Router, please contact your local ISP service.
  • Page 72 KGUARD Standalone DVR KG-SHA104/108 User Manual Step 2. Click “Device” icon and then click “Mobile” icon. Step 3. key-in the user name and password as well as server port. *The port the mobile must the same as server port. Step 4. Click ”Apply” button.
  • Page 73 KGUARD Standalone DVR KG-SHA104/108 User Manual Step 5. Link to IE Browser and login your router. Step 6. Click ”ADVANCED” option. Step 7. Click ”Virtual Server” option. www.kguardsecurity.com...
  • Page 74 KGUARD Standalone DVR KG-SHA104/108 User Manual Step 8.Add a new virtual server for web port, and fill out all information, then click “save” Step 9. After we add two virtual servers, click “Save settings”. www.kguardsecurity.com...
  • Page 75 KGUARD Standalone DVR KG-SHA104/108 User Manual Step 10. Click “Continue” button. Step 11. Select “Tools” --> “Dynamic DNS”. Enable DDNS and enter DynDNS account info. Click “Save Settings” while completed. www.kguardsecurity.com...
  • Page 76 KGUARD Standalone DVR KG-SHA104/108 User Manual Step 12. Reboot the system. *For applying free DDNS , Please proceed to next step . www.kguardsecurity.com...

  • Page 77: 6.Apply Free Ddns

    KGUARD Standalone DVR KG-SHA104/108 User Manual 5.2.1.6.Apply Free DDNS Please go to http://www.dyndns.com and click “Sign up free” Choose free sign up www.kguardsecurity.com...
  • Page 78 KGUARD Standalone DVR KG-SHA104/108 User Manual Create your own username, password, E-mail and enter the image numbers to create an account 4. After you created your account, the company will sent an e-mail to verify your e-mail account 5. Check your e-mail and see if you have received an e-mail from DynDNS.
  • Page 79 KGUARD Standalone DVR KG-SHA104/108 User Manual 7. Click “My Hosts” option. 8. key-in your hostname, IP address and click “Add To Cart”. www.kguardsecurity.com...
  • Page 80 KGUARD Standalone DVR KG-SHA104/108 User Manual 9. key-in your hostname, IP address and click “Add To Cart”. 10. Click “Next” button. www.kguardsecurity.com...
  • Page 81 KGUARD Standalone DVR KG-SHA104/108 User Manual 11. Click “Activate Services” 12. When activation is successful, the webpage will display the message: www.kguardsecurity.com...

  • Page 82: Chapter 6. Specifications

    KGUARD Standalone DVR KG-SHA104/108 User Manual Chapter 6. Specifications Model KG-SHA104 ( 4CH ) KG-SHA108 ( 8CH ) Video Compression H.264 Video System NTSC / PAL Operation System Linux Video Input / BNC 4-channel / VGA 1-channel & BNC 8-channel / VGA 1-channel & BNC...

  • Page 83: Chapter 7. System Connection Configuration

    KGUARD Standalone DVR KG-SHA104/108 User Manual Chapter 7. System Connection Configuration 4Channel DVR 8Channel DVR www.kguardsecurity.com...

  • Page 84: Chapter 8. Appendix

    KGUARD Standalone DVR KG-SHA104/108 User Manual Chapter 8. Appendix 8.1 The Symbol of Recording Alarm Symbol/icon Functions Motion HDD loss, HDD space full The video is recording Video Loss Video Loss When DVR is in recording mode, [ ] icon or [ ] icon will appear on the screen. But when there is [ ] icons on the screen it indicates a motion alarm was triggered.

  • Page 85: Usage Maintenance

    KGUARD Standalone DVR KG-SHA104/108 User Manual settings you have put into the DVR. Make sure the data cables are attached firmly to the RS485 port on the DVR. . Q: Why does the Buzzer keep sounding? A: Please check to see if motion detection is on and the system has detected motion, make sure the hard drive is being detected and has sufficient space available and that none of your cameras have lost video.

  • Page 86: Email Server Check List （The Info Below , Only For Your Ref

    KGUARD Standalone DVR KG-SHA104/108 User Manual 8.6. HDD Device Support List SHA Series – SATA HDD Support Suggestion Brand Brand Brand Brand Model No. Model No. Model No. Model No. Note Note Note Note Capacity 320G ST3320410SV ST3500312CS ST3500320AS 500G ST3500320SV Special design for Standalone DVR.

  • Page 87: Hdd Device Support List

    KGUARD Standalone DVR KG-SHA104/108 User Manual 8.7. 3G Cell Phone Support List(including service center) 3G Cell phone Support Suggestion Brand Brand Model No. el No. Brand Brand el No. el No. Service Center(Web site) 9000 http://na.blackberry.com/eng/support/ http://uk.blackberry.com/support/ Blackberry 9530 http://fr.blackberry.com/support/ http://sa.blackberry.com/support/...
