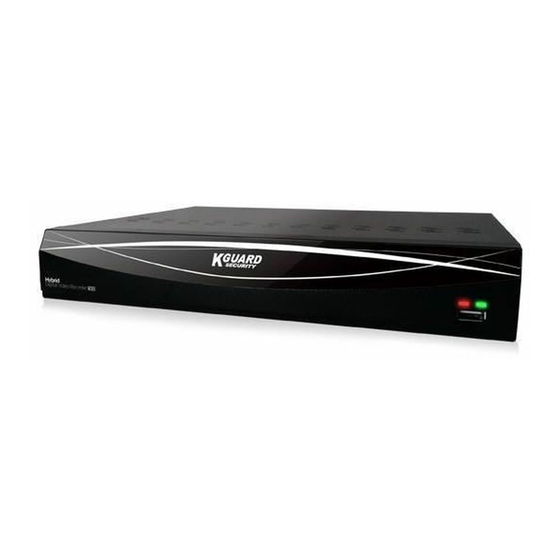

KGuard Security HD Series User Manual

Default user name: admin, default password: 123456
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
EN
HD Series
HD481 / HD881 / HD1681
Default user name: admin
Default password: 123456

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KGuard Security HD Series

Summary of Contents for KGuard Security HD Series

  • Page 1 USER MANUAL HD Series HD481 / HD881 / HD1681 Default user name: admin Default password: 123456...

  • Page 2: About This Manual

    There is dangerous “voltage” The user needs to refer to the important presence near by the product’s enclosure operating and maintenance or servicing which may be risk of person. instructions. Hybrid DVR (HD Series)

  • Page 3: Safety Precautions

    • Do not put the objects on top of the equipment. • Always wear protective clothing such as long sleeve shirts while you are installing or removing equipment. • Always wear high, snug fitting shoes. • Always wear clean clothes without grease or oil. Hybrid DVR (HD Series)

  • Page 4: Table Of Contents

    Main Menu > Parameter > Alarm > Sensor Control ........26 Main Menu > Record Search > General, Events & Picture ......27 Main Menu > Record Search > General, Events & Picture (continued) ..28 Main Menu > Record Search > General, Events & Picture (continued) ..29 Hybrid DVR (HD Series)

  • Page 5: Install The Hard Disk Drive

    Connect the data and power cables to the HDD and place the HDD on b) Carefully flip the DVR case and secure the HDD to the DVR with the four (4) the DVR case. screws. 4/8-Channel DVR 4/8-Channel DVR 16-Channel DVR 16-Channel DVR Hybrid DVR (HD Series)

  • Page 6: Making The Connections

    - This is where you connect the power adapter. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AUDIO AUDIO VIDEO HDMI RS485 INPUT OUTPUT INPUT Rear View (16-Channel DVR) RS485 AUDIO AUDIO VIDEO INPUT HDMI INPUT OUTPUT Hybrid DVR (HD Series)

  • Page 7: Connection Diagram

    Use the USB flash disk for backup or system upgrade. You need the USB mouse to go through the initial setup menus once the DVR is Connect the video output of the DVR to the TV or monitor via HDMI or VGA powered on. connection. Hybrid DVR (HD Series)

  • Page 8: Common Dvr Operations

    Rebooting and shutting down operations can be performed via the Main Menu. You will see the virtual keyboard automatically on the screen anytime you need to enter data. Click to delete a character Click to enter the text Click to toggle the keyboard to upper case Hybrid DVR (HD Series)

  • Page 9: Live Viewing Screen

    This icon appears when the Smoke detector camera has detected smoke and triggers recording. VIDEO LOSS: Connection to the camera has been lost. / Off-line: The added IP camera is offline or disconnected. No Camera: IP Camera has not been connected to the DVR. Hybrid DVR (HD Series)

  • Page 10: Main Menu

    - Click to copy the current settings to all channels or one specific channel. L ) Default - Click to restore the default settings. M) Save - Click to save the modifications. N) Cancel - Click to discard the modifications. Hybrid DVR (HD Series)

  • Page 11: Main Menu > Parameter > Display > Analog Channels & Output

    Transparency: Decide how transparent you want the menus to be. Choose partially transparent (see-through) if you need to keep an eye on happenings while adjusting settings. • Support Overscan: Check to allow adjusting the position of the video image on the live viewing screen. Hybrid DVR (HD Series)

  • Page 12: Main Menu > Parameter > Display > Live

    • AHD EQ: Enable or disable AHD EQ (Enhanced Quality) function. Configure this parameter if you are an advanced user. • Show Time: Disable if you do not want the current time to appear on the channel. Hybrid DVR (HD Series)

  • Page 13: Main Menu > Parameter > Display > Ip Channels & Image Control

    DVR storage. • Level: Set the noise reduction level. • WDR (Wide Dynamic Range): Enable to allow automatically adjust the brightness and contrast of the video when shooting in the darkness with bright light sources. Hybrid DVR (HD Series)

  • Page 14: Main Menu > Parameter > Display > Privacy Zone

    Main Menu. The privacy zone(s) are not visible on channel live view as well as on the video file. On live view NOTE: and video file, you can see the privacy zone(s) covered with black boxes. Hybrid DVR (HD Series)

  • Page 15: Main Menu > Parameter > Record > Record & Mainstream

    DVR or using a camera with audio capability (not included). Since the audio option is only available for the channels 1 to 4, you need to connect a camera with audio capability to these channels. Hybrid DVR (HD Series)

  • Page 16: Main Menu > Parameter > Record > Record Schedule

    Siren linked to the Smoke detector camera sounds an alarm regardless the time slot for the period is marked white or not. Make sure the Siren camera is connected to the system. NOTE: Hybrid DVR (HD Series)

  • Page 17: Main Menu > Parameter > Record > Record Schedule (Continued)

    - “WP820A“ for PIR camera - “WR820A“ for Siren camera - “WS820A“ for Smoke detector camera • No Record: A time slot marked black means that there is no recording scheduled for the time slot. Hybrid DVR (HD Series)

  • Page 18: Main Menu > Parameter > Record > Substream & Mobilestream

    Bitrate: Enter manually or choose from the drop-down menu the data throughput during the remote session. • Audio: Check the box if you want to hear the live sound at the remote session. Make sure the camera with audio capability is properly connected to the selected channel. Hybrid DVR (HD Series)

  • Page 19: Main Menu > Parameter > Capture > Capture & Capture Schedule

    Normal: When the time slot is marked green, this indicates the channel is capturing snapshots based on the Normal Interval. • Motion: When the time slot is marked yellow, this indicates the channel is capturing snapshots based on Alarm Interval only when a motion is detected. Hybrid DVR (HD Series)

  • Page 20: Main Menu > Parameter > Capture > Capture Schedule (Continued)

    - “WP820A“ for PIR camera - “WR820A“ for Siren camera - “WS820A“ for Smoke detector camera • No Capturing: A time slot marked black means that there is no snapshot capturing scheduled for the time slot. Hybrid DVR (HD Series)

  • Page 21: Main Menu > Parameter > Network > Network

    3G: Prior using the mobile network, you need to connect a 3G dongle PPPoE: This is an advanced protocol that allows the DVR to connect to the network more to the DVR. directly via DSL modem. Hybrid DVR (HD Series)

  • Page 22: Main Menu > Parameter > Network > Network (Continued)

    UPnP both, on DVR and router. In this case, you do not need to configure manually port forwarding on your router. http://portforward.com/kguard. If your router does not support UPnP, make sure the port forwarding is completed manually. Please see the customized free guide on NOTE: Hybrid DVR (HD Series)

  • Page 23: Main Menu > Parameter > Network > Email & Email Schedule

    Red: Slot for Exception (HDD full, HDD error, or Video Loss). • White: Slot for PIR camera or Smoke detector camera. • Automatic Event Sending is Off: A time slot marked black means that there is no automatic email sending scheduled. Hybrid DVR (HD Series)

  • Page 24: Main Menu > Parameter > Network > Ddns & Ftp

    Enter the FTP port for file exchanges. • Name/ Password: Enter your FTP server user name and password. • Directory Name: Enter the default directory name for the FTP file exchanges. • Test FTP: Click to test the FTP settings. Hybrid DVR (HD Series)

  • Page 25: Main Menu > Parameter > Alarm > Motion

    • Analog Channels / IP Channels: Here you can select which channels you want to include to the motion detection. If the motion is detected, the recording will start immediately on those channels. Hybrid DVR (HD Series)

  • Page 26: Main Menu > Parameter > Alarm > Sensor Control

    (2) On each linked channel Sensor Control page the Status parameter is set to ON. (3) The PIR-based recording schedule is set for each linked channel in Main Menu > Parameter > Record > Record Schedule > PIR. Hybrid DVR (HD Series)

  • Page 27: Main Menu > Record Search > General, Events & Picture

    Select the channels to playback (optional). Modify the start time and end time if necessary and then click Play. “Main Menu > Record Search > General, Events & Picture The Playback screen opens. Please see (continued)” on page Hybrid DVR (HD Series)

  • Page 28: Main Menu > Record Search > General, Events & Picture (Continued)

    Frame: Select Playback timeline. Channels: Check the channels to playback. Playback k) Playback Type: Select the playback type between Control General, Events, Picture, and Sensor. Full screen l ) Recording Calendar: Dates marked with orange triangles have recordings. Hybrid DVR (HD Series)

  • Page 29: Main Menu > Record Search > General, Events & Picture (Continued)

    Click As a result of Smart Search, you will see the motion based recording(s) on the channel Time Bar marked with dark green lines. Full Screen is Motion Sensitive Hybrid DVR (HD Series)

  • Page 30: Main Menu > Record Search > General, Events & Picture (Continued)

    To view recordings in H.264 format, please install the media player from the supplied product CD. AVI type is supported by NOTE: most media players. In Backup window, select the directory and click OK to save the footage. Hybrid DVR (HD Series)

  • Page 31: Main Menu > Device > Hdd & Ptz

    Address: Set the command address of the PTZ system. Please be noted that each PTZ-capable camera needs a unique address to function properly. Click on the Quick Camera Toolbar to start using the PTZ function. NOTE: Hybrid DVR (HD Series)

  • Page 32: Main Menu > Device > Cloud

    3 minutes. Enter your Dropbox account credentials. Setting up the Cloud service is now complete. If you encountered any problems while activating the Cloud service, please repeat steps from 3 to 5. Hybrid DVR (HD Series)

  • Page 33: Main Menu > System > General > General & Main Menu > System > Users

    To enable/disable the user account, modify the user name and password, click on the user account you wish to edit, then click Edit. • Change User Permissions: To modify user access permissions, click on the user account you wish to modify, then click Permission. Hybrid DVR (HD Series)

  • Page 34: Main Menu > System > General > Dst, Ntp & Main Menu > System > Log

    Select the log type. • Start Time/End Time: Specify the start and end date/time of the logs you want to review and/or save on an external USB storage device. Click Search. The logs will be listed on the table. Hybrid DVR (HD Series)

  • Page 35: Main Menu > System > Info > Info, Channel Info & Record Info

    QR code. This menu allows you to view the information summary on the channels. This menu allows you to view the recording information summary by channel, record state, stream type, FPS, bitrate, and resolution. Hybrid DVR (HD Series)

  • Page 36: Main Menu > Advanced > Maintain/Events/Auto Upgrade

    • Auto Upgrade: Enable to allow automatic upgrading. • Check For updates: Check the box to allow the system automatically check for updates. • Detect: Click to detect the software version. • Upgrade: Click to start upgrading. Hybrid DVR (HD Series)

  • Page 37: Remote Access Via Web Client

    The following IP address is an example only. NOTE: The user login page opens as shown. The default DVR user name is “admin” and default password is “123456”. Enter the User Name and Password. Then click Login. Hybrid DVR (HD Series)

  • Page 38: Remote Access Via Web Client (Continued)

    Click Save to save the modifications. Here you can remotely configure the settings of the DVR. Please see “Main • File Type: Choose your preferred file type for manual recordings. Menu” on page 10 for more information. Hybrid DVR (HD Series)

  • Page 39: Troubleshooting

    • Check if the input FPS or bandwidth of IP cameras has been exceeded the limits. Adjust the FPS or Bitrate value on Mainstream menu for the IP camera. • Check if the video compression type of IP camera is H.264. Hybrid DVR (HD Series)
  • Page 40 Copyright © 2017 All rights reserved Customer Support KGUARD INFORMATION CO., LTD. USA Technical Support Contact Address: 4F, No.113, Jian 2nd Road, TEL:1-866-978-4888 Jhonghe District, New Taipei City 23585, Taiwan Email: usservice@kguardsecurity.com TEL: +886-2-8228-6080 FAX: +886-2-8221-6857 Email: support@kguardsecurity.com...
