4.6 GPS connection
Depending on display variant, your multifunction display may
include an internal GPS receiver. If required the multifunction
display can also be connected to an external GPS receiver,
using SeaTalk
ng
or NMEA 0183.

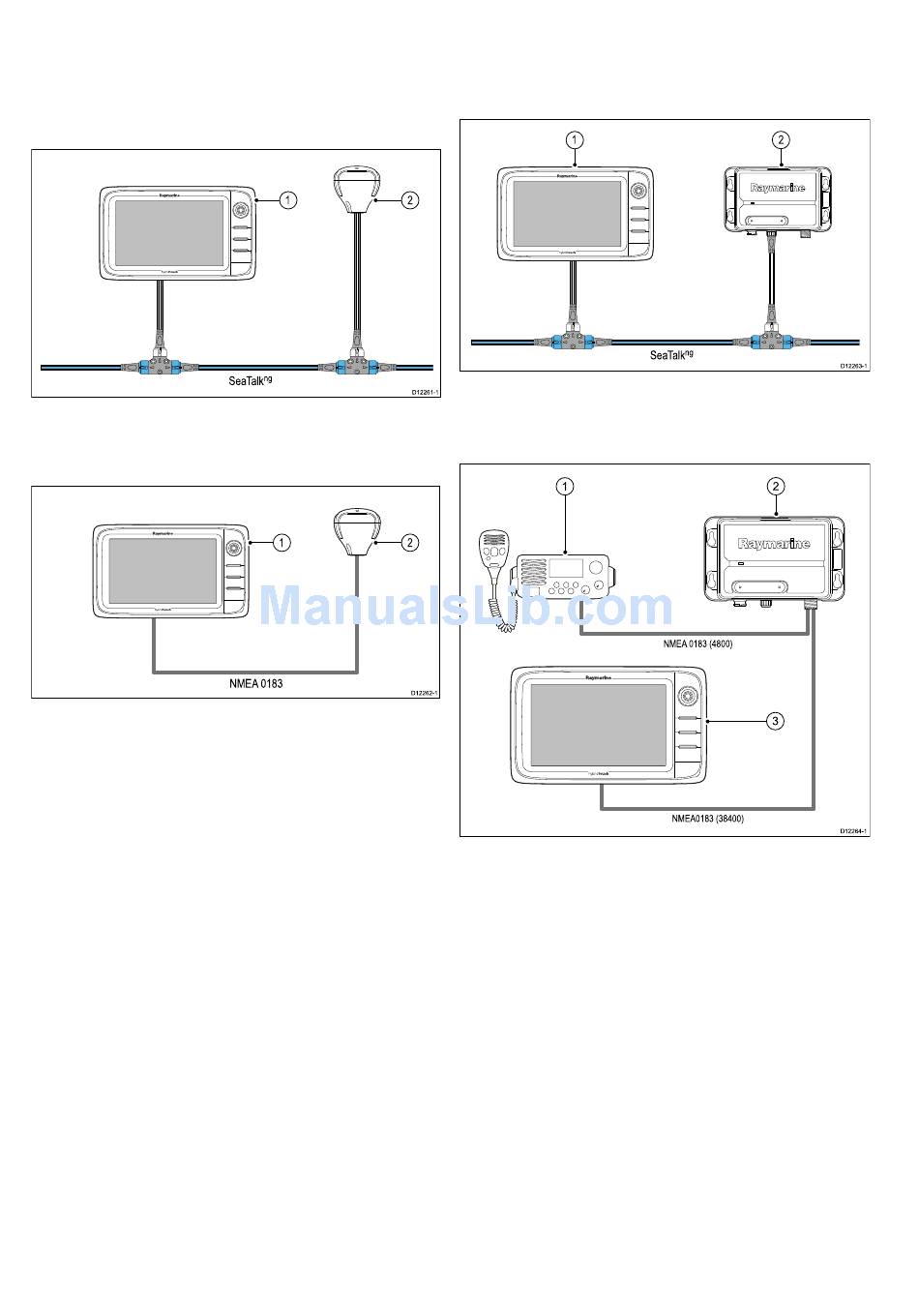

GPS connection — SeaTalk
1. Multifunction display.
2. SeaTalk
ng
GPS receiver.
GPS connection — NMEA 0183
1. Multifunction display.
2. NMEA 0183 GPS receiver.
50
ng
1
ng
SeaT alk
1
NM EA 0183
4.7 AIS connection
A compatible AIS can be connected using SeaTalk
0183.
Connection using SeaTalk
1
2
1. Multifunction display.
D12261-1
2. SeaTalk
ng
AIS receiver / transceiver.
Connection using NMEA 0183
1
2
D12262-1
1. VHF radio.
2. AIS unit.
3. Multifunction display.
ng
or NMEA
ng
2
ng
SeaTalk
2
NM EA 0183 (4800)
NM EA0183 (38400)
New a Series / New c Series / New e Series
D12263-1
D12264-1
