4.15 Camera / video in-out connection

A camera / video device or external display can be connected
to New e Series multifunction displays (excluding the e7 / e7D)
using the dedicated video in/out connector.
Note: New a Series and New c Series multifunction displays
do not have a dedicated video in/out connector.
Video In
Examples of video input sources that you can connect to the
display include:
• Video camera.
• Thermal camera.
• DVD player.
• Portable digital video player.
4 3

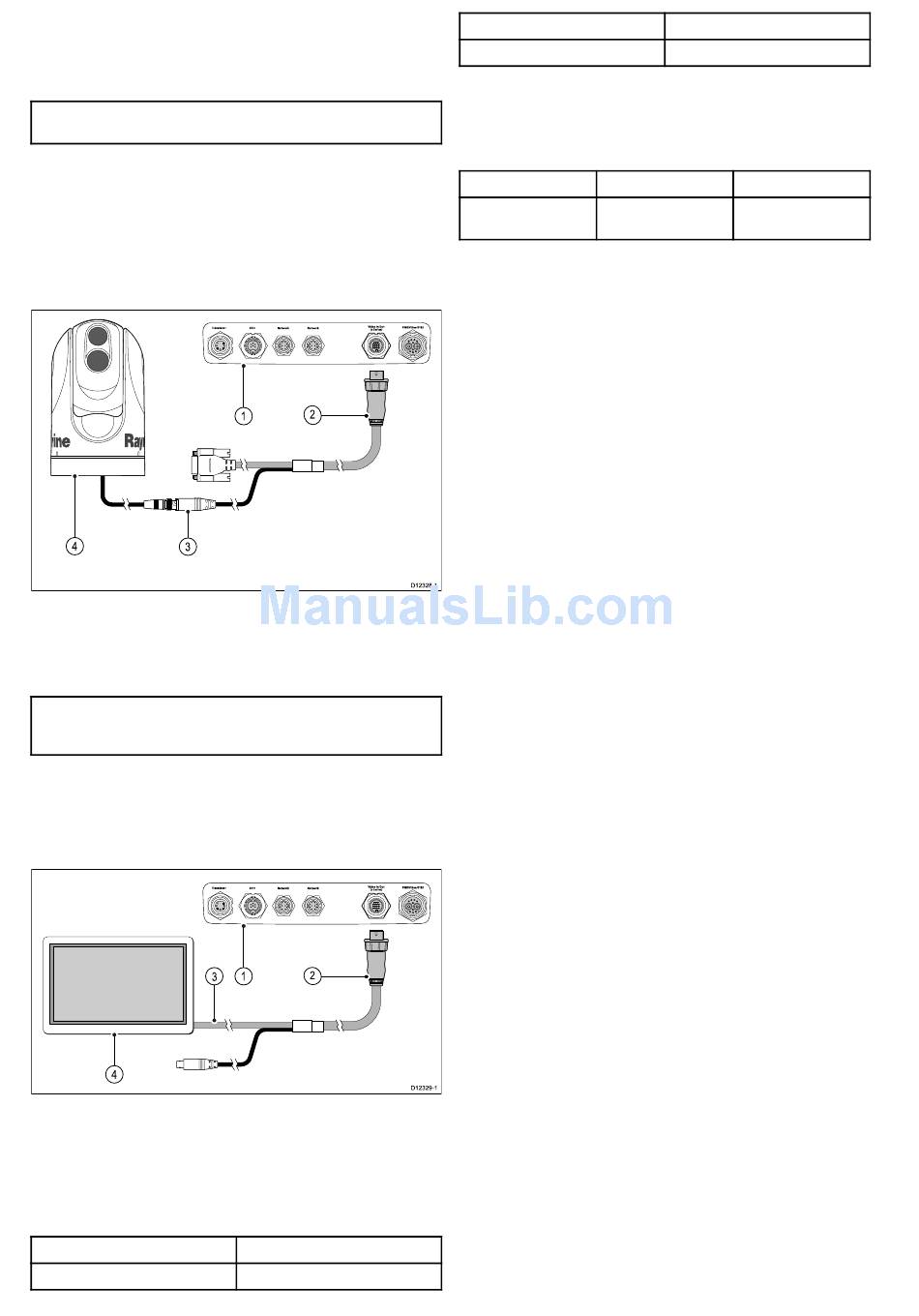

1. Rear connector panel of multifunction display.
2. Video accessory cable.
3. BNC video connector (input 2).
4. Thermal camera.
Note: To listen to a movie's audio track, any connected DVD
or digital video player will require speakers to be connected
to the players audio output.
Video out
Examples of video output devices that you can connect to the
display include:
• HDTV with VGA input.
• VGA monitor.
4
1. Rear connector panel of multifunction display.
2. Video accessory cable.
3. VGA cable to external display.
4. External display.
Video specification
Signal type
Format
56
2
1
2
1
3
Composite
PAL or NTSC
Connector type
Output resolution
Video cables
The following video cable is required for the video in / out
connector on the e95 / e97 / e125 / e127 variant multifunction
displays.
Part number
R70003
D12328-1
D12329-1
BNC (female)
720p
Description Notes
e-series accessory
video cable
New a Series / New c Series / New e Series
