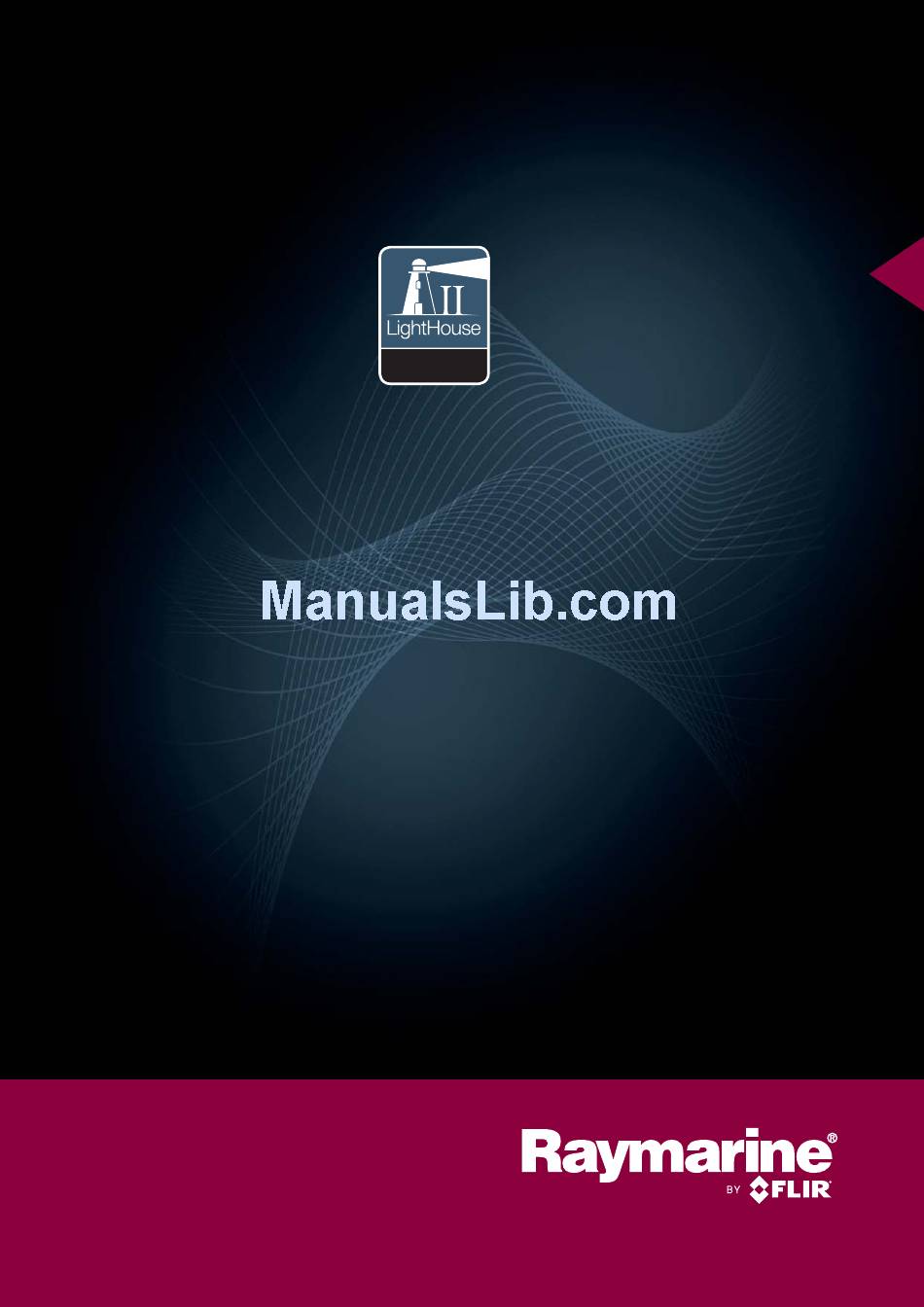

LightHouse™
OPERATION
INSTRUCTIONS
Release 15
English
Date: 09-2015
Document number: 81360-2-EN
© 2015 Raymarine UK Limited

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the a65 and is the answer not in the manual?

Questions and answers

Related Manuals for Raymarine a65

Summary of Contents for Raymarine a65

  • Page 1 LightHouse™ OPERATION INSTRUCTIONS Release 15 English Date: 09-2015 Document number: 81360-2-EN © 2015 Raymarine UK Limited...
  • Page 3 • Applicable documents: 81360–2 • Applicable products: a65 / a65 WiFi / a67 / a67 WiFi / a68 / a68 WiFi / a75 / a75 WiFi / a77 / a77 WiFi / a78 / a78 WiFi / a95 / a97 / a98 / a125 / a127 / a128 / e7 / e7D / c95 / c97 / c125 / c127 / e95 / e97 / e125 / e127 / e165 / eS75 / eS77 / eS78 / eS97 / eS98 / eS127 / eS128 / gS95 / gS125 / gS165 / gS195.
  • Page 4 Applicable Description application Applicable chapter(s) or section(s) Usability improvements: Radar Various • AIS menu options moved to top level menu • Radar power on/off option removed from Menu • Adjust Preset menu renamed Sensitivity settings • Rain option moved to New Sensitivity menu •...
  • Page 5 Software updates Important: Check the Raymarine website for the latest software releases for your product. www.raymarine.com/software Product handbooks The latest versions of all English and translated handbooks are available to download in PDF format from the website www.raymarine.com.

  • Page 7: Table Of Contents

    Contents Chapter 1 Important information......11 Chapter 5 Customizing your display ....59 Disclaimers ............... 12 5.1 Language selection ..........60 Memory cards and chart cards ........12 5.2 Boat details............61 Third party software license agreements ..... 13 5.3 Units set-up ............62 Product disposal ............
  • Page 8 17.4 Engine identification ......... 265 15.1 Sonar technologies........... 192 17.5 Setting boat details from the Data 15.2 Raymarine sonar modules ........ 195 application............... 267 15.3 Fishfinder overview and features ....... 195 17.6 Setting engine RPM range and red zone.... 267 15.4 Sonar check.............
  • Page 9 22.1 Media player connection ........318 Chapter 27 Technical support ......367 22.2 Enabling Bluetooth ........... 318 27.1 Raymarine product support and servicing... 368 22.3 Pairing a Bluetooth media player ....... 319 27.2 Learning resources........... 369 22.4 Enabling audio control ........319 27.3 Third-party support ...........
  • Page 10 Appendix C NMEA data bridging ..... 374 Appendix D NMEA 2000 sentences ....375 Appendix E Software releases ......378 Appendix F Multifunction display compatibility ............385 LightHouse MFD operation instructions...

  • Page 11: Chapter 1 Important Information

    As both of these factors are outside of Raymarine’s control; • NEVER operate the sonar with the Raymarine will not be held liable for vessel out of the water. any damage, physical or otherwise, • NEVER touch the transducer face when resulting from the use of the automatic the sonar is powered on.

  • Page 12: Disclaimers

    (as applicable). To avoid irreparable damage to and / or Raymarine does not warrant that this product is loss of data from chart and memory cards: error-free or that it is compatible with products manufactured by any person or entity other than •...

  • Page 13: Third Party Software License Agreements

    To the best of our knowledge, the information in this document was correct at the time it was produced. However, Raymarine cannot accept liability for any inaccuracies or omissions it may contain. In addition, our policy of continuous product improvement may change specifications without notice.
  • Page 14 LightHouse MFD operation instructions...

  • Page 15: Chapter 2 Document And Product Information

    Chapter 2: Document and product information Chapter contents • 2.1 Handbook information on page 16 • 2.2 Handbook conventions on page 17 • 2.3 Document illustrations on page 19 • 2.4 HybridTouch overview on page 19 Document and product information...

  • Page 16: Handbook Information

    This handbook covers multifunction display products. software version — LightHouse II Release 15. • Raymarine user manuals are also available to Please refer to the Software Releases section download free-of-charge from the Raymarine for details on software releases.

  • Page 17: Handbook Conventions

    2.2 Handbook conventions The following conventions are used throughout this handbook when referring to: Type Example Convention Icons The term "select" is used in procedures involving icons to refer to the action of selecting an on-screen icon, either using touch or physical buttons: •...
  • Page 18 Type Example Convention With the Numeric adjust control displayed you can also select on the keypad icon or press and hold the Ok button to open a numeric keypad to enter a new value for the setting. Slider bar The term “adjust” is used in procedures involving slider bar controls controls to refer to the action of changing the associated numeric value using touch or physical buttons:...

  • Page 19: Document Illustrations

    All functions can be accessed using the touchscreen. However, there may be situations (such as rough sea conditions) when it is not appropriate to use the touchscreen. In these situations, Raymarine strongly recommends that you activate the touch D12596-2 lock and use the physical buttons to operate your multifunction display.
  • Page 20 LightHouse MFD operation instructions...

  • Page 21: Chapter 3 Getting Started

    Chapter 3: Getting started Chapter contents • 3.1 Switching the unit on and off on page 22 • 3.2 a Series Controls on page 23 • 3.3 e7 / e7D Controls on page 23 • 3.4 c95 / c97 / c125 / c127 / e95 / e97 / e125 / e127 / e165 Controls on page 24 •...

  • Page 22: Switching The Unit On And Off

    3.1 Switching the unit on and off Adjusting the display brightness Powering the display on 1. Press the POWER button on the display. 2. Select Accept to acknowledge the disclaimer message. Powering the unit off 1. Press and hold the Power button for approximately 6 seconds.

  • Page 23: Series Controls

    3.2 a Series Controls 3.3 e7 / e7D Controls D12577-1 D12179-1 Descrip- tion Functions Description Functions Touch- you can touch the screen to operate many Touch- Touch the screen to operate functions, screen common functions, including all menu screen including all menu operations. operations.

  • Page 24: C95 / C97 / C125 / C127 / E95 / E97 / E125 / E127 / E165 Controls

    3.4 c95 / c97 / c125 / c127 / e95 / e97 / Description Functions e125 / e127 / e165 Controls 10 Pilot • Press to disengage integrated autopilot. • Press and hold to activate Auto mode on integrated autopilot. 11 Switch •...

  • Page 25: Es Series Controls

    3.5 eS Series Controls eS Series UniController D13286-1 Description Functions Touch- you can touch the screen to operate screen many common functions, including all menu operations. Home Press to return to the Homescreen. Menu Accesses menus. Press again to close menus.

  • Page 26: Controls

    3.6 Controls 3.7 Keypad controls Connecting the keypad allows you to control your multifunction display remotely. D1271 1-1 1. Home — press to return to the Homescreen. D12701-1 2. Menu — accesses menus. Press again to close Descrip- menus. tion Functions 3.

  • Page 27: Basic Touchscreen Operations

    3.8 Basic touchscreen operations Note: In a multiple display configuration, where displays are in different states, displays that are turned off can only be turned on using Placing and moving the cursor using the Power button on the display. touch 11.

  • Page 28: Multi-Touch Gestures

    3.9 Multi-Touch gestures Unlocking the touchscreen - touch only displays Raymarine a Series and gS Series multifunction To unlock the touchscreen of a touch only display displays support multi-touch. when paired with a remote keypad follow the steps Multi-touch means that the display is capable of below.

  • Page 29: Touch Icons

    3.10 Touch icons 3.11 Homescreen overview — Touch only displays Touchscreen multifunction displays can use the BACK and CLOSE icons to move between The Homescreen provides a central point of access the different levels of menus available in each for your display's applications, data and settings. application.

  • Page 30: Homescreen Overview - Hybridtouch And Non-Touch Displays

    3.12 Homescreen overview — Accessing the homescreen HybridTouch and non-Touch displays The homescreen can be accessed from any application. The Homescreen provides a central point of access for your display's applications, data and settings. To access the homescreen follow the steps below: •...
  • Page 31 Radar scanner status symbols Symbol Description The radar scanner power mode status is indicated AIS unit is connected and switched in the databar. on, but has active alarms. Radar power AIS unit is connected and switched Symbol mode Description on, but the dangerous and lost alarm is disabled.

  • Page 32: Pages

    3.13 Pages 4. If selecting Choose page the Homescreen is displayed. Pages are made up of 1 to 4 panes that are used to display applications on your multifunction display (MFD). Pages are accessed using the icons on the Homescreen. •...

  • Page 33: Applications

    3.14 Applications 4. Select the page icon that you want to move. 5. Select the page icon that you want to swap Chart application — provides a 2D or positions with. 3D graphical view of your charts to help The page icon is moved to the new position. you navigate.

  • Page 34: Splitscreen Controls

    3.15 Splitscreen controls FUSION Link application — link to and control a compatible Fusion When viewing a page with more than 1 application entertainment system from your displayed you can switch applications from the multifunction display. splitscreen view to fullscreen view. Example 1 —...

  • Page 35: Screen Overview

    3.16 Screen overview to switch the active application between full and splitscreen. 3. Press the Back button or the Switch Active button to exit switch mode. Expanding and retracting a splitscreen application The following steps apply to MFDs that have a Switch Active Pane button or have an MFD keypad connected.
  • Page 36 Screen item Description Back • Displays with a touchscreen — Select the onscreen Back icon to go back to the previous menu. • Non–touchscreen or HybridTouch displays — Use the Back button to go back to the previous menu. Function icons — Some dialogs include icons which can be selected to access additional functions.
  • Page 37 4. Select the àèò key to enter the character. Decrease display brightness Increase display brightness Numeric menu items Power up / Power down Radar Numeric menu items display numeric data and enables you to either select a predefined value or to Radar standby / Radar transmit increase and decrease the value as required.

  • Page 38: Initial Set Up Procedures

    As both of these factors are outside of Raymarine’s control; Screen item Description Raymarine will not be held liable for Status — provides status information for the any damage, physical or otherwise, connected equipment. For example, the Pilot resulting from the use of the automatic...
  • Page 39 i.e.: Minimum Safe Depth = Maximum Vessel Draft + Safety Margin. D1322-1 1. Port safety margin D13159-1 2. Maximum Vessel Width (Beam) 1. Waterline 3. Starboard safety margin 2. Maximum Vessel Draft 3. Safety Margin Important: The information below is provided for guidance only and is not exhaustive.
  • Page 40 • Cartography Important: The information below is provided for guidance only and is not exhaustive. Some • Routes and waypoints influencing factors can be unique to certain vessels • Radar and / or areas of water and may not be listed below.

  • Page 41: Gnss Status

    3.18 GNSS Status accuracy, calculated from a number of factors including satellite geometry, system errors in The GPS status page enables you to view the status the data transmission and system errors in the of the available satellites that are compatible with receiver.
  • Page 42 • QZSS — Quasi-Zenith Satellite System (Proposed by Japan) 2. Select System Settings. 3. To enable the internal receiver, select Internal Raymarine GPS / GNSS receiver compatibility GPS so that On is highlighted. 4. To disable the internal receiver, select Internal Raymarine GPS receivers and GNSS GPS so that Off is highlighted.

  • Page 43: Enabling Autopilot Control

    3.19 Enabling autopilot control • WAAS • EGNOS Enabling the autopilot control function — • MSAS SeaTalk and SPX SeaTalk autopilots • GAGAN To enable control of your SeaTalk or SPX SeaTalk autopilot using your multifunction display follow the • All Others steps below.

  • Page 44: Engine Identification

    3.20 Engine identification Engine data can be displayed on your MFD using the Data application, which provides some preset Engine pages for displaying some of the most common types of engine data. Important: Before you can display Engine data on your MFD, you must: •...
  • Page 45 The wizard will now listen for data and assign For engines with a NMEA 2000 CAN bus it may the engine instance as the port engine. be possible to connect to a Raymarine MFD via a SeaTalk system without the use of a Raymarine iii.

  • Page 46: Enabling Ais Functions

    • SeaTalk instruments displays networked via a SeaTalk to SeaTalk converter. 9. Adjust the AIS options as appropriate. Note: To ensure compatibility check that all devices are running the latest software versions. Check the Raymarine ® website www.raymarine.com for the latest software for your products.

  • Page 47: Memory Cards And Chart Cards

    System Setup Menu. time. Chart cards provide additional or upgraded cartography. Note: Raymarine recommends that you do NOT use the simulator mode whilst navigating. It is recommended that your data is backed up to a memory card on a regular basis. Do NOT save data Note: The simulator will NOT display any real to a memory card containing cartography.

  • Page 48: Pairing The Keypad

    3.25 Pairing the keypad 3.26 System software updates The keypad can control 1 or more multifunction Raymarine regularly issues software updates for displays. Multiple keypads can be connected to a its products that can provide new and enhanced system. Each keypad can be paired with up to 4 features and improved performance and usability.
  • Page 49 1. Go to the Software update section of the Rayma- rine ® website www.raymarine.com/software 2. Compare the latest available software against the software version of your Raymarine ® products. Getting started...

  • Page 50: Learning Resources

    9. Remove the MicroSD card from the card reader. Training courses Raymarine regularly runs a range of in-depth training Note: Turning on a display whilst it has a memory courses to help you make the most of your products.

  • Page 51: Chapter 4 Managing Display Data

    Chapter 4: Managing display data Chapter contents • 4.1 Saving user data and user settings on page 52 • 4.2 Save and restore items on page 55 • 4.3 Screenshots on page 57 • 4.4 Resetting your system on page 57 Managing display data...

  • Page 52: Saving User Data And User Settings

    Legacy archive.fsh support The Waypoint Group list is displayed. With the introduction of LightHouse II Release 9, Raymarine added support for the GPS Exchange (GPX) file format for archiving and transfer of Waypoint, Route and Track data. The GPX file...
  • Page 53 1. Ensure you have a memory card (NOT a chart 8. Using the on-screen keyboard enter the filename card) inserted into a card slot. you want to save the file as. 2. Select My Data. 9. Select SAVE. 3. Select Import/Export. If your display has more than 1 card slot then a message is displayed prompting you to select the 4.
  • Page 54 3. Select Import/Export. 4. Select Restore Settings. If your display has more than 1 card slot then a message is displayed prompting you to select the memory device you want to retrieve settings from, if your display only has 1 card slot then you will not be prompted.

  • Page 55: Save And Restore Items

    4.2 Save and restore items Menu Setting The table below details the data items and settings Customize > Databar Set-up Databar content (cell 1 to 6) which will be saved to and restored from a memory Compass in titlebar card on your multifunction display. Status Icon Bar Homescreen and settings Databar Autohide...
  • Page 56 Data application Menu Setting Menu Setting Databox 2 Datapages and content Databox 2 content Presentation Color theme Presentation > Vectors Vector length Dial color Vector width Number of engines Presentation > Objects Show rocks Maximum RPM range Nav marks Nav marks symbols Weather application Light sectors Menu...

  • Page 57: Screenshots

    4.3 Screenshots 4.4 Resetting your system You can take a screenshot of what is currently Your system may be reset to its factory default displayed on the screen. settings if required. Screenshots are saved in .png (Portable Network There are 2 types of reset operation, both of which Graphic) format to a MicroSD Card.
  • Page 58 LightHouse MFD operation instructions...

  • Page 59: Chapter 5 Customizing Your Display

    Chapter 5: Customizing your display Chapter contents • 5.1 Language selection on page 60 • 5.2 Boat details on page 61 • 5.3 Units set-up on page 62 • 5.4 Time and Date set-up on page 63 • 5.5 Display preferences on page 64 •...

  • Page 60: Language Selection

    5.1 Language selection The system can operate in the following languages: English (US) English (UK) Arabic Bulgarian Chinese — Chinese — Simplified Traditional Croatian Czech Danish Dutch Finnish French German Greek Hebrew Hungarian Icelandic Indonesian Italian Japanese Korean Latvian Lithuanian Malay Norwegian Polish...

  • Page 61: Boat Details

    5.2 Boat details You can customize various settings to make them specific to your vessel. Menu item Description Options Boat Type You can change the appearance of the vessel • Power Cruiser 1 (default) in the chart application. Select the option that •...

  • Page 62: Units Set-Up

    5.3 Units set-up You can specify your preference for the units of measurement that will be used in all applications. Menu item Description Options Distance Units The units of measure that will be used in all • Nautical Miles applications for the display of all values related •...

  • Page 63: Time And Date Set-Up

    5.4 Time and Date set-up You can specify your preference for the way that time and date will appear in all applications. Menu item Description Options Date Format Allows you to specify the preferred format for the • MM:DD:YY (Month, Day, Year) display of date information in all applications.

  • Page 64: Display Preferences

    5.5 Display preferences You can specify your preference for general display behavior. Menu item Description Options Allows you to select what page the display opens Starting page • Homescreen (default) at start up. • Last page — After power up the last used page is displayed.
  • Page 65 Onscreen range controls • Before a unit can respond to a shared brightness adjustment it must be assigned to the relevant You can enable and disable onscreen range controls Brightness Group. on HybridTouch displays by following the steps below. • A single unit can only belong to one brightness group at any one time.

  • Page 66: Databar And Databox Overview

    5.6 Databar and databox overview Auto-hide the databar You can customize the data displayed in the databar On multifunction displays that have a touchscreen, and onscreen databoxes. the databar that is displayed at the top of all applications pages can be set to auto-hide. This Customizable data is displayed in the databar, provides a larger screen area for the application extended databar (HybridTouch displays only) or...
  • Page 67 Customizing the databar From the homescreen: 1. Select Customize. 2. Select Databar Set-up. 3. Select Edit Databar. 4. In the databar, select the cell that you want to change. The Select Data Category menu will be displayed. 5. Select the category that reflects the type of data you want to display in the cell.

  • Page 68: Set-Up Menu Options

    8 Alarm management Fuel Manager Displays the Fuel manager page Pilot Controls Displays the Pilot Control dialog. Only available when a Raymarine autopilot is detected on the system and Autopilot Control is set to On. Pilot Response • Leisure Enables selection of the pilot response level when connected to an Evolution autopilot.
  • Page 69 Data Master. non-compliant products to make them compliant. • Wind Visit the Raymarine website (www.raymarine.com) External Enables set-up Refer to the to obtain the latest software for your products. If...
  • Page 70 Data sources menu This menu enables you to select the external sensors and devices that will provide data to the display. Auto / manual selection Each dialog enables you to view and select your preferred data source. selection of data source can be manual or set to automatic: •...
  • Page 71 (for example, RCU-3). document. Transducers Set-up Displays a list of connected transducers which you can select and calibrate. Weather Set-up Enables you to select your Raymarine weather receiver: • SR6 • SR50 • SR100 • SR150 (default) Switch Panel Set-up Enables you to install and uninstall Switch Panel configuration files.
  • Page 72 Wireless Connections menu This menu provides access to the MFD’s Bluetooth and Wi-Fi functions. Bluetooth Menu item Description Options Bluetooth Enable or disable Bluetooth on the display. • On • Off (default) Connection Manager Provides a list of Bluetooth devices in range. •...
  • Page 73 Menu item Description Options Enables you to select the type of mobile app in use: • Viewing only — RayView • Remote Control — RayRemote or RayControl Customizing your display...
  • Page 74 NMEA Set-up menu This menu enables you to configure settings for NMEA devices. Menu item Description Options Bridge NMEA Heading If set to ON, NMEA heading data will be bridged • On onto the SeaTalk data bus, and will be sent to •...
  • Page 75 • The internal GPS receiver will automatically correlate each time you change the datum. • If you have a Raymarine GPS receiver using SeaTalk or SeaTalk , it will automatically correlate each time you change the datum on the multifunction display.
  • Page 76 Check Online for Updates When the MFD is connected to an access point that has an internet connection the MFD can check the Raymarine website for software updates for connected devices. System Settings Reset This option resets your menu options, datapages, •...
  • Page 77 Diagnostics menu If you encounter problems with your multifunction display or peripheral devices you can use the Diagnostics menu to view information about your device and connected equipment. Select Device Enables you to view a list of all devices • Device connected to the SeaTalk network.
  • Page 78 LightHouse MFD operation instructions...

  • Page 79: Chapter 6 Document Viewer Application

    Chapter 6: Document viewer application Chapter contents • 6.1 Document viewer overview on page 80 Document viewer application...

  • Page 80: Document Viewer Overview

    6.1 Document viewer overview • Open File — Allows you to browse a MicroSD card or the MFD’s internal storage for a PDF You can view PDF documents on your multifunction document to open. display. • Go to page: — Allows you to jump to a specific The document viewer is available from the page number.
  • Page 81 Selecting a page 1. Select Menu. 2. Select Close file. You can skip to the page you want to view by entering the page number. The document is close and the main Doc viewer page is displayed. With a pdf document open: 1.
  • Page 82 • The find tool bar is displayed. • The first occurrence of the keyword is highlighted. 5. Move the Joystick Down to go to the next occurrence of the keyword, or 6. Move the Joystick Up to go to the previous occurrence of the keyword.

  • Page 83: Chapter 7 Autopilot Control

    Chapter 7: Autopilot control Chapter contents • 7.1 Autopilot Control overview and features on page 84 • 7.2 Enabling autopilot control on page 84 • 7.3 Engaging the autopilot on page 85 • 7.4 Adjusting the current locked heading on page 85 •...

  • Page 84: Autopilot Control Overview And Features

    7.2 Enabling autopilot control features Enabling the autopilot control function — SeaTalk and SPX SeaTalk autopilots Raymarine ® autopilots can be controlled directly from a compatible LightHouse powered MFD, with or To enable control of your SeaTalk or SPX SeaTalk without a dedicated Pilot control head.

  • Page 85: Engaging The Autopilot

    7.3 Engaging the autopilot 7.4 Adjusting the current locked heading Engaging the autopilot using the pilot When the autopilot is in Auto mode the current button locked heading can be adjusted from the Pilot Control dialog and from the Pilot Bar. On multifunction displays which have a dedicated pilot button or when using a remote keypad you can With the Pilot Bar or Pilot Control dialog displayed:...

  • Page 86: Disengaging The Autopilot

    7.5 Disengaging the autopilot 2. Select STANDBY. The Pilot Status change confirmation pop-up is Caution: Disengaging the autopilot displayed. 3. Select Yes to disengage the autopilot. On integrated multifunction displays that do not have a dedicated pilot button, The autopilot is disengaged (put into standby). in an emergency the autopilot can be disengaged by pressing and holding the Disengaging the autopilot from the...

  • Page 87: Manually Displaying The Pilot Control Dialog Box

    7.6 Manually displaying the pilot 7.7 Pilot Control dialog control dialog box The Pilot Control dialog can be used to control autopilot functions. You can also open the Pilot Control dialog at any time from the homescreen or chart application. Pilot Control dialog (standby) 1.

  • Page 88: Pilot Bar

    7.8 Pilot Bar Description Pilot Status — Current pilot mode. The Pilot Bar provides autopilot status information. For touchscreen displays you can disengage the Current Heading. autopilot using the Pilot Bar. No (Standby) — Disengages the autopilot and returns Pilot Bar — Track mode to manual vessel control.

  • Page 89: Pilot Set-Up

    7.9 Pilot Set-up 7.10 Pilot settings The Pilot settings option is available on a data When connected to an Evolution autopilot the Pilot master multifunction display when it is integrated Set-up page is available. with an Evolution autopilot. The Pilot settings enable the setup and commissioning of an Evolution autopilot using a multifunction display.
  • Page 90 Note: The drive types available are dependant • Reverse rudder ref. on the ACU type. If your drive type is not listed contact your Raymarine dealer for advice. • Rudder Offset. 2. Select OK to save your setting and display the •...
  • Page 91 • Bang-Bang — Bang-bang modes applies The limits should be set to approximately 5° less continuous rudder in the direction of the joystick than the maximum rudder angle. movement, to improve control, the speed of rudder 1. Turn the steering wheel all the way to port and movement changes with the angle of the joystick.

  • Page 92: Commissioning

    7.11 Commissioning If required this procedure will automatically correct the compass offset value accessible from the Vessel You can commission an Evolution autopilot using Settings menu. the Pilot settings menu on your multifunction display. Note: If the alignment fails it means that the pilot All set-up and commissioning procedures must be carried out before using the autopilot.
  • Page 93 ACU type. If your drive type is not listed completing the Dockside wizard, all commissioning contact your Raymarine dealer for advice. settings will be reset to default settings, and you will need to complete the Dockside wizard again.
  • Page 94 Adjusting the hard-over time • If you already know the hard-over time for your vessel’s steering system: enter this time during On vessels without a rudder reference transducer, it the Dockside wizard procedure. is important to set the hard-over time limits correctly, to ensure accurate autopilot operation.
  • Page 95 The earth’s magnetic field will change the deviation display will indicate a value of 25 significantly from one geographical location to degrees or higher. In this scenario, Raymarine another, and the compass can continuously highly recommends that the EV unit is moved and...

  • Page 96: Autopilot Status Symbols

    7.12 Autopilot status symbols 7.13 Autopilot alarms The autopilot status is indicated in the databar. The autopilot function provides alarms to alert you to situations that require action. Symbol Description Your multifunction display shows autopilot alarms, Autopilot is in Standby mode. regardless of whether there is active navigation on the system.

  • Page 97: Chapter 8 Alarm Management

    Chapter 8: Alarm management Chapter contents • 8.1 Alarms overview on page 98 • 8.2 Alarm Manager overview on page 98 • 8.3 Alarm options on page 101 Alarm management...

  • Page 98: Alarms Overview

    • * The Switch Panel Alarms category is only and stop the alarm tone. displayed when you have a correctly configured During an active alarm event (i.e. an alarm message Raymarine Digital Switching system installed on is displayed): your vessel. 1. Select Ok.
  • Page 99 The Alarm History tab provides details of alarms displayed when you have a correctly configured and the date and time that they were triggered and Raymarine Digital Switching system installed on cleared / acknowledged. The Alarm history can your vessel.
  • Page 100 5. Select Yes. The alarm history is deleted. The alarm history is also cleared if a Systems and Data Reset is performed. 5. With the numeric adjust control displayed, select the on-screen Up and Down arrows to adjust the alarm threshold value, or 6.

  • Page 101: Alarm Options

    Default values: Note: The waypoint arrival alarm is always enabled • 19 m — applies to km and nm & m units if your system includes a Raymarine autopilot. of measure. • 61 ft — applies to Nautical Miles and Statue Miles units of measure.
  • Page 102 Menu item Description Options Dangerous AIS AIS target alarms can be enabled and disabled. With • Enabled (Ticked) targets the AIS target alarm disabled AIS targets will not trigger • Disabled (Un-ticked) (default) an alarm when they become dangerous. Anchor alarm (drift) When enabled, the Anchor Drift alarm is triggered when Enable: your vessel drifts from your anchor position by more...
  • Page 103 Menu item Description Options • 00.00 to 23:59 hrs (hh:mm) Countdown Timer When enabled, counts down the time period specified Enable: in the Timer Period setting, and triggers an alarm • Enabled (Ticked) when zero is reached. • Disabled (Un-ticked) (default) Time Period •...
  • Page 104 Switch Panel Alarms Menu item Description Options Switch Panel Alarms The Switch Panel Alarms section is only displayed • Enabled (Ticked) (default) when connected to a correctly configured Raymarine • Disabled (Un-ticked) Digital Switching system. Engine Alarms Menu item Description Options...
  • Page 105 Menu item Description Options • Not charging • High boost pressure • Rev limit exceeded • EGR system • Throttle position sensor • Emergency stop • Warning level 1 • Warning level 2 • Power reduction • Maintenance needed • Communications error •...
  • Page 106 LightHouse MFD operation instructions...

  • Page 107: Chapter 9 Man Overboard (Mob)

    Chapter 9: Man Overboard (MOB) Chapter contents • 9.1 Man overboard on page 108 Man Overboard (MOB)

  • Page 108: Man Overboard

    • A MOB normal mode signal is sent to any instrument on SeaTalk. Waypoint (MOB) button / icon Depending on the multifunction display variant • The system sends MOB alarms to other Raymarine there will be either a Waypoint (MOB) button or an equipment. onscreen icon.
  • Page 109 Cancelling the man overboard (MOB) alarm — Touch only display On a Touch only display you can cancel the MOB alarm and resume normal operation follow the steps below: 1. Press and hold the onscreen WPT / MOB icon for 4 seconds. The MOB alarm is cancelled and normal operation is resumed.
  • Page 110 LightHouse MFD operation instructions...

  • Page 111: Chapter 10 Dsc Vhf Radio Integration

    Chapter 10: DSC VHF radio integration Chapter contents • 10.1 DSC VHF radio integration on page 112 • 10.2 Enabling DSC VHF radio integration on page 112 DSC VHF radio integration...

  • Page 112: Dsc Vhf Radio Integration

    10.1 DSC VHF radio integration 10.2 Enabling DSC VHF radio integration You can connect your DSC VHF radio to your multifunction display and show distress message With the homescreen displayed: information and GPS position data for other vessels. 1. Select Set-up. Connecting a DSC VHF radio to your multifunction 2.

  • Page 113: Chapter 11 Fuel Manager

    Chapter 11: Fuel manager Chapter contents • 11.1 Fuel manager overview on page 114 Fuel manager...

  • Page 114: Fuel Manager Overview

    11.1 Fuel manager overview • Turn on the fuel manager feature. • Fill the fuel tanks to full. The fuel manager provides an estimate of fuel • Select ‘All tanks full’. remaining, and the distance and time which can be travelled before the tanks are empty. In order •...
  • Page 115 Resetting fuel used readings • Volume per Distance You can reset the value of the fuel used this season • Litres per 100km or fuel used this trip by following the steps below. 6. Select the required economy units. From the fuel manager page: 7.
  • Page 116 2. Select Presentation. 3. Select Overlays. 4. Select Fuel Range Ring so that On is selected. The fuel range ring pop-up message is displayed. 5. Select OK to turn on the fuel range rings. LightHouse MFD operation instructions...

  • Page 117: Chapter 12 Ais (Automatic Identification System)

    Chapter 12: AIS (Automatic Identification System) Chapter contents • 12.1 AIS overview on page 118 • 12.2 AIS prerequisites on page 119 • 12.3 Enabling AIS on page 120 • 12.4 AIS context menu on page 120 • 12.5 AIS vectors on page 121 •...

  • Page 118: Ais Overview

    Description a “Buddy List” AIS unit is switched on and operating. AIS Simulator Mode Raymarine recommends that you use the simulator AIS currently unavailable. function to familiarize yourself with the AIS features. When the simulator function is enabled (Homescreen > Set-up > System Settings >...

  • Page 119: Ais Prerequisites

    12.2 AIS prerequisites Symbol Description AIS unit is switched off, or not You must have suitable AIS hardware connected to connected. your multifunction display to make use of the AIS functionality. AIS unit is in Silent Mode. In order to run AIS, you will need: •...

  • Page 120: Enabling Ais

    12.3 Enabling AIS 12.4 AIS context menu When an AIS target is selected, the Chart application Enabling AIS in the Chart application context menu includes AIS target information and To enable the AIS overlay in the Chart application menu options. follow the steps below.

  • Page 121: Ais Vectors

    12.5 AIS vectors Enabling and disabling AIS vectors From the Chart or Radar application: Vectors can be displayed for AIS targets. 1. Select an AIS target. The AIS target context menu is displayed. 2. Select AIS Vector. Selecting AIS Vector will switch between On and Off.

  • Page 122: Vector Set-Up Options

    12.6 Vector Set-up options 12.7 Tracked target list The Vector Set-up menu can be accessed from the All targets currently being tracked are shown in the Collision Avoidance menu. Tracked target list. MARPA and AIS targets are shown in separate tabs. The location of the Vector Set-up menu is dependent on the application and Overlays you have enabled: The location of the Tracked target list is dependent...

  • Page 123: Dangerous Targets

    12.8 Dangerous targets Selecting Cancel All Targets. will remove stop tracking all MARPA targets in the list. You can also Targets are considered dangerous if the target will cancel individual targets by pressing the ‘X’ from the get closer than the specified Safe Distance within Cancel column.

  • Page 124: Collision Avoidance

    12.9 Collision Avoidance • Chart application with only the Radar overlay enabled: Menu > Radar > AIS Options > Display The Chart application provides features to help AIS: improve collision awareness. The Target interception • Chart application with only the AIS overlay feature tracks AIS targets in relation to your own enabled: Menu >...
  • Page 125 5. Target — This is the last reported position of Warning: Collision Avoidance and the target. the IRPCS 6. Own vessel’s COG line The Collision Avoidance feature is a graphical aid provided to help increase 7. Own vessel user awareness of the potential for collision.
  • Page 126 Example scenario 2 — Target vessel moving Scenario 1 Speed change examples faster than your vessel Note: These scenarios are examples provided for guidance only. In certain situations, when the target vessel is travelling faster than your vessel, there may be more than 1 opportunity for your paths to cross within the Intercept distance.
  • Page 127 target’s Interception zone and passes safely When both vessels are travelling at the same speed, astern of the target. This manoeuvre also clearly course alterations should be made in accordance shows the target vessel your change of course. with the guidance provided in examples 1 and 2. Speed change Scenario 2 Speed change examples When both vessel’s are travelling at the same speed...

  • Page 128: Rendez-Vous (Target Interception)

    12.10 Rendez-Vous (Target Remember When the target moves the Intercept point will move accordingly. It will be necessary to interception) change course so that your COG lines intersect at the Intercept point. The Intercept point is displayed when performing an individual Interception. It can be used to help 4.

  • Page 129: Displaying Safety-Critical Ais Information

    12.11 Displaying safety-critical AIS 12.12 Displaying detailed AIS target information information From the chart or radar application: From the chart or radar application: 1. Select the AIS target. 1. Select an AIS target. The AIS target context menu is displayed. The AIS target context menu is displayed.

  • Page 130: Ais Silent Mode

    12.13 AIS silent mode 12.14 AIS Safety messages AIS silent mode enables you to disable the With AIS Safety Messages switched On, any transmitting functions of your AIS equipment. This incoming safety messages from surrounding vessels, is useful when you do not want to transmit your shore stations and mobile stations are displayed in a vessel’s AIS data to other AIS receivers, but still wish dialog box.

  • Page 131: Buddy Tracking

    12.15 Buddy tracking 3. Select the buddy you wish to edit. 4. To change the MMSI number select Edit Buddy Buddy Tracking enables you to add AIS-equipped MMSI or. friends and regular contacts to a “Buddy List” on 5. Select Edit Buddy Name to change the buddy your MFD.
  • Page 132 LightHouse MFD operation instructions...

  • Page 133: Chapter 13 Waypoints, Routes And Tracks

    Chapter 13: Waypoints, Routes and Tracks Chapter contents • 13.1 Waypoints overview on page 134 • 13.2 Routes on page 142 • 13.3 Tracks on page 152 • 13.4 Import and Export on page 154 • 13.5 Waypoints, routes and tracks storage capacity on page 154 Waypoints, Routes and Tracks...

  • Page 134: Waypoints Overview

    13.1 Waypoints overview 2. Active waypoint 3. Alternate waypoint symbols Waypoints are position markers used for the purposes of navigation. Your display can create The default waypoint symbol is a red ‘X’. Alternative waypoints, which can then be selected for active symbols can be used if required.
  • Page 135 • Goto Waypoint • Follow From Here (only available when waypoint is part of a route.) • Edit Waypoint • Erase Waypoint • Remove Waypoint (only available when waypoint is part of a route.) • Move Waypoint • Measure • Build Route 3.
  • Page 136 Placing a waypoint at your vessel's position 7. Select Close or Back to close the dialog. In addition to positional information, a waypoint Waypoint groups placed at the vessel position will capture temperature and sounded depth information (if you have the Waypoints are organized into groups.
  • Page 137 2. Select Assign Symbol. A list of all available symbols is displayed. 3. Select the symbol that you want to use for the waypoints in the selected group. A confirmation dialog is displayed. 4. Select Yes to apply the new symbols to the waypoints, or select No to cancel.
  • Page 138 Erasing a waypoint group • Show on Chart (Show the waypoint location in the chart application.) Before you can erase a waypoint group you must move or erase all the waypoints assigned to that • Delete (Delete the waypoint from the waypoints group.
  • Page 139 2. Select Erase Waypoint. From the search results you can erase all the waypoints in the search list, move them to an existing The erase waypoint pop up message is displayed. or new waypoint group or assign all of the waypoints 3.
  • Page 140 5. Select Move Wpts to move the waypoints to a 11. Select Assign Symbol to assign a new symbol new or existing group, or to all the waypoints in the search results list. 6. Select Assign Symbol to assign a new symbol You can also select a waypoint from the list to view to all the waypoints in the search results list.
  • Page 141 Red racemark Red Racemark Rocks Reef anti-clockwise clockwise Marker Restriction Private Reef Public Reef Bottom Mark Top Mark Dolphin Shark Route End Tank Route Start Billfish Diver Down Diver Down 2 Reef Ball Sailboat Trawler Oil Rig Filled Circle Sportsfisher FAD (Fish Concrete Rubble Swimmer...

  • Page 142: Routes

    13.2 Routes A route is a series of waypoints typically used to assist with passage planning and navigation. A route is displayed on screen as a series of waypoints linked by a line. In the example above the Day Trip group will not be displayed in the Chart application.
  • Page 143 Note: If you place a waypoint at the wrong Building a route position, select Undo Waypoint. You can build a route on a touchscreen multifunction display by following the steps below. Building a route using the waypoint list From the chart application: 1.
  • Page 144 If the pop-up is displayed, select Continue. Waypoint symbols with pre-defined rounding instructions The onscreen keyboard is displayed. Some waypoint symbols have pre-defined rounding 5. Enter the relevant racemark IDs, in order, using instructions that cannot be changed or removed. a comma to separate each ID that you want to include in your route.
  • Page 145 Traffic Separation Schemes identified in Rule 10 of the International Regulations for Preventing Collisions at Sea 1972 as amended. Raymarine ® therefore recommends that you do NOT use Automatic route generation to create any part of a route which will cross traffic lanes or pass near to traffic separation lines.
  • Page 146 Automatic route generation - user defined Differences between Autorouting and Easy settings Routing User defined settings must be set before using There are important differences between the way automatic route generation. The settings used for Navionics ® and Jeppesen ® handle automatic route route generation are dependent on cartography generation.
  • Page 147 Easy Routing Splitscreen Restrictions The Jeppesen Easy Routing feature Is available on all Raymarine LightHouse powered MFDs. However some MFD variants are restricted to displaying in a single page application only when using this feature. Fullscreen / Splitscreen Fullscreen only...
  • Page 148 You can further customize the route from the 2. Range in further to review the area around and route list. Reviewing the route list is not an between the caution symbols. adequate method of checking a route, please In the example below the route passes close to a refer to Reviewing an automatically generated charted buoy.
  • Page 149 Troubleshooting automatic route generation The information below details the warnings that can be displayed when using automatic route generation, a description of what the warning means and actions to be taken to correct the issue. Example warning message Description Resolution Route generation completed successfully The Route maybe followed AFTER it has been reviewed to ensure that the generated route is safe for your vessel...
  • Page 150 Example warning message Description Resolution The start and end point of the desired Create smaller route legs. e.g. instead route are further than 100 nm apart. of trying to create a route from point A to point B, create a route from point A to point B to point C to point D, this will enable a route longer than 100 nm to be created for each route leg.
  • Page 151 Erasing routes • Acquire Target (only available if Radar overlay is switched on.) Erasing a displayed route When following a route the context menu options From the chart application: change to: 1. Select the route. • Stop Follow The Route context menu is displayed. •...

  • Page 152: Tracks

    13.3 Tracks • Track Interval — specifies the interval value (e.g. 15 minutes). A track is an on-screen trail that shows the passage For example when creating a track for a long journey, you have taken. This trail is made up of a series of an interval set to Auto could result in rapid use of all track points which are created automatically.
  • Page 153 Track context menu • From the Chart application, go to the following menu: Menu > My Data > Tracks , and select Selecting a track in the chart application displays a the required track. context menu showing the track length, number of •...

  • Page 154: Import And Export

    13.4 Import and Export 13.5 Waypoints, routes and tracks storage capacity Waypoints, Routes and Tracks can be imported and exported using a memory card. Way- • 3,000 waypoints (split between up to 100 points waypoint groups) For details on importing and exporting waypoints, routes and tracks refer to: 4.1 Saving user data and Routes...

  • Page 155: Chapter 14 Chart Application

    Chapter 14: Chart application Chapter contents • 14.1 Chart application overview and features on page 156 • 14.2 Electronic charts overview on page 158 • 14.3 Chart selection on page 159 • 14.4 GPS Check on page 160 • 14.5 Chart ranging and panning on page 161 •...

  • Page 156: Chart Application Overview And Features

    14.1 Chart application overview and Measuring distances and • 14.23 Measuring distances features bearings. and bearings Alter the Chart application’s • 14.10 Chart Orientation The chart application provides route planning orientation to better suit your and navigation features. The Chart application needs.
  • Page 157 • If your multifunction display has a built in GPS receiver it will automatically correlate each time you change the datum. Chart context menu • If you have a Raymarine GPS receiver using SeaTalk or SeaTalk , it will automatically The context menu provides positional data for the...

  • Page 158: Electronic Charts Overview

    Raymarine’s new LightHouse charts. equivalent. LightHouse charts are derived from vector and raster based charts, the LightHouse chart engine enables Raymarine to offer new chart types and regions from around the globe. Refer to Raymarine’s LightHouse Chart Store: https://charts.raymarine.com...

  • Page 159: Chart Selection

    To check the current availability of Navionics chart cards and types, please visit www.navionics.com www.navionics.it. Note: Refer to the Raymarine website (www.raymarine.com) for the latest list of supported cartography. Selecting a cartography type You can select the cartography type you want to display in the Chart application.

  • Page 160: Gps Check

    • CNO (Carrier-to-noise ratio) — Displays the signal strength of each satellite shown in the Sky view: Note: Raymarine recommends that you check the displayed vessel position in the Chart application – Grey = searching for satellite against your actual proximity to a known charted –...

  • Page 161: Chart Ranging And Panning

    14.5 Chart ranging and panning – Fix — Satellite fix has been acquired. – No Fix — No satellite fix can be acquired. Ranging in and out – D Fix — A differential beacon fix has been The table below shows the Range controls available acquired.

  • Page 162: Navigate Menu Options

    14.6 Navigate menu options 3. Browse the group list for the relevant waypoint. 4. Select the waypoint. The chart application provides features to help The waypoint options dialog is displayed. navigate to a chosen location. 5. Select Goto. The navigation options are found in the Navigate menu: Menu >...
  • Page 163 Navigating a route Note: You can set the radius (distance) of the waypoint arrival circle which is used to trigger the You can follow any route stored on the display. waypoint arrival alarm. When following a route you visit each waypoint in order.

  • Page 164: Collision Avoidance

    14.7 Collision Avoidance VRM/EBL The VRM/EBL feature can be Radar used to assess how far away application The Radar and Chart applications include features an acquired MARPA target is to help increase your awareness for the potential for and its bearing. collisions.

  • Page 165: Race Startline And Race Timer

    14.8 Race Startline and Race Timer Using the Race Timer A count down Race Timer is available in the Chart Creating a Race Startline application. Once the Race Timer reaches zero it will change color and start to count up, after 10 seconds A Race Startline can be created by placing port and the Race Timer will automatically be hidden from the starboard end points in the Chart application.

  • Page 166: Vessel Position On The Chart Display

    14.9 Vessel position on the chart 14.10 Chart Orientation display The orientation of a chart refers to the relationship between the chart and the direction that you are Your current position is represented on-screen by travelling in. the vessel symbol. Chart Orientation is used in conjunction with Motion The vessel symbols are only displayed when Mode to control how your vessel and chart relate to...

  • Page 167: Chart Motion Mode

    14.11 Chart motion mode Course Up The motion mode controls the relationship between the chart and your vessel. Whilst motion mode is active, as your vessel moves, the chart is redrawn to keep the vessel on-screen. The 3 motion modes are: •...

  • Page 168: Multiple Chart Synchronization

    14.12 Multiple chart synchronization offset. If you change the position to Partial Offset or Full Offset, the view ahead of your vessel will be You can synchronize the heading, range, and increased. position information across multiple chart views and networked displays. True Motion When chart synchronization is enabled: •...

  • Page 169: Chart Views

    14.13 Chart views Item Description If supported by your cartography type, the Chart AIS target — a vessel broadcasting AIS information application can be set to either 2D or 3D view. (optional). Range out — select icon to range out (Touchscreen Selecting 2D and 3D chart views displays only).
  • Page 170 • Depth Scale — Switches on and off a depth scale Item Description at your vessel position. Range out — use icon to range out (Touchscreen displays only). Enabling center of view In 3D view, to enable the center of view cross hair at Range in —...

  • Page 171: Chart Display

    14.14 Chart display Increasing Text and symbol size The size that symbols and text appear when using The Chart Display menu option determines the level Jeppesen ® cartography can be adjusted to make of detail that is displayed on-screen. the screen easier to read. The Chart display menu option is only available From the View &...

  • Page 172: Overlays

    14.15 Overlays Various overlays are available to aid navigation and increase situational awareness. Note: The table below identifies the overlays supported by each cartography vendor, however the overlay may not be supported by all levels of cartography supplied by that vendor. Please check with your cartography vendor for supported features.
  • Page 173 Radar overlay Note: When the overlay is using COG, misalignment of the Radar and Chart images can You can overlay Radar and MARPA functions in the occur due to tide and current effects. Chart application to provide target tracking or to help you distinguish between fixed objects and other marine traffic.
  • Page 174 NOWRad weather overlay 1. Select Menu. 2. Select Presentation. With a suitable weather receiver connected to your 3. Select View & Motion multifunction display, you can overlay NOWRad weather information on the chart display. 4. Select Chart Sync. The NOWRad weather overlay provides NOWRad 5.
  • Page 175 2D shading If supported by your cartography type, you can switch shading of land and sea contours on and off. Customizing databoxes in the chart application To switch databoxes on and off and to select data to display follow the steps below. From the Chart application menu: D13002-1 1.
  • Page 176 Community layer Switching chart text on and off The Chart text can be switched on and off by If supported by your cartography type, you can following the steps below. display User Generated Content (UGC) on the Chart application. From the Chart application menu: 1.
  • Page 177 The rings are always centred on your vessel, and the Note: scale varies to suit your current chart range. Each The fuel range ring is an estimated range that can ring is labelled with the distance from your vessel. be reached at the current rate of fuel consumption, By default range rings are switched off.
  • Page 178 3. Select Waypoint Name: so that Show is selected to display the waypoint names, or 4. Select Waypoint Name: so that Hide is selected to hide the waypoint names. Route and Track widths The width of route and track lines can be changed. Set- ting Route...

  • Page 179: Chart Vectors

    14.16 Chart vectors From the Chart application menu: 1. Select Presentation. Chart vectors can be displayed in 2D view. 2. Select Vectors. 3. Select Vector Length. A list of times is displayed . 4. Select a time setting or select Infinite. 5.

  • Page 180: Laylines

    14.17 Laylines • Polars — the vectors use an imported polar table for your vessel to create the laylines. Laylines are used in sailing to show how far the vessel must sail on the current tack in order to make Laylines - Leeway calculations the target waypoint after tacking, given present The Laylines features uses calculations based on...

  • Page 181: Polar Tables

    14.18 Polar tables Displaying historical layline data As True Wind Direction (TWD) is constantly Polar coordinate tables for your vessel can be changing, the position of the Laylines change over imported in .csv format. The layout of the .csv file time.

  • Page 182: Cartography Objects

    14.19 Cartography objects Chart detail The chart detail setting is available when using Navionics ® or LightHouse Vector charts and determines the level of detail shown in the Chart application. High Selecting the Low option for the Chart Detail disables the following objects and overlays: •...
  • Page 183 Cartography objects If supported by you cartography type, cartographic objects can be individually switched on and off. The Objects menu is accessed from: Menu > Presentation > Objects. Note: The Objects menu is only available when the cartography in use supports these features. Note: The table below identifies the objects supported by each cartography vendor, however the object may not be supported by all levels of cartography supplied by that vendor.

  • Page 184: Object Information

    14.20 Object information Object LightHouse Navionics ® Jeppesen ® If supported by your cartography type, you can view detailed information about specific cartographic Services objects. Small Craft Facility Harbor Facility This information can be accessed using the Chart Objects or Find Nearest options from the chart context menu: •...
  • Page 185 6. Select the position against an entry in the list to • Red: increasing current flow speed. reposition the cursor over that position. • Blue: decreasing current flow speed. Note: Not all electronic charts support the Displaying pilot book information animated currents feature.
  • Page 186 5. To set the animation date to the current date 2. Select Current Station. select Today. The graph for the selected station is displayed. 6. To set the animation date to 24 hours previous to the current date select Previous Day. Tide information 7.
  • Page 187 2. To view the animation in steps, select Step Back Displaying details of tides or Step Forward. From the chart application: 3. To set the animation step interval, pause any 1. Select the diamond-shaped tide icon. playing animations, and then select Set Time Interval.

  • Page 188: Depth & Contour Options

    14.21 Depth & Contour options If supported by your cartography type, the following depth and contour settings are available. Note: The table below identifies the Depth & Contour options supported by each cartography vendor, however the option may not be supported by all levels of cartography supplied by that vendor. Please check with your cartography vendor for supported features.

  • Page 189: My Data Options

    14.22 My Data options 14.23 Measuring distances and bearings The My Data menu provides access to your user data. You can use the databar and context menu information you can use the measure function to The options are found in the My Data menu: Menu measure distances in the chart application.
  • Page 190 5. You can also Swap Direction of the ruler so that the bearing becomes the bearing from end point to start point. 6. If you want the ruler displayed after you have closed the measure menu, select Ruler so that On is highlighted.

  • Page 191: Chapter 15 Fishfinder Application

    Chapter 15: Fishfinder application Chapter contents • 15.1 Sonar technologies on page 192 • 15.2 Raymarine sonar modules on page 195 • 15.3 Fishfinder overview and features on page 195 • 15.4 Sonar check on page 197 • 15.5 Multiple sonar module support on page 199 •...

  • Page 192: Sonar Technologies

    15.1 Sonar technologies CHIRP Sonar overview CHIRP sonar produces a conical shaped beam, the Traditional sonar technology coverage of the conical beam is the water column directly beneath the vessel Traditional sonar uses a single carrier frequency or carrier wave for the sonar ping. The sonar works by Conical beam measuring the time it takes the ping echo to return to the transducer to determine target depth.
  • Page 193 CHIRP SideVision™ overview Raymarine website (www.raymarine.com). SideVision™ interprets signals from a pair of side-looking transducers and builds up a detailed underwater view as your vessel moves forward.
  • Page 194 Interpreting SideVision™ images The following illustration shows how SideVision™ images on your multifunction display are related to the water column and sea floor to the sides of your vessel. Interpreting SideVision images SideVision™ images are constructed line-by-line, is shown within the water column, at a distance of similar to the way a television picture is composed approximately 30 feet from the vessel.

  • Page 195: Raymarine Sonar Modules

    15.2 Raymarine sonar modules 15.3 Fishfinder overview and features The depth shown below for DownVision ™ and the The Fishfinder application uses a sonar module range for SideVision ™ sonar modules are typical and a suitable sonar transducer. The sonar module...
  • Page 196 Fishfinder display modes • 15.13 Fishfinder display (Zoom, A-Scope or Bottom modes Lock). Note: The display modes available are dependent on the sonar channel / module being displayed. • 15.10 Depth Range Depth range controls (manual or automatic) Note: Not applicable The Fishfinder window includes the following to SideVision sonar...

  • Page 197: Sonar Check

    Call-out box. connection of Raymarine DownVision transducers. Onscreen controls • All variants allow the connection of a Raymarine sonar transducer via a compatible external sonar Onscreen controls are available on Touchscreen module. MFDs that provide easy access to frequently used sensitivity controls.
  • Page 198 4. Select Speed Transducer. A list of transducers is displayed. 5. Select your speed transducer from the list. Checking the sonar Sonar checks are made using the fishfinder application. 1. Select a fishfinder page from the Homescreen. D9343--2 Waterline offset Transducer / Zero offset Keel offset If an offset is not applied, displayed depth readings...

  • Page 199: Multiple Sonar Module Support

    15.5 Multiple sonar module support Tradi- Tradi- Descrip- CHIRP tional ex- tional in- Your multifunction display supports multiple active Channel tion external ternal ternal sonar modules on the same network. Medium Good all You can select which sonar channel you want to be CHIRP round per- displayed.
  • Page 200 3. Select the Ok button in one of the Fishfinder Note: For software downloads and instructions panes. on how to update the software for your product(s), 4. Select to channel that you want to view in the visit www.raymarine.com/software. selected pane. Refer to the Selecting the sonar channel section Selecting the sonar channel for details on selecting a sonar channel.

  • Page 201: Sonar Crosstalk Interference

    15.6 Sonar crosstalk interference Traditional Internal sonar variant There are 2 types of potential sonar crosstalk multifunction interference in a Raymarine sonar system: displays 1. SideVision sonar crosstalk interference CHIRP Internal 2. Multiple sonar crosstalk interference DownVision The types of crosstalk interference that you...
  • Page 202 • Adjust the Interference Rejection Filter. The default setting for all Raymarine MFDs is “Auto”. Changing this setting to “High” might help to reduce interference (MENU > Setup > Sounder Setup >...

  • Page 203: Custom Channels

    15.7 Custom channels Renaming custom channels With the Channel selection page displayed: When connected to an External Traditional sonar module such as the CP300 or an External CHIRP 1. Select the tab for the sonar module that contains sonar module such as the CP450C, custom channels the channel you want to rename.

  • Page 204: Dual Channel Ping Modes

    15.8 Dual channel ping modes 15.9 The sonar image The CP570 sonar module features 2 CHIRP sonar Interpreting the bottom using sonar channels that can transmit and receive independently It is important to understand how to correctly interpret of each other. Ping modes are available that balance the bottom structure represented on-screen.

  • Page 205: Depth Range

    15.10 Depth Range Size of the target The larger the target, the larger the return on the The Depth Range function enables you to define fishfinder display. The size of a fish target is also the range of depth that you see in the Fishfinder dependent upon the size of the fish’s swim bladder application.

  • Page 206: Sidevision Range

    15.11 SideVision Range Range shift The Range Shift function enables a specific area of The SideVision Range function enables you to the water column to be displayed on-screen. define the distance to the left and right of the vessel that is displayed on-screen. The range displayed In the below example the top 20 feet of the water on-screen can be adjusted to suit your needs.

  • Page 207: Fishfinder Scrolling

    15.12 Fishfinder scrolling 15.13 Fishfinder display modes The fishfinder image scrolls from right to left. You Selecting a display mode for the Fishfinder can pause the scrolling or adjust the scroll speed, to application ease placing of waypoints or VRMs onscreen. When using a Legacy, Traditional, CHIRP or DownVision you can select which display mode...
  • Page 208 2. Select Display Mode. Mode 1 Mode 2 Mode 3 3. Select Zoom so that Split is highlighted. Selecting Zoom will switch between Split and Full. Adjusting the fishfinder zoom factor When the display mode is set to Zoom, you can select a zoom factor or adjust it manually.

  • Page 209: Sidevision Views

    15.14 SideVision Views When connected to a SideVision sonar module the default view displays both Left (port) and Right (starboard) views at the same time, the View icons and View menu can be used to switch between left and right views or both. View: Both Adjusting the bottom lock range/position From the fishfinder application, with bottom lock...

  • Page 210: Presentation Menu Options

    15.15 Presentation menu options The Presentation menu provides access to features which provide additional on-screen detail. The table below shows the available Presentation options. Menu Item Description Options * Target Depth ID Controls whether • On the depth of • Off (default) identified targets 2.

  • Page 211: Depth And Distance

    15.16 Depth and distance Menu Item Description Options Legacy, Traditional CHIRP and DownVision sonar • Inv. Slate Grey modules use there respective transducers to obtain Scroll Speed Specify the • 100% (default) depth readings. SideVision can only display fishfinder scroll depth readings when a separate source for depth is •...

  • Page 212: Waypoints In The Fishfinder Application

    15.17 Waypoints in the Fishfinder Note: The VRM is only available in Bottom Lock application mode when viewing the display mode in Split screen. Placing a waypoint in the Fishfinder application enables you to mark a position so that you can return to it later.

  • Page 213: Sensitivity Settings

    When connected to a CPx70 series sonar module Gain Auto Gain can be offset by +/–50%. This allows small modification to be made to the gain, while still utilizing Raymarine’s proprietary noise filter and Auto target identification algorithms. Manual Modes...
  • Page 214 Setting auto gain mode using the menu When connected to a Legacy or a internal Traditional sonar When using a Legacy sonar module or a Traditional module the automatic gain internal sonar module 3 Auto Gain modes are has 3 modes. available.
  • Page 215 Contrast 3. Select Intensity. The slider bar control is displayed. DownVision and SideVision use monochrome 4. Adjust the control to the required value. shading to determine the strength of echoes. You can adjust the contrast manually between 0% and 5. Select Back to confirm setting and close slider 100% or set it to automatic.
  • Page 216 Adjusting the Surface filter Setting TVG to Automatic Adjusting the Surface filter settings can improve the The TVG setting can be set to automatic by following sonar image. the steps below. From the Sensitivity Settings menu: From the Fishfinder application: 1.
  • Page 217 When connected to an external CHIRP sonar • Manual — You can adjust the Noise Filter modules (excluding DownVision ) and external manually, between a value of 0% to 100%. Traditional sonar modules (excluding legacy) the – A low value decreases the depth at which the automatic TVG has 3 modes.

  • Page 218: Fishfinder Alarms

    15.19 Fishfinder alarms Adjusting the color threshold The color threshold’s default value is 100%, you can The following Fishfinder alarms can be set when a adjust this setting so that less colors / shades are depth data source is available. displayed.

  • Page 219: Frequency Tuning

    15.20 Frequency tuning 2. Select Shallow so that On is highlighted. Selecting Shallow will switch between On and Off. The frequency is dependent on the sonar module 3. Select Shallow Limit. and transducer in use. When using a non-CHIRP sonar module or a CHIRP sonar module that is The shallow limit numeric adjust control is operating in non-CHIRP mode then the transducer’s displayed.
  • Page 220 detecting small fish. Use lower frequencies if you require a large coverage beneath your vessel or if you are in deep water. • Medium frequency — non-CHIRP mode (e.g. 90 kHz) — Produces good detail at most depths, with moderately wide sonar beam. •...

  • Page 221: Sounder Set-Up Menu Options

    15.21 Sounder set-up menu options This section details the options available in the Sounder set-up menu: (Menu > Set-up > Sounder Set-up). Menu Item Description Options Hyper Ping is a setting only available on * Ping Rate • Normal (default) Traditional internal and Legacy sonar modules, for •...

  • Page 222: Transducer Set-Up Menu Options

    15.22 Transducer set-up menu options The Transducer Set-up menu should be used when setting up your multifunction display for the first time or when installing a depth transducer. Note: The settings listed below will only be available if the connected transducer supports the data type. Menu Item Description Options...

  • Page 223: Resetting The Sonar

    Note: Performing a factory reset will clear speed and temperature calibration settings and the depth offset. 1. Using a compatible Raymarine multifunction display go to the Fishfinder application page. 2. Select Menu from the side menu. 3. Select Set-up.
  • Page 224 LightHouse MFD operation instructions...

  • Page 225: Chapter 16 Radar Application

    Chapter 16: Radar application Chapter contents • 16.1 Radar application overview and features on page 226 • 16.2 Radar scanner status symbols on page 228 • 16.3 Multiple radar scanners on page 229 • 16.4 Radar check on page 230 •...

  • Page 226: Radar Application Overview And Features

    16.1 Radar application overview and Description features Range controls (Touchscreen multifunction displays only.) Radio Detection And Ranging (RADAR) equipment is used to detect the presence, distance and speed Target being acquired of objects (known as ‘targets’). Radar works by Additional functionality of the Radar application transmitting radio pulses, then detecting reflections includes: of these pulses (echoes) from objects in the area and...
  • Page 227 Determining target distance, • 16.14 Distances, range, Non-HD SuperHD range and bearing and bearing Digital HD Open Open Feature Radome Radome Array Array Using waypoints to mark the • Waypoints in the radar location of targets application Offshore Changing the radar display •...

  • Page 228: Radar Scanner Status Symbols

    16.2 Radar scanner status symbols Non-HD SuperHD Digital HD Open Open The radar scanner power mode status is indicated Feature Radome Radome Array Array in the databar. VRM/EBL Radar power 48nm 48nm 72nm 72nm Symbol mode Description Range Trans- Rotating icon, signifying that the Colors mit (TX) scanner is on and transmitting.

  • Page 229: Multiple Radar Scanners

    16.3 Multiple radar scanners 2. Once the Radar has powered up, select Tx to start the Radar transmitting. The multifunction display supports the use of up to 2 radar scanners on the same network. Putting the Radar into Standby For each radar application you can select which The Radar can be placed into Standby mode, which radar scanner is displayed.

  • Page 230: Radar Check

    16.4 Radar check Item Description Target object (such as a buoy) dead ahead. Warning: Radar scanner safety Target displayed on the radar display is not Before rotating the radar scanner, ensure aligned with the Ship's Heading Marker (SHM). all personnel are clear. Bearing alignment is required.

  • Page 231: Radar Context Menu

    16.5 Radar context menu 16.6 Radar range and image quality The radar application includes a context menu which Radar image quality provides positional data and menu items. A number of factors can affect the quality of a radar image, including echoes, sea clutter, and other interference.
  • Page 232 on the intensity of the rainfall or snow in the storm cell. The images in the table below show how the Rain control can clear up this clutter: Rain clutter D1641-5 Item Description False echo True echo Rain Passing ship clutter Mast or funnel True echo...
  • Page 233 Interference The table below shows typical maximum radar ranges for various radar antenna heights and target When two or more radar-equipped vessels are heights. Remember that although the radar horizon operating within range of each other mutual radar is greater than the optical horizon, the radar can only interference can occur.

  • Page 234: Collision Avoidance

    16.7 Collision Avoidance VRM/EBL The VRM/EBL feature can be Radar used to assess how far away application The Radar and Chart applications include features an acquired MARPA target is to help increase your awareness for the potential for and its bearing. collisions.

  • Page 235: Marpa Overview

    16.8 MARPA overview • The target echo is weak. The target is very close to land, buoys or other large targets. MARPA (Mini Automatic Radar Plotting Aid) • The target or your own vessel is making rapid improves collision awareness by tracking acquired manoeuvres.

  • Page 236: Vector Set-Up Options

    16.9 Vector Set-up options • Cancel target • CPA Graphic The Vector Set-up menu can be accessed from the Collision Avoidance menu. • Target Data The location of the Vector Set-up menu is dependent • Slew thermal camera (Only available when on the application and Overlays you have enabled: thermal camera is connected and operating.) •...

  • Page 237: Vessel Vectors (Cpa Graphics) Overview

    16.10 Vessel vectors (CPA graphics) 16.11 Setting up a Guard Zone Alarm overview A Guard Zone can be setup in the Radar application to alert you if any Radar returns are detected within CPA graphics show vectors for your vessel and a a specified zone.

  • Page 238: Trails

    16.12 Trails True motion mode example Radar Trails (also known as wakes) enable you to see target history. Trails will appear differently depending on whether your Radar is set to True motion or Relative motion mode. Relative motion mode In relative motion mode trails appear on targets that are moving relative to the sea (Sea stabilized) this includes targets that are fixed to the ground, such as piles.

  • Page 239: Tracked Target List

    16.13 Tracked target list 16.14 Distances, range, and bearing All targets currently being tracked are shown in the When you are using the radar application, you can Tracked target list. MARPA and AIS targets are measure distances, ranges and bearings in a variety shown in separate tabs.
  • Page 240 Item Description Cursor 0.471nm Bearing and range from your 55°P vessel to the cursor position You can also display the cursor position in the databar, from the homescreen select: Customize > Databar Set-up > Edit Databar, now select the data box where you want the cursor position to be displayed.

  • Page 241: Radar Mode And Orientation

    16.15 Radar mode and orientation Create a floating VRM/EBL By default the VRM/EBL is centered around you Radar orientation modes vessel, you can move the center to a different location using a Floating VRM/EBL. The radar can operate in a number of orientation modes to suit different types of navigation.
  • Page 242 1. Select Menu. Item Description 2. Select Presentation. True north at top. 3. Select Orientation & Motion Mode. As your vessel's heading 4. Select Orientation. changes: 5. Select the required orientation. • Radar picture is fixed (north up) Radar motion modes overview •...
  • Page 243 Changing the radar vessel offset Radar offset is only available in Relative motion mode. From the radar application: 1. Select Menu. 2. Select Presentation. 3. Select Orientation & Motion Mode. 4. Select Boat Offset. 5. Select the required offset value. Radar application...

  • Page 244: Radar Presentation Menu Options

    16.16 Radar presentation menu options Function Description Options Dual Range This menu item allows you to turn Dual range mode On and Off. • On • Off Dual Range Channel This menu item allows you to choose long or short channel for •...
  • Page 245 Function Description Options Guard Zone This menu item determines whether the Guard Zone is displayed • Show in the radar application. • Hide Gain Controls This item allows you to show or hide the onscreen gain controls • Show on multifunction displays with a touchscreen. •...

  • Page 246: Radar Tuning: On-Screen Gain Controls

    3. Select the Auto box (Gain and Sea) or Off box 16.17 Radar tuning: On-screen gain (Rain) so that a tick is removed placed in the box controls to switch to manual control. 4. Adjust the slider bar to the required setting. Touchscreen multifunction displays provide 5.

  • Page 247: Radar Modes

    16.18 Radar modes Radar modes enable you to quickly select pre-configured settings to achieve the best picture for different situations. Raymarine recommends the use of these modes to achieve optimum results. The Radar Mode can be selected from the Radar application’s main menu.

  • Page 248: Sensitivity Settings Menu

    This setting takes account of land achieve the best picture for different clutter so that smaller targets, like situations. Raymarine recommends navigation buoys, are not lost. the use of these modes to achieve • Coastal — accounts for the slightly optimum results.
  • Page 249 Menu Item Radar scanner Description Options • (Non HD) Digital Radome The FTC (Fast Time Constant) settings • Auto enables you to remove areas of clutter • Manual (0% to 100%) at a distance from your vessel. It also helps you to distinguish between two very close echoes on the same bearing, which may otherwise merge and appear as one echo.

  • Page 250: Dual Range Radar Operation

    16.20 Dual range radar operation Range *Range covered by The Dual Range radar function enables you to view covered by software 2 ranges at the same time in separate windows. The software versions function is available with SuperHD and HD radar Dual range versions 3.xx...

  • Page 251: Radar Set-Up Menu

    This menu item allows you to fine tune the radar scanner's receiver for maximum returns on the • HD Open Array • Auto display. Raymarine recommends that this function • SupreHD Open Array is set to Auto. If you set this function to Manual • Man 0% — 100%...
  • Page 252 Menu Item Radar Scanner Description Options Parking • HD Open Array This option allows you to select the ‘parked’ • 0° to 358° Offset position of your Open Array antenna. This option • SupreHD Open Array can only be adjusted when the Open Array is in Standby.

  • Page 253: Resetting The Radar

    16.22 Resetting the radar To reset radar settings to defaults follow the steps below: From in the radar application: 1. Select Menu. 2. Select Radar Set-up. 3. Select Advanced. 4. Select Reset Advanced. A confirmation pop up message is displayed. 5.
  • Page 254 LightHouse MFD operation instructions...

  • Page 255: Chapter 17 Data Application

    Chapter 17: Data application Chapter contents • 17.1 Data application overview on page 256 • 17.2 Customizing the Data application on page 257 • 17.3 List of data items on page 259 • 17.4 Engine identification on page 265 • 17.5 Setting boat details from the Data application on page 267 •...

  • Page 256: Data Application Overview

    17.1 Data application overview Selecting datapages using touch The Data application enables you to view data You can scroll through all available pages using the generated by the multifunction display or data that is touchscreen. available on your system. Data can be obtained from devices connected using SeaTalk , SeaTalk or NMEA protocols.

  • Page 257: Customizing The Data Application

    17.2 Customizing the Data application Set boat details such as • 17.5 Setting boat details number of engines, fuel from the Data application Changing the order of datapages tanks, and batteries From the Customize menu: Menu > Customize. Set the maximum RPM and •...
  • Page 258 3. Select a blank cell on the new page. 3. Select the Select Data Category option from 4. Select Select Data Category. the menu. 5. Browse to the required data category. 4. Select Depth. 6. Select the data item you want to display. 5.

  • Page 259: List Of Data Items

    17.3 List of data items Categories of data available to display in the data application, databoxes, databar, and expanded databar are shown below. Dial graphics are not available in databoxes or databars. The following table shows the data items available by category. Data application Graphics Data Category Description...
  • Page 260 Data application Graphics Data Category Description Data Item Oil Pressure Oil Pressure & Coolant Temperature Transmission Oil Temperature Transmission Oil Pressure Transmission Gear Boost Pressure Fuel Pressure Fuel Flow Rate Fuel Flow (Inst) Fuel Flow (Avg) Engine Hours Engine Trim Alternator Engine Load Fuel**...
  • Page 261 Data application Graphics Data Category Description Data Item Environment Environmental- Pressure related data. For example, air Air Temperature temperature. Minimum Air Temperature Maximum Air Temperature Drift Set & Drift Apparent Wind Chill True Wind Chill Humidity Dew Point Sunset / Sunrise Water Temperature Minimum Water...
  • Page 262 Data application Graphics Data Category Description Data Item application only.) Tack Heading Steer to Layline Compass (Data application only.) Navigation Types of data Cursor Position related to (Only available navigation. in the Databar For example, and data bearing to overlay.) waypoint.
  • Page 263 Data application Graphics Data Category Description Data Item Route ETA Route TTG Pilot Pilot-related Rudder Angle data. For example, rudder. Speed Speed-related Speed data. For example, VMG Maximum (Velocity Made Speed Good) to Average Speed Waypoint. Speed and SOG VMG to Windward VMG to Waypoint...
  • Page 264 Data application Graphics Data Category Description Data Item Cardinal Wind Ground Wind Beaufort AWA and TWA AWA & AWS AWA (CH) and AWA and VMG TWA & TWS TWA (CH) and TWA and VMG GWD and Beaufort GWD & GWS None Note: * Dials and graphical representations are only available from the Data application.

  • Page 265: Engine Identification

    17.4 Engine identification Engine data can be displayed on your MFD using the Data application, which provides some preset Engine pages for displaying some of the most common types of engine data. Important: Before you can display Engine data on your MFD, you must: •...
  • Page 266 The wizard will now listen for data and assign For engines with a NMEA 2000 CAN bus it may the engine instance as the port engine. be possible to connect to a Raymarine MFD via a SeaTalk system without the use of a Raymarine iii.

  • Page 267: Setting Boat Details From The Data Application

    17.5 Setting boat details from the Data 17.6 Setting engine RPM range and application red zone From the Data Set-up menu: Menu > Data Set-up. The Data application display RPM dials that can display RPM data sent from connected engine(s). 1.

  • Page 268: Color Theme

    17.7 Color theme The color theme in the Data application can be switched between light and dark. Dark theme (de- fault) Light theme Changing the color theme You can change the color theme by following the steps below. From the Data application: 1.

  • Page 269: Units Set-Up

    17.8 Units set-up You can specify your preference for the units of measurement that will be used in all applications. Menu item Description Options Distance Units The units of measure that will be used in all • Nautical Miles applications for the display of all values related •...

  • Page 270: Resetting Minimum And Maximum Readings

    17.9 Resetting minimum and maximum 17.10 Resetting all datapages readings You can reset the Data application’s datapages to factory defaults. Minimum and maximum readings sorted on the display can be reset from the Data application. From the Customize menu: Menu > Customize. From the Data application, with the data you want to 1.

  • Page 271: Setting Wind Damping From The Data Application

    17.11 Setting wind damping from the Data application Damping settings determine the rate at which changes to wind angle and wind speed data are updated on the display. From the Data Set-up menu: Menu > Data Set-up. 1. Select Wind Angle Damping: 2.
  • Page 272 LightHouse MFD operation instructions...

  • Page 273: Chapter 18 Camera Application

    Chapter 18: Camera application Chapter contents • 18.1 Camera application overview and features on page 274 • 18.2 Changing the camera feed on page 275 • 18.3 Switching video stream on page 275 • 18.4 Displaying multiple camera feeds using Quad View on page 276 •...

  • Page 274: Camera Application Overview And Features

    18.1 Camera application overview and Recording IP camera feeds • 18.10 Record and features playback Playing back recorded • 18.10 Record and Analog and IP camera and video feeds can be footage. playback viewed using the Camera application. Analog feeds must be connected directly to the display, IP feeds Taking photos of an IP •...

  • Page 275: Changing The Camera Feed

    18.2 Changing the camera feed 18.3 Switching video stream When connected to a compatible camera, such as Changing the camera / video feed the AX8 thermal camera, which broadcasts more than 1 video stream simultaneously, you can choose On touchscreen displays, if more than 1 feed is which stream to display.

  • Page 276: Displaying Multiple Camera Feeds Using Quad View

    18.4 Displaying multiple camera feeds 3. Select the fullscreen feed. using Quad View The Quad View icon is displayed. When an IP camera is available on the network, the 4. Select the Quad View icon to switch the Camera Camera application can be set to Quad View. In application back to Quad View.

  • Page 277: Camera Cycling

    18.5 Camera cycling Showing or hiding video input feeds during camera cycling When multiple feeds are available the Camera By default your multifunction display’s video input(s) application can be set up to automatically cycle are shown during cycling, even if no feed is through the available feeds at a specified time connected.

  • Page 278: Naming Camera / Video Feeds

    18.6 Naming camera / video feeds 18.7 Adjusting the video image To help distinguish between camera feeds each feed If supported by your connected camera / video input can be named. device or networked IP camera, you can adjust the image settings.

  • Page 279: Selecting The Aspect Ratio

    18.8 Selecting the aspect ratio 18.9 Selecting a location to store recordings If supported by your connected camera / video input device or networked IP camera, you can manually In order to record, playback or capture a still image change the aspect ratio between 4:3 and 16:9. of IP camera feeds you must select the location you want to save to.

  • Page 280: Record And Playback

    The confirmation dialog will automatically close camera resolution and settings, lighting conditions after 5 seconds. and available storage space. A Raymarine ® CAM200IP, set to factory default Playing back a video file settings can record at an approximate rate of 22.5 MB per minute;...

  • Page 281: Taking Photos

    18.11 Taking photos Video files stored on memory card are saved in SD Card # > Raymarine > Video files. When a camera feed from an IP camera is displayed 5. Select the Video file. you can capture a still image.
  • Page 282 8. Select View to view the photo fullscreen. 9. Select Delete to delete the photo. Taking a photo using a remote control To take a photo using a Raymarine wireless remote The onscreen icons will close after 5 seconds. control as the trigger follow the steps below.

  • Page 283: Viewing Photos

    3. Select Light: so that On is selected. Internal > User Data > Image files. Photos stored on memory card are saved in SD Card # > Raymarine > Image files. 5. Select the file. The file options dialog is displayed.
  • Page 284 LightHouse MFD operation instructions...

  • Page 285: Chapter 19 Thermal Camera Application - Pan And Tilt Cameras

    Chapter 19: Thermal camera application — Pan and tilt cameras Chapter contents • 19.1 Thermal camera application overview on page 286 • 19.2 Thermal camera image on page 286 • 19.3 Thermal camera setup and checks on page 287 • 19.4 Controls overview on page 288 •...

  • Page 286: Thermal Camera Application Overview

    19.1 Thermal camera application 19.2 Thermal camera image overview The thermal camera provides a video image which is shown on your display. The thermal camera application enables you to control a connected thermal camera and display its image on your multifunction display. Thermal imaging (also known as infrared) cameras enable you to see clearly in low-light and no-light conditions.

  • Page 287: Thermal Camera Setup And Checks

    19.3 Thermal camera setup and checks Icon Description Scene preset mode for night docking. To ensure correct operation of the thermal camera you should setup and check the camera's main functions. Scene preset mode for identifying Before proceeding ensure that the camera is people or objects in the water.

  • Page 288: Controls Overview

    19.5 Camera control The thermal camera application is available on Power up and standby compatible Raymarine multifunction displays and When the breaker connecting power to the camera is systems. It includes controls for the thermal camera. switched on, the camera will run a boot up sequence...
  • Page 289 1. Use the joystick or touchscreen to move the used to position the thermal camera’s field of view. camera to the desired position. Prerequisites: 2. Select Menu. 3. Select Camera Set-up. • A compatible Raymarine ® / FLIR ® pan and tilt thermal camera is required 4.
  • Page 290 In surveillance mode the camera pans left and right Thermal camera stabilization continuously. The Raymarine T470SC and T473SC thermal The camera continues to pan until surveillance mode cameras includes a mechanical stabilization feature. is disabled, or the camera controls are used to move the camera.

  • Page 291: Image Adjustments

    19.6 Image adjustments is now locked to the base. When you disable point mode, the unlock icon displays momentarily. The camera always starts up with point mode disabled. Adjusting the thermal camera image With the thermal camera application displayed: Enabling / Disabling point mode 1.
  • Page 292 Thermal and visible-light operation Note: If you have the Disable Color Thermal Video option selected in the camera's on-screen Video “Dual payload” thermal cameras are equipped with Setup menu, only 2 color modes are available — 2 cameras — a thermal imaging (infrared) camera greyscale and red.
  • Page 293 For details on how to select a target to ‘slew to’ refer 3. Select Slew Settings. to the radar and chart sections of your manual. The Slew settings page is displayed which includes the following auto slew options: The thermal camera can also automatically slew to: •...

  • Page 294: Pan And Tilt Camera - New Camera Interface

    19.7 Pan and tilt camera — new camera interface The thermal camera application menu options for a pan and tilt thermal camera with the new camera interface are shown below. Activate Camera Brings the thermal camera out of standby mode. (only available when camera is in standby.) Pause Image •...
  • Page 295 • Restore Factory Defaults • Calibrate Platform Camera Set-up menu Set Home Position Sets the camera’s current position as the Camera Home position. Provides automatic slew options and Slew Settings • Auto Slew to MOB camera alignment settings. • Auto Slew to dangerous AIS target •...
  • Page 296 High Power Torque This option controls the amount of power • On (default) used to hold the camera steady when in • Off use. With the setting enabled the camera will consume more power, but will help ensure that the camera is held in place in rough seas.

  • Page 297: High Power And High Torque Modes

    19.8 High power and high torque modes Camera Dual Single State Camera setting payload payload Standby • High Power 22 W 17.4 W Mode ON • High Torque Mode ON Standby • High Power 7.4 W Mode OFF • High Torque Mode ON Standby •...

  • Page 298: Pan And Tilt Camera - Old Camera Interface

    / or the installation and operations handbook which accompanied your multifunction display. Note: It may be possible to update your camera to the new camera interface. Please contact your Raymarine dealer for details. LightHouse MFD operation instructions...
  • Page 299 OSD menu options Set symbology menu Menu item / Setup menus Description Settings / Operation The setup menus provide a range of tools and Enable / Disable • Enabled – The PC icon is displayed settings to configure the thermal camera. PC Icon whenever a PC is detected on the The menus can be accessed from any controller on...
  • Page 300 Surveillance mode menu Menu item / Description Settings / Operation Menu item / Description Settings / Operation Enable / Disable This option controls the amount of High Motor Torque power used to hold the camera steady Scan Width This setting determines the distance when in use.
  • Page 301 Camera Dual Single State Camera setting payload payload Awake • High Power 30 W 19.4 W Mode ON or • High Torque Mode ON Awake • High Power 20 W 16.5 W Mode ON or • High Torque Mode OFF User Programmable Button menu Use this menu to set up the USER button on the JCU.
  • Page 302 LightHouse MFD operation instructions...

  • Page 303: Chapter 20 Thermal Camera Application - Fixed Mount Cameras

    Chapter 20: Thermal camera application — fixed mount cameras Chapter contents • 20.1 Thermal camera application overview on page 304 • 20.2 Thermal camera image on page 304 • 20.3 Thermal camera setup and checks on page 305 • 20.4 Controls overview on page 306 •...

  • Page 304: Thermal Camera Application Overview

    20.1 Thermal camera application 20.2 Thermal camera image overview The thermal camera provides a video image which is shown on your display. The thermal camera application enables you to control a connected thermal camera and display its image on your multifunction display. Thermal imaging (also known as infrared) cameras enable you to see clearly in low-light and no-light conditions.

  • Page 305: Thermal Camera Setup And Checks

    20.3 Thermal camera setup and checks Icon Description Rear-view mode — image is flipped To ensure correct operation of the thermal camera horizontally. you should setup and check the camera's main functions. Zoom setting: 2x zoom. Before proceeding ensure that the camera is connected correctly, according to the instructions provided.

  • Page 306: Controls Overview

    20.5 Camera control The thermal camera application is available on Power up and standby compatible Raymarine multifunction displays and When the breaker connecting power to the camera is systems. It includes controls for the thermal camera. switched on, the camera will run a boot up sequence Rotary control Zoom image in / out.

  • Page 307: Image Adjustments

    20.6 Image adjustments Note: If you have the Disable Color Thermal Video option selected in the camera's on-screen Video Adjusting the thermal camera image Setup menu, only 2 color modes are available — greyscale and red. With the thermal camera application displayed: 1.

  • Page 308: Fixed Mount Camera Menu

    20.7 Fixed mount camera menu The thermal camera application menu options for a fixed mount thermal camera are shown below. Activate Camera Brings the thermal camera out of standby mode. (only available when camera is in standby.) Pause Image • On •...
  • Page 309 Ball Down Mode This options should be enables when the • On camera is mounted upside down in the • Off (default) ‘ball down’ configuration. High Power Standby This option controls the amount of power • On (default) used to hold the camera in position while •...
  • Page 310 LightHouse MFD operation instructions...

  • Page 311: Chapter 21: Wi-Fi And Mobile Applications

    21.2 Connecting to a Wi-Fi access point / mobile hotspot on page 312 • 21.3 Connecting your smart device via Wi-Fi on page 313 • 21.4 Raymarine mobile apps on page 314 • 21.5 Wi-Fi Sharing Settings on page 316 Wi-Fi and Mobile applications...

  • Page 312: Mfd Wi-Fi

    MFDs that include built in Wi-Fi can connect to Wi-Fi access points / mobile hotspots and can also act as Raymarine Wi-Fi enabled MFDs can be connected a Wi-Fi Access point for other devices. to the internet via a Wi-Fi access point or mobile hotspot.

  • Page 313: Connecting Your Smart Device Via Wi-Fi

    MFD has the active connection to the Wi-Fi Access point / mobile hotspot. This may be useful when For Raymarine product’s the IP address is connecting to Wi-Fi at a Marina, an MFD located on displayed on the diagnostics page accessed by the Flybridge may receive a stronger signal than selecting the relevant device from the MFD’s...

  • Page 314: Raymarine Mobile Apps

    21.4 Raymarine mobile apps Tip If the web interface is not displayed or not displayed correctly then try using a different web Raymarine mobile apps enable viewing and control browser. of your multifunction display via a compatible mobile device, using a Wi-Fi connection.
  • Page 315 3. Select Remote Control to enable remote control and video streaming. This app enables you to stream or control your 4. Launch the relevant Raymarine mobile app on multifunction display remotely from a compatible your smart device and follow any onscreen smartphone, using a Wi-Fi connection.

  • Page 316: Wi-Fi Sharing Settings

    21.5 Wi-Fi Sharing Settings Wi-Fi The default encryption is • None Security: WPA2 Only. This is the • WPA Only Wi-Fi settings can be accessed from the Wi-Fi recommended security Sharing menu (Homescreen > Set-up > Wireless type, however you can •...

  • Page 317: Chapter 22 Media Player Application

    Chapter 22: Media player application Chapter contents • 22.1 Media player connection on page 318 • 22.2 Enabling Bluetooth on page 318 • 22.3 Pairing a Bluetooth media player on page 319 • 22.4 Enabling audio control on page 319 •...

  • Page 318: Media Player Connection

    22.1 Media player connection 22.2 Enabling Bluetooth You can use your MFD to control a Bluetooth media From the Bluetooth menu: (Homescreen > Set-up > player (such as a smartphone). Wireless Connections > Bluetooth) 1. Select Bluetooth: so that On is selected. The media player must be compatible with the Bluetooth 2.1+ EDR power class 1.5 (supported profile: AVRCP 1.0) or higher.

  • Page 319: Pairing A Bluetooth Media Player

    22.3 Pairing a Bluetooth media player 22.4 Enabling audio control From the Bluetooth menu: (Homescreen > Set-up > From the Bluetooth menu: (Homescreen > Set-up > Wireless Connections > Bluetooth) Wireless Connections > Bluetooth) 1. Select New Bluetooth Connection. 1. Select Connection Manager. A message is displayed prompting you to put A list of all paired Bluetooth devices is displayed.

  • Page 320: Media Player Controls

    Touchscreen multifunction displays enable you to use the on-screen media player controls to control You can control audio wirelessly using a Raymarine the audio playing on your external media player. RCU-3 remote control unit. The Shortcut key on the RCU-3 must be set to Start/Stop audio playback, refer to the Using a Remote control section for further details.

  • Page 321: Unpairing A Bluetooth Device

    22.7 Unpairing a Bluetooth device If you are experiencing problems when attempting to use a Bluetooth device with the multifunction display it may be necessary to unpair the device (and any other paired Bluetooth devices) and then retry the pairing procedure. From the Bluetooth menu: (Homescreen >...
  • Page 322 LightHouse MFD operation instructions...

  • Page 323: Chapter 23 Fusion Link Application

    Chapter 23: Fusion link application Chapter contents • 23.1 Fusion link application overview on page 324 • 23.2 Media sources on page 325 • 23.3 Browsing music on page 325 • 23.4 Selecting shuffle and repeat functions on page 326 •...

  • Page 324: Fusion Link Application Overview

    Fusion unit. Zone selector Media source Compatible Fusion units Media controls (See below) The table below details the Fusion entertainment systems that are compatible with Raymarine ® Note: Album artwork is only available when using LightHouse powered MFDs. an iPod.

  • Page 325: Media Sources

    23.2 Media sources 23.3 Browsing music The media sources available depend on the type of You can browse electronic music files held on Fusion unit and its connected peripheral devices. devices connected to the Fusion unit. Media sources: From the Fusion link application: 1.

  • Page 326: Selecting Shuffle And Repeat Functions

    23.4 Selecting shuffle and repeat 23.5 Adjusting volume levels for each functions zone You can set the Fusion link application to repeat the The volume level for each zone can be adjusted selected folder or to shuffle the play order. individually or you can adjust all zones at the same time.

  • Page 327: Selecting The System To Control

    23.6 Selecting the system to control Adjusting Bass, Middle, and Treble controls Where more than one Fusion entertainment system is connected you can select which system the Fusion link application will control. From the Fusion link application: 1. Select the Menu icon. 2.

  • Page 328: Powering Off An Nmea 2000 Fusion Unit

    23.7 Powering off an NMEA 2000 23.8 Powering on an NMEA 2000 Fusion unit Fusion unit With the unit selection page displayed. From the Fusion link application: 1. Select the unit that you want to power up. 1. Select the Menu icon. 2.

  • Page 329: Menu Options

    23.9 Menu options The menu options available are dependent on the media source connected. Menu option Media sources Description Browse Music • iPod Enables browsing of music stored • USB on the selected device. Repeat • iPod • Off • USB •...
  • Page 330 LightHouse MFD operation instructions...

  • Page 331: Chapter 24 Sirius Audio Application (North America Only)

    Chapter 24: Sirius audio application (North America only) Chapter contents • 24.1 Sirius audio overview on page 332 Sirius audio application (North America only)

  • Page 332: Sirius Audio Overview

    Note: A Sirius subscription is required to enable use of a Sirius marine weather / satellite radio receiver. To enable volume controls the Raymarine Sirius marine weather / satellite radio receiver also needs to be connected to a vessel entertainment system.

  • Page 333: Chapter 25 Weather Application (North America Only)

    Chapter 25: Weather application (North America only) Chapter contents • 25.1 Weather application overview on page 334 • 25.2 Weather application set up on page 334 • 25.3 Weather application display overview on page 335 • 25.4 Weather map navigation on page 338 •...

  • Page 334: Weather Application Overview

    America and its coastal waters. Raymarine Sirius weather receiver. The weather application graphics and their • Identify your Raymarine Sirius weather receiver's associated weather data enable you to determine electronic serial number (ESN). This information the actual conditions in the vicinity of your vessel, can be obtained from the homescreen Set-up or at a particular location.

  • Page 335: Weather Application Display Overview

    25.3 Weather application display Symbol Description overview Canadian radar (dark greens, yellow, orange and red) The weather application displays a range of graphics to indicate weather conditions and forecast information. The following diagram illustrates the main features Lightning — a lightning of the weather application display: symbol is shown at each cloud-to-ground strike:...
  • Page 336 Storm tracking symbols Symbol Description The weather application uses a range of symbols to Dry line (red) represent different types of storm tracks. The storm tracking function enables you to monitor significant storms in the area. Isobars (grey) Examples of significant storms include tropical disturbances, depressions, storms and cyclones, hurricanes, typhoons, and super typhoons.
  • Page 337 Wave information symbols Color code Intensity in mm per hour The weather application uses a range of graphics Dark green 4.01 to 12.00 mm/hr and symbols to represent different types of wave Yellow 12.01 to 24.00 mm/hr information. Orange 24.01 to 50.00 mm/hr Symbol Description Light red...

  • Page 338: Weather Map Navigation

    25.4 Weather map navigation 25.5 Weather context menu You can move around the weather map and place The weather application includes a context menu waypoints. which provides positional data and the option to view weather reports from the cursor location. When you open the weather application, a world map is displayed.

  • Page 339: Weather Information

    25.6 Weather information Viewing city weather forecasts You can view weather forecasts for a particular city You can view weather information for: by following the steps below: • a specific location From the weather application, with cities displayed: • a surface observation station (when displayed) 1.

  • Page 340: Weather Reports

    25.7 Weather reports Watchbox alert box The watchbox alert box is a red polygon which shows You can view a number of different weather reports the location where severe weather is occurring. to give you a comprehensive view of the weather. The watchbox alert box shall be displayed if the Your multifunction display shows weather reports for: weather application is displayed, watchbox alerts...

  • Page 341: Animated Weather Graphics

    25.8 Animated weather graphics 25.9 Weather application menu options You can view animated weather graphics to provide The following options are available from the weather an indication of changing weather patterns. application menu: The animated weather option enables you to view an Menu item Description Options...
  • Page 342 Menu item Description Options View Report The View Report Report At menu allows you to • Ship view the different types of weather • Cursor reports received. View Report You can also select the location of the • Tropical report. Statements •...

  • Page 343: Glossary Of Weather Terms

    25.10 Glossary of weather terms Term Definition Cold front The boundary between two different air masses where cold air pushes warm air out of the way and brings colder weather. Cyclone A large area of low atmospheric pressure, characterized by inward spiralling winds. A “low” also called a “depression”.
  • Page 344 Term Definition Precipitation Moisture that is released from the atmosphere as rain, drizzle, hail, sleet or snow, as well as dew and fog. Pressure Centre A region of high or low pressure. Squall line A non-frontal band, or line, of thunderstorms. Super typhoon A typhoon that reaches maximum sustained 1 minute surface winds of at least 65 m/s (130 kt, 150 mph).

  • Page 345: Chapter 26 Troubleshooting

    Chapter 26: Troubleshooting Chapter contents • 26.1 Troubleshooting on page 346 • 26.2 Power up troubleshooting on page 347 • 26.3 Radar troubleshooting on page 348 • 26.4 GPS troubleshooting on page 349 • 26.5 Troubleshooting automatic route generation on page 350 •...

  • Page 346: Troubleshooting

    All Raymarine products are, prior to packing and shipping, subjected to comprehensive test and quality assurance programs. However, if you experience problems with the operation of your...

  • Page 347: Power Up Troubleshooting

    Software corruption In the unlikely event that the products software has become corrupted please try re-flashing the latest software from the Raymarine website. On display products, as a last resort, you can try to perform a ‘Power on Reset’, however this will delete all settings/presets and user data (such as waypoints and tracks) and revert the unit back to factory defaults.

  • Page 348: Radar Troubleshooting

    Check that the Scanner is correctly connected to a problem Raymarine network switch or SeaTalk crossover coupler (as applicable). Check the status of the Raymarine network switch. Check that SeaTalk / RayNet cables are free from damage. Software mismatch between Contact Raymarine technical support.

  • Page 349: Gps Troubleshooting

    26.4 GPS troubleshooting Problems with the GPS and their possible causes and solutions are described here. Problem Possible causes Possible solutions “No Fix” GPS status icon is Geographic location or prevailing Check periodically to see if a fix is obtained in better displayed.

  • Page 350: Troubleshooting Automatic Route Generation

    26.5 Troubleshooting automatic route generation The information below details the warnings that can be displayed when using automatic route generation, a description of what the warning means and actions to be taken to correct the issue. Example warning message Description Resolution Route generation completed successfully The Route maybe followed AFTER it has been reviewed to ensure that the...
  • Page 351 Example warning message Description Resolution The start and end point of the desired Create smaller route legs. e.g. instead route are further than 100 nm apart. of trying to create a route from point A to point B, create a route from point A to point B to point C to point D, this will enable a route longer than 100 nm to be created for each route leg.

  • Page 352: Sonar Troubleshooting

    / RayNet network problem. • Check that the unit is correctly connected to the multifunction display or Raymarine network switch. If a crossover coupler or other coupler cable / adapter is used, check all connections ensuring connections are secure, clean and free from corrosion, replace if necessary.
  • Page 353 Possible causes Possible solutions With the product under load, using a multi-meter, check for high voltage drop across all connectors/fuses etc (this can cause the Fishfinder applications to stop scrolling or the unit to reset/turn off), replace if necessary. Vessel speed too high Slow vessel speed and recheck.
  • Page 354 Possible causes Possible solutions Transducer does not have a speed element Install transducer with speed element to enable speed readings. Incorrect transducer selected (no speed Select a transducer that supports speed measurement from the Transducer displayed) Set-Up menu. LightHouse MFD operation instructions...

  • Page 355: Sonar Crosstalk Interference

    • Adjust the Interference Rejection Filter. The you may experience some operating in overlapping default setting for all Raymarine MFDs is “Auto”. minor crosstalk interference frequency ranges, you may Changing this setting to “High” might help to...
  • Page 356 Note: Due to physical size and other constraints that vary from vessel to vessel, it may not be possible to completely eliminate crosstalk interference from your system. However, this will not impede your ability to benefit from the full capabilities of your sonar system. Being able to easily identify the way in which interference is displayed in the Fishfinder application can sometimes be the best and easiest route to dealing...

  • Page 357: Thermal Camera Troubleshooting

    VIS / IR switching. image . VIS / IR cable not connected. Ensure that the VIS / IR cable is connected from the camera to the Raymarine system. (The IR-only cable does not support switching). Noisy image. Poor quality or faulty video Ensure that the video cable is no longer than necessary.
  • Page 358 Problem Possible causes Possible solutions Image too dark or too light. Display brightness is set too low. Use the brightness controls at the display to adjust accordingly. The contrast or brightness Use the appropriate menu in the thermal camera settings in the thermal camera application to adjust the contrast and brightness of the application are set too low.

  • Page 359: System Data Troubleshooting

    Network problem. Check that all required equipment is connected to the is missing from some but not all network. displays. Check the status of the Raymarine network Switch. Check that SeaTalk / RayNet cables are free from damage. Software mismatch between Contact Raymarine technical support.

  • Page 360: Video Troubleshooting

    26.10 Video troubleshooting Problems with the video inputs and their possible causes and solutions are described here. Problem Possible causes Possible solutions No signal message on screen Cable or connection fault Check that the connections are sound and free from (video image not displayed) corrosion.

  • Page 361: Wi-Fi Troubleshooting

    Device (available from the phone's Settings menu). the multifunction display. Ensure that the Raymarine connection is selected as the Wi-Fi network. If a passcode has been specified for the multifunction display's Wi-Fi connection ensure that the same passcode is entered into the Smart Device when prompted.

  • Page 362: Bluetooth Troubleshooting

    26.12 Bluetooth troubleshooting Aspects of the installation can cause problems with the data shared between wireless devices. Such problems, their possible causes and solutions are described here. Problem Possible causes Possible solutions No wireless connection. Smart Device does not have Ensure that Bluetooth is enabled on the MFD.

  • Page 363: Touchscreen Troubleshooting

    26.13 Touchscreen troubleshooting Problems with the touchscreen and their possible causes and solutions are described here. Problem Possible causes Possible solutions Touchscreen does not operate Touch lock is enabled. Use the Joystick to turn off the touch lock on the home as expected.

  • Page 364: Touchscreen Alignment

    26.14 Touchscreen alignment If the touchscreen is misaligned to your touch, you can realign it to improve the accuracy. Realignment involves a simple exercise to align an on-screen object with your touch. For best results, perform this exercise when your vessel is anchored or moored.

  • Page 365: Miscellaneous Troubleshooting

    Check that the power source is of the correct voltage and erratic behavior. sufficient current. Software mismatch on system Go to www.raymarine.com and click on support for the (upgrade required). latest software downloads. Corrupt data / other unknown Perform a factory reset.
  • Page 366 LightHouse MFD operation instructions...

  • Page 367: Chapter 27 Technical Support

    Chapter 27: Technical support Chapter contents • 27.1 Raymarine product support and servicing on page 368 • 27.2 Learning resources on page 369 • 27.3 Third-party support on page 369 Technical support...

  • Page 368: Raymarine Product Support And Servicing

    Servicing and warranty 3614 905 Raymarine offers dedicated service departments for Sweden support.se@raymarine.com warranty, service, and repairs. (0)317 (Raymarine subsidiary) Don’t forget to visit the Raymarine website to 633 670 register your product for extended warranty benefits: Finland +358 support.fi@raymarine.com http://www.raymarine.co.uk/display/?id=788. (0)207...

  • Page 369: Learning Resources

    Internet connection. • Some videos are only available in English. Training courses Raymarine regularly runs a range of in-depth training courses to help you make the most of your products. Visit the Training section of the Raymarine website for more information: •...
  • Page 370 LightHouse MFD operation instructions...

  • Page 371: Appendix A Switch Panel Application

    The images below are examples. Example 1 — Switch panel mode page 12 V dc D12738-1 Raymarine multifunction display. EmpirBus NXT DCM (dc module). SeaTalk to DeviceNet adaptor cable.
  • Page 372 D12739-1 Toggle switch. Rotary (multi-state) switch. Position control switch. Momentary switch. Data item (dial gauge). Data item (tank level). Using the switches on a Touchscreen This only applies to HybridTouch displays. From the switch panel application: 1. Toggle switch — Select the switch to switch on or off.

  • Page 373: Appendix B Nmea 0183 Sentences

    Appendix B NMEA 0183 sentences The display supports the following NMEA 0183 sentences. These are applicable to NMEA 0183 and SeaTalk protocols. Sentence Description Transmit Receive Waypoint arrival alarm sentence ● Autopilot sentence ‘B’ ● ● Bearing and distance to waypoint ●...

  • Page 374: Appendix C Nmea Data Bridging

    An example of NMEA data bridging is in a system that includes a third-party GPS receiver connected to the NMEA 0183 Input of a Raymarine display. The GPS data messages transmitted by the GPS receiver are repeated to any appropriate devices connected to the display's NMEA 2000 bus.

  • Page 375: Appendix D Nmea 2000 Sentences

    Appendix D NMEA 2000 sentences The display supports the following NMEA 2000 sentences. These are applicable to NMEA 2000, SeaTalk and SeaTalk 2 protocols. Bridged to Message number Message description Transmit Receive NMEA 0183 ● ● 59392 ISO Acknowledgment ● ●...
  • Page 376 Bridged to Message number Message description Transmit Receive NMEA 0183 ● 129539 GNSS DOPs ● ● 129540 GNSS Sats in view ● ● 129542 GNSS pseudorange noise statistics ● 129545 GNSS RAIM output ● 129550 GNSS differential correction receiver interface ●...
  • Page 377 The PGNs listed below are only displayed in the MFD’s Switch Panel (Digital Switching) application and in most cases requires the connection of compatible third-party Digital Switching equipment. If you are interested in a Digital Switching solution please contact your local Raymarine dealer. Bridged to...

  • Page 378: Appendix E Software Releases

    Appendix E Software releases Raymarine regularly updates its multifunction display software to introduce improvements, additional hardware support and user interface features. The table below details some of the important enhancements and which software revision they were introduced with. Applicable product...
  • Page 379 CP570 sonar module • The Depth Sensitivity setting has been renamed Surface filter LightHouse II — 81337–13 a65 / a65 Wi-Fi / a67 / • Added new system wide software update V13.37 81344–7 a67 Wi-Fi a68 / a68 Wi-Fi process / a75 / a75 Wi-Fi / a77 •...
  • Page 380 • Improved Data application menu structure (added Customize and Data-Setup menus). LightHouse II — 81337–12 a65 / a65 Wi-Fi / a67 / • Added support for up to 2 radar scanners on V12.26 81344–6 a67 Wi-Fi a68 / a68 Wi-Fi the same network.
  • Page 381 • Support for the HD-SDI Video Input & 4:3 aspect ratio on the new gS Series gS195 display product. LightHouse II — 81337–10 a65 / a65 Wi-Fi / a67 / New Fishfinder application V10.34 81344–3 a67 Wi-Fi a68 / a68 Wi-Fi •...
  • Page 382 Software version manual compatibility Changes V8.52 81337–9 a65 / a65 Wi-Fi / a67 / • Added support for ECI-100 (Engine 81344–2 a67 Wi-Fi a68 / a68 Wi-Fi Identification Wizard) / a75 / a75 Wi-Fi / a77 / a77 Wi-Fi / a78 / a78...
  • Page 383 Changes V5.27 81337–5 a65 / a67 / c95 / c97 / • Addition of Fuel Manager including: Estimated c125 / c127 / e7 / e7D / fuel remaining, distance to empty and time e95 / e97 / e125 / e127 /...
  • Page 384 • Default Fuel data page added. • Added Arabic language support. • Inclusion of Remote Upgrade Utility to permit the upload of software to peripheral Raymarine products using SeaTalk / SeaTalk • Display of Aids To Navigation (AToNs) AIS targets when data received on either SeaTalkng or NMEA 0183.

  • Page 385: Appendix F Multifunction Display Compatibility

    Appendix F Multifunction display compatibility The table below identifies the MFD software version required to support the listed Raymarine ® hardware. CP450C V3.15 Raymarine mobile applications V3.15 1kW transducer support for sonar V3.15 variant displays Multiple thermal camera JCU’s V5.27 V6.27...
  • Page 386 LightHouse MFD operation instructions...
  • Page 388 Raymarine UK Limited, Marine House, Cartwright Drive, Fareham, PO15 5RJ. United Kingdom. Tel: +44 (0)1329 246 700...

This manual is also suitable for:

A67A68A75A77A78A95 ... Show all

Table of Contents

Save PDF
