Gps Connection - Raymarine G-Series system Installation & Commissioning Instructions

Digital radar connection

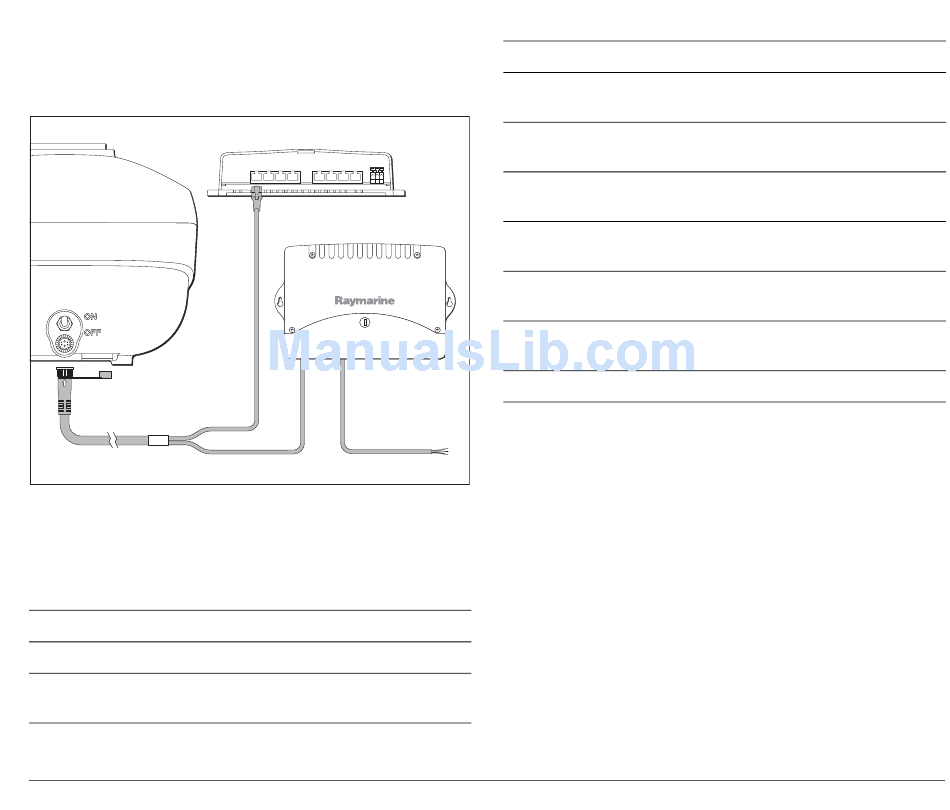

The digital radar scanner connects to the SeaTalk
dedicated digital radar cables
Radar
Maximum quantity of Radar scanners
The G-Series system will support up to 2 digital rader scanners.
Digital radar cables
The following cables are used to connect the digital radar scanner:
Cable Part No
Digital cable
5 m (16.4 ft) A55076
Digital cable
hs
switch using
HS switch
VCM100
Power
D10202-1
Notes
Cable Part No
10 m (32.8 ft) A55077
Digital cable
15 m (49.2 ft) A55078
Digital cable
25 m (82.0 ft) A55079
Digital cable
Digital extension cable
5 m(16.4 ft) A5080
extension cable
10 m (32.8 ft) A55081
extension cable
The maximum cable length including all extensions is 55 m (180 ft)
See also
For more information refer to the installation guide supplied with the
radar scanner.
4.8

GPS Connection

Depending upon your GPS type it may be either connected via
SeaTalk or NMEA 0183.
For SeaTalk connection refer to:
• SeaTalk & Alarm connection on page
• Separate instructions supplied with your GPS unit.
For NMEA 0183 connection refer to:
• NMEA 0183 connections on page 51
• Separate instructions supplied with your GPS unit.
49
Notes
Required if you wish to extend
the cable distance.
50.
Chapter 4: Cables and connections
