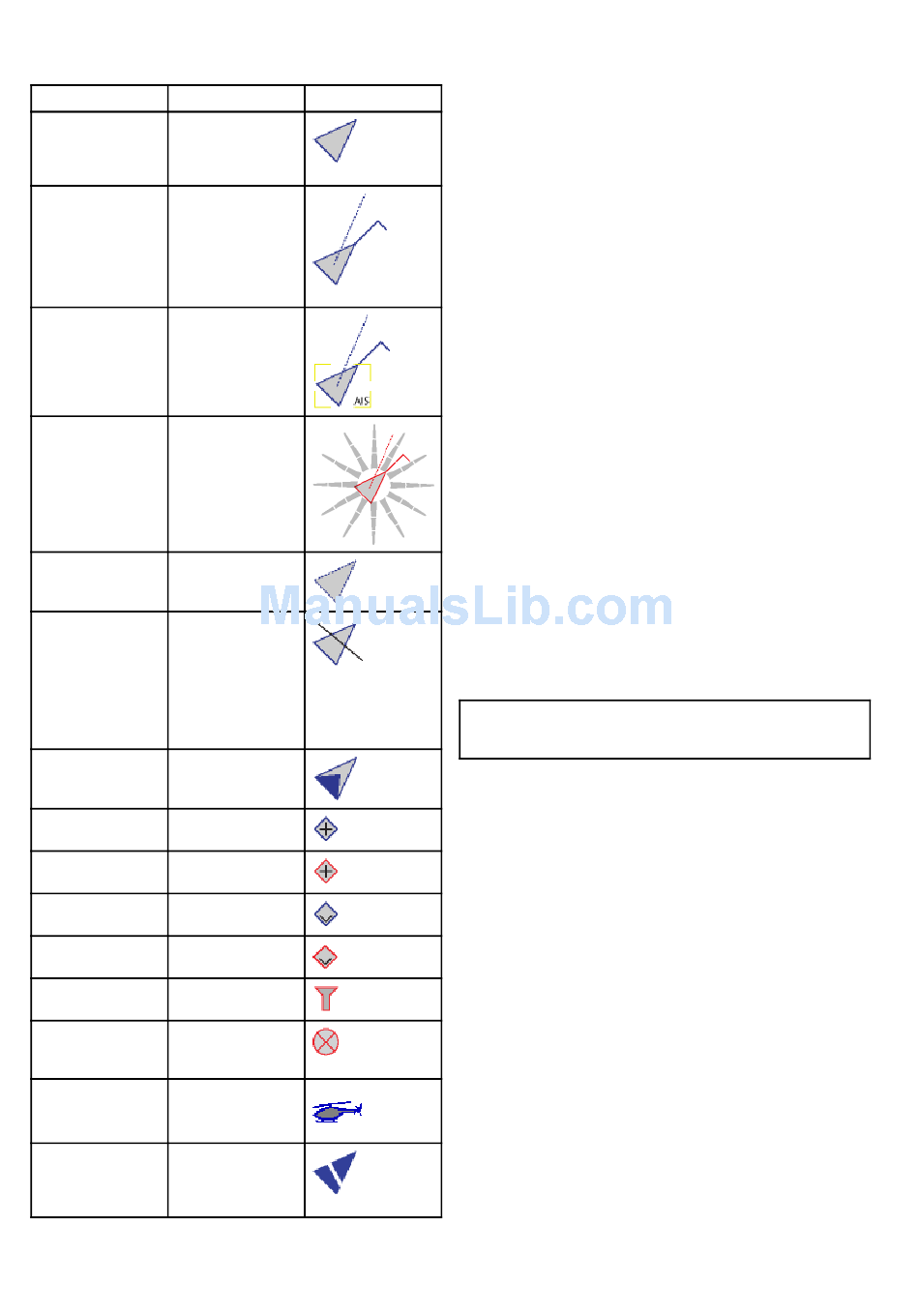

13.8 AIS target symbols

Your multifunction display shows a range of symbols to represent
the different types of AIS target.
Target type Description
Transmitting target Target is moving or at
anchor (Target is not
activated, dangerous
or lost).
Activated target Target activated —
that is, AIS vector
displayed. Vector
line (optional) shows
predicted distance
travelled within a given
time.
Selected target Target selected with
cursor. Can view
detailed data.
Dangerous target Targets within specified
distance (CPA) or time
(TCPA). Dangerous
target alarm sounds if
enabled. Target red
and flashing.
Uncertain target Calculated CPA / TCPA
value uncertain.
Lost target When the signal of
a dangerous target
not received for 20
seconds. Target
in latest predicted
position. Alarms
sounds if enabled.
Target flashes.
Buddy target Target has previously
been added to the
Buddy List.
Aid To Navigation AToN target is ON
(AToN) target (Real) position.
Aid To Navigation AToN target is OFF
(AToN) target (Real) position.
Aid To Navigation AToN target is ON
(AToN) target (Virtual)
position.
Aid To Navigation AToN target is OFF
(AToN) target (Virtual) position.
Land base station Land base station
target target is ONLINE.
Search and rescue SARTS target
transponders (SARTS)
target
Search and rescue SARS target
aircraft (SARS) target
Military and law Only displayed when
enforcement target
connected to approved
STEDS-EAIS AIS
hardware.
122
13.9 Displaying detailed AIS target
information
From the chart or radar application:
Symbol
1. Select an AIS target.
The AIS target context menu is displayed.
2. Select View Full AIS Data.
AIS Data
The table below shows the AIS target information which if
available will be displayed on the multifunction display:
• Type
• Status
• Destination
• Last Seen
• ETA
• MMSI
• Call Sign
• IMO No.
• Length
• Beam
• Draught
• Heading
• ROT
• Position
• COG
• SOG
• CPA
• TCPA
Note: Available data is dependant upon what information is
being transmitted from the target vessel and the type of AIS
unit connected to your system.
