display, ensuring that the clips along the bottom edge of the
bezel latch into position.
4. Ensure the bezel is correctly aligned with the display, as
shown.
5. Apply firm but even pressure to the bezel along the:
i. Outer edges - work from the sides upwards and then
along the top edge, to ensure that it clips securely into
position.
ii. Inner edges - particularly along the chart card door edge,
to ensure that the bezel sits flat.
6. Check that the Power button and chart card door are free
to operate.

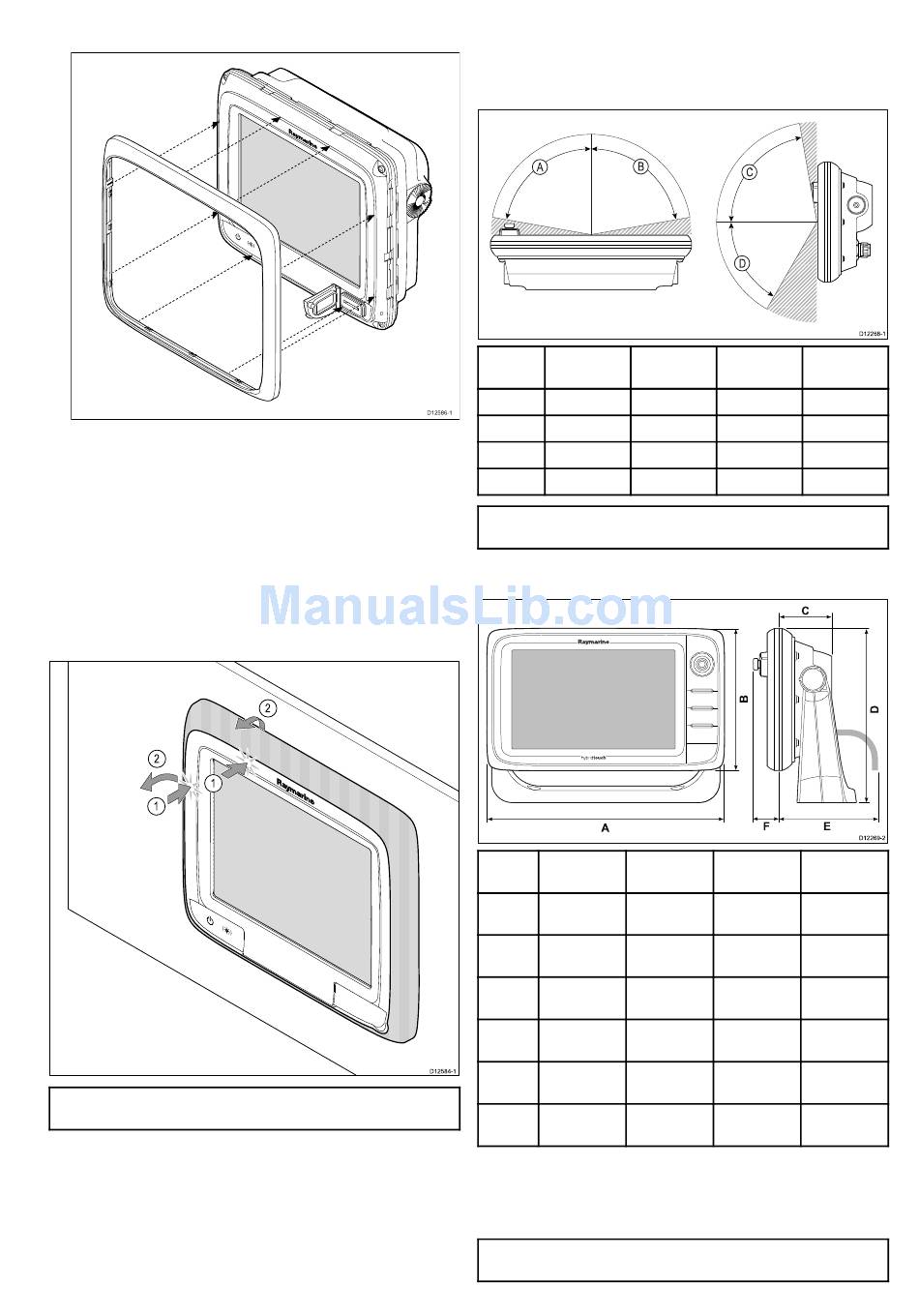

Removing the front bezel
Before proceeding ensure the memory card slot door is open.
2 2 2 2
1 1
1 1 1 1
Important: Use care when removing the bezel. Do not use
any tools to lever the bezel; doing so may cause damage.
1. Place both your thumbs on the upper left edge of the display,
at the positions indicated in the diagram above.
2. Place your fingers underneath the bezel, at the positions
indicated in the diagram above.
3. In a single firm motion, apply pressure to the outer edge of
the display with your thumbs and pull the bezel towards you
using your fingers.
The bezel should now come away from the display easily.
Location and mounting
D12586-1
2 2 2 2
D12584-1
5.3 Mounting - New c Series and New
e series
Viewing angle
B
A
e95 / e97 /
e7 / e7D
c95 / c97
A
70º 80º
B 70º 80º
C 70º 80º
D 50º 60º
Note: The angles stated are for a contrast ratio of equal to or
greater than 10.
Product dimensions
A
e95 / e97 /
e7 / e7D
c95 / c97
A 233 mm 290 mm
(9.17 in.) (11.42 in.)
B 144 mm 173 mm
(5.67 in.) (6.81 in.)
63.5 mm 64 mm
C
(2.5 in.) (2.52 in.)
D 180 mm 212 mm
(7.09 in.) (8.35 in.)
E 160 mm 160 mm
(6.29 in.) (6.29 in.)
F 30 mm 31.4 mm
(1.18 in.) (1.24 in.)
Removing the rear bezel
You must remove the rear bezel before surface mounting the
display.
Note: These steps do not apply to the e165 as it does not
require a rear bezel.
C
D
D12268-1
e125 / e127 /
e165
c125 / c127
80º 80º
80º 80º
80º 70º
60º 70º
C
F E
D12269-2
e125 / e127 /
e165
c125 / c127
354 mm 426 mm
(13.94 in.) (16.8 in.)
222 mm 281.4 mm
(8.74 in.) (11.1 in.)
69 mm 68.4 mm
(2.72 in.) (2.7 in.)
256.5 mm 295 mm
(10.1 in.) (11.6 in.)
160 mm 176.6 mm
(6.29 in.) (7 in.)
32 mm 33 mm
(1.26 in.) (1.3 in.)
