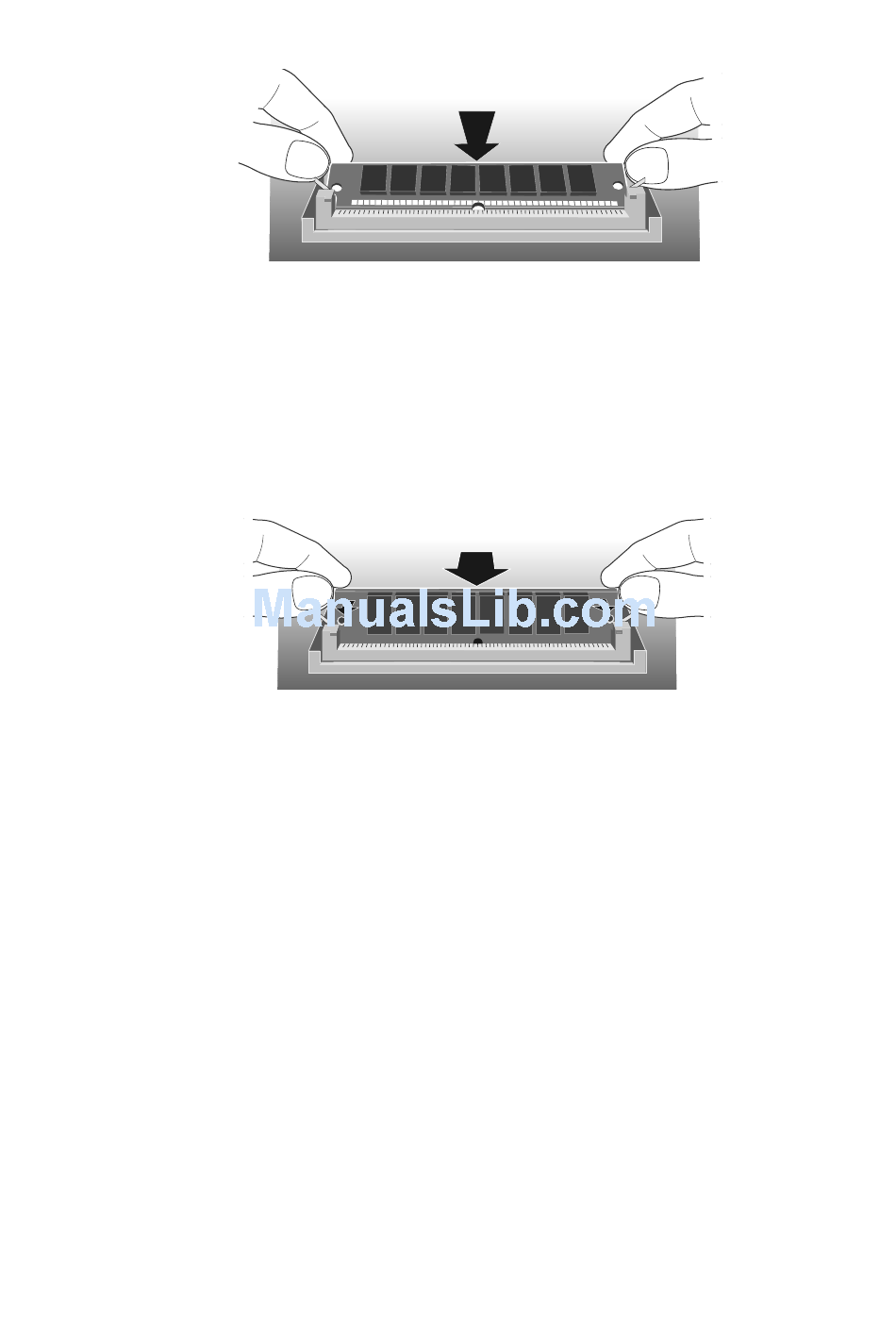

Figure 3-6 Positioning the SIMM
4.
Lower the SIMM into the socket and ensure that it is properly
seated.
5.
Pushing gently on the top corners, rotate the SIMM towards the
vertical. It should clip into place by the time it stands upright. Do
not use excessive force.
If the SIMM will not rotate easily, remove it and start again.
Figure 3-7 Securing the SIMM in place
6.
If the SIMM is properly located, it should remain in position held
by the securing clips and with a small plastic lug through the holes
on either end.
Once you have installed all the SIMMs you can fit the memory card into
your system.
U p g r a d i n g Y o u r S y s t e m
OWNER'S HANDBOOK 3-9
