FIGURE:

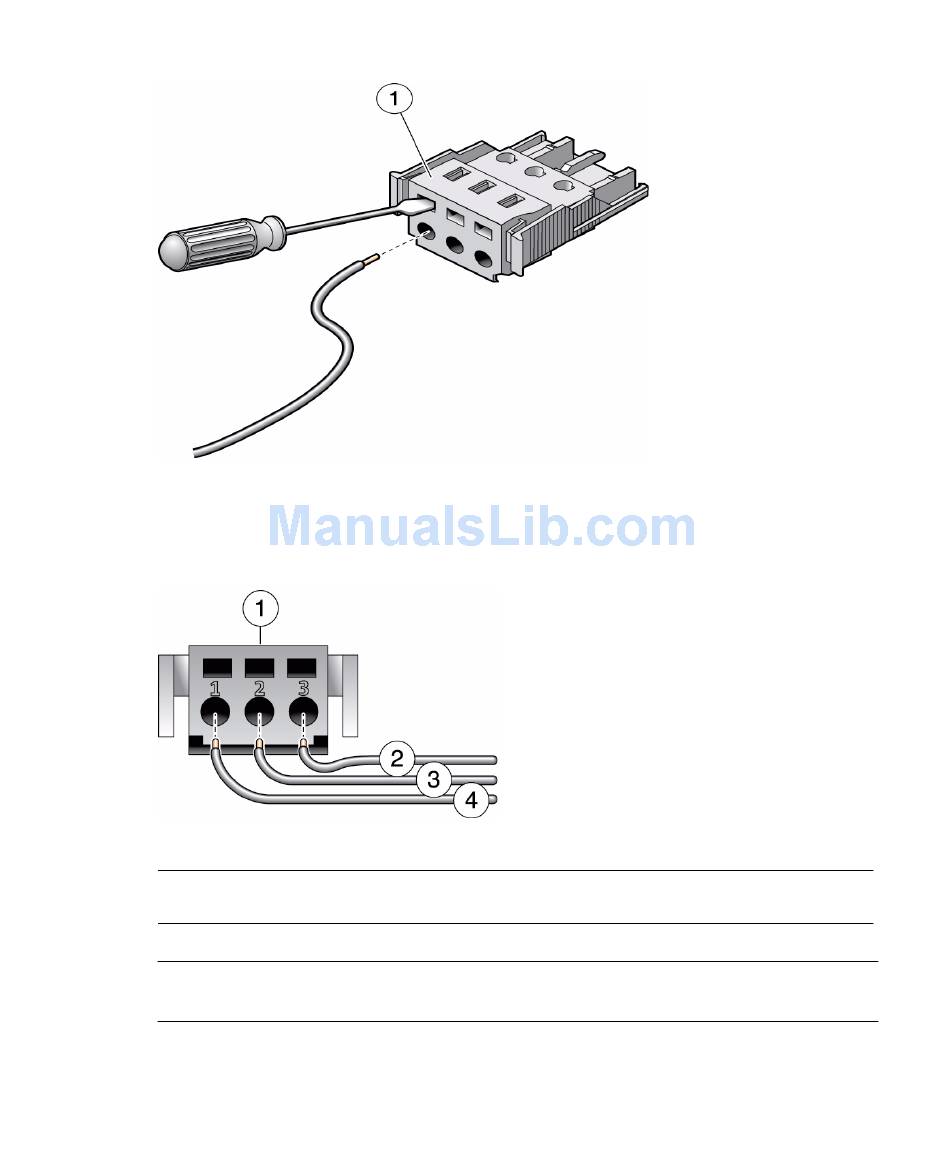

6. Feed the exposed section of the appropriate wire into the round hole in the DC
input plug.
FIGURE:
Figure Legend
1
2
Note – If you need to remove a wire from the DC input plug, insert the cage clamp
operating lever or a small screwdriver as and pull the wire from the DC input plug.
7. Release the lever or remove the tool to secure the wire into the connector.
88
Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010
Opening the Cage Clamp Using a Screwdriver
Connector Wiring Assignments
Top of connector
From -48V or -60V Return
3
From chassis ground (green/yellow)
4
From -48V or -60V
