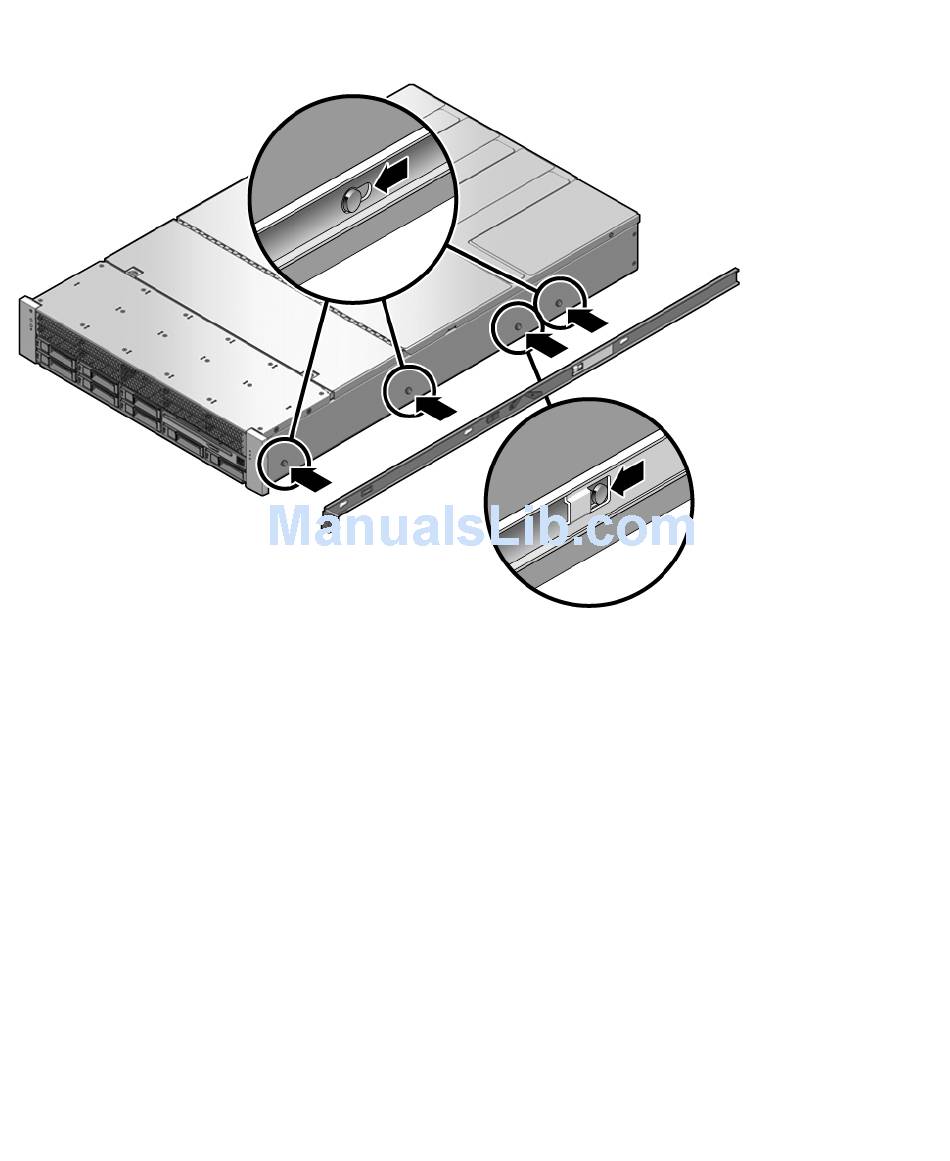

Attaching an Express Rail Mounting Bracket to the Chassis
FIGURE:
b. Ensure that the heads of the four locating pins protrude through the keyed
c. Verify that all four locating pins are trapped in the keyed openings and that
3. Attach the second mounting bracket to the left side of the server chassis.
4. Orient slide rails, ensuring that the ball bearing tracks (labeled FRONT) are
forward.
74 Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010
openings in the mounting bracket. Slide the mounting bracket toward the
front of the chassis until the bracket locks into place with an audible click.
the third from the front locating pin has engaged the mounting bracket lock.
