Oracle Sun SPARC Enterprise T5140 Installation Manual page 35

■
6. Attach a slide rail to the right front rack post.
a. Loosely attach the front of a slide rail to the right front rack post using two
Note – Do not tighten the screws yet.
FIGURE:
b. Adjust the length of the slide rail by sliding the rear mounting flange to
c. Loosely attach the rear of the slide rail to the rear rack post with two screws.
7. Attach the second slide rail to the left rack posts in a similar manner.
Do not tighten the screws.
8. Use the slide rail spacing tool to adjust the distance between the slide rails.
24 Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010
If your rack does not have threaded mounting holes, the mounting screws are
secured with a caged nut.
screws.

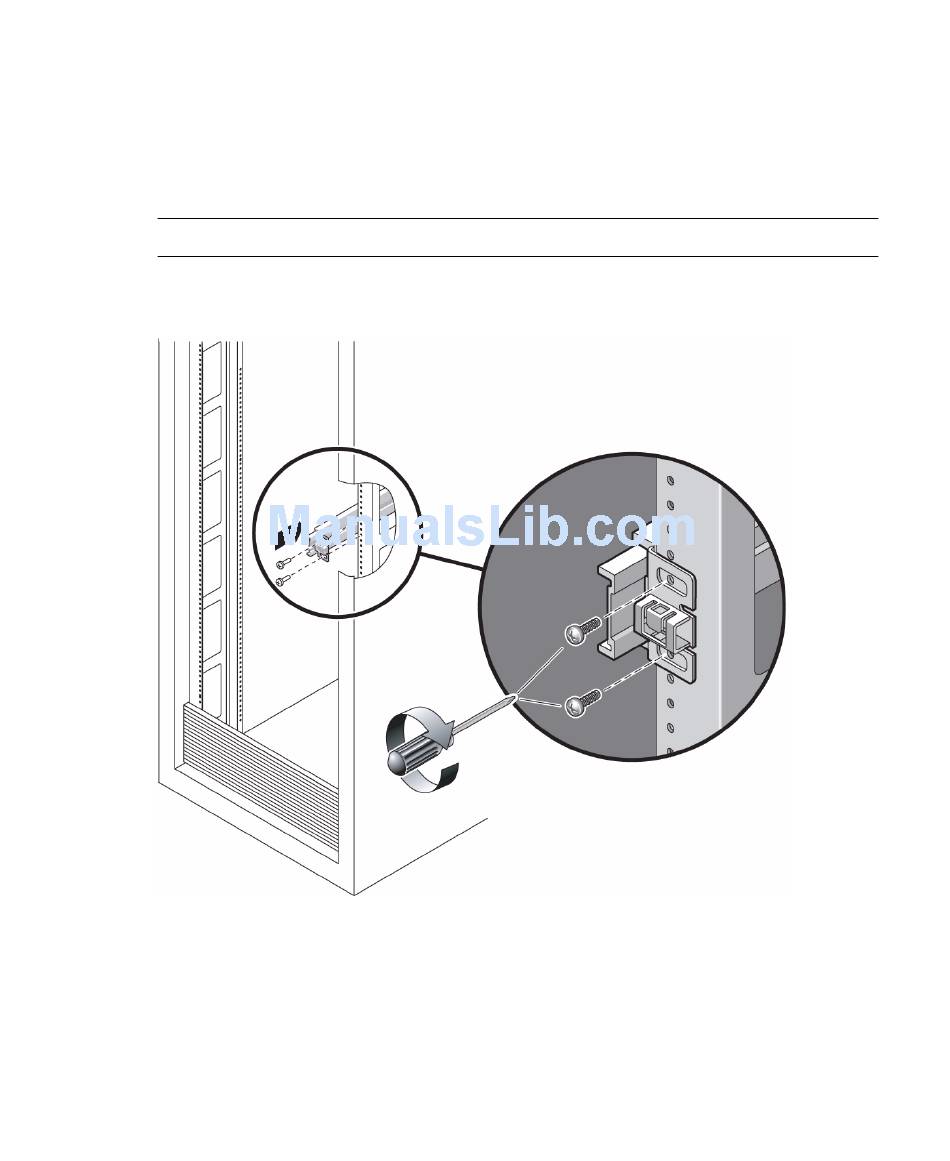

Mounting a Slide Rail (Either Server)
reach the outside edge of the rear rack post.
