Note – When you are finished connecting the cables to the server, ensure that the
server can slide smoothly in and out of the rack without binding or damaging the
cables.
"Connect the Service Processor Serial Management Port" on page 35
■
"Connect the Service Processor Network Management Port" on page 36
■
"Connect the Ethernet Network Cables" on page 37
■
"AC Power Cable Notes" on page 38
■
Related Information
"Verify the Operation of the Slide Rails and the CMA" on page 32
■
▼ Connect the Service Processor Serial
Management Port

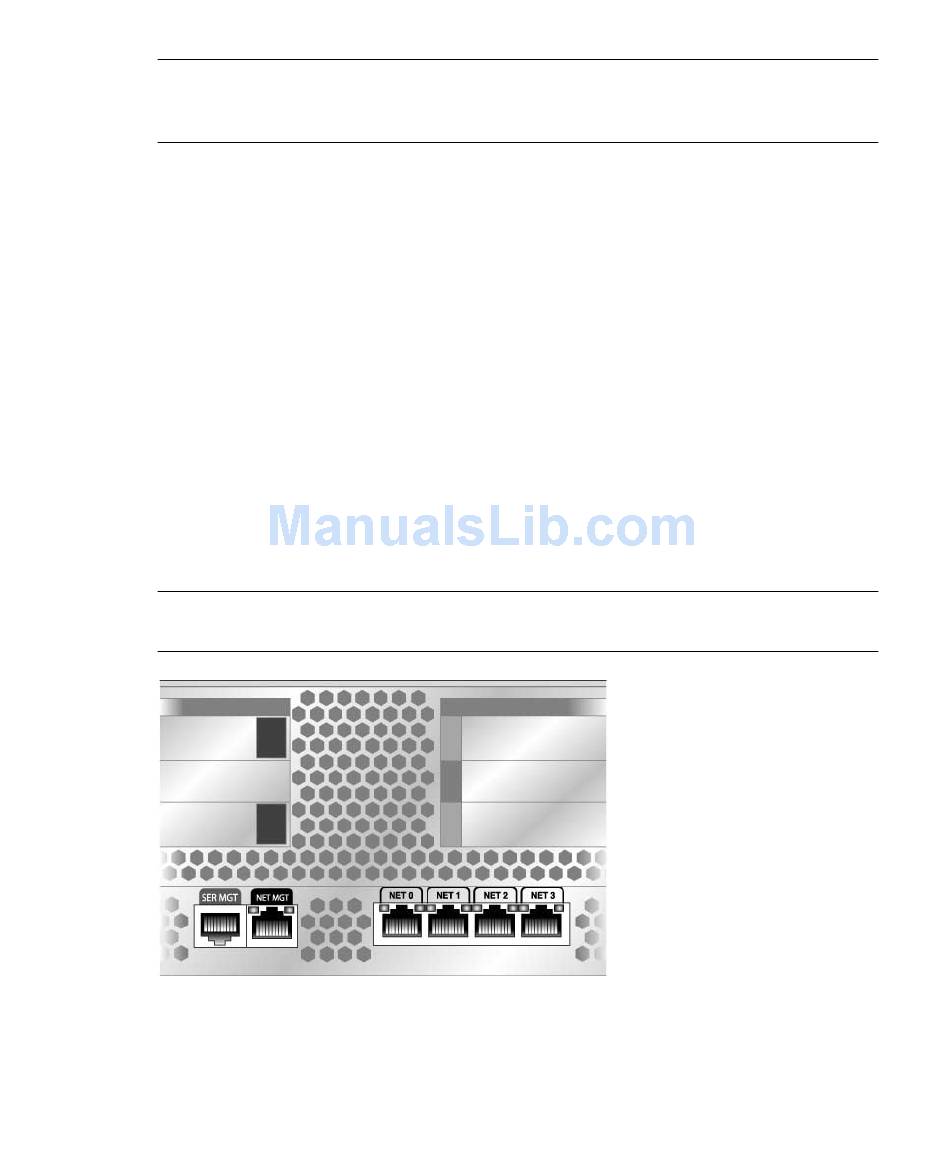

The service processor serial management port is marked SER MGT. This port is the
farthest left RJ-45 port on the rear panel.
Note – The cable and DB-9 RJ-45 adapters are for the host serial port, and not for the
server SER MGT port.
Use this port for server management. This port is needed to set up the service
processor network management port, as detailed in
Network Management Port" on page
34 Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010
"Enable the Service Processor
47.
