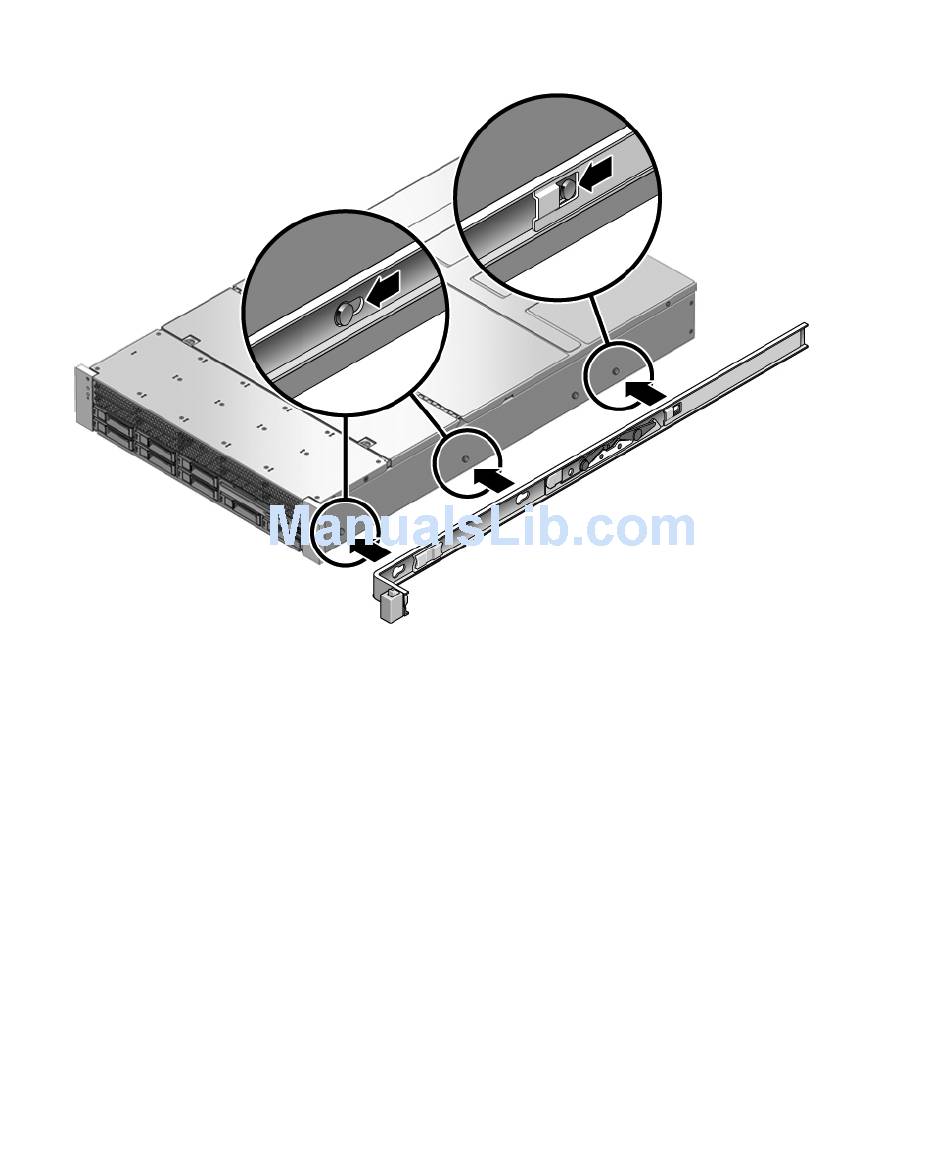

Attaching a Mounting Bracket to the Chassis (Either Server)
FIGURE:
b. Ensure that the heads of the locating pins protrude though the keyed
c. Verify that all locating pins are trapped in the keyed openings and that the
3. Attach the second mounting bracket to the left side of the chassis.
4. Determine which rack hole numbers to use when attaching the slide rails to the
rack posts.
If the server is two rack units high (2U), the slide rails occupy the lower half of the
2U space.
5. Determine which screws you will use to mount the slide rails.
■
openings in the mounting bracket. Pull the mounting bracket toward the
front of the chassis until the bracket locks into place with an audible click.
correct locating pin has engaged the mounting bracket lock.
If your rack has threaded mounting holes in the rack posts, determine whether
the threads are metric or standard. Select the appropriate screws from the
package included in the mounting kit.
