Managing Cables With the CMA

Managing the cables with the CMA is the same for both servers.
"Secure the Server Cables in the CMA" on page 39
■
"Dismounting the Servers" on page 40
■

▼ Secure the Server Cables in the CMA

1. Once the server cables are connected and placed inside the CMA, open the
velcro cable straps and wrap the straps around the CMA securing the cables
inside the CMA.
FIGURE:
Caution – Verify the operation of the slide rails and CMA, and cable service loops.
2. Perform the steps in the following procedure again before continuing:
the Operation of the Slide Rails and the CMA" on page
38 Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010

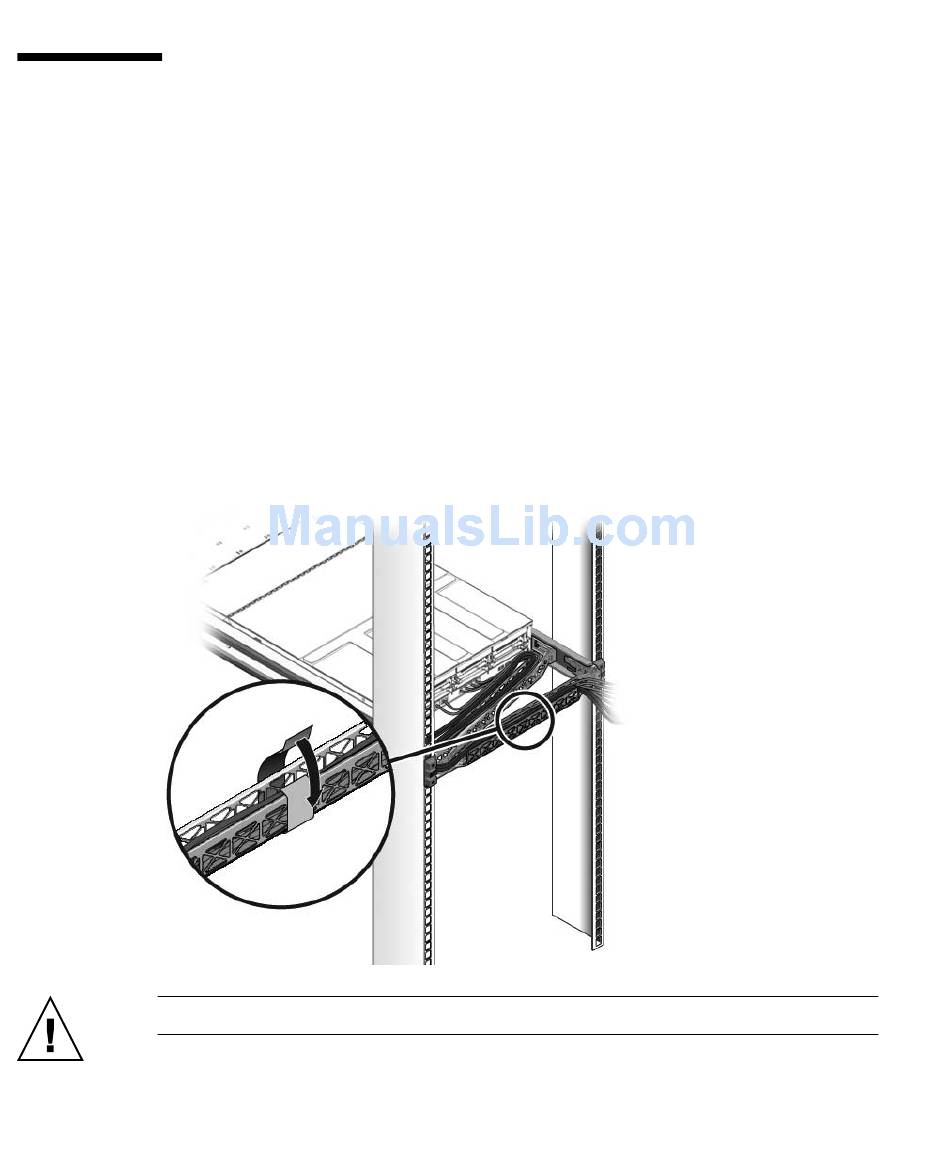

Securing the Server Cables With the CMA and Velcro Straps (Either Server)
"Verify
32.
