Member. This extension attaches to the right mounting bracket. The larger
extension is called the CMA Connector for Outer Member, and attaches to the
right sliding rail.

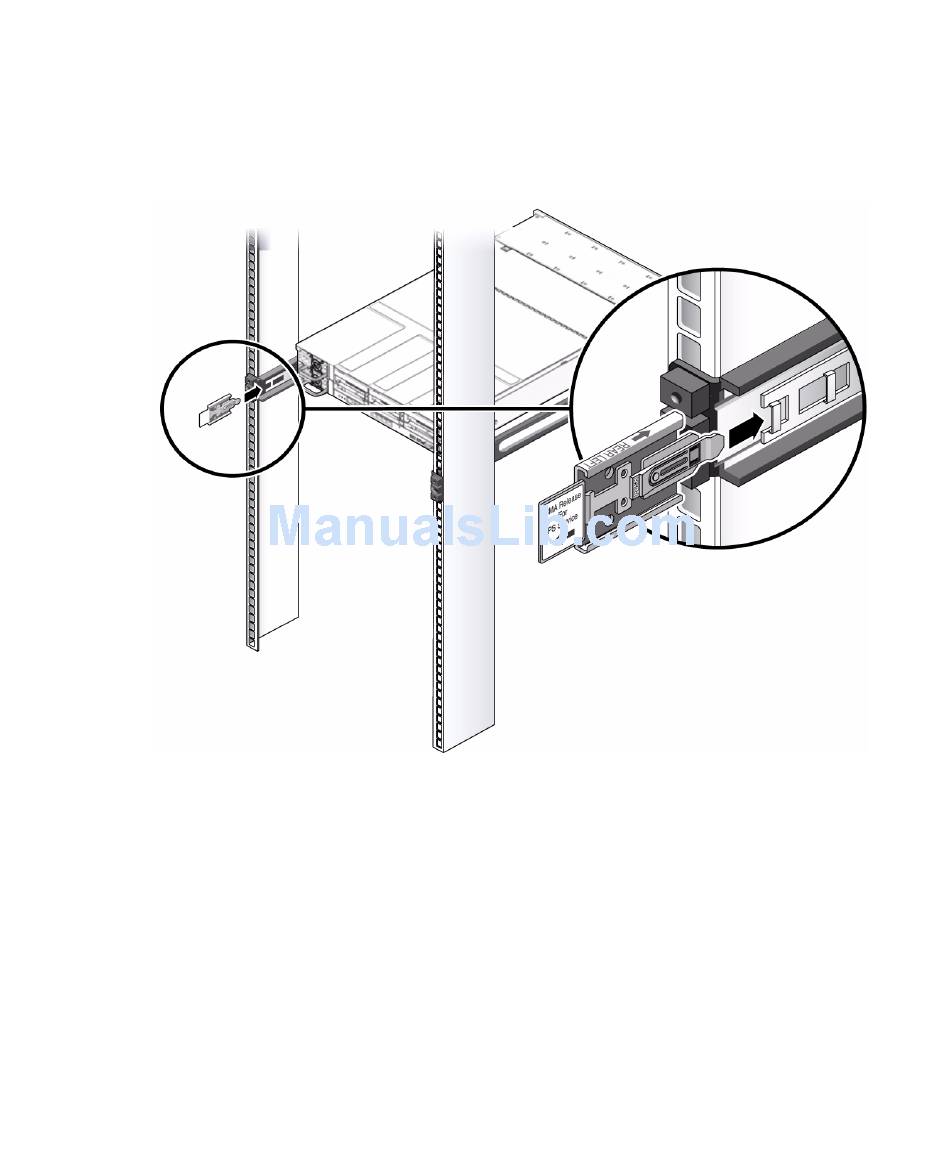

FIGURE:
3. Insert the smaller extension into the clip located at the end of the mounting
bracket.
Slide the smaller extension into the square hole on the middle-in-width of the clip
that is located at the end of the mounting bracket.
28
Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010
Inserting the CMA Rail Extension Into the Rear of the Left Slide Rail (Either
Server)
