3. Slowly pull the server out of the rack until the slide rails reach their stops.
FIGURE:
4. Inspect any attached cables for binding or kinks.
5. Verify that the CMA extends fully and does not bind in the slide rails.
6. Verify that the server extends fully and locks in the maintenance position.
The server should stop after approximately 15 inches (40 cm) of travel.
7. Pull both slide rail release buttons toward you simultaneously and slide the
server back into the rack.
The server should slide smoothly into the rack without binding.
32
Sun SPARC Enterprise T5140 and T5240 Servers Installation Guide • December 2010

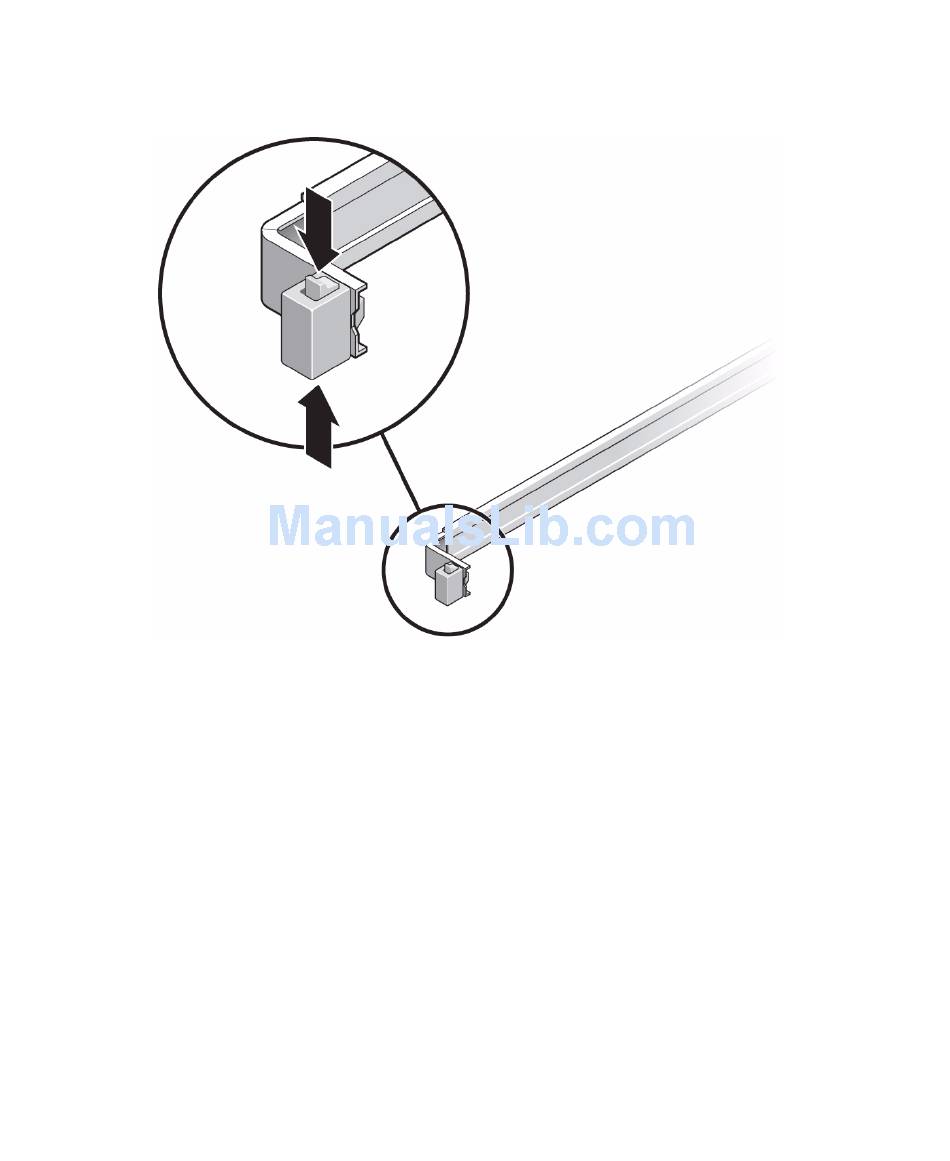

Unlocking the Slide Rail Assembly (Either Server)
