Displaying settings for 5.1 surround mapping (X.linkLE)
Matrox Axio LE lets you display 5.1 surround mapping settings that show which
channels are used to output your audio when playing back 5.1 surround tracks in
your sequence.
° To display your 5.1 surround mapping settings:
Choose Sequence > Sequence Settings and click the Playback
1
Settings
2
Click the Audio Output tab, then click the 5.1 Surround Mapping tab.

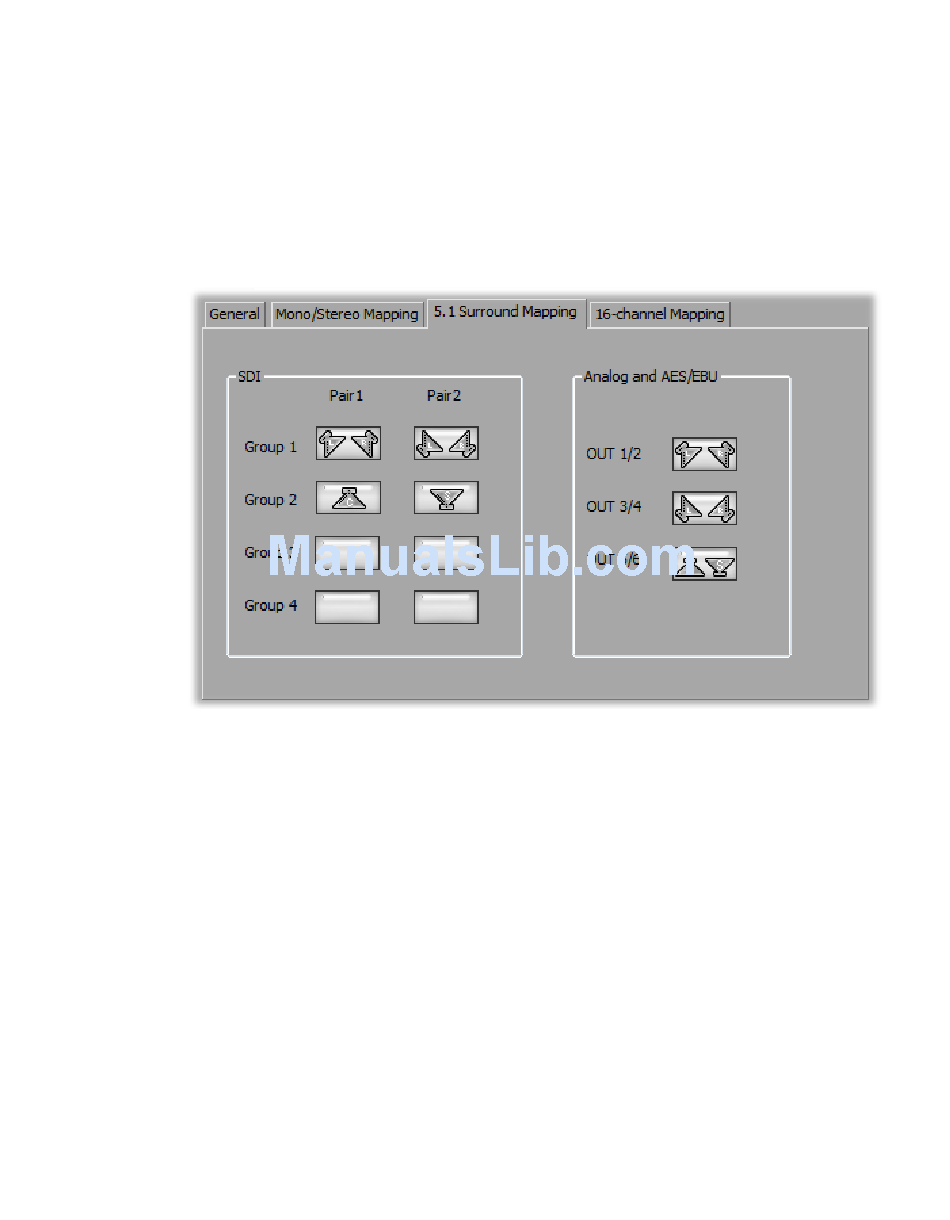

This page shows that when playing back 5.1 surround tracks, audio is output as
follows:
• Front left and right surround channels are output to the first embedded SDI
audio output pair and the first analog audio and AES/EBU output pairs
(ANALOG AUDIO OUT 1 and OUT 2 and AES/EBU OUT 1/2) on
X.linkLE.
• Rear left and right surround channels are output to the second embedded SDI
audio output pair and the second analog audio and AES/EBU output pairs
(ANALOG AUDIO OUT 3 and OUT 4 and AES/EBU OUT 3/4) on
X.linkLE.
• The center surround channel is output to the third embedded SDI audio
output pair, and the subwoofer channel is output to the fourth embedded SDI
audio output pair. Both the center and subwoofer surround channels are
output to the third analog audio and AES/EBU output pairs (ANALOG
AUDIO OUT 5 and OUT 6 and AES/EBU OUT 5/6) on X.linkLE.
button.
Defining your sequence settings
69
