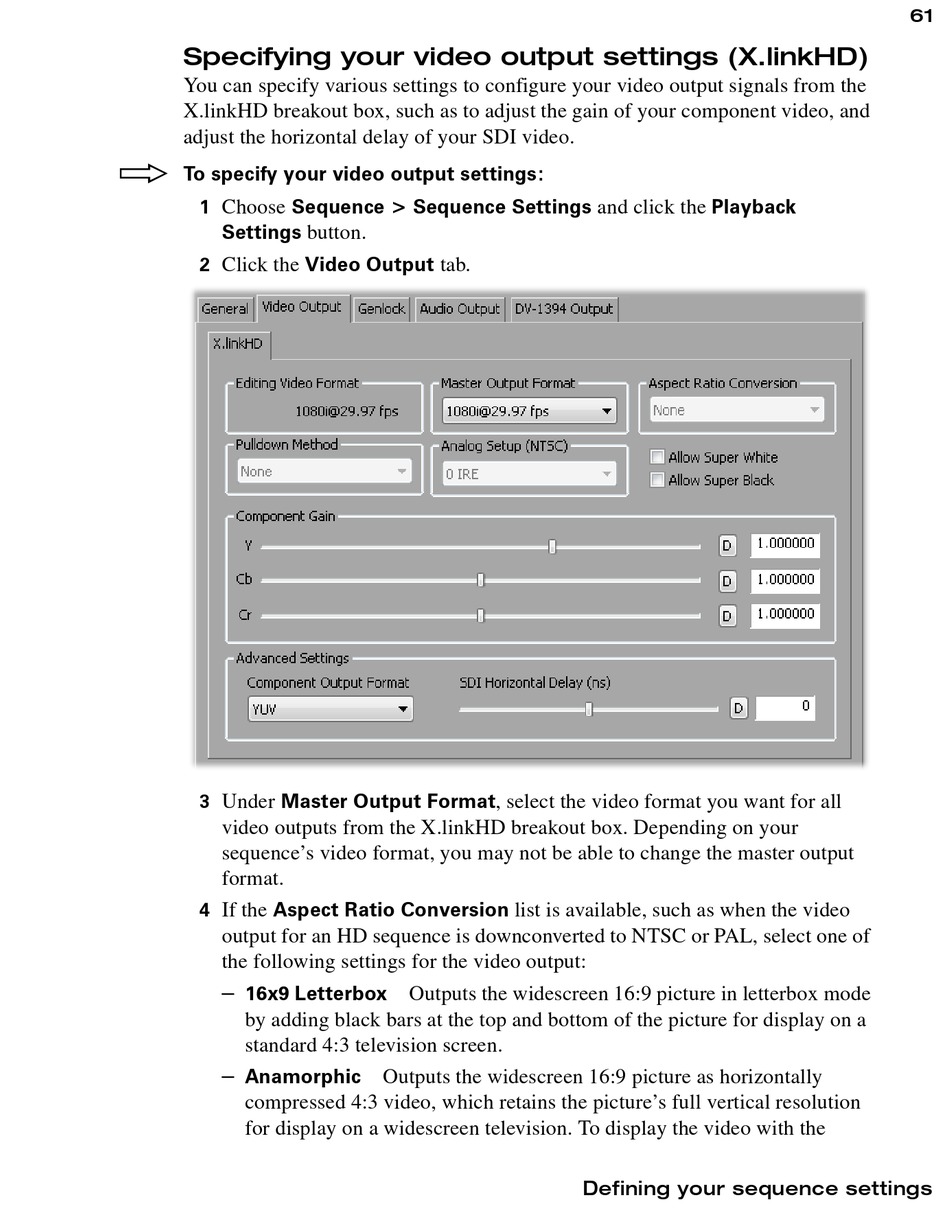

Specifying your video output settings (X.linkHD)
You can specify various settings to configure your video output signals from the
X.linkHD breakout box, such as to adjust the gain of your component video, and
adjust the horizontal delay of your SDI video.
° To specify your video output settings:
Choose Sequence > Sequence Settings and click the Playback
1
Settings
Click the Video Output tab.
2
Under Master Output Format , select the video format you want for all
3
video outputs from the X.linkHD breakout box. Depending on your
sequence's video format, you may not be able to change the master output
format.
If the Aspect Ratio Conversion list is available, such as when the video
4
output for an HD sequence is downconverted to NTSC or PAL, select one of
the following settings for the video output:
16x9 Letterbox
$
by adding black bars at the top and bottom of the picture for display on a
standard 4:3 television screen.
Anamorphic
$
compressed 4:3 video, which retains the picture's full vertical resolution
for display on a widescreen television. To display the video with the
button.
Outputs the widescreen 16:9 picture in letterbox mode
Outputs the widescreen 16:9 picture as horizontally
Defining your sequence settings
61
