Specifying your audio output settings (X.linkLE)

Matrox Axio LE lets you customize your audio output settings, such as to adjust
the volume of your analog audio output. You can also display audio mapping
settings that show which channels are used to output your audio when playing
mono, stereo, 5.1 surround, and 16-channel audio tracks.
° To specify your audio output settings:
Choose Sequence > Sequence Settings and click the Playback
1
Settings
Click the Audio Output tab, then click the General tab.
2

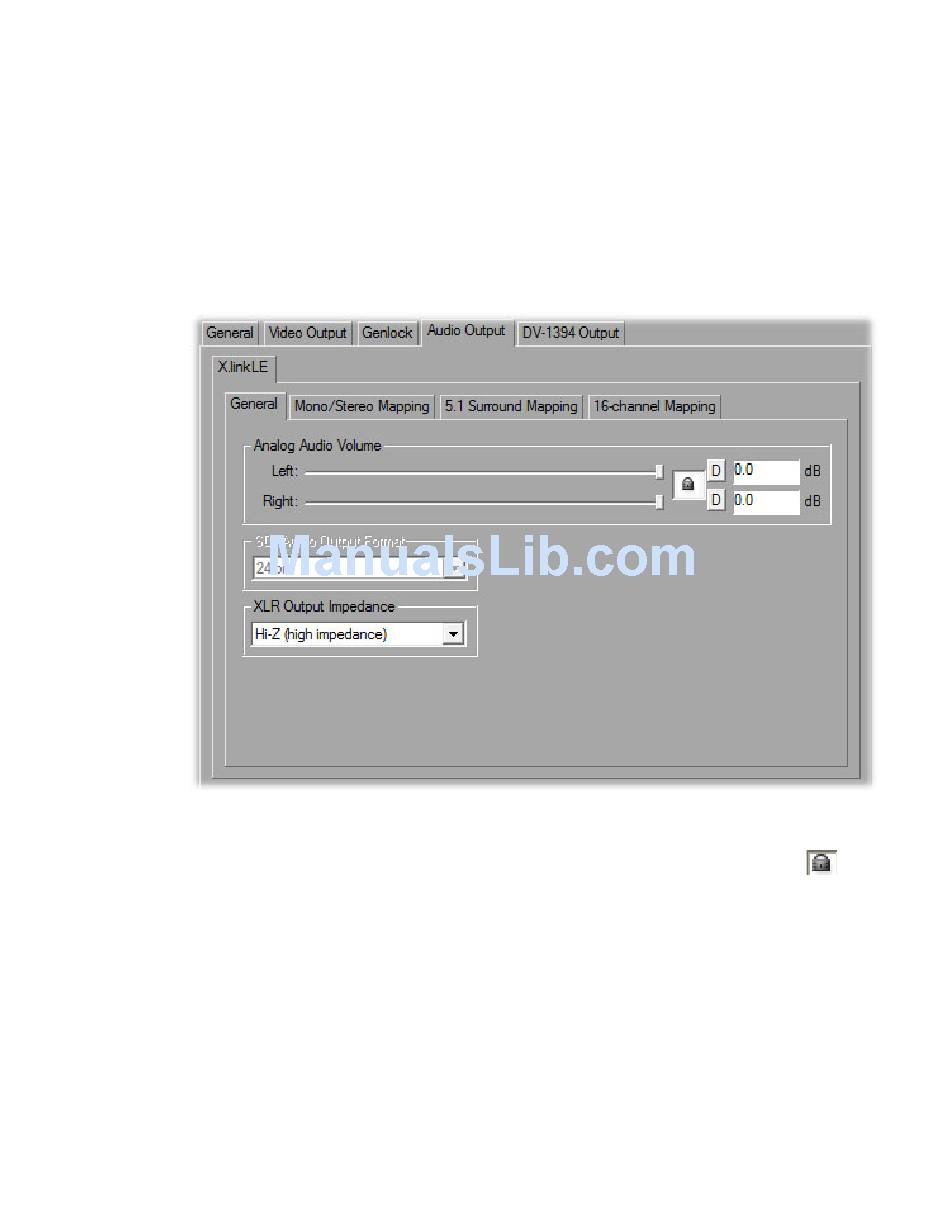

Under Analog Audio Volume , drag the sliders to adjust the volume of your
3
analog audio output. By default, the sliders are locked so that they move
together. To move each slider independently, click the lock button (
disable it. The Left slider adjusts the analog audio outputs 1, 3, and 5. The
Right slider adjusts the analog audio outputs 2, 4, and 6.
From the XLR Output Impedance list, select the impedance setting you
4
want for your balanced analog XLR audio output, such as Hi-Z (high
impedance)
¦ Note On Matrox Axio LE, the bit depth for your embedded SDI audio is
set to 24-bit (as shown under SDI Audio Output Format ).
Click OK to save your settings and return to the Sequence Settings dialog
5
box.
button.
.
